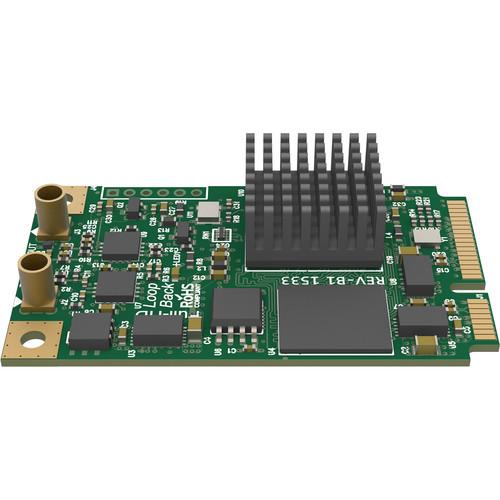

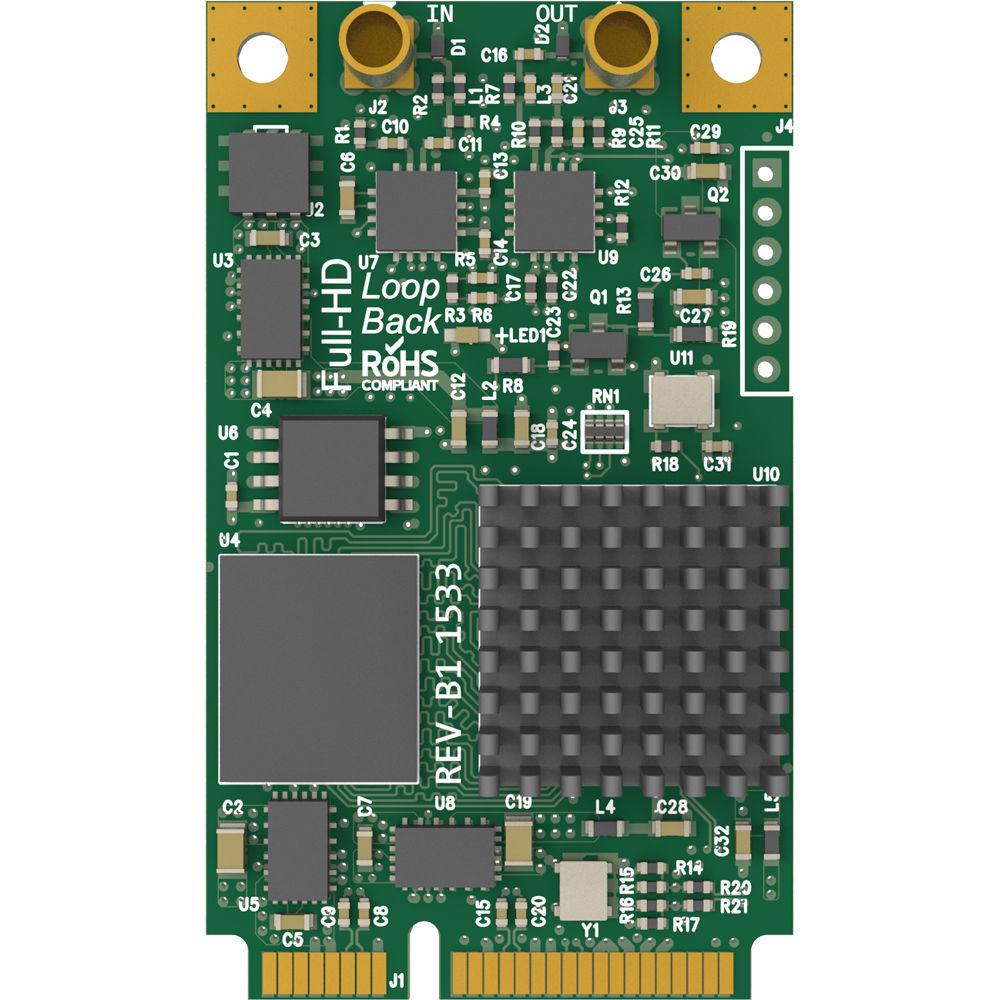

Product description The Pro Capture Mini SDI SH Capture Card from Magewell is a mini PCIe add-on card that allows for capturing a single channel of SD/HD/3G-SDI and SD/HD/3G-SDI loopback. The card supports extraction of SMPTE 352 payload identifier and is capable of performing various video processing features, including cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition. - SDI Features
-
- Integrated cable equalizer supporting cable lengths up to 755' for HD signals
- Supports SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
- Supports 2K (2048 x 1080) mode
- Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Supports 10/12-bit color depth
- Support for up to 8 (mono) audio channels at 48 kHz (channels 1 to 8 from the 16 available in the SDI spec)
- Supports extraction of audio formation information and channel status data
- Limited support of 3Gb-DS (only the first stream can be captured)
- Limited support for capture of the first link of dual link interfaces (YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit is captured as 4:2:2; RGB 4:4:4: R/B sub-sampled)
- Video Processing Features
-
- Two video processing pipelines with 360 MP/s processing bandwidth for each one
- Full 10-bit video processing
- Wave, blend top and bottom field, top field only, and bottom field only de-interlacing modes
- Auto or manual selection of input and output aspect ratio
- Three aspect ratio conversion modes (ignore (anamorphic), cropping or padding (letterbox or pillarbox))
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of output color format, quantization range, and saturation range
- Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Supports limited or full quantization range
- Supports limited, full, and extended gamut saturation range
- Supports PNG OSD image (up to 2048 x 2048)
- Supports dynamic loading of RGBA OSD image via SDK
- Multiple Cards Per System
-
- Supports multiple cards in one system
- On-board rotary switch to set card number, with 16 positions from 0 to F
- System hardware device tree will display 01: Pro Capture AIO when rotary switch is set to 1, and so on
- The video and audio device names displayed in your software will include the card number (set by the rotary switch)
- Multiple Capture Streams
-
- Unlimited capture streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream
- Ultra-Low Latency Support
-
- Latency of 64 video lines
- Partial notification mode in SDK
- Timestamp & AV Synchronization
-
- Hardware-based 100ns high-resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
- Video Output SG-DMA
-
- Supports auto detection of Intel tiled GPU surface
- Supports DirectGMA for AMD video adapter chipsets
- Supports GPUDirect for NVIDIA video adapter chipsets
- 400 MB/s per channel DMA bandwidth in PCIe 2.0 system and 200 MB/s per channel DMA bandwidth in PCIe 1.0 system
- SDK
-
- Pro Capture SDK for DirectShow for easy integration (Windows)
- Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
- Windows Driver Tweaks
-
- All options can be controlled by three levels of registry key: global level, product level, and device level
- Video, audio, crossbar filter names can be customized via registry keys
- Firmware Upgrade
-
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown when it is not in use
- If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version (this function is only available for firmware version 1.21 and above)
In the Box Magewell Pro Capture Mini SDI SH Capture Card (1-Channel) MMCX to BNC Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell Pro Capture Mini SDI SH Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell Pro Capture Mini SDI SH Specs | Input Interface | 1 x MMCX (SD/HD/3G SDI) | | Output Interface | PCIe Gen2 x1
MMCX (SDI loopback) | | Supported OS | Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2, supports x86, x64, and arm architecture)
Mac OS X | | Supported APIs | Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA | | Supported Software | VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software | | Video Output Format | Supports up to 2048 x 2048 output resolutions
Supports output frame rates up to 144 fps (actual output frame rate can be limited by PCIe bandwidth and image resolution)
Supports 4:2:0 8-bit output formats (NV12, I420, YV12)
Supports 4:2:2 8-bit output formats (YUY2, YUYV, UYVY)
Supports 4:4:4 8-bit output formats (V308, IYU2, V408, BGR24, BGR32)
Supports 4:4:4 10-bit output formats (V410, Y410)
More output formats are supported via Pro Capture SDK for DirectKS | | Video Output SG-DMA | 400 MB/s per channel DMA bandwidth in PCIe 2.0 system
200 MB/s per channel DMA bandwidth in PCIe 1.0 system | | LED Indicator | Status LEDs indicate the working state of each channel; idle, input signal locked, memory failed, or FPGA configuration failed | | Power Consumption | Max Current at 3.3 V: Approximately 1 A
Max Power Consumption: Approximately 3.3 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Form Factor | Mini PCIe Add-on Card 1.2 x 2.01" (3.0 x 5.1 cm) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.6 x 7.7 x 1.6" |
