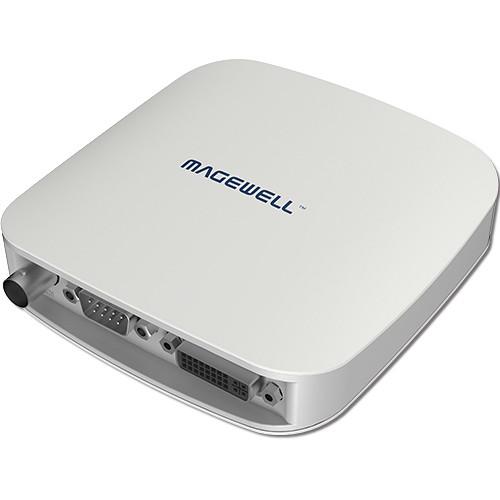

User Manual for Magewell USB Capture AIO Click to enlarge the picture
Contents of the user manual for the Magewell USB Capture AIO
- Product category: Computer Hardware Magewell
- Brand: Magewell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magewell Computer Hardware
|
User manual for the Magewell USB Capture AIO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magewell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magewell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magewell product will considerably shorten its lifespan!
|
Product description The USB Capture AIO from Magewell is a 12-bit audio & video capture/playback device that supports USB 3.0, and allows you to capture 12-bit HDMI or analog audio. In addition, it supports RGB & YCbCr (YUV) color formats, supports customized EDID, and has integrated cable equalizer supporting cable lengths up to 754' for HD-SDI signals. The USB 3.0 host interface is directly compatible with various editing applications such as VLC,VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, and Adobe Flash Media Encoder. It's compatible with Windows and Linux systems. - Input
-
- Auto scan of video input sources when there is no signal input to the currently selected input source
- Manual selection of video input source
- Auto selection of linked (embedded) audio input source when the video input source changes
- Manual selection of audio input source
- Support for input video resolutions up to 2048 x 2160
- VGA & Component
-
- 12-bit ADC
- Support for RGB & YCbCr (YUV) color formats
- Support for Separated sync, Composite sync, SOG (Sync-on-Green), SOY (Sync-on-Luminance)
- Support for DMT, CEA, CVT, GTF video timings
- Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
- Auto detection of RGB & YCbCr color formats
- Auto or manual sampling phase adjustment
- Auto horizontal alignment
- Support for customized video timings
- Support for customized video resolutions for CVT/GTF timings
- HDMI
-
- 225MHz HDM receiver
- Adaptive HDMI equalizer support for cables lengths up to 98’ (30m)
- Support for customized EDID
- Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut Info Frames
- Full colorimetric support
- Support for 8/10/12-bit color depths
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for up to 2-channel IEC60958 audio streams
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
- SDI
-
- Integrated cable equalizer supporting cable lengths up to 754’ (230m) for HD-SDI signals
- Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
- Support for 2K (2048 x 1080) mode
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for 10/12-bit color depth
- Support for extraction of SMPTE 352 payload identifier
- Support for up to 8 (mono) audio channels at 48 kHz
- Support for extraction of audio formation information & channel status data
- Limited support of 3Gb-DS: only the first stream can be captured
- Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60, YCbCr 4:4:4 10-bit: captured as 4:2:2, RGB 4:4:4: R/B sub-sampled
- YC & Composite
-
- 12-bit ADC
- Support for NTSC, PAL, and SECAM standards
- Auto detection of video input standard
- Analog Audio
-
- Capture analog audio via 3.5mm unbalanced Line In interface
- Video Processing
-
- Video processing pipelines with 160 Mp/s processing bandwidth
- Video cropping
- Video scaling
- Video De-Interlacing: Weave, blend top & bottom field, top field only, bottom field only
- Video Aspect Ratio Conversion: Auto or manual selection of input aspect ratio, auto or manual selection of capture aspect ratio, three aspect ratio conversion modes - Ignore (Anamorphic), cropping, or padding (Letterbox or Pillarbox)
- Video Color Format Conversion: Auto or manual selection of input color format & quantization range, Auto or manual selection of capture color format, quantization range & saturation range, support for RGB, YCbCr 601, YCbCr 709 color formats, support for limited or full quantization range, support for limited, full & extended gamut saturation range
- Video frame rate conversion
- Vertical flip and mirror
- Multiple Devices on One Computer
-
- Support for connecting multiple USB devices to one system
- Support for setting the device serial number as the device name shown in the system using USB Capture Utility
- SDK
-
- USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
In the Box Magewell USB Capture AIO USB 3.0 Cable DVI to VGA Connector DVI-I to HDMI + Component Breakout DB9 to YC + Composite + Analog Audio + Component Breakout Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell USB Capture AIO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 32110 Specs | Supported OS | Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (Ubuntu 12.04-16.10, CentOS 7)
Mac OS X 10.9-10.11
macOS 10.12 | | Supported APIs | Windows: DirectShow, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA
Mac OS X/macOS: QuickTime, AV Foundation | | Supported Software | VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software | | Input Interface | DVI-I: DVI 1.0, HDMI 1.4a (via breakout cable), VGA (via DVI-to-VGA convertor), Component (via breakout cable)
DB9: YC (S-Video), Composite video, Analog audio (L+R), Component video
BNC: SD/HD/3G SDI | | Host Interface | USB 3.0: Compatible with USB 2.0, compatible with USB 3.1 Gen 1 | | Video Capture Formats | Support for capture resolutions up to 2048 x 2160
Support for capture frame rates up to 120 fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency)
Typical capture frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 (up to 75 fps), 1920 x 1080 RGB24 (up to 60 fps)
Support for 4:2:2 8-bit Capture Format: YUY2, UYVY
Support for 4:4:4 8-bit Capture Format: RGB24, RGB32
The default capture format is YUY2. More capture format can be set using USB Capture Utility | | LED Indicator | Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed. | | Firmware Upgrade | Multiple devices in one system can be upgraded simultaneously | | Power Consumption | 5 V Maximum Current: 1 A
Maximum Power Consumption： 5 W | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Dimensions | 3.8 x 3.8 x 0.9" (98 x 98 x 25 mm) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.6 x 7.8 x 3.6" |
