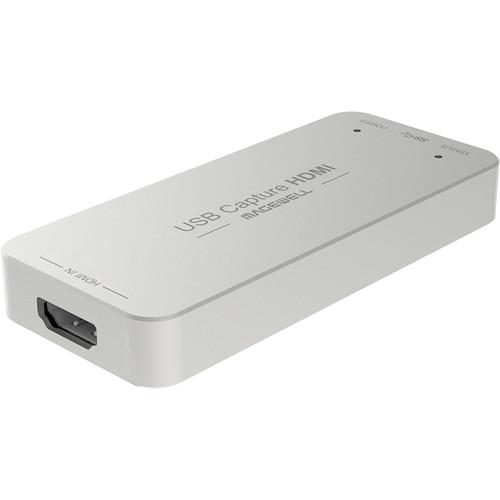

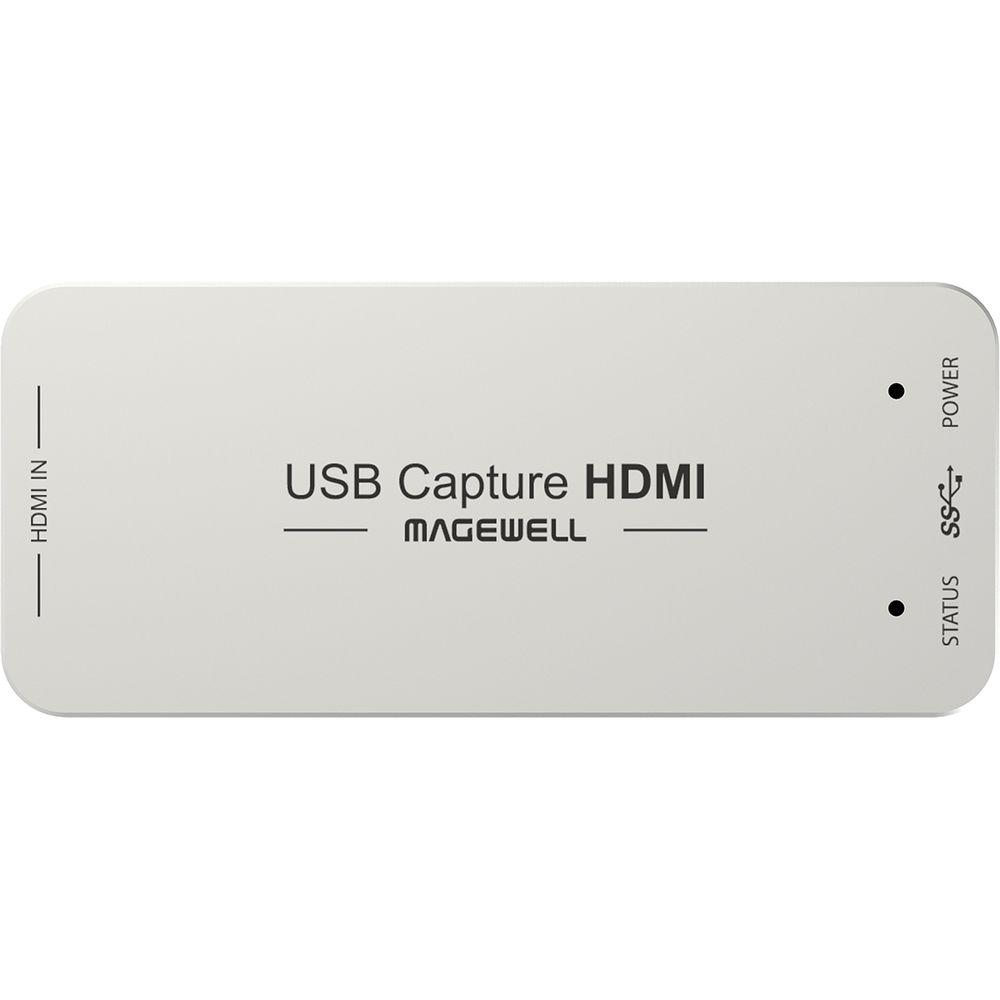

User Manual for Magewell USB Capture HDMI Gen 2 Click to enlarge the picture
Contents of the user manual for the Magewell USB Capture HDMI Gen 2
- Product category: Computer Hardware Magewell
- Brand: Magewell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magewell Computer Hardware
 |
User manual for the Magewell USB Capture HDMI Gen 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magewell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magewell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magewell product will considerably shorten its lifespan!
|

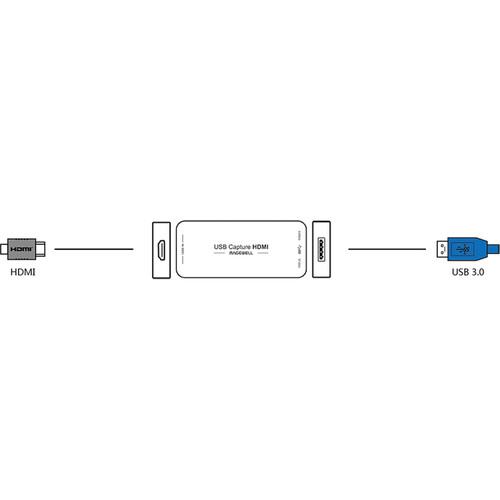

Product description Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions of up to 1920 x 1200 at 60p. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up or down-covert the input signal to the set resolution. It can also perform frame-rate conversion and de-interlacing in real-time with its own hardware, taking the processing load off of your computer's CPU. Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth. - No drivers needed for Windows, Mac, or Linux
- Automatically determines input video format and converts it to the specified output size and frame rate
- Automatically converts input audio formats to 48 KHz PCM stereo audio
- 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied
In the Box Magewell USB Capture HDMI Gen 2 USB 3.0 Cable Limited 1-Year Warranty User Manual PDF 1.4mbubswyaqfubberxdsbxub Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell USB Capture HDMI Gen 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 32060 Specs | Host Interface | USB 3.0, 300-350MB/s throughput
USB 2.0 40MB/s throughput | | HDMI Input | HDMI 1.4a standard, and support up to 1080p/60Hz 8-bit, (RGB, YUV) | | Output Resolutions | Resolutions: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 / 1280×720 / 1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200 / 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540 / 1024×576
Frame-rate: 25/29.97/30/50/59.94/60 fps | | Sampling Rate | HDMI: 165 MHz | | USB Standard | Meets the standards of UVC (USB video class) and UAC（USB audio class） | | Color Space | YUY2, RGB24
Hardware adjustable | | Scaling | Hardware based | | Image Adjustment | Brightness, contrast, hue, saturation | | Operating System | Windows 7 (x86 and x64 version)
Windows Server 2008 R2
Windows 8
Windows 8.1
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above) | | Software Compatibility | Windows Media Encoder (Windows) Adobe Flash Media Live Encoder(Windows, OS X) Real Producer Plus(Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X) | | APIs | DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) | | Onboard Memory | 64MB DDR2, 16 bits at 300 MHz | | Upgradeable Firmware | Yes | | Power Consumption | <= 2.5W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Relative Humidity | 5 - 90% | | Dimensions | 3.3 x 1.7 x 0.5" / 84 x 43 x 13 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.3 x 4.2 x 0.9" |
