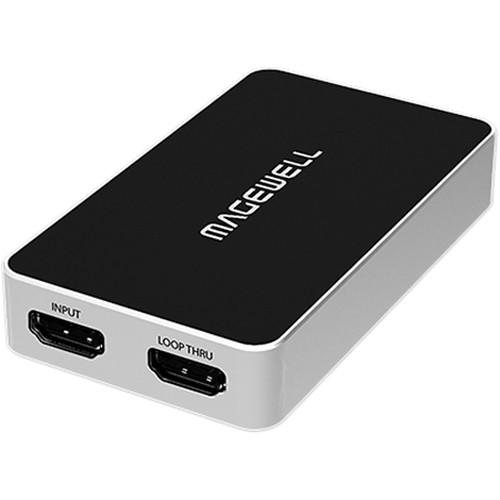

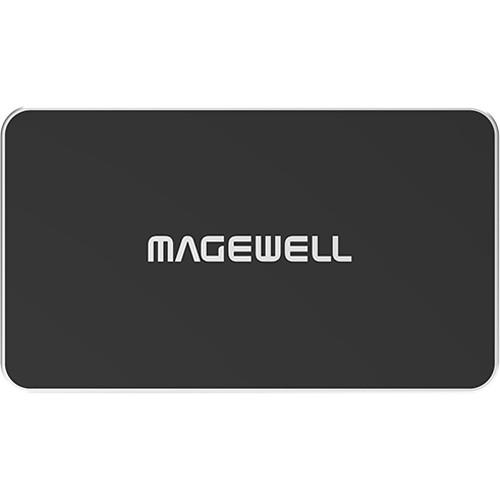

Product description The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording or streaming. It also offers a loop-through HDMI port for local monitoring.
The USB Capture HDMI Plus is compatible with Windows, Mac, and Linux. It works plug-and-play and can be operated 24 hours a day, 7 days a week. - HDMI Features
-
- 297 MHz HDMI receiver
- Support for up to 4096 x 2160 4:4:4/4:2:2 input at 30 fps or 4:2:0 at 60 fps input signals
- For 4:2:0 input signals, the horizontal and vertical resolution are reduced to 1/2 for capturing
- For 4:4:4/4:2:2 input at more than 170 MHz, the horizontal resolution is reduced to 1/2 for capturing
- Adaptive HDMI equalizer support for cables lengths up to 98 ft
- Customized EDID support
- Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Support for 2 channel ISC60958 audio streams
- Support for extraction of audio formation information and channel status data, video timing information, 3D format information
- Support for Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D modes
- Analog Audio Features
-

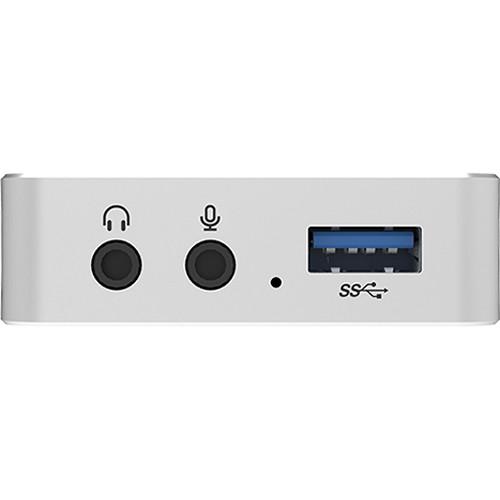

- Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo jack
- Capture of analog audio via 3.5mm microphone interface
- Integrate the functions of a USB audio card
- Playback audio via 3.5mm headphones interface
- Support for recording the playback audio of the computer
- Video Processing Features
-
- Video processing pipelines with 160 megapixels processing bandwidth
- Video cropping
- Video scaling
- Video deinterlacing (Weave, Blend Top & Bottom Field, Top Field Only, Bottom Field Only)
- Auto or manual selection of input and output aspect ratios
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of output color format, quantization range, and saturation range
- Support for RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full, and "Extended Gamut" saturation range
- Video frame rate conversion
- Vertical flip and mirror
In the Box Magewell USB Capture HDMI Plus Custom USB 3.0 Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell USB Capture HDMI Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 32040 Specs | Supported Operating Systems | Windows 10, 8.1, 8, 7, 2012 (x86 and x64), 2008/2008 R2
Linux (Ubuntu 12.04-16.10, CentOS 7)
Mac OS X 10.9-10.11
macOS 10.12 | | Supported APIs | Windows: DirectShow, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA
OS X/macOS: QuickTime, AV Foundation | | Input | 1 x HDMI type A (HDMI 1.4)

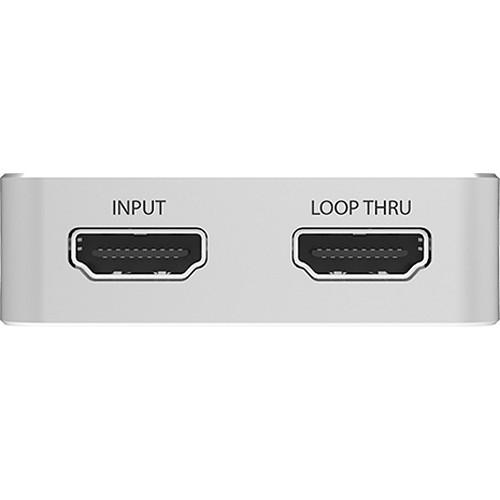

1 x 3.5 mm audio jack | | Output | 1 x HDMI type A (HDMI 1.4) loop-through
1 x USB 3.0
1 x 3.5 mm audio jack | | Supported Resolutions | Up to 4096 x 2160 4:4:4/4:2:2 at 30 fps or 4:2:0 at 60 fps | | Power Consumption | 5 V max current: 900 mA
Max power consumption: 4.5 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 128°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Dimensions | 3.8 x 2.2 x 0.7" / 9.8 x 5.7 x 1.7 cm | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.4 x 5.2 x 1.1" |
