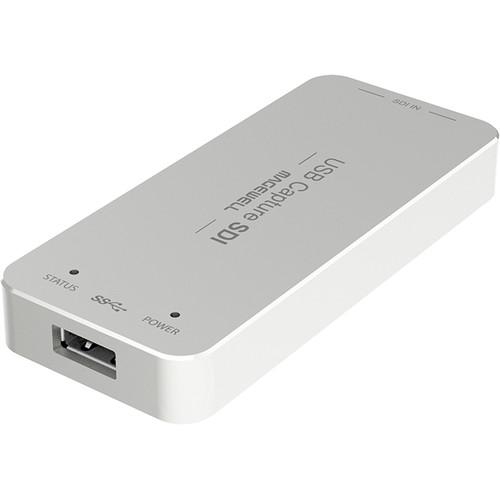

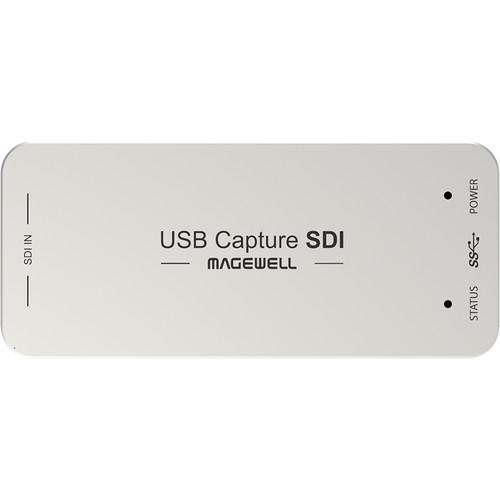

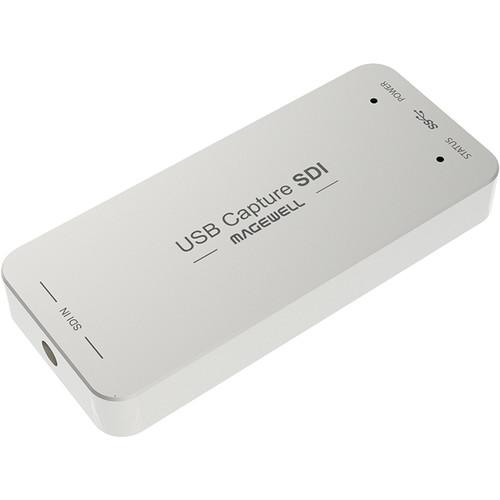

Product description The Magewell USB Capture SDI Gen 2 is a slim and compact dongle that lets you easily import an SDI signal into your computer for recording or streaming. It provides a handy and efficient way of connecting cameras, decks, switchers, and other broadcast and surveillance equipment to your computer. Furthermore, it doesn't require any additional drivers to be installed, and thereby is compatible with various software and web-applications (see below) on Mac, Windows, Linux, and Chrome OS, and works by simple plug-and-play connection.

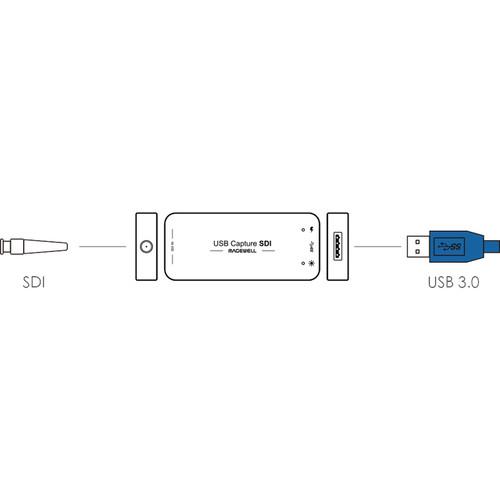

This Gen 2 version supports input/output resolutions up to 2048 x 1080 (2K) at 60 Hz. Using an included mini-coax to SDI adapter cable, connect any 3G/HD/SD-SDI source to the dongle, and output it to your computer with embedded audio over a USB 3.0 cable, which is also supplied. The USB port and USB cable are also backwards-compatible with USB 2.0.

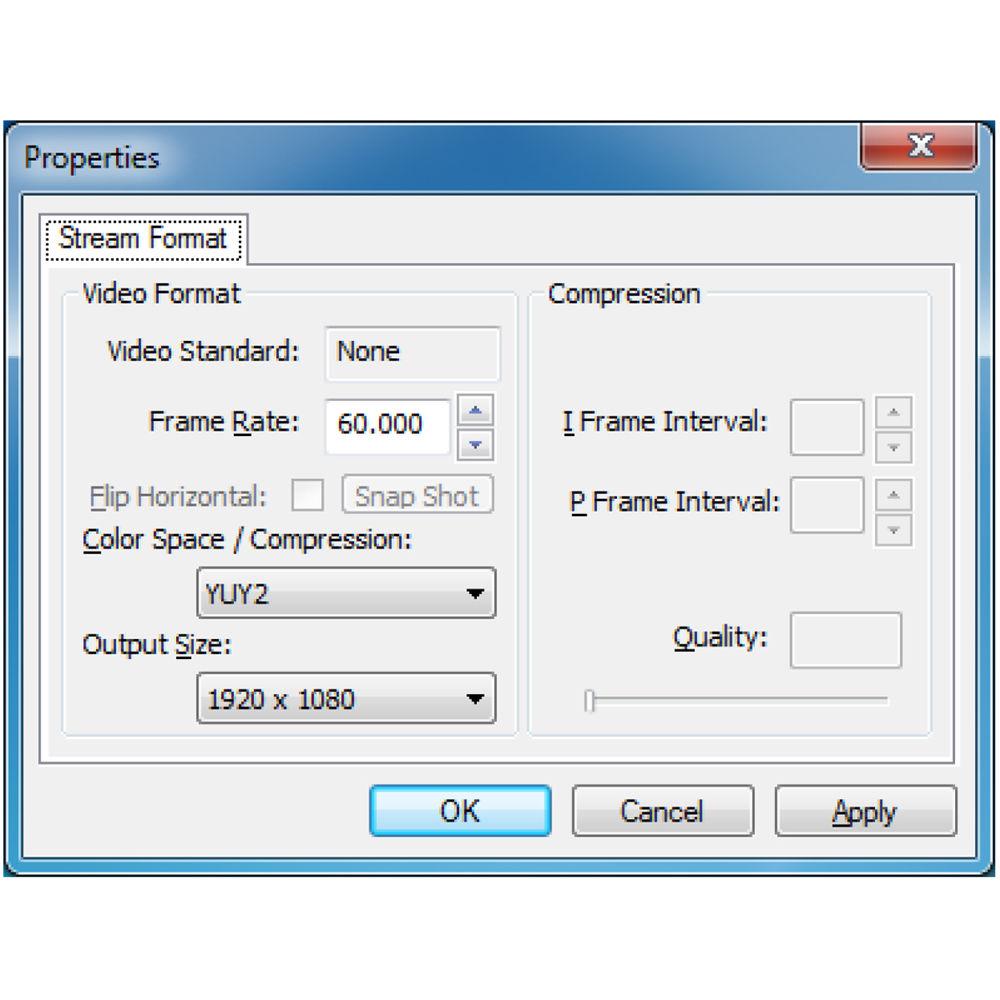

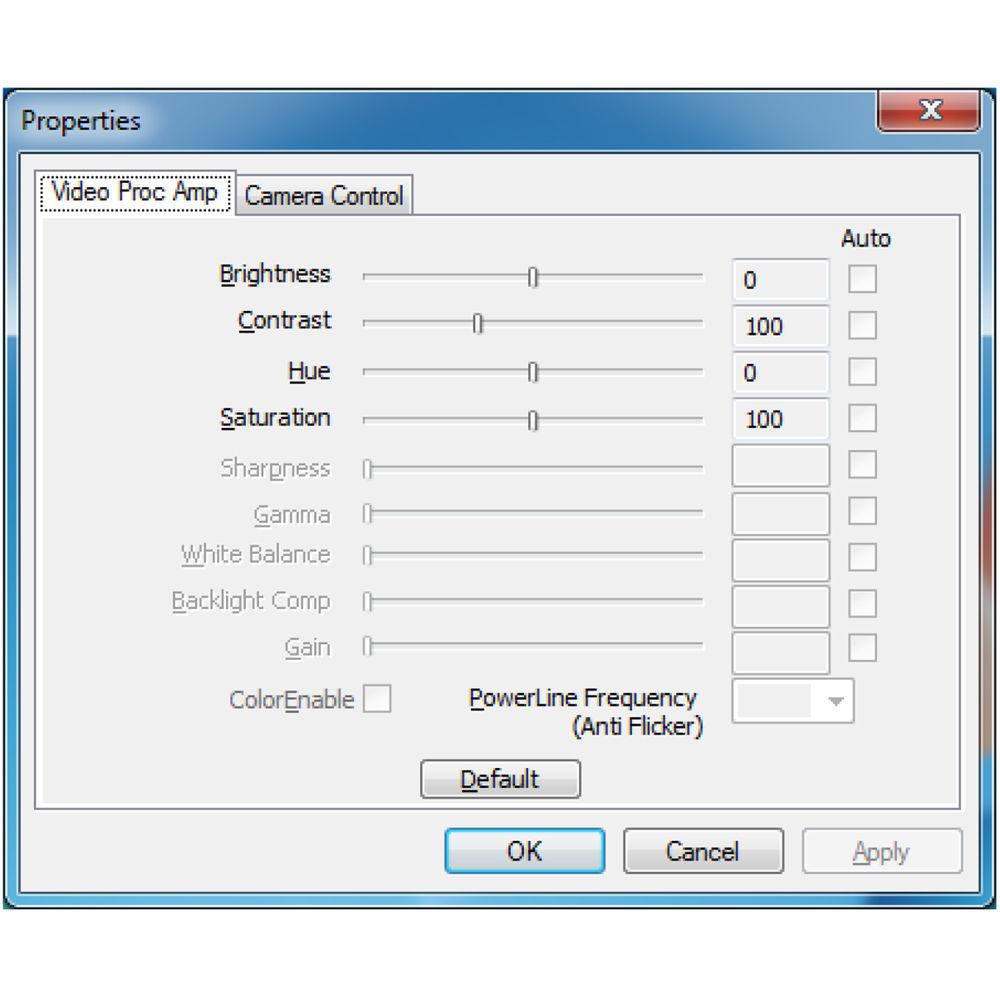

If you want to stream or record at a lower resolution than what's being captured, you can pull up the "Filters Properties Dialog Window" in the software you use and adjust parameters to downscale (or upscale)/deinterlace the image, as well as adjust brightness and other image properties. The device is also designed to work continuously 24 hours a day, 7 days a week. - Key Features
-
- Capture and record/stream SDI signals up to 2048 x 1080 (2K) at 60 Hz
- Compatible with software/web-applications on Mac, Windows, Linux, and Chrome OS
- Plug-and-play connection
- UVC protocol compatible
- Up/down scaling
- Deinterlacing
- Image adjustment control
- Various output color spaces
- Firmware-upgradeable
- Capable of continuous 24/7 operation
- Multiple units can be connected to one host
- Supported Software
-
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow, V4L2, QuickTime, or AV Foundation based encoding or streaming software
- SDI Supported Features
-
- Cable lengths up to 460 ft for 3G-SDI signals via integrated cable equalizer
- SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
- 2K (2048 x 1080) signals
- RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 color sampling
- 10-/12-bit color depth
- Extraction of SMPTE 352 payload identifier
- Up to 2 (mono) audio channels at 48 KHz
- Extraction of audio formation information and channel status data
- 3Gb-DS: only the first stream can be captured
- Capture of First Link of Dual Link Interfaces
-
- YCbCr, 4:2:2, 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
- YCbCr 4:4:4 10-bit: captured as 4:2:2
- RGB 4:4:4: R/B sub-sampled
- Video Capture Format Support
-
- Capture resolutions up to 2048 x 1080
- Capture frame rates up to 120 fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are: 1) 1920 x 1080 YUY2 at up to 70 fps, 2) 1920 x 1080 RGB24 at up to 60 fps
- YUY2 & UYVY 4:2:2 8-bit
- RGB24 & RGB32 4:4:4 8-bit
- The default capture format is YUY2; more capture formats can be set using a USB Capture Utility
- Video Processing Features
-
- Video processing pipelines with 160 megapixels processing bandwidth
- Video cropping
- Video scaling
- Video deinterlacing
- Video aspect ratio conversion
- Video color format conversion
- Video frame rate conversion
- Vertical flip and mirror
- Video Deinterlacing
-
- Weave
- Blend top and bottom field
- Top field only
- Bottom field only
- Video Aspect Ratio Conversion
-
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
- Video Color Format Conversion
-
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of capture color format, quantization range and saturation range
- Support for RGB, YCbCr 601, and YCbCr 709 color formats
- Support for limited or full quantization range
- Support for limited, full, and extended gamut saturation range
In the Box Magewell USB Capture SDI Gen 2 USB 3.0 Cable Mini-Coax to Full-Size SDI (BNC) Adapter Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell USB Capture SDI Gen 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 32070 Specs | Supported OS | Windows 10, 8.1, 8, 7, 2012 (x86/x64), 2008 R2, 2008
Linux (Ubuntu 12.04-16.10, CentOS 7)
OS X 10.9-10.11
macOS 10.12
Chrome OS | | Supported APIs | Windows:
DirectShow
Wave API/DirectSound/WASAPI
Linux:
V4L2
ALSA
OS X/macOS:
QuickTime
AV Foundation | | Input | 1 x Mini Coax (MCX) port (supporting 3G/HD/SD-SDI signals via an included MCX to SDI cable) | | Output | USB 3.0 (compatible with USB 3.1 Gen 1, backwards-compatible with USB 2.0) | | USB Standard | Meets the standards of UVC (USB video class) and UAC（USB audio class） | | Supported Resolutions | Input/Output: Up to 2048 x 1080 (2K) at 60 Hz | | Power Consumption | 5 V max current: 0.5 A
Max power consumption: 2.5 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 4- to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Dimensions | 3.6 x 1.6 x 0.5" (9.2 x 4 x 1.2 cm) | | | | Package Weight | 0.41 lb | | Box Dimensions (LxWxH) | 7.5 x 4.2 x 0.7" |
