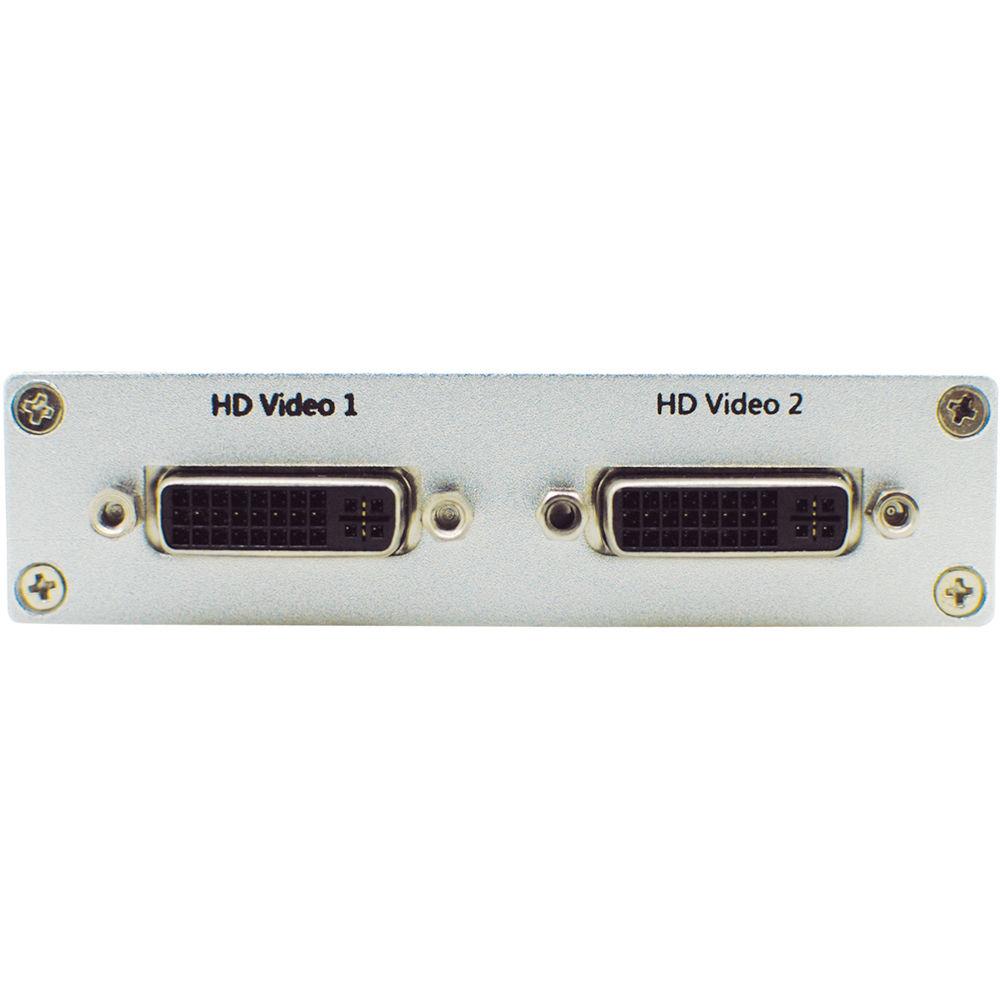

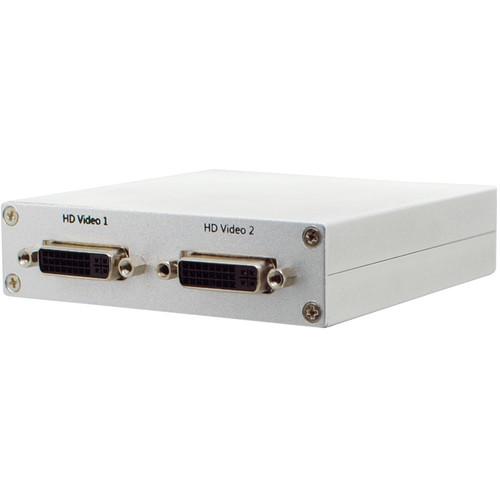

Product description Capture two HD or SD signals simultaneously with Magewell's XI200XUSB USB 3.0 Video Capture Box. On the front panel of the box are two DVI inputs, which can also accept VGA, HDMI, and component signals via the included breakout cables and adapters. The XI200USB is plug-and-play compatible and uses your PC's existing drivers to connect. The box has its own internal processor, which can perform automatic cropping, deinterlacing, and color adjustments before the video reaches your computer, taking that processing load off of your CPU. - USB 3.0 Interface

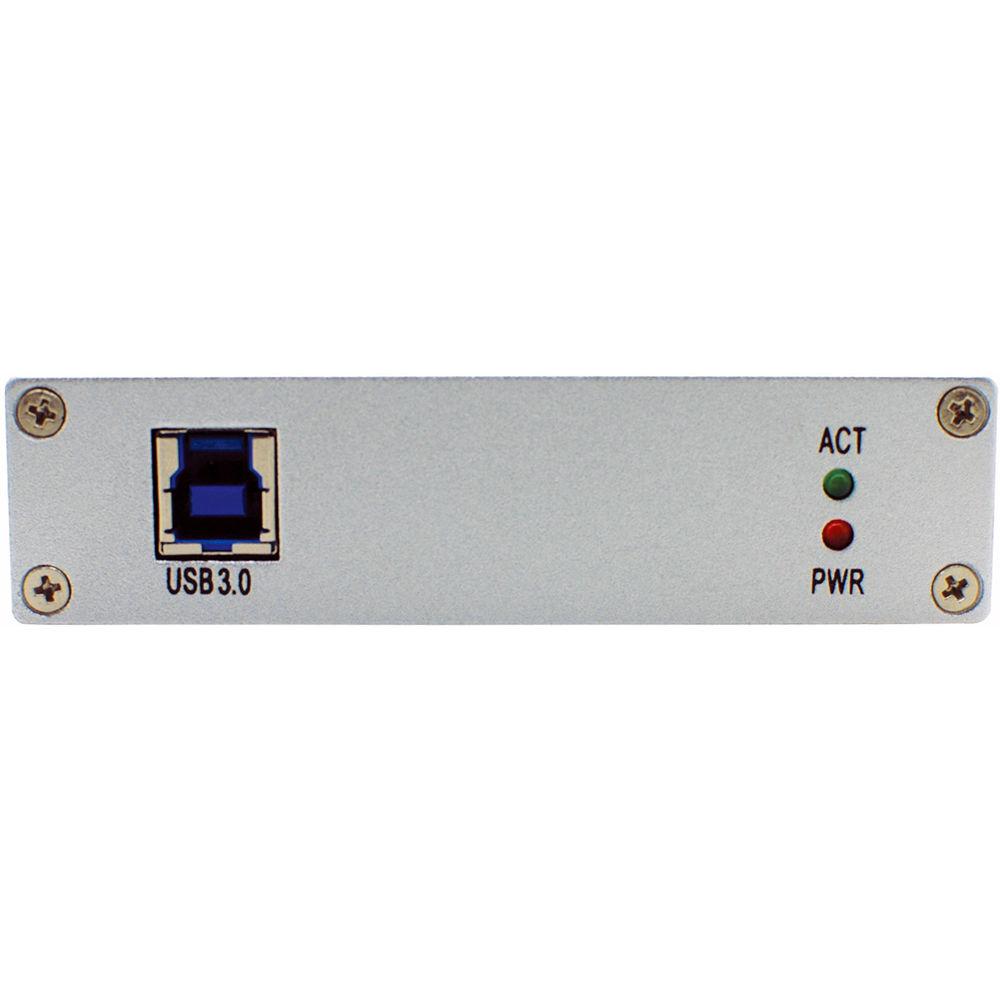

- The XI200XUSB adopts a USB 3.0 interface for high-speed transmission. It gets bus power directly from the PC. Compared to the PCI-Express x1 GEN 1.1 interface, the Intel USB 3.0 chip enables faster data transmission at 1080p60. XI100XUSB-PRO is backward compatible with USB 2.0, though with reduced performance.
- Automatic Signal Detection
- Automatically determines the resolution of incoming VGA video signals, which occasionally use uncommon aspect ratios. Once the resolution is detected, the box will automatically adjust the signal's parameters, including timing and phase. The VGA timing detection supports the following standards: GTF/CEA/DMT/IBM PC/Apple/VESA. For input signals which do not meet specific timing standards, the box will improve and adjust via its image analysis algorithm.
- Video Processing
- The XI200XUSB can perform functions like random image scale, image clip, color space switch, Gamma modification, and DMA transmission to satisfy your individual requirements. It can also automatically remove black edges around an image and supports manual settings for effective image area. It can also automatically detect the video source, deinterlace, and remove image aliasing.
- Multi-Channel Capture
- The captured images can be used by multiple applications at the same time with no need to lower the frame rate. Applications can adopt different capture formats, and the box will process the signal source into those formats. Multiple bit rates and resolutions can be output at the same time, so only a single box is needed.
In the Box Magewell XI200XUSB Dual DVI USB 3.0 Video Capture Box 2 x DVI Breakout Cable 2 x DVI-I to VGA Adapter USB 3.0 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell XI200XUSB Dual DVI USB 3.0 Video Capture Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 20181 Specs | Host Interface | USB 3.0, 300-350 MB/s throughput | | Input Interface | 2 x DVI-I interface (can switch to HDMI, VGA, YPbPr via breakout cable) | | DVI Input | DVI 1.0 standard (480i, 576i, 480p, 576p, 720p, 1080i, 1080p) | | HDMI Input | HDMI 1.3 standard (supports DeepColor) | | YPbPr Input | Supports 480i, 576i, 480p, 576p, 720p, 1080i, 1080p | | VGA Input | 640×400 - 2048×1536 when the pixel rate is below 170 MHz. | | CVBS Input | PAL/NTSC | | Video Sampling | Bit Depth: 10-bit
RGB/Component: 170 MHz frequency
HDMI/DVI: 225 MHz frequency | | Color Space | YUYV, UYVY, I420, NV12, 24-bit RGB, 32-bit RGB
Hardware adjustable | | Deinterlacing | Vertical filter de-interlacing; motion-adaptive de-interlacing | | Image Scale | Hardware 5-Tap scale | | Image Flip | Horizontal; vertical | | Image Size Change Function | Yes | | Image Adjustment | Horizontal; vertical
Saturation adjustment/control of monochrome and color
Gamma adjustment
Seperate adjustment of brightness and contrast of R/G/B | | OS Compatibility | Windows XP Professional
Windows Server 2003
Windows Vista
Windows Server 2008
Windows 7
Windows Server 2008 R2
Windows 8
Windows 8.1 | | Software Compatibility | Windows Media Encoder
Adobe Flash Media Live Encoder
Real Producer Plus
VLC | | Onboard Memory | 128 MB DDR2 | | Firmware Upgradeable | Yes | | Power Consumption | <= 3.5W | | Dimensions | 3.9 x 3.9 x 1" / 98 x 98 x 25 mm | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.4 x 4.8 x 1.5" |
