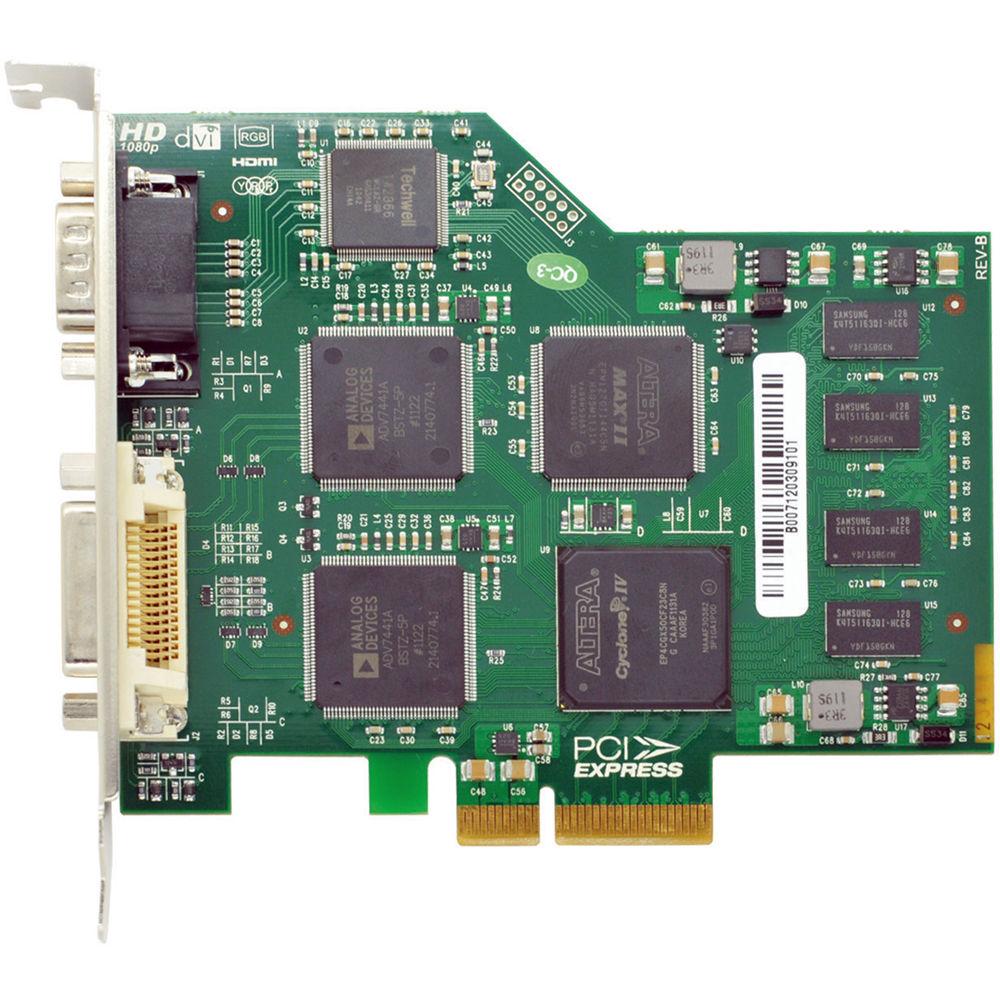

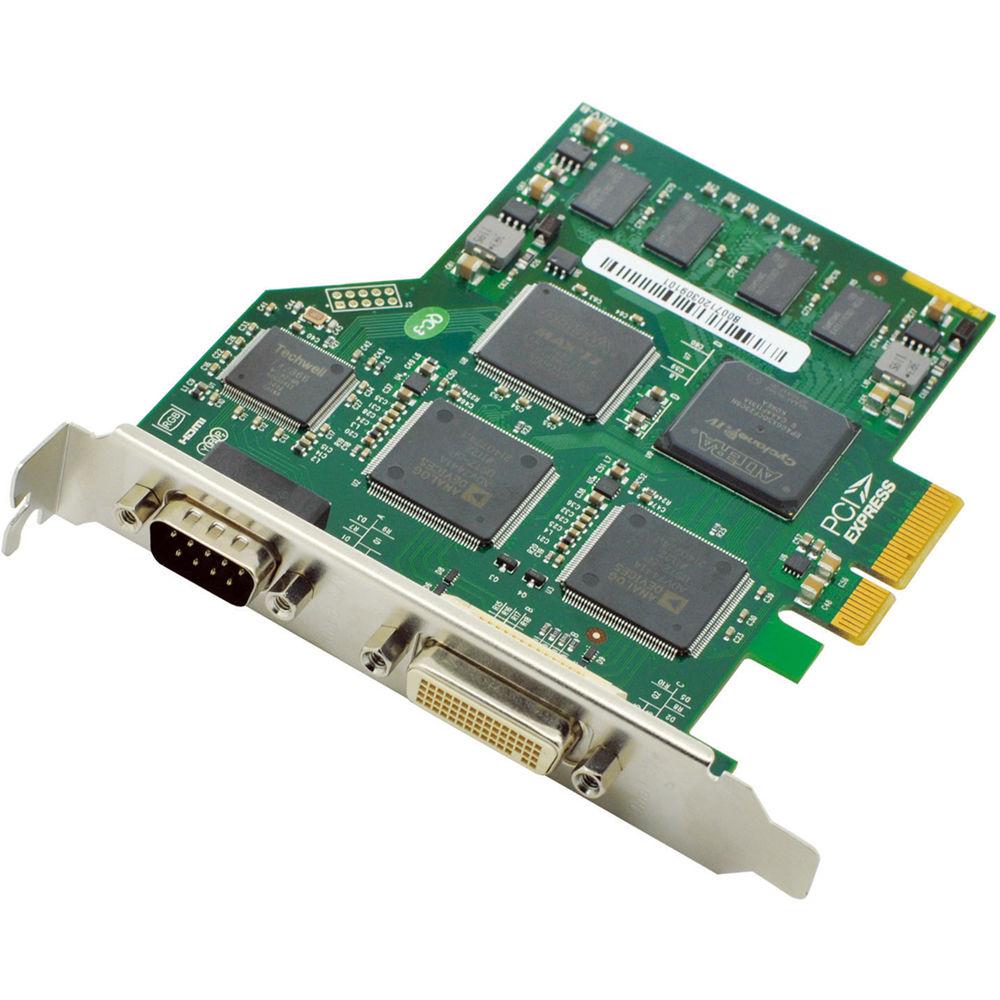

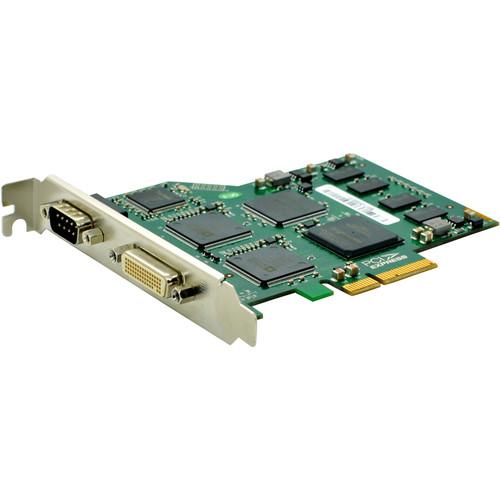

Product description With the Magewell XI204XE PCI Express Video Capture Card, you can stream video from analog and digital sources simultaneously to your PC. This card is capable of handling video from four standard definition and two high definition sources at once. The card itself features a DB9 port for analog audio and video as well as a DMS59 port for digital video. Included with the card are breakout cables to adapt the DB9 and DMS59 ports to accept DVI, VGA, HDMI, component, and composite video signals. Built into the card is an FPGA that can process the incoming video signal without placing the stress on your computer's CPU. The card can deinterlace, crop, and change the color space of the video in real time before being streamed to your PC. Because this card is plug-and-play compatible, you do not need to install any extra drivers. - Video Processing
- The XI204XE can perform functions like random image scale, image clip, color space switch, Gamma modification, and DMA transmission to satisfy your individual requirements; it can also automatically remove black edges surrounding the image and support manual settings for effective area, automatically detect the video source, and deinterlace and remove image aliasing.
- PCI Express x4 Interface
- With a transmission bandwidth of 600-800 MB/s and large volume image buffer technology, higher transmission speed and quality can be achieved without having to stress your computer's CPU.
In the Box Magewell XI204XE Dual DVI + Quad CVBS PCI Express Video Capture Card 2 x DVI Breakout Cable 2 x DVI-I to VGA Adapter DMS59 Breakout Cable DB9 Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell XI204XE Dual DVI Quad CVBS PCI Express Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 10071 Specs | Host Interface | PCI Express x4, 700 MB/s transmission bandwidth | | Input Interface | 1 x DMS59 port (2-channel DVI-I interface)
1 x DB9 port (4-channel composite video, dual stereo audio) | | Video Inputs | All inputs use included breakout cables (2 HD and 4 SD sources can be used simultaneously):
2 x DVI 1080p @ 60 Hz
2 x HDMI 1080p @ 60 Hz
2 x VGA
2 x YPbPr
4 x Composite Video | | Audio Inputs | 2 x Stereo LPCM audio signal
2 x RCA Analog stereo | | Input Formats | DVI: 1.0 standard 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
HDMI: 1.3 standard, supports 36-bit DeepColor
YPbPr: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
VGA: 640×400 - 2048×1536 when the pixel rate is below 170MHz
Composite: PAL/NTSC | | Output Formats | HD: 40×30 - 2048×1536, 1-100 fps
SD: 176×144 - 768×576, 1-30 fps | | Sampling Rates | Video: 10-bit, 170 MHz (RGB/Component), 225 MHz (HDMI/DVI)
Audio: 24-bit/48 KHz | | Color Space | YUYV, UYVY, I420, 24-bit RGB, 32-bit RGB
Hardware switchable | | Deinterlacing | Vertical filter deinterlacing; motion-adaptive deinterlacing | | Image Scale | Hardware 5-Tap scale | | Image Mirroring | Horizontal; vertical | | Image Crop | Yes | | Image Adjustments | Brightness/contrast/hue adjustment/saturation adjustment/control of monochrome and color/gamma adjustment
Separately adjust the brightness and contrast of R/G/B | | OS Support | Windows XP Professional
Windows Server2003
Windows Vista
Windows Server 2008
Windows 7
Windows Server 2008 R2
Windows 8
Windows 8.1 | | Software Compatibility | Windows Media Encoder
Adobe Flash Media Live Encoder
Real Producer Plus
VideoLAN for Windows | | Onboard Memory | 256MB DDR2 | | Installation | PCI-Express x4, x8, or x16 slot, can be installed in a 4RU chassis | | Power Consumption | <= 8 W | | Dimensions | 4.6 x 4" / 117 x 102.8 mm | | | | Package Weight | 1.44 lb | | Box Dimensions (LxWxH) | 8.6 x 7.7 x 3.4" |
