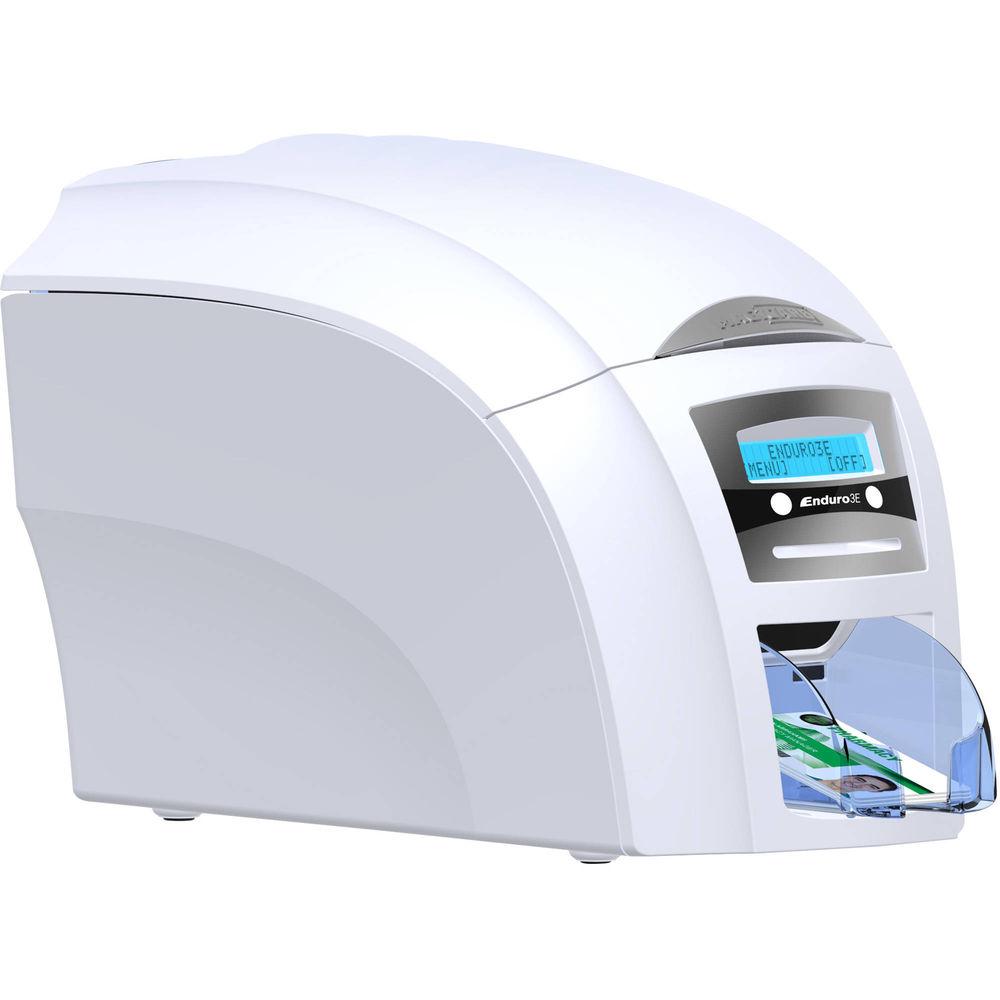

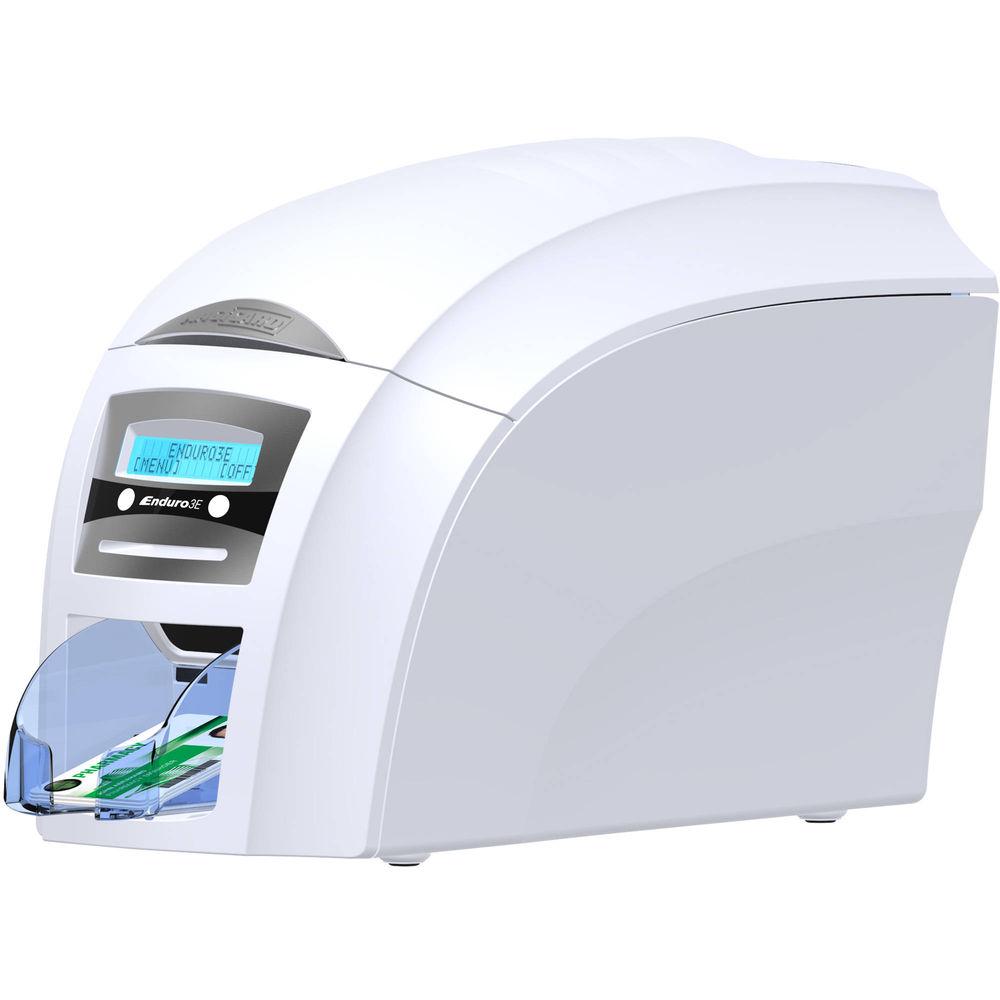

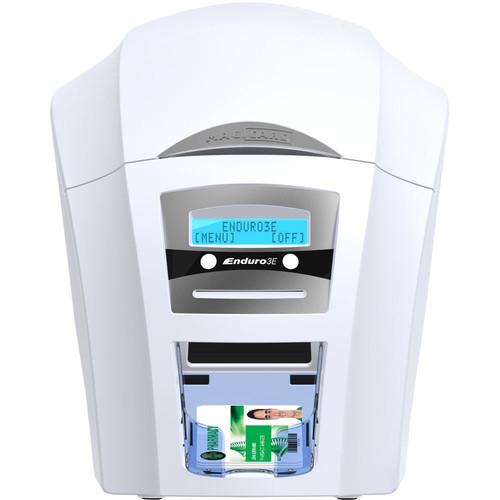

User Manual for Magicard Enduro3E Smart Single-Sided ID Card Printer with Smart Stripe Encoder Click to enlarge the picture
Contents of the user manual for the Magicard Enduro3E Smart Single-Sided ID Card
- Product category: ID Card Printers Magicard
- Brand: Magicard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magicard ID Card Printers
 |
User manual for the Magicard Enduro3E Smart Single-Sided ID Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magicard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magicard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magicard product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More Take care of your ID needs quickly and easily with the Enduro3E Smart Single-Sided ID Card Printer, available here with a smart stripe encoder for programming HiCo and LoCo cards. It uses dye sublimation / thermal transfer printing technology to produce sharp imagery at a resolution of 300 dpi, and it can work with either CR-80 or CR-79 cards. An added benefit of this model is built-in HoloKote and rewritable technology. HoloKote further boosts security by printing one of four holographic designs onto the card.
The Enduro3E Smart will print edge-to-edge and has impressive speed, reaching up to 100 cards/hour in color or up to 500 cards/hour in monochrome. Operation is simple with a two-line LCD display and both USB and Ethernet connectivity options. It also has a 100-card input feeder and a 30-card output hopper along with a manual feed slot for card handling. - Works with rewritable cards
- Cards can be 20-40 mil thick
- HoloKote security watermark patterns that when used with HoloPatch cards one area is highlighted as a high visibility security seal
In the Box Magicard Enduro3E Smart Single-Sided ID Card Printer with Smart Stripe Encoder USB Cable Power Cord Driver CD-ROM Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magicard Enduro3E Smart Single-Sided ID Card Printer with Smart Stripe Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagicard Enduro3E Specs | | | Printing Technology | Dye sublimation / thermal transfer and rewritable technology | | Maximum Resolution | 300 dpi | | Ribbon Options | YMCKO 5-panel dye film (300 images)
Monochrome resin black, white, blue, red, gold, and silver dye film (1000 images)
KO black and overcoat resin dye film (600 images)
YMCKOK 6-panel dye film, double-sided, color on front, black on back (250 double-sided image) | | Double/Single-Sided | Single | | | | Print Speed | Color: 100 cards/hour
Monochrome: 500 cards/hour | | Print Size | CR-80: 3.375 x 2.125" (85.6 x 54 mm)
CR-79: 3.303 x 2.051" (83.9 x 52 mm) | | Card Type | CR-80 and CR-79 PVC blank, self-adhesive, rewritable, and HoloPatch cards | | Media Thickness | 20-40 mil (0.51-1.02 mm) | | Capacity | Input: 100 cards
Output: 30 cards | | Security Support | Four HoloKote security patterns
Smart stripe encoder | | | | Computer Interface | USB
Ethernet | | Compatible Operating Systems | Windows XP, Vista, 7, 8, 8.1, 10 (32/64-bit)
Windows Server 2003 R2 SP2, 2008, 2012, 2016
Mac OS X
GNU/Linux | | | | Front Panel Controls | 2-line display and buttons | | Power Requirements | 100-240 VAC, 50-60 Hz, auto-ranging | | Environmental Conditions | Temperature: 50 to 85°F / 10 to 30°C | | Dimensions | 17.8 x 8.1 x 9.2" (45.3 x 20.6 x 23.3 cm) | | Weight | 12 lb (5.5 kg) |
