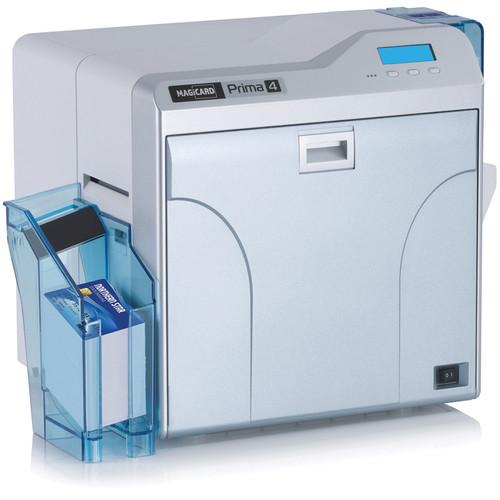

User Manual for Magicard Prima 4 Uno Single-Sided Reverse Transfer ID Card Printer Click to enlarge the picture
Contents of the user manual for the Magicard Prima 4 Uno Single-Sided Reverse
- Product category: ID Card Printers Magicard
- Brand: Magicard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magicard ID Card Printers
|
User manual for the Magicard Prima 4 Uno Single-Sided Reverse contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magicard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magicard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magicard product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More bczxadqyterysyeuddtrtyzxwexzrby Utilizing both reverse transfer and dye sublimation print technologies, the Prima 4 Uno ID Card Printer from Magicard is able to produce high quality full-color single-sided cards by first printing images onto a thin film and then heat transferring those images onto the card surface. This allows for numerous additional card options since the overlay and image quality is not affected by physical items on the card, such as a proximity chip. Additionally, it enables holographic and UV printing options.
The 300 dpi printer also works quickly with a YMCK color print speed of 80 cards per hour. Also, it is compatible with a variety of CR-80 sized cards, and has edge-to-edge printing. These cards are handled by a 100-card input hopper and a 100-card output tray. Additionally, an optional in-line lamination module is available and it has both USB 2.0 and Ethernet connectivity options. In the Box Magicard Prima 4 Uno Single-Sided Reverse Transfer ID Card Printer Limited 1-Year Warranty, Extendable to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Magicard Prima 4 Uno Single-Sided Reverse Transfer ID Card Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagicard PRIMA401 Specs | | | Print Technology | Dye sublimation / reverse-transfer technology | | Resolution | 300 dpi | | Ribbon Options | Set of YMCK dye film & retransfer film (1,000 images)
YMCKK ribbon (750 images)
YMCK-UV (750 images)
Clear retransfer film (1,000 images) | | | | Print Speed | Color YMCK: 80 cards/hour | | Borderless Printing | Yes, edge-to-edge | | Duplex Printing | No | | | | Capacity | Input: 100 cards
Output: 100 cards | | Card Type | PVC, ABS, PET, PVH, polycarbonate | | Media Compatibility | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm) | | Lamination | 0.5 and 1.0 mil laminates, clear and holographic with optional in-line laminator | | Media Thickness | 10-40 mil (0.25-1.00 mm) | | Security Features | UV film
Optional magnetic stripe, contactless, and smart card encoding | | | | Computer Interface | USB 2.0
10BASE-T/100BASE-TX Ethernet | | Compatible Operating Systems | Windows 2000, XP, Vista, Server 2003, Server 2008, 7, Server 2012, 8 (32/64-bit) | | | | Operating Conditions | Temperature: 59 to 86°F (15 to 30°C)
Humidity: 35 to 70%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, auto-ranging | | Dimensions | 13.5 x 12.6 x 13.0" (34.3 x 32.0 x 33.0 cm) | | Weight | 34.1 lb (15.5 kg) | | | | Package Weight | 38.95 lb | | Box Dimensions (LxWxH) | 22.25 x 20.0 x 17.75" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
