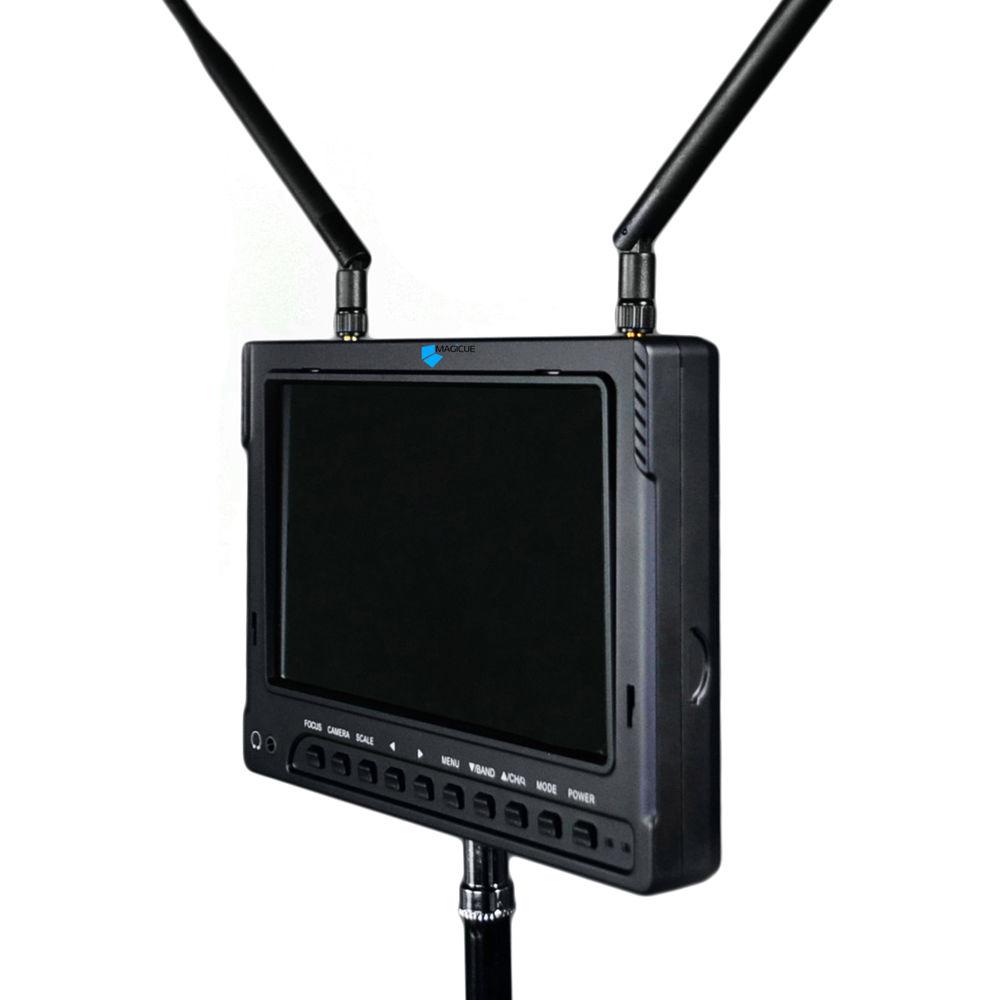

Product description The 7" Wireless Monitor with DVR is designed for use with wireless teleprompting equipment from MagiCue, such as their MAQ-MAX-2000T transmitter. Featuring a built-in 32-channel analog video receiver, it is also suitable for use with many third-party wireless systems including aerial-mounted FPV transmitters. Its 7" LED backlit LCD screen features a native resolution of 1024 x 600 and it includes HDMI and composite video inputs along with its wireless connectivity. There is also a composite loop-out for connection a secondary display, such as FPV goggles.
The monitor includes a built-in DVR, which records incoming RF video signals in the AVI file type. You can set the DVR to record at D1 (720 x 576), VGA (640 x 480), and QVGA (320 x 240) resolutions for either optimizing video quality or saving storage space. A microSD card slot is built-in and can handle microSD cards up to 32 GB of capacity. The loop recording feature allows you to choose time intervals for recording specific chunks of video and it automatically overwrites previously recorded content when the interval is finished. The DVR component also has a motion detection function, which automatically records when it detects a moving object.
The monitor includes an integrated 2200 mAh battery that is estimated to last two hours. Additionally, a collapsible sun shade comes in the box to help enhance visible in bright sunlight. - Built-in DVR
- The built-in DVR enables recording it microSD cards up to 32GB in size
- Recording Resolutions: D1 (720 x 576), VGA (640 x 480), QVGA (320 x 240)
- DVR Loop Recording in 3, 5, and 10 minute intervals
- Seamless continuous recording - no video lost with power off
- Automatic motion detection recording function
- Still photo capture and storage function
UPC: 743724583922 In the Box MagiCue 7" Wireless Monitor with DVR Collapsible Sun Shade AC Adapter / Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MagiCue 7" Wireless Monitor with DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

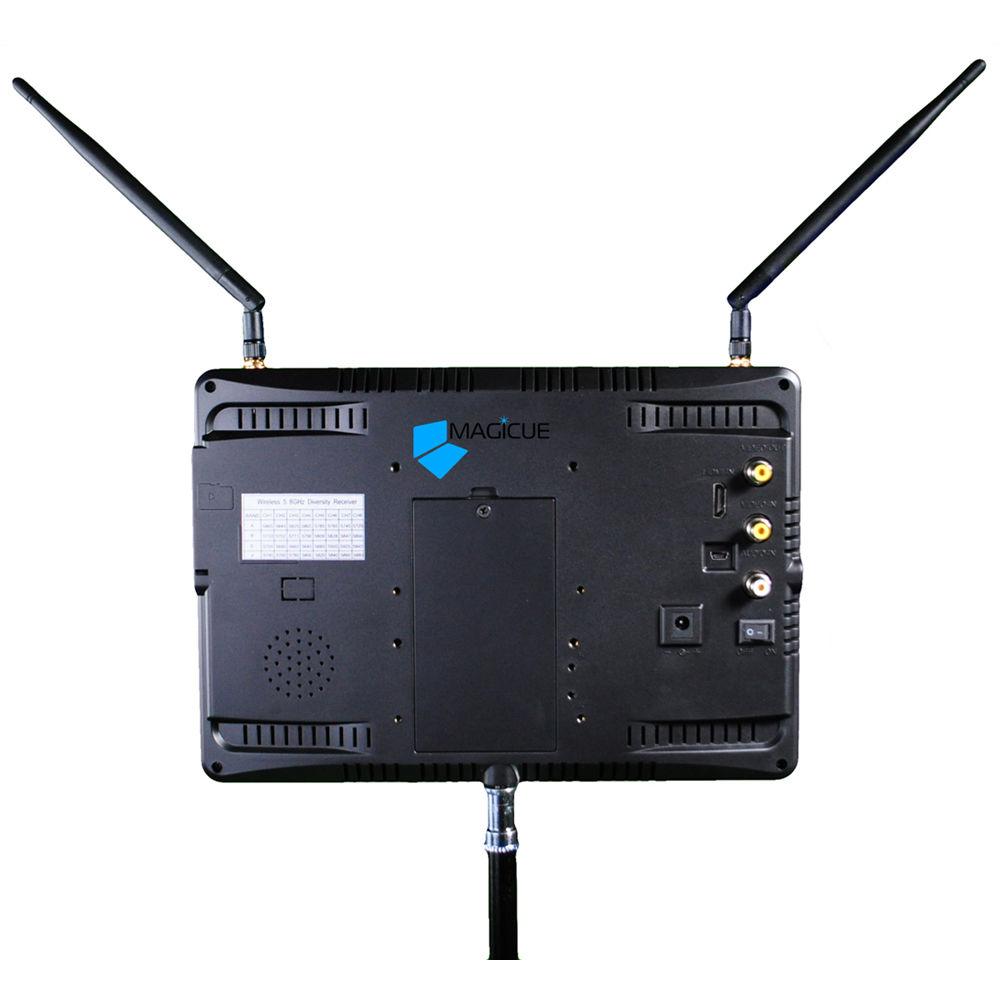

Technical parametersMagiCue MAQ-FPV-7W Specs | | | Size | 7" | | Panel Type | LED backlit TFT LCD | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Brightness | 500 nits | | Contrast Ratio | 700:1 | | Response Time | 10 ms | | Viewing Angle | Left / Right: 75°
Up / Down: 75° | | Dot Pitch | Width x Height: 0.05 x 0.15mm | | | | Supported Standards | PAL (4.43)
NTSC (3.58) | | Supported Resolutions | 50/60 Hz: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | | | | Inputs | 1 x HDMI (standard)
1 x Composite on RCA connector
1 x Mono audio on RCA connector | | Outputs | 1 x Composite on RCA connector
1 x 3.5 mm headphone jack
1 x Speaker | | USB | 1 x Mini-USB | | | | Frequency | 5.8 GHz | | Number of Channels | 32 / 4 bands | | Range | Up to 1312' / 400 m line of sight | | Receive Sensitivity | -90 dBm typical | | Frequency Stability | ±100 ppm | | | | Recording Resolution | 720 x 576 (D1)
640 x 480 (VGA)
320 x 240 (QVGA) | | Recording Modes | Continuous Recording
Motion Detection Recording
Still Photo Capture
Loop Recording: 3, 5, and 10 minute intervals | | Recording Media | MicroSD/SDHC card up to 32 GB in capacity | | | | Mounting | 1/4"-20 threaded socket
VESA 75 x 75 cm | | Battery | Voltage:7.4 VDC
Capacity: 2200 mAh | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Dimensions | 6.7 x 5.7 x 1.5" / 16.9 x 14.4 x 3.7 cm | | Weight | 1.2 lb / 548.8 g |
