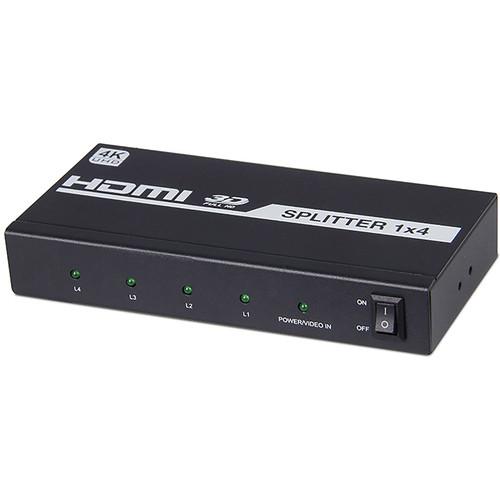

User Manual for MagiCue MAQ-MAX-HD104B Maxim 1 x 4 HDMI Splitter Click to enlarge the picture
Contents of the user manual for the MagiCue MAQ-MAX-HD104B Maxim 1 x 4
- Product category: Distribution Amplifiers (DA's) MagiCue
- Brand: MagiCue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MagiCue Distribution Amplifiers (DA's)
|
User manual for the MagiCue MAQ-MAX-HD104B Maxim 1 x 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MagiCue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MagiCue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MagiCue product will considerably shorten its lifespan!
|
Product description The MagiCue MAQ-MAX-HD104B Maxim Full HDMI 1 x 4 Splitter splits a single full HD HDMI input signal to four full HD HDMI output signals without compression. This splitter supports up to 1080p video signal, 12-bit deep color, 3D, and Dolby TrueHD/DTS-HD master audio formats. - 4-channel HDMI 1.4b 4K x 2K ultra HD HDMI signal output up to 3.4 Gb/s data rate
- Supports 12-bit deep color
- Supports audio format-LCPM 7.1, and other uncompressed audio formats, such as Dolby True HD, DTS master
- Supports multi-channel EDID management, ensuring maximum compatibility of video sources and display terminals
- Industrial metal case, easy to install
- UL, CCC, CE, and FCC compliant
UPC: 743724583694 In the Box MagiCue MAQ-MAX-HD104B Maxim 1 x 4 HDMI Splitter (4K, 2K Support) 5 VDC 1A Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MagiCue MAQ-MAX-HD104B Maxim 1 x 4 HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagiCue MAQ-MAX-HD104B Specs | Interface | 1 x HDMI input port type A to F, 4-channel HDMI output ports (type A to F), 1 x 5 VDC input port | | Video Bandwidth | TMDS clock, up to 225 MHz, 6.75 Gb/s | | Video Resolution | Up to 3840 x 2160 @ 30 Hz | | Audio Format | 1-channel audio, include digital audio formats Dolby TrueHD and DTS master | | TMDS | Input: 1.2 Vpp | | DDC | Input: 5 Vpp | | HDMI Standard | HDMI 1.3c, HDCP 1.2, supports 3D | | EDID Management | Display terminals EDID management | | Indicators | Power: Green
Video Link: Yellow | | Power Consumption | 6 W | | Power Input | 5 VDC | | Temperature Range | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Compliance | UL, CCC, FCC, CE, RoHS | | Dimension (L x W x H) | 2.6 x 2.4 x 0.8" (6.5 x 6.1 x 2.1 cm) | | Net Weight | 0.36 lb (0.15 kg) per unit | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.8 x 7.2 x 2.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
