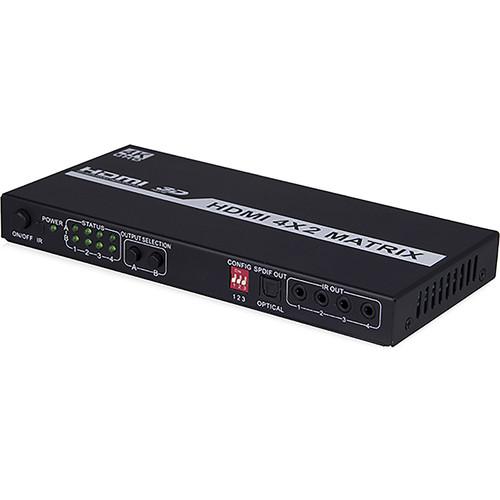

Product description The MAQ-MAX-HM402A Spitfire Pro 4 x 2 HDMI & IR Matrix from MagiCue can accept four ultra HD HDMI signal inputs and two ultra HD HDMI output signals. You can select any of the four video inputs. This 4 x 2 matrix supports a resolution of up to 4096 x 2160 24fps (4K2K) HDMI 1.4, and includes a 4 x 2 IR matrix companion with video matrix. - Supports 12-bit deep color
- Supported resolutions: 4K x 2K/1080p/1080i/720p/576p/480p/576i/480i
- Supported audio formats: PCM, Dolby-AC3, DTS 7.1, DSD
- MHL input support (HDMI input port 4)
- HDMI 1.4 ARC support (HDMI output port A)
- SPDIF digital audio output with optical port
- 4 x 2 IR emitter and receiver matrix embedded with local IR control
- Automatically remembers last power-off matrix status and auto-skip for unconnected inputs during power-on initialization
- EDID dynamic mixing management
- Power and video indicators
- ESD protection level HBM ±8 kV (Contact Discharge) for any input and output port
- Industrial metal case, easy to install
UPC: 743724583670 In the Box MagiCue MAQ-MAX-HM402A Spitfire Pro 4 x 2 HDMI & IR Matrix 5 VDC, 1 A Adapter IR Remote 4 x IR Extension Transmitter Cable (4.9') 2 x IR Extension Receiver Cable (29.5') Table of Contents
|
Upload User Manual
Have you got an user manual for the MagiCue MAQ-MAX-HM402A Spitfire Pro 4 x 2 HDMI & IR Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagiCue MAQ-MAX-HM402A Specs | Interface | 4 x HDMI type A female, input
2 x HDMI type A female, output
4 x 3.5 mm phone jack, IR output
2 x 3.5 mm phone jack, IR input
1 x TOSLINK optical port, SPDIF digital audio output
1 x 5 VDC, power | | Video Formats (Input/Output) | HDMI v1.4, 24/30/36 bits per pixel, RGB or YUV
4K x 2K/1080p/1080i/720p/576p/480p/576i/480i | | Input Video Signal | 0.5 - 1.0 V p-p | | Input DDC Signal | 5 V p-p (TTL) | | HDMI Format Support | PCM, Dolby-AC3, DTS 7.1, DSD, up to 8 channels | | Max. HDMI Cable Distance | HDMI Input: Up to 16.4' (5 m)
HDMI Output: Up to 32.8' (10 m) 26 AWG. Can be extended with amplifier in most cases | | Indicators | Power, green
Matrix status, yellow | | ESD Level | HBM ±8 kV (Contact Discharge) | | Temperature Range | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Power Consumption | 1.85 W | | Dimensions | 7.9 x 3.7 x 0.9" (201 x 94 x 22 mm) Excluding 3 mm height rubber pad | | Weight | 0.9 lb (0.42 kg) |
