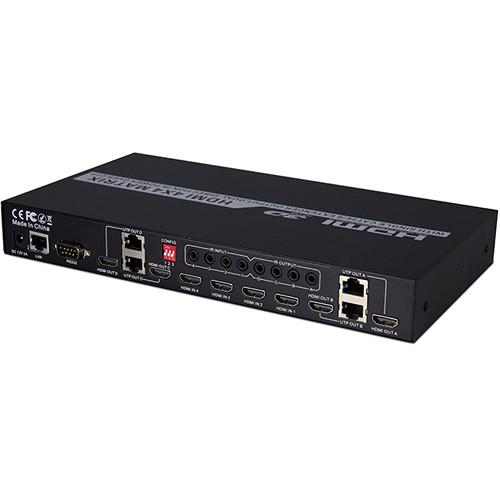

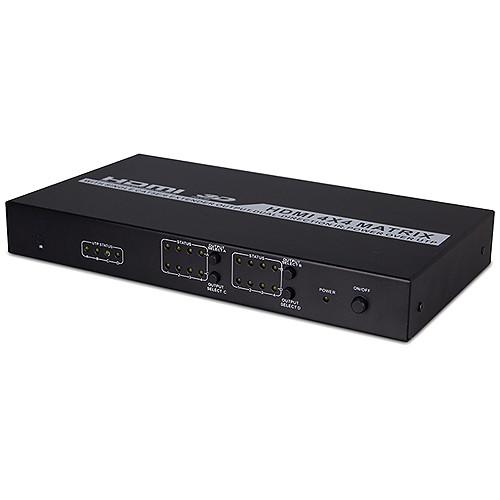

User Manual for MagiCue MAQ-MAX-HM404A Maxim Pro 4 x 4 HDMI Matrix Extender over CAT5e 6 Cable Click to enlarge the picture
Contents of the user manual for the MagiCue MAQ-MAX-HM404A Maxim Pro 4 x
- Product category: Routers & Switchers MagiCue
- Brand: MagiCue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MagiCue Routers & Switchers
 |
User manual for the MagiCue MAQ-MAX-HM404A Maxim Pro 4 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MagiCue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MagiCue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MagiCue product will considerably shorten its lifespan!
|
Product description The MAQ-MAX-HM404A Maxim Pro 4 x 4 HDMI Matrix Extender over CAT5e/6 Cable from MagiCue can accept four HD HDMI signal inputs, as well as four HD HDMI outputs and four CAT5e/6 RJ45 outputs. You can select any of the four video inputs over a single CAT5e/6 cable. This 4 x 4 matrix can support a resolution of up to 1080p 3D or 1080p 60fps, and includes a 4 x 4 dual direction IR matrix companion with video matrix extender output. The 4 x 4 HDMI matrix is fully compatible with HDMI1.3c (HDMI 1.4 3D) and HDCP 1.3. - HDMI 1.3 spec and HDMI 1.4 3D support
- 4 x 4 HDMI matrix, with the capability of 4 outputs selecting the same or different HDMI source simultaneously
- Each group of matrix output includes one HDMI and RJ45 extender port; both can output HD video simultaneously
- CAT5e/6 extender outputs support power over UTP, with the receiver side not requiring an external DC adapter
- Supported resolutions: 1080p/1080i/720p/576p/480p/576i/480i
- Support audio formats: PCM, Dolby-AC3, DTS 7.1, DSD
- Emitter and receiver 4 x 4 IR matrix embedded with local IR control
- Automatically remembers last power-off matrix status and auto-skip for unconnected inputs during power-on initialization
- EDID dynamic mixing management
- CAT5e/6 extender port support EDID call back
- Multi-mode control by LAN, RS-232, local IR remote, CAT5e/6 extender side IR receiver or panel button
- ESD protection level HBM ±8 kV (Contact Discharge) for any input and output port
- Industrial metal case, easy to install
UPC: 743724583663 In the Box MagiCue MAQ-MAX-HM404A Maxim Pro 4 x 4 HDMI Matrix Extender over CAT5e/6 Cable 12 VDC, 4 A Adapter IR Remote Controller 4 x IR Extension Transmitter Cable (9.8') 4 x IR Extension Receiver Cable (9.8') 2 x Metal Brackets Table of Contents
|
Upload User Manual
Have you got an user manual for the MagiCue MAQ-MAX-HM404A Maxim Pro 4 x 4 HDMI Matrix Extender over CAT5e 6 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

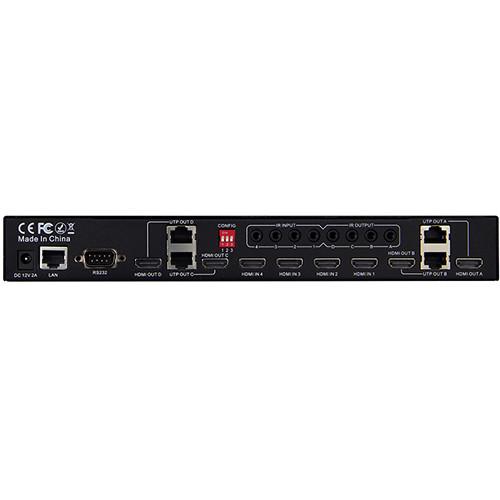

Technical parametersMagiCue MAQ-MAX-HM404A Specs | Interface | 4 x HDMI type A female, input
4 x HDMI type A female, output
4 x RJ45, CAT5e/6 extender output
4 x 3.5 mm phone jack, IR output
4 x 3.5 mm phone jack, IR input
1 x 9-pin Sub-D, RS-232
1 x RJ45, LAN
1 x 12 VDC barrel, power input | | Power Consumption | < 30 W when the function of power over UTP of 4 extender outputs is on | | Video Formats (Input/Output) | HDMI v1.3, 1080p/1080i/720p/576p/480p/576i/480i | | HDMI Standards | HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID | | Input Video Signal | 0.5 - 1.0 V p-p | | Input DDC Signal | 5 V p-p (TTL) | | HDMI Audio | PCM, Dolby-AC3, DTS 7.1, DSD, up to 8 channels | | Max. HDMI Cable Distance | Up to 49.2' (15 m) | | Output Resolution | 1080p: 170' (50 m) via CAT5e; 230' (70 m) via CAT6

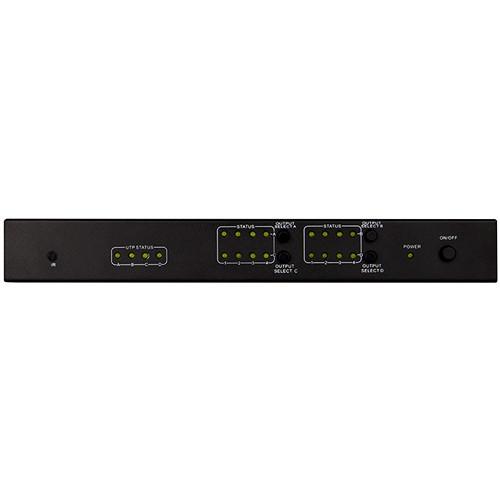

720p/1080i: 230' (70 m) via CAT5e; 300' (90 m) via CAT6 | | Indicators | Power, green
Extender output connected status, green
Matrix status, yellow | | IR Frequency | 38 kHz | | ESD Level | HBM ±8 kV (Contact Discharge) | | Temperature Range | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Dimensions | 10.9 x 5.9 x 1.5" (276 x 151 x 37 mm) Excluding 3 mm height rubber pad | | Weight | 5.5 lb (2.5 kg) |
