User Manual for MagiCue MAQ-MAX-HS101A Maxim HDMI to SDI Converter with SRC Function Click to enlarge the picture
Contents of the user manual for the MagiCue MAQ-MAX-HS101A Maxim HDMI to SDI
- Product category: Signal Converters MagiCue
- Brand: MagiCue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MagiCue Signal Converters
 |
User manual for the MagiCue MAQ-MAX-HS101A Maxim HDMI to SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MagiCue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MagiCue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MagiCue product will considerably shorten its lifespan!
|

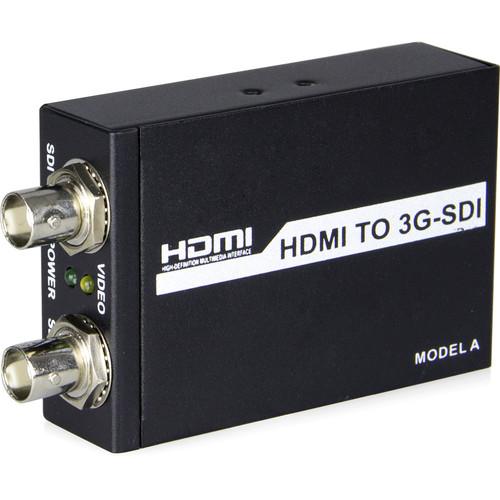

Product description The MagiCue MAQ-MAX-HS101A Maxim HDMI to 3G/HD SDI Converter converts an HDMI signal into a 3G/HD-SDI signal, supporting a maximum of 8-channel HDMI embedded audio outputs. This converter has one HDMI input port and two 3G/HD-SDI outputs. It is suitable for connecting HDMI cameras and other HDMI video sources to SDI video recorders or monitors. - HDMI 1.3a input, 3G/HD-SDI output
- Full 10-bit color converting
- Supports up to 8-channel HDMI embedded audio
- SRC function is optional; it supports any frequency HDMI audio input
- SDIPLL clock filter, low-jitter 3G-SDI output
- HDCP 1.2 local decoding via HDMI
- Power and video indicators
- Industrial metal case easy to install (sold separately)
UPC: 743724583649 In the Box MagiCue MAQ-MAX-HS101A Maxim HDMI to SDI Converter with SRC Function 2 x Type-L Metal Bracket 1VDC, 5V, 1A Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MagiCue MAQ-MAX-HS101A Maxim HDMI to SDI Converter with SRC Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagiCue MAQ-MAX-HS101A Specs | Interface | Input: 1 x HDMI Type-A, female Output: 2 x SDI via BNC, female | | Video Formats | Input: HDMI v1.3a, 30/36 bits per pixel,RGB or YUV
SD, HD, 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60
Output: 3G, HD, and SD-SDI (auto-selected)
SMPTE-259/274/292/296/372/424/425 | | Audio Formats | Input: HDMI embedded audio, 24-bit/48 kHz or any frequency HDMI audio input (SRC function), 8 channels maximum
Output: SDI embedded audio, 24-bit/48 kHz, 8 channels maximum | | Indicators | Power: Green
Video Link: Yellow | | Power Consumption | < 1.85 W | | Power Input | 5 VDC | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Compliance | FCC; CE | | Dimensions (L x W x H) | 3.2 x 2.1 x 1.1" (82 x 55 x 30 mm) | | Weight | 0.33 lb (0.15 kg) |
