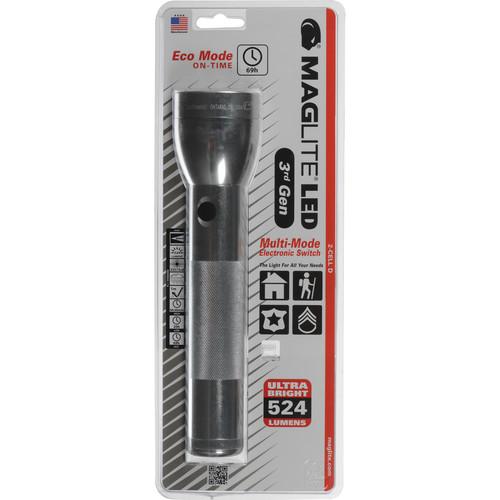

User Manual for Maglite LED 3d Generation 2-Cell D Flashlight Click to enlarge the picture
Contents of the user manual for the Maglite LED 3d Generation 2-Cell D
- Product category: Handheld Flashlights Maglite
- Brand: Maglite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Maglite Handheld Flashlights
|
User manual for the Maglite LED 3d Generation 2-Cell D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Maglite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Maglite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Maglite product will considerably shorten its lifespan!
|
Product description The silver LED 3 Generation 2-Cell D Flashlight from Maglite is a focusable white LED light featuring 524 lumen maximum output, several power and lighting modes, and a water and impact resistant aluminum housing.
The flashlight provides a momentary and constant-on operation, high, low, eco, and strobe output modes. The high output mode flashlight delivers 524 lumens of light for 6.5 hours, the low output delivers 143 lumen for 20 hours, and eco mode delivers 58 lumens for 69 hours. You can also change the sequence of these modes by setting the flashlight to general, outdoor, law enforcement, and military priority settings.
The activation and switching between the modes are performed via a pushbutton located on the side of the body. Quick-Click switching allows changing between output mode sequences. The flood-to-spot quick focusing is performed by twisting the head in 1/4 of a turn.
The housing with silver finish is water resistant, impact resistant to 3.3', and has a textured handle and tailcap for a secure non-slip grip. - Light Performance
-
- High: 524 lumen
- Low: 143 lumen
- Eco; 58 lumen
- White LED light
- Switching and Focusing
-
- Type: Pushbutton
- Location: Body
- Momentary and constant-on
- Quick-Click switching allows changing sequence modes
- Fast focusing allows flood-to-spot in 1/4 turn of a head
- High, low, eco, and strobe output modes
- Outdoor, Law Enforcement, and Military power mode sequences
- Power Mode Sequences
-
- General Sequence: Full, Low, Eco
- Outdoor Sequence: Full, Low, Strobe
- Law Enforcement Sequence: Momentary, Full, Eco
- Military Sequence: Momentary, Full, Strobe
- Construction
-
- Aluminum housing with silver finish
- Water resistant
- Impact resistant to 3.3'
- Textured handle provides a secure grip
UPC: 038739500379 In the Box Maglite LED 3d Generation 2-Cell D Flashlight (Silver) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Maglite LED 3d Generation 2-Cell D Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMaglite ML300L-S2106 Specs | | | Lumen Output | High: 524 Lumens
Low: 143 Lumens
Minimum: 58 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 6.5 Hours
Low: 20 Hours
Minimum: 69 Hours | | Battery Type | 2 x D | | | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 2.3" / 58.4 mm | | Dimensions |
