User Manual for Maglite ML125 LED Flashlight with NiMH Rechargeable Battery Pack Click to enlarge the picture
Contents of the user manual for the Maglite ML125 LED Flashlight with NiMH
- Product category: Handheld Flashlights Maglite
- Brand: Maglite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Maglite Handheld Flashlights
|
User manual for the Maglite ML125 LED Flashlight with NiMH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Maglite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Maglite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Maglite product will considerably shorten its lifespan!
|
Product description The Maglite ML125 LED Flashlight with NiMH Rechargeable Battery Pack is an LED light that runs on either the included NiMH rechargeable battery pack or 3 optional C-Cell alkaline batteries (not included). The ML125 is constructed from durable anodized aluminum, making it weather- and corrosion-resistant. The flashlight includes 4 sets of user-configurable functions: In Set 1, click once for Full Power, twice for Power Save (25% power), and three times for Strobe (12 flashes / sec) mode. In Set 2, click once for Full Power, twice for Power Save, and three times for SOS Signal / Morse Code. In Set 3, click once for Momentary mode, twice for Full Power, and three times for Power Save. In Set 4, click once for Momentary mode, twice for Full Power, and three times for Strobe.
The ML125 features a light output of 193 lumens and a beam distance of 895.7' (273 m). Alkaline batteries will give you more hours of use than will one full charge of the NiMH battery pack. As a safety measure, the flashlight is drop-proof from up to 3.28' (1.0 m). - Runs on either the included NiMH rechargeable battery pack or 3 optional C-Cell alkaline batteries (not included)
- Reflector is mathematically matched to LED module, enabling high output intensity
- Light output of 193 lumens
- Beam distance of 895.7' (273 m)
- Alkaline runtime: 25 hr on high, 72 hr on low
- NiMH rechargeable runtime: 8.5 hr on high, 30 hr on low
- 4 sets of user-configurable functions, with 5 functions in total
- Function Set 1: Click once for Full Power, twice for Power Save (25% power), and three times for Strobe (12 flashes / sec) mode
- Function Set 2: Click once for Full Power, twice for Power Save, and three times for SOS Signal / Morse Code
- Function Set 3: Click once for Momentary mode, twice for Full Power, and three times for Power Save
- Function Set 4: Click once for Momentary mode, twice for Full Power, and three times for Strobe
- Focus beam by twisting flashlight head
- Weather- and corrosion-resistant anodized aluminum construction
- Rubber O-ring seals on both ends to keep out water
- Drop-proof from up to 3.28' (1.0 m)
- Intelligent Energy Source Management continuously monitors balance between high brightness and efficient power usage

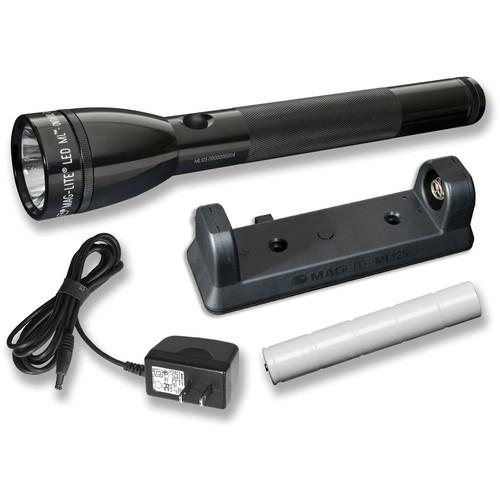

UPC: 038739830070 In the Box Maglite ML125 LED Flashlight with NiMH Rechargeable Battery Pack NiMH Rechargeable Battery Pack Portable Battery Charger AC Converter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Maglite ML125 LED Flashlight with NiMH Rechargeable Battery Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMaglite ML125-33014 Specs | | | Lumen Output | 193 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | C Alkaline
High: 25 Hours
Low: 72 Hours | | Battery Type | 1 x Rechargeable Pack NiMH or
3 x C Alkaline | | Charging Time | 2 Hours | | | | Material of Construction | Aluminum | | Bezel Diameter | 2.0" / 50.8 mm | | Dimensions |
