Maglite ML150LR-6019 Rechargeable LED Flashlight

Search your instruction manual in PDF to download

User Manual for Maglite ML150LR-6019 Rechargeable LED Flashlight

Click to enlarge the picture
Maglite ML150LR-6019 Rechargeable LED Flashlight Contents of the user manual for the Maglite ML150LR-6019 Rechargeable LED Flashlight
  • Product category: Handheld Flashlights Maglite
  • Brand: Maglite
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Maglite Handheld Flashlights

User manual for the Maglite ML150LR-6019 Rechargeable LED Flashlight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Maglite product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Maglite user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Maglite product will considerably shorten its lifespan!



Product description

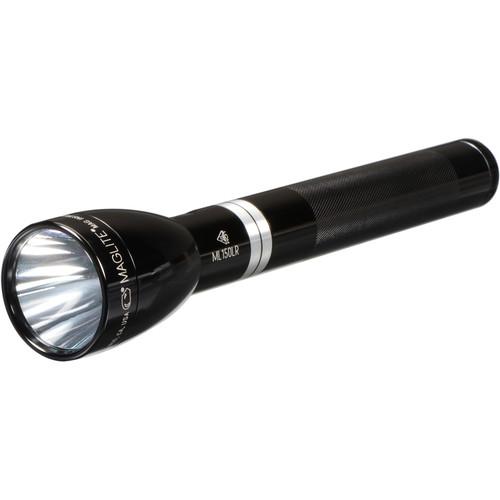

Maglite's first 1000-lumen torch, the black ML150LR-6019 Rechargeable LED Flashlight employs patented heat sink technology that allows use of a bright LED for law enforcement, security and general-use purposes. Packaged with a charging cradle that uses 12 VDC direct lead or 120 VAC converter power, the ML150LR offers eco, low, and high power settings as well as a strobe mode, with momentary and constant-on operation, all controlled from a side-mounted push-button switch. The settings are further organized into four function sets: General (high, low, eco), Outdoor (high, low, strobe), Law Enforcement (momentary, high, eco) and Tactical (momentary, high, strobe). Runtimes range from 3.3 hours on high to 79 hours on Eco.Spot-to-flood focus is adjusted with the classic Maglite quarter-turn head-twist mechanism. The light's three lithium-iron phosphate batteries recharge in about 2.5 hours and are rated for up to 1000 charge/discharge cycles. Measuring 10.7" long and weighing just under a pound, the light features an anodized aluminum housing and is IPX4-rated water resistant. The charging cradle has a status indicator light and an ergonomic quick-release button, and is designed to grip the light securely – upside down if need be – even in a moving vehicle on rough road.
    Light Performance
    • Eco: 25 lumens
    • Low: 138 lumens
    • High: 1082 lumens
    • White LED light
    • Strobe
    Switching and Focusing
    • Type: Click-type push button
    • Location: Body
    • Momentary and constant-on activation
    • QuickClik switching between function sets: General (high, low, eco), Outdoor (high, low, strobe), Law Enforcement (momentary, high, eco) and Tactical (momentary, high, strobe)
    • Twist head 1/4-turn for spot-flood focus adjustment
    Construction
    • Proprietary heat sink technology
    • Aluminum housing
    • Corrosion- and scratch-resistant anodized finish
    • Included lithium iron phosphate (LiFePO4) rechargeable batteries with 2.5-hour charge time
    • Charging cradle runs on 12 VDC direct lead or 120 VAC converter power
    • IPX4-rated water resistant
UPC: 038739850610 In the Box Maglite ML150LR-6019 Rechargeable LED Flashlight (System 6, Black)
  • 3 x LiFePo C Battery
  • Charging Cradle with Cable to Power Source
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Maglite ML150LR-6019 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Maglite ML150LR Specs

    Lumen Output Minimum: 20 Lumens
    Low: 120 Lumens
    High: 1000 Lumens
    Illumination Source 1 x LED
    Estimated Runtime High: 4 Hours
    Low: 30 Hours
    Minimum: 75 Hours
    Battery Type 3 x C Lithium Iron Phosphate
    Charging Time 2.5 Hours
    Water Resistance Water Resistant, IPX4
    Dimensions L: 10.7" / L: 27.1 cm
    Weight 15.5 oz / 439 g (With Batteries)
