Maglite ML50L 2-Cell C LED Flashlight

Search your instruction manual in PDF to download

User Manual for Maglite ML50L 2-Cell C LED Flashlight

Click to enlarge the picture
Maglite ML50L 2-Cell C LED Flashlight Contents of the user manual for the Maglite ML50L 2-Cell C LED Flashlight
  • Product category: Handheld Flashlights Maglite
  • Brand: Maglite
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Maglite Handheld Flashlights

User manual for the Maglite ML50L 2-Cell C LED Flashlight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Maglite product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Maglite user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Maglite product will considerably shorten its lifespan!



Product description

Maglite's third-generation ML50L 2-Cell C LED Flashlight has been given an upgrade over previous iterations with higher output and longer runtimes thanks to a more efficient and powerful LED emitter. The ML50L has a minimum output of 23 lumens, which is ideal for performing tasks such as reading and digging through a pack or kitchen drawer, and a maximum of 490 lumens for navigating and illuminating large areas. They maintained their iconic form factor and focusable beam, while giving the light three outputs plus a strobe for signaling, along with momentary activation.In an effort to limit excessive button pressing and confusing sequences, the light is engineered with four selectable "function sets." Each set has a specific usage in mind, and each has a different set of three pre-programmed outputs. The function sets are described as: General, Outdoor, Law Enforcement, and Tactical. Built for durability, the aluminum housing has a scratch- and corrosion-resistant anodized finish and is O-ring sealed for a weather-resistant IPX4 rating. Its diamond-textured handle provides a sure, slip-resistant grip in cold or wet weather. Weighing in at 12.7 oz, with the two user-supplied C-cell batteries, the ML50L is a reliable light that won't weigh you down.
    Performance
    • Eco: 23 lumens
    • Low: 113 lumens
    • High: 490 lumens
    • White LED emitter
    • Emergency strobe signal mode: 12 flashes/second
    • Rapidly focusable beam: Flood to spot light within 1/4 turn
    Switching
    • Type: 2-stage push button
    • Location: Handle
    • Momentary and constant-on modes
    • One button to control on/off and output selection
    • Four preset function sets for customized uses:
      • General: Full power, Low power, Eco
      • Outdoor: Full power, Low power, Strobe
      • Law Enforcement: Momentary, Full power, Eco
      • Tactical: Momentary, Full power, Strobe
    Construction
    • Durable and lightweight aluminum housing
    • Corrosion- and scratch-resistant anodized finish
    • IPX4 rated water resistant
    • Impact resistant to 3.3'
    • Diamond-textured slip-resistant grip
    • Runs on two user-supplied C-cell batteries
    • 12.7 oz with batteries

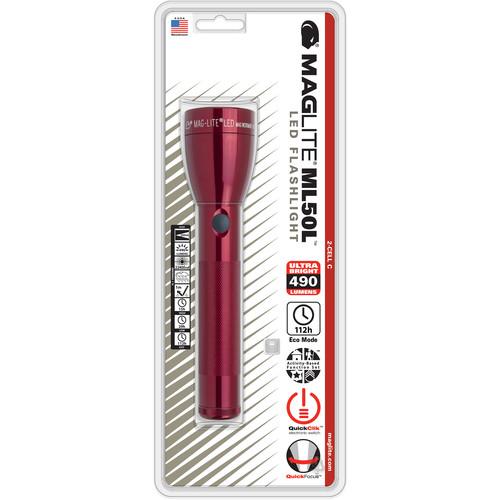

In the Box Maglite ML50L 2-Cell C LED Flashlight (Red, Clamshell Packaging)
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Maglite ML50L 2-Cell C LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Maglite ML50L Specs

    Lumen Output 3 Level: 23 to 490 Lumens
    Illumination Source 1 x White LED
    Weapon Mountable No
    Estimated Runtime 15 to 112 Hours
    Battery Type 2 x C
    Material of Construction Aluminum
    Water Resistance Water Resistant, IPX4
    Impact Resistance Yes, 3.3' / 1.0 m
    Bezel Diameter 2.0" / 50.8 mm
