User Manual for Maglite XL200 LED Flashlight Click to enlarge the picture
Contents of the user manual for the Maglite XL200 LED Flashlight
- Product category: Handheld Flashlights Maglite
- Brand: Maglite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Maglite Handheld Flashlights
|
User manual for the Maglite XL200 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Maglite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Maglite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Maglite product will considerably shorten its lifespan!
|

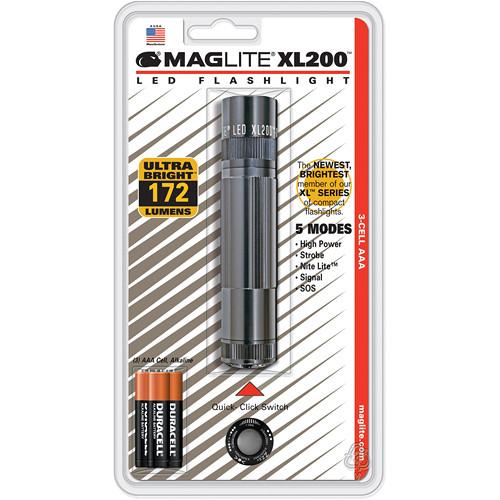

Product description With Maglite's gray XL-200 LED Flashlight you get a versatile and powerful illumination tool with a max output of 172 lumen and a low 14 lumen nightlight feature. Its pushbutton tailcap switch, plus the unique motion-control technology, gives you access to the variable high to low outputs, the adjustable-rate strobe and signal, Nite Lite, and SOS modes. The beam easily adjusts from spot to flood, to further tailor the beam to your preferences or the situation. An easy to use lockout function ensures that the light won't accidentally activate. The light is impact resistant to 3.3' and weatherproof. The XL-200 is made in the USA and offered here in clamshell packaging. - Performance
-
- 172 lumen output
- White LED emitter
- Hood slides to focus beam from flood to spot
- Emergency Strobe mode
- Nite Lite mode: Dims from 172 to 14 lumen
- Signal mode: Manually flash light to signal
- SOS mode: When activated, automatically cycles through Morse code sequence
- Switching
-
- Type: Click-type pushbutton
- Location: Tailcap
- Momentary-on activation only
- Click once: High output
- Click twice: Strobe mode
- Three clicks: Nite Lite mode
- Four clicks: Signal mode
- Five clicks: SOS mode
- Motion control: Hold button on last click and rotate body left or right to change output, strobe frequency, wake-up light from Nite Lite mode, and quickly flash light in signal mode
- Lock-out mode prevents accidental activation
- Construction
-
- Lightweight aluminum housing
- Corrosion and scratch-resistant gray anodized finish
- Impact-resistant to 3.3' (1m)
- O-ring sealed for weather resistance
- Individually stamped serial number
UPC: 038739661520 In the Box Maglite XL200 LED Flashlight (Gray, Clamshell Packaging) 3 x AAA Alkaline Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Maglite XL200 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMaglite XL200 Specs | | | Lumen Output | High: 172 Lumens
Low: 14 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 2.5 Hours
Low: 218 Hours | | Battery Type | 3 x AAA Alkaline | | | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions | L: 4.8" / L: 12.2 cm | | Weight | 3.7 oz / 104.3 g | | | | Package Weight | 0.31 lb | | Box Dimensions (LxWxH) | 8.6 x 4.6 x 1.0" |
