User Manual for Magma 3 Slot PCI Expansion System with PCIe Host Card and with 3.3V Keyed Slots Click to enlarge the picture
Contents of the user manual for the Magma 3 Slot PCI Expansion System
- Product category: Expansion Chassis Magma
- Brand: Magma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magma Expansion Chassis
|
User manual for the Magma 3 Slot PCI Expansion System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magma product will considerably shorten its lifespan!
|
Product description The 3 Slot PCI Expansion System from Magma provides a cost-effective migration path to new computers while maintaining a consistent PCI configuration. The expansion system allows you to expand the capability of practically any computer. The expansion chassis consists of a host interface card, a cable, and a chassis. The expansion chassis is automatically configured by the System BIOS making all of the slots appear transparent within the host computer. This type of scalability is useful in industries such as telecom, data acquisition, video monitoring, server storage, and manufacturing test fixtures. -
- Increases the number of PCI slots without replacing your computer
- Allows you to attach full-height PCI cards to computers with low-profile slots or PCI Express slots
- Multiple expansion systems can be connected to a single computer
- Connects to desktop and laptop computers
- 3 slot PCI 64-bit backplane
- All slots support full-length or shorter universal and legacy 5V only PCI cards
- Quiet cooling for hot PCI cards
- All slots support full length (12.283”) or shorter PCI cards
- Versatile black enclosure can be rack-mounted or stacked on a tabletop under your computer or monitor
- Only 2U when rack-mounted

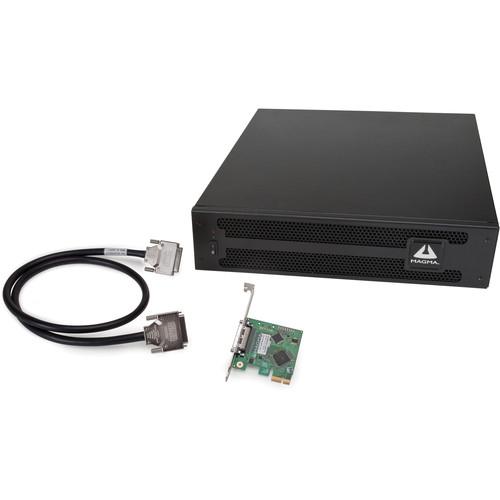

In the Box Magma 3 Slot PCI Expansion System with PCIe Host Card and with 3.3V Keyed Slots Insulator Shield Cooling Fan Power Supply PCI Card Slot Opening Cable Connector to Host Computer Power Cord Socket PCI Cable Standard Host Card Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma 3 Slot PCI Expansion System with PCIe Host Card and with 3.3V Keyed Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagma PE3R-3.3V Specs | | | Backplane | 3 PCI slots (64-bit/33 MHz)
PCI Local Bus: Revision 2.2 PCI Bridge Architecture: Revision 1.2 | | Cable | 3.3' (1.0 m PCI expansion cable) | | Interconnect Bandwidth | 255 MB/sec | | | | Supported | Windows
Mac OS X
Linux
Solaris | | | | Fans | 2 x 34CFM fans
One fan in power supply | | | | MTBF | 100,000 hours | | Power | 550 W Total power on +3.3 V and 5 V must not exceed 200 W maximum. | | Input | 100 to 240 VAC, 10 A | | Input Frequency | 50 to 60 Hz | | Input Current | 10 A maximum | | DC Output | 550 W maximum | | | | Compliance | FCC: Class A verified
CE: Certified
RoHS: Compliant | | Ambient Temperature | 32 to 122°F / 0 to 50° | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 5 to 85% non-condensing | | | | Universal PCI 32/33 | 0.63 W maximum; 5 V @ 0.125 A | | Low Profile PCI (64/33) | 0.86 W maximum; 3.3 V @ 0.25 A | | PCI Express Support | 0.69 W maximum; 3.3 V @ 0.21 A | | CardBus (PCMCIA) | 0.42 W maximum; 3.3 V @ 0.125 A | | ExpressCard | 0.81 W maximum; 3.3 V @ 0.21 A; 1.5 V @ 0.08 A | | | | Material | Steel/Aluminum | | Rackmount | 2U rack-mount | | Dimensions | 13.1 x 3.5 x 16.4" / 33.3 x 8.9 x 41.7 cm
19" / 48 cm (With rack ears) | | | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 12.0" |
