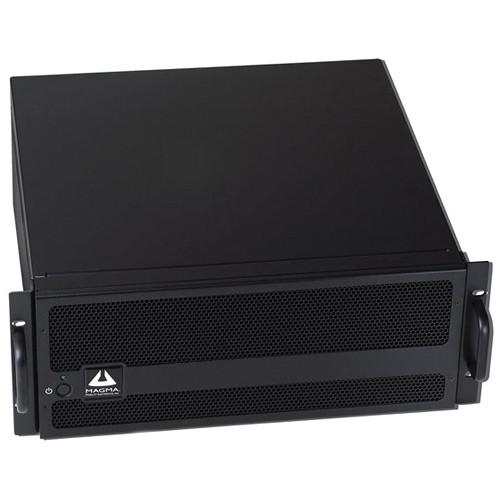

User Manual for Magma 7 Slot PCI Expansion Unit with PCI Host Card & Single PS Click to enlarge the picture
Contents of the user manual for the Magma 7 Slot PCI Expansion Unit
- Product category: Expansion Chassis Magma
- Brand: Magma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magma Expansion Chassis
|
User manual for the Magma 7 Slot PCI Expansion Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magma product will considerably shorten its lifespan!
|
Product description The 7 Slot PCI Expansion Unit with PCI Host Card & Single PS from Magma is a 4U, rack mountable chassis that allows you to plug-in up to seven full-sized power-demanding PCI cards and up to seven 3.5" hard drives in an external enclosure. It is a proven method to increase PCI capability without losing performance. The PCI host card provides easy connection to desktop computers and servers. Even with the introduction of more robust desktop computers and servers, increased I/O capability is required by professionals. This host card is ideal with more PCI slots than a typical computer. If you have a powerful application that requires the use of several PCI cards, you can increase the number of PCI slots in your system with the Magma PCI Expansion Unit. The use of computer specific host cards makes using your PCI cards and hard drives as simple as plug and play. All you need to do is connect the PCI Expansion Unit to the host card of your computer and turn it on. You can use the same set of PCI cards on your laptop as you do on your desktop or server by simply adding a Magma host card and connecting the cable. The auto-switching power supply allows you to work internationally by simply adding a power cord plug adapter. Setting up your PCI cards and data in one chassis gives you an opportunity to use a consistent hardware configuration regardless of the type of computer available. Being able to use the same set of PCI cards, regardless of location, also reduces the project risks. - Increase the number of PCI slots without replacing your computer
- Attach full-height PCI cards to computers with low-profile slots
- This provides the only solution for adding multiple PCI cards to mobile computers
- Offers a consistent PCI configuration allowing easy host computer upgrades
- Multiple expansion systems can be connected to a single computer
- Patented technology provides low latency and high throughput
- Proven method to increase PCI capability without losing performance
- Easy plug and play installation
- PCI host card provides easy connection to desktop computers and servers
- 7 slot PCI backplane (32-bit)
- All slots support full-length or shorter universal and legacy 5 V PCI cards
- 550 W standard power supply
- Dedicated fan for cooling PCI cards
- Non-enclosed board-sets are available for OEMs and system integrators to utilize their own enclosure
- CE certified and FCC class A verified
- Compatible with Windows, Mac, Linux and Solaris
In the Box Magma 7 Slot PCI Expansion Unit with PCI Host Card & Single PS PCI Host Card 3.28' (1 m) PCI Expansion Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma 7 Slot PCI Expansion Unit with PCI Host Card & Single PS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagma P7R4 + SUBPCIHIF68 Specs | | | Expansion Slots | 7 x PCI | | Host Connection | PCI Slot | | Operating System Support | Linux, Solaris, Windows, macOS/OS X | | | | Power Source Type | 550 W Internal PSU | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Fans | 1 | | Maximum Airflow | 82.5 CFM | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 85% | | | | Form Factor | Rackmount (4 RU) | | Certifications | CE, FCC, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Million Hours | | Host Cable Length | 3.28' / 1 m | | Dimensions | 19.0 x 7.0 x 17.7" / 48.3 x 17.8 x 45.0 cm | | Weight | 24 lb / 10.9 kg | | | | Package Weight | 34.9 lb | | Box Dimensions (LxWxH) | 25.0 x 24.7 x 14.4" |
