User Manual for Magma EB3T ExpressBox 3T 3-Slot Thunderbolt 2 to PCIe Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Magma EB3T ExpressBox 3T 3-Slot Thunderbolt
- Product category: Expansion Chassis Magma
- Brand: Magma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magma Expansion Chassis
 |
User manual for the Magma EB3T ExpressBox 3T 3-Slot Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magma product will considerably shorten its lifespan!
|

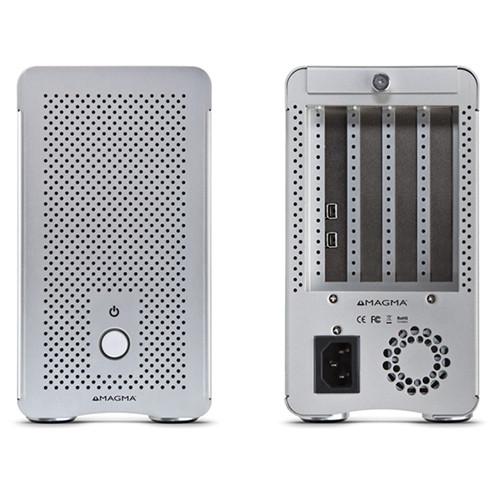

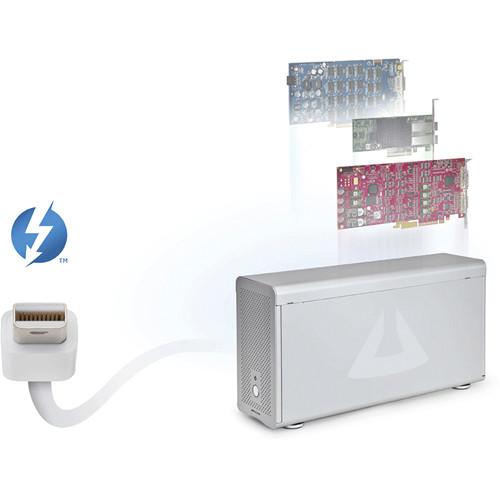

Product description The EB3T ExpressBox 3T 3-Slot Thunderbolt 2 to PCIe Expansion Chassis from Magma contains three PCIe slots that connect to a computer through a Thunderbolt cable. It allows you to attach three full length PCIe cards to your Thunderbolt 2 equipped computer, and turns your computer to an audio/video editing workstation or a scientific workstation. The expansion chassis supports high performance workflows, when a Thunderbolt equipped computer is connected to it with PCIe cards for video capture, media transcoding, audio processing, and fast data storage. Since the Thunderbolt is also based on DisplayPort technology, you can daisy-chain a high-resolution display with the expansion chassis. - Supports three full length PCIe cards
- Two x8 and one x4 PCIe Gen 2 slots (one slot accommodates x16 card)
- Thunderbolt 2 connectivity provides speeds of up to 20 Gb/s
- Daisy-chain up to six Thunderbolt devices
- 250W power supply with auxiliary power connectors
- Attach PCIe cards to Thunderbolt equipped mobile and all-in-one computers
- Extension of PCIe signals outside the computer
- Use any combination of x1, x4, x8 and x16 PCIe cards
- Hot-swappable cooling fan and an additional blower for hot cards

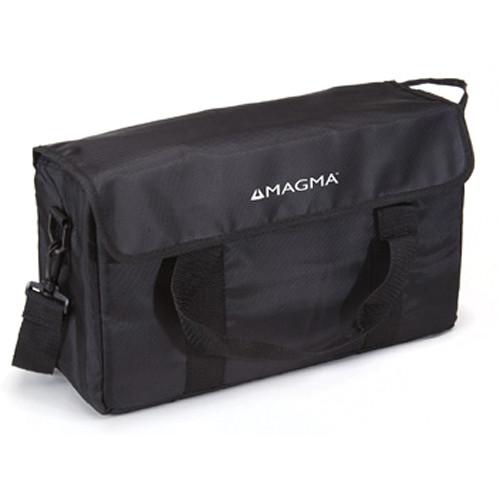

UPC: 748252997302 In the Box Magma EB3T ExpressBox 3T 3-Slot Thunderbolt 2 to PCIe Expansion Chassis U.S. Power Cord Blower* Carry Bag Limited 1-Year Warranty Note: *If needed for cooling Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma EB3T ExpressBox 3T 3-Slot Thunderbolt 2 to PCIe Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagma EB3T Specs | | | Expansion Slots | 3 x PCIe
2 x PCIe 2.0 x8
1 x PCIe 2.0 x4
1 x PCIe x16 | | Data Transfer Rates | Thunderbolt 2: 20 Gb/s | | Operating System Support | Windows, macOS/OS X | | | | Power Source Type | 250 W Internal PSU | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 85% | | | | Construction Material | Aluminum | | Certifications | FCC, RoHS, as per Manufacturer | | Mean Time Between Failures (MTBF) | 50,000 Million Hours | | Dimensions | 14.6 x 4.3 x 7.9" / 37.0 x 10.9 x 20.0 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 18.1 x 11.7 x 8.0" |
