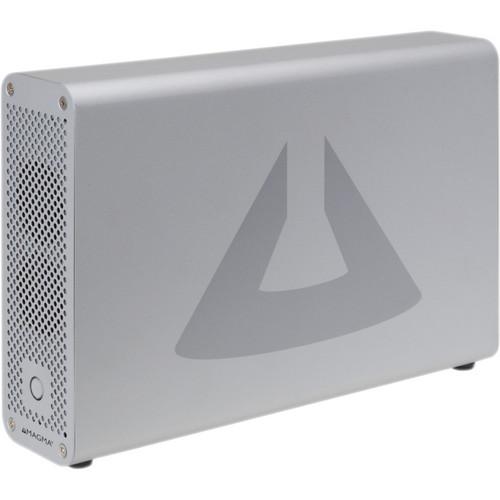

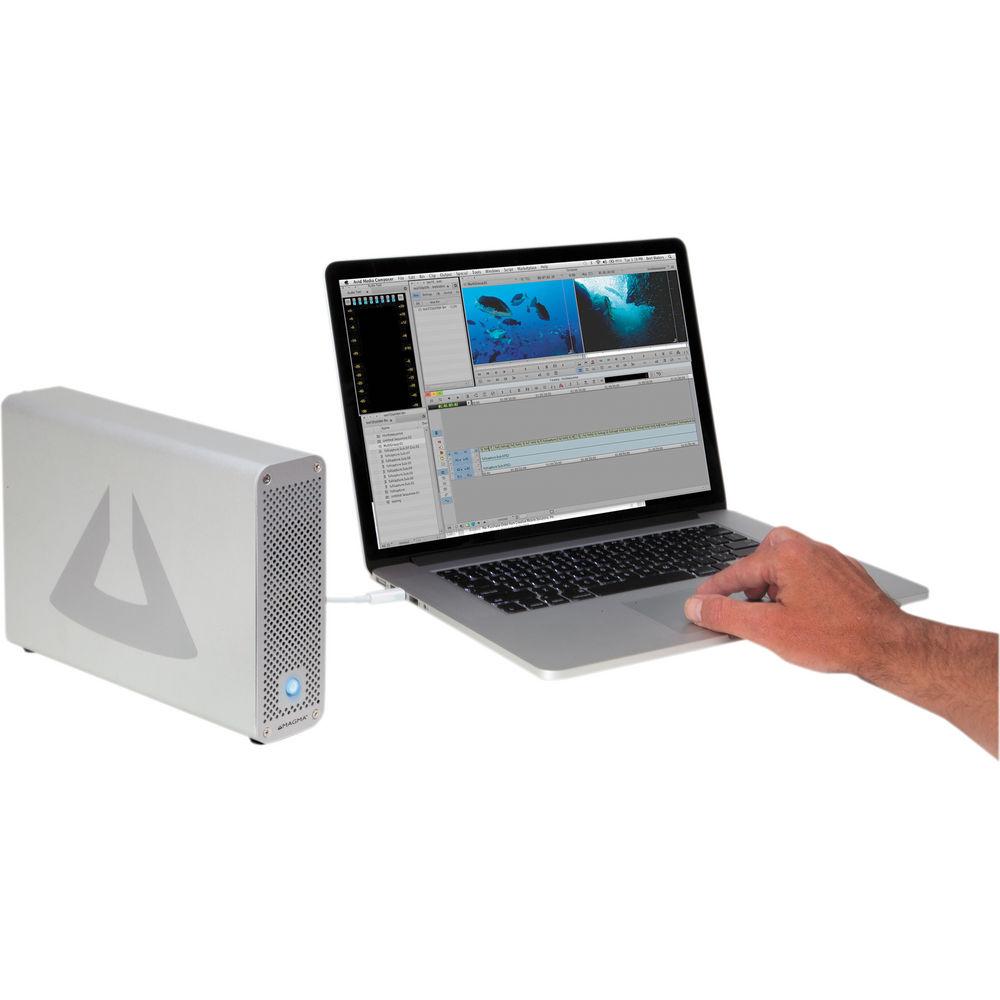

Product description The ExpressBox 1T 1-Slot Thunderbolt 2 to PCIe Expansion Chassis from Magma enables you to use PCIe cards with a Thunderbolt 2-equipped computer. It supports one half-length/full-height PCIe card and transfers data at speeds up to 20 Gb/s over a single cable via Thunderbolt 2 technology twice the speed of Thunderbolt 1. The chassis also supports plug and play installation. It features quiet ventilated cooling with two user-controlled fans, allowing you to manually adjust fan speed and noise level based on your working environment needs. This expansion chassis has a 7.75" card slot. The chassis gives your Mac or Windows PC the power to achieve maximum performance with any compatible half-length PCIe card. Add a PCIe card to this chassis and turn your Mac or Windows PC into a powerful workstation capable of HD video capture and editing, media transcoding, audio processing, data processing, or high-speed storage and networks. You can daisy chain up to six Thunderbolt 2 devices. Connect this chassis to high resolution displays such as DisplayPort, mini DisplayPort, HDMI, and VGA monitors. - Plug and Play

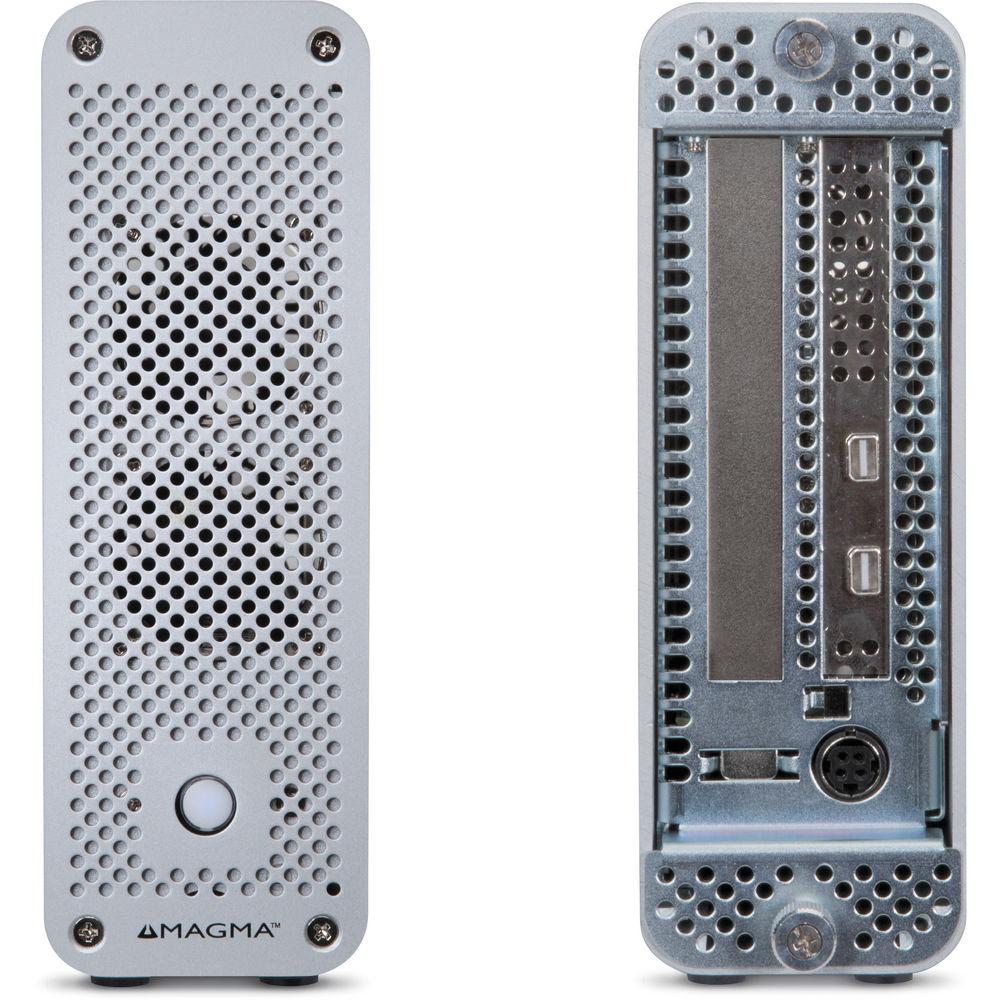

- This expansion chassis offers plug and play installation. Open the chassis with two thumbscrews; no tools required. The card carriage slides out, providing quick access to the PCIe slot. It supports any compatible PCIe x1, x4, x8, or x16 card.
- System Cooling
- It features quiet ventilated cooling with two user-controlled fans, allowing you to adjust fan speed and noise level with a potentiometer based on your working environment needs.
- Heavy-Duty Extruded Aluminum Enclosure
- This portable chassis protects your PCIe cards in a heavy-duty enclosure. The extruded aluminum shell provides a strong, protective housing while also eliminating heat from the cards inside.
Additional Features - Attach a PCIe card to Thunderbolt 2 equipped mobiles and all-in-one computers
- Transfer data at up to 20 Gb/s that is 2 times faster than Thunderbolt 1
- Daisy-chain up to six Thunderbolt 2 devices
- Use a compatible half-length PCIe card for HD video capture, audio interface, SAS/SATA HBA10 Gigabit Ethernet, 8Gb Fibre Channel, SSD data transfer, and more
- Connect this chassis to high-resolution displays such as DisplayPort, mini-DisplayPort, HDMI, and VGA monitors
UPC: 748252997906 In the Box Magma ExpressBox 1T 1-Slot Thunderbolt 2 to PCIe Expansion Chassis Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma ExpressBox 1T 1-Slot Thunderbolt 2 to PCIe Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagma EB1T Specs | | | Expansion Slots | 1 x PCIe 2.0 x16 (x4 mode) | | Maximum GPU Length | 7.75" / 19.7 cm | | Ports | 2 x Mini DisplayPort Thunderbolt 2 | | Data Transfer Rates | Thunderbolt 2: 20 Gb/s | | Operating System Support | Windows, macOS/OS X | | | | Power Source Type | 65 W External Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 85% | | | | Construction Material | Aluminum | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Dimensions | 9.5 x 2.3 x 6.9" / 24.1 x 5.8 x 17.5 cm | | Weight | 3 lb / 1.3 kg | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 15.4 x 10.6 x 6.3" |
