User Manual for Magma ExpressBox 3T-RED Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Magma ExpressBox 3T-RED Expansion Chassis
- Product category: Expansion Chassis Magma
- Brand: Magma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magma Expansion Chassis
 |
User manual for the Magma ExpressBox 3T-RED Expansion Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magma product will considerably shorten its lifespan!
|

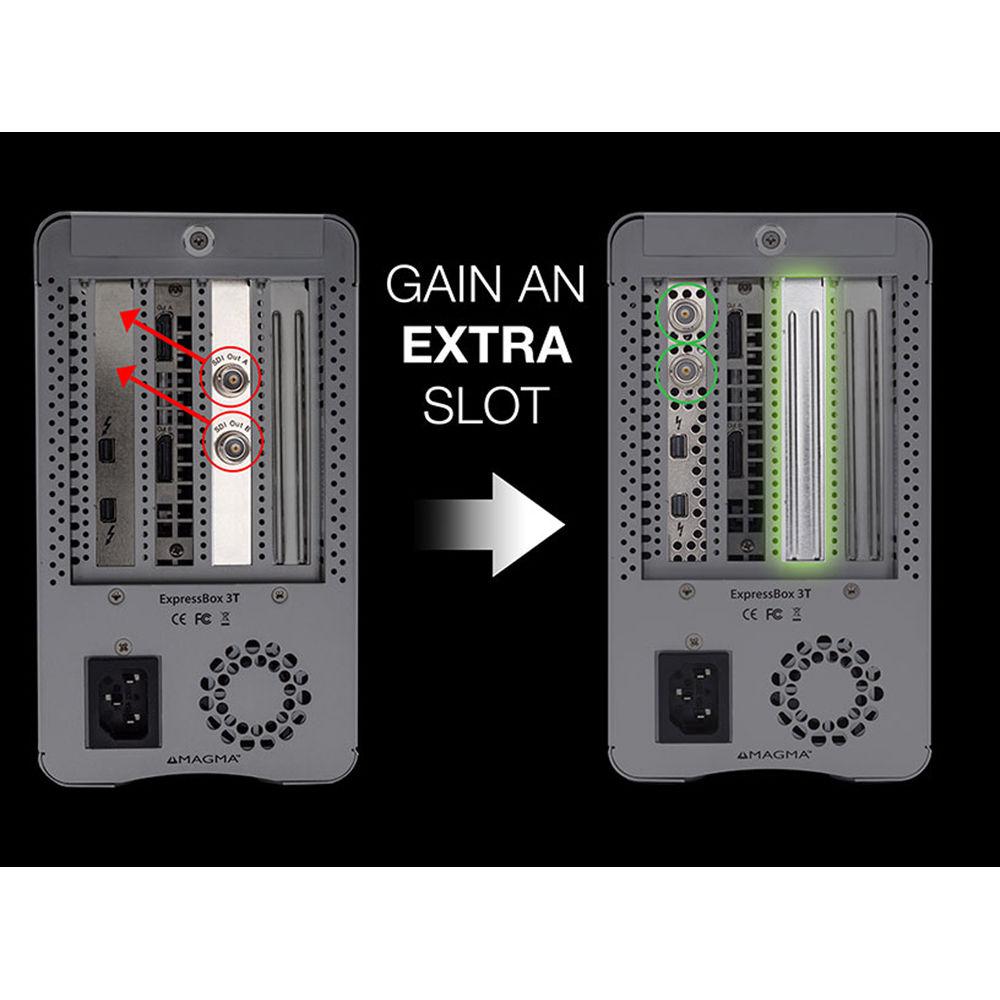

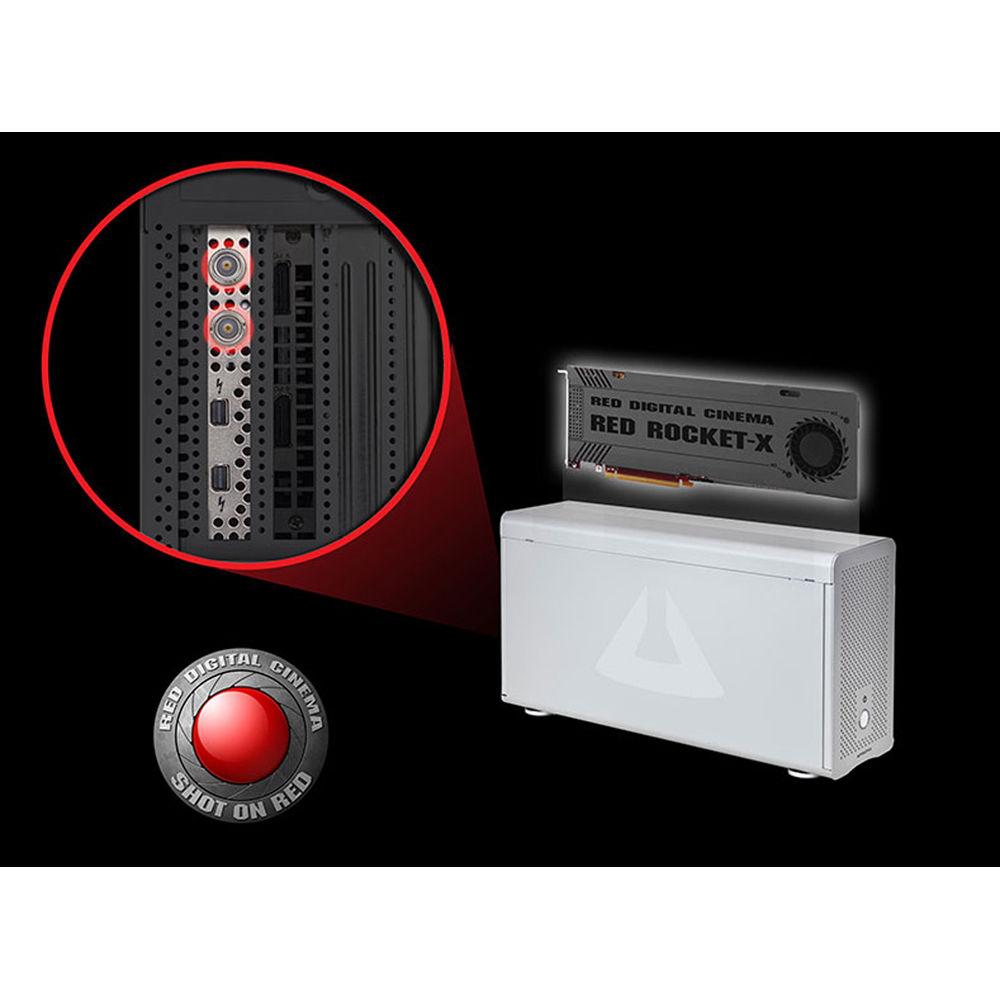

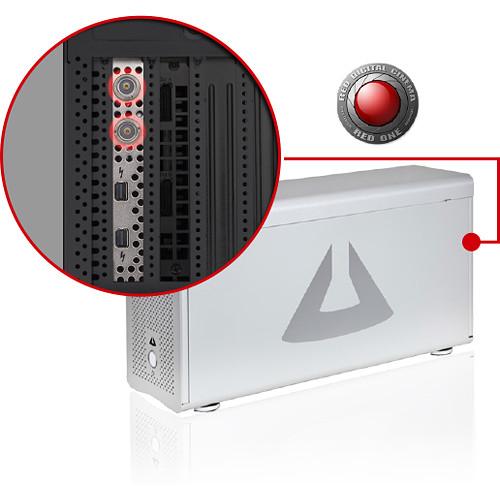

Product description The Magma ExpressBox 3T-RED Expansion Chassis is compatible with Thunderbolt-equipped systems and provides you with three full-length PCIe slots, which can accommodate your Red Rocket or Red Rocket-X card. It sports two Thunderbolt 2 ports that feature speeds of up to 20 Gb/s and offer daisy-chaining capabilities. The PCIe slots support one x4 PCIe 2.0 and two x8 PCIe 2.0 cards. To power these cards, Magma has mounted a 250W power supply inside the chassis. For cooling, it comes with a hot-swappable fan as well as a removable blower fan. Moreover, a BNC connector back plate is included to save a PCIe slot. - Plug-and-Play installation
- Use any combination of x1, x4, x8, and x16 PCIe cards

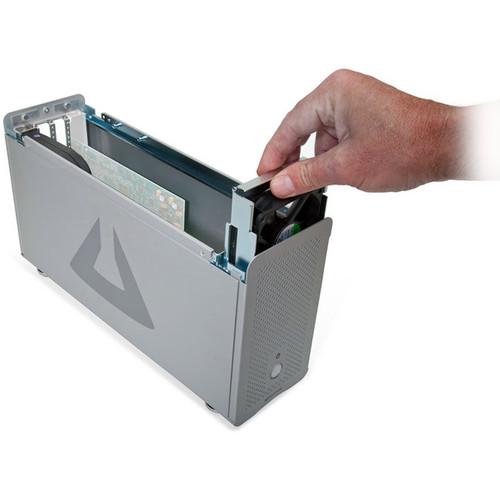

- Hot-swappable cooling fan
- Works with Mac OS X 10.6.8 or higher and Windows 7 and 8
- Blower included for hot cards

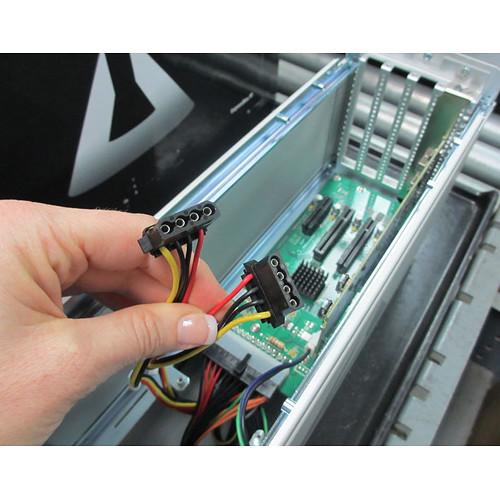

- 250W power supply with two auxiliary power connectors
UPC: 019962239830 In the Box Magma ExpressBox 3T-RED Expansion Chassis Power Cord (NA) Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma ExpressBox 3T-RED Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagma EB3T-RED Specs | | | Expansion Slots | 2 x PCIe 2.0 x8
1 x PCIe 2.0 x1 | | Data Transfer Rates | Thunderbolt 2: 20 Gb/s | | Operating System Support | Windows, macOS/OS X | | | | Power Source Type | 250 W Internal PSU | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 85% | | | | Construction Material | Aluminum | | Certifications | FCC, RoHS, as per Manufacturer | | Dimensions | 14.6 x 4.3 x 7.9" / 37.1 x 10.9 x 20.1 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 18.1 x 11.6 x 8.5" |
