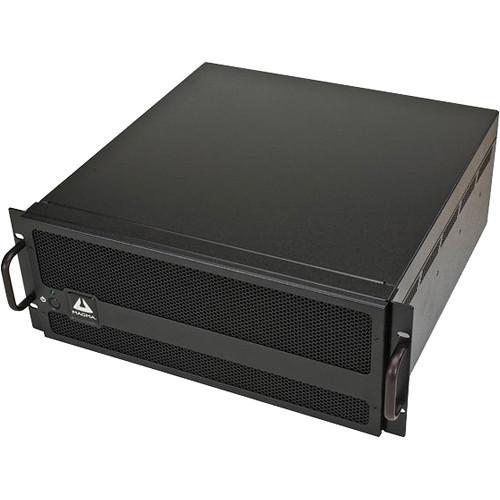

Product description The Magma ExpressBox7 (x8) Gen2 (4U) is used to extend the PCI express bus of the host PC via integration of additional 7 full length PCI Express I/O cards. Offering modularity and scalability, the expansion system provides 8 additional lanes of PCI Express connection to the host via an expansion interface card installed in 1 PCIe slot. The system allows you to replace the expansion card with an optical card, which allows connection over fiber optics. It supports hot-swapping of PCI express slot and user selectable bypass of hot-swappable feature if not supported by the BIOS of the system.
Featuring 7 built-in auxiliary power connections for the PCI cards, the 7-Slot PCI Express Expansion System is powered upon receiving control signals from the host. In addition, it allows you to turn off power to individual PCI express cards. Offering plug-n-play operation, the system supports any combination of x1, x4, x8, and x16 PCI Express cards. With a low-profile host card, the expansion system allows for easy installation in low-profile computers. It also supports peer to peer transfer in-between card slots of the expansion chassis. When used with a root complex card, the expansion system allows the expansion system to act the host computer with 8 slots.
Using LED indicators, the ExpressBox7 (x8) Gen2 (4U) indicates if the PCI express cards are attached properly. The number of PCI express slots derived is determined by the number of root complex ports supported by the host. When multiple units are connected together, the expansion system sacrifices 1 usable slot per chassis and is controlled via daisy chain protocols. It includes a 9’ (3 m) iPass cable used for a transparent connection with the host. Featuring thermister controlled fan speed regulator, the PCI expansion system includes dedicated fans for cooling of each card. - Extends the PCI express bus of the host PC via integration of additional 7 full length PCI Express I/O cards
- Offers modularity and scalability
- Provides 8 additional lanes of PCI Express connection to the host via an expansion interface card
- Allows you to replace the expansion card with an optical card, which allows connection over fiber optics
- Supports hot-swapping of PCI express slot
- User selectable bypass of hot swappable feature if not supported by the BIOS of the system
- 7 built-in auxiliary power connections for the PCI cards
- Controlled by the host PC
- Allows you to turn off power to individual PCI express cards
- Supports any combination of x1, x4, x8, and x16 PCI Express cards
- Low profile host card - easy installation in low profile computers
- Peer to peer transfer in-between cards slots of the expansion chassis
- Cards connected to the SMBus data and clock signals, which allow control by any I/O card that can act as the SMBus Master
- Multiple units - controlled via daisy chain operation

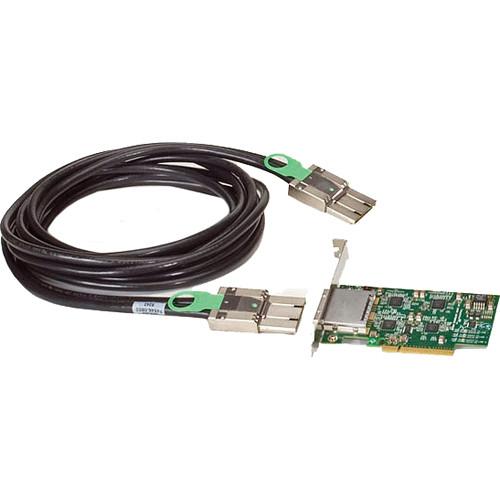

- Includes a 9' (3 m) iPass cable used for a transparent connection with the host
- Thermister controlled fan speed regulator
- Dedicated fans for cooling of each card
- CE certified and FCC Class A verified
In the Box Magma ExpressBox7 (x8) Gen2 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma ExpressBox7 Gen2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

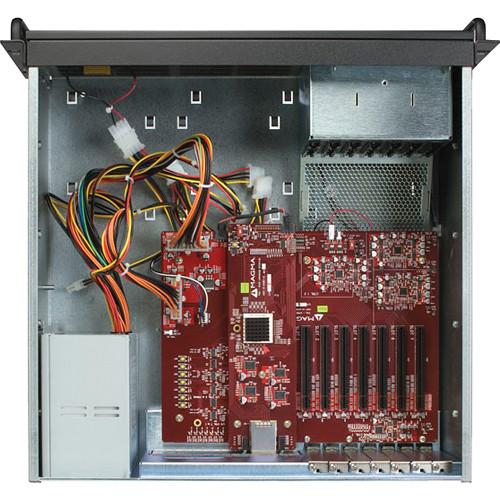

Technical parametersMagma EB7-X8G2 Specs | Backplane | 8 PCI Express slots
7 product slots
1 host interface card
16 connectors
8 Gen2 slot speeds
Hot-pluggable slots | | Cable | 9' (3 m) iPass | | Interconnect Bandwidth | 4Gbps simplex
8Gbps full duplex | | | | Dimensions (W x H x D) | 19 x 7 x 17.7" (48.3 x 17.8 x 45.2 cm), 4U Rack-mount (Removable/cleanable air filter) | | Weight | 24 lb (11.84 kg) | | System Cooling | Two 69.15 CFM Backplane fan
1 power supply fan | | Hard Drive Support | Optional drive cage | | Host Connections/Power Consumption | 8 PCI Express connector, x8 slot speeds
1.25A @ +3.3V maximum
Low profile
PCI Express bus specification Revision 2.0 | | Power Supply | Standard power supply available
Auto-switching from 110 to 220 V | | | | Ambient Temperature | 32 to 122º F (0 to 50º C) | | Storage Temperature | -4 to 140º F (-20 to 60º C) | | Relative Humidity | 5 to 85% non-condensing | | MTBF | 100000 Hours | | Regulatory Compliance | FCC Class A verified
RoHS compliant
CE certified
UL/CIL listed | | Supported Operating Systems | Windows 7 (32bit/64bit)
Windows Vista (32bit/64bit)
Windows XP (32bit/64bit)
Windows Server 2003 (32bit)
Windows Server 2008 (32bit/64bit)
Mac OS 10.4+
Red Hat Linux 2.6x+
Solaris | | | | Package Weight | 36.9 lb | | Box Dimensions (LxWxH) | 25.0 x 24.5 x 14.0" |
