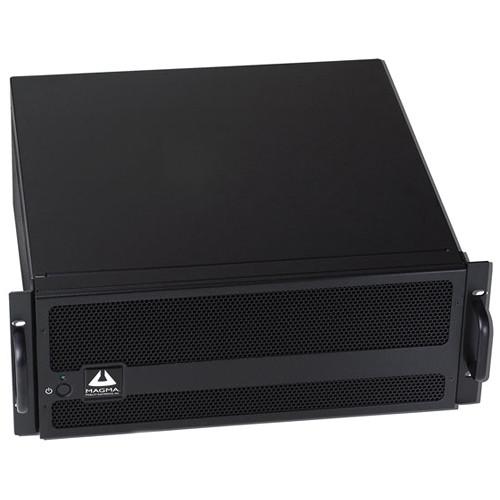

User Manual for Magma P13R 13 Slot PCI Expansion Unit with ExpressCard 34 Host Card Click to enlarge the picture
Contents of the user manual for the Magma P13R 13 Slot PCI Expansion
- Product category: Expansion Chassis Magma
- Brand: Magma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magma Expansion Chassis
|
User manual for the Magma P13R 13 Slot PCI Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magma product will considerably shorten its lifespan!
|
Product description The P13R 13 Slot PCI Expansion Unit with ExpressCard/34 Host Card from Magma is a 4U rackmountable chassis that allows you to plug-in up to thirteen full-sized power-demanding PCI cards and up to four 3.5" hard drives. It is a proven method to increase PCI capability without losing performance. The ExpressCard module provides easy connection to your favorite laptop. Even with the introduction of more robust desktop computers and servers, increased I/O capability is required by professionals. This host card serves the purpose by offering more PCI slots than a typical computer. If you have a powerful application that requires the use of several PCI cards, you can increase the number of PCI slots in your system with the Magma PCI Expansion Unit. The use of computer specific host cards makes using your PCI cards and hard drives as simple as plug and play. All you need to do is connect the PCI Expansion Unit to the host card of your computer and turn it on. You can use the same set of PCI cards on your laptop as you do on your desktop or server, by simply adding a Magma host card and connecting the cable. The auto-switching power supply also allows you to work internationally, by simply adding a power cord plug adapter. Setting up your PCI cards and data in one chassis gives you the opportunity to use a consistent hardware configuration regardless of the type of computer available. Being able to use the same PCI cards, regardless of location also reduces project risks. - Increase number of PCI slots without replacing your computer
- Attach full-height PCI cards to computers with low-profile slots
- The only solution for adding multiple PCI cards to mobile computers
- Multiple expansion systems can be connected to a single computer
- Offers a consistent PCI configuration allowing easy host computer upgrades
- Patented technology provides low latency and high throughput
- Proven method to increase PCI capability without losing performance
- Easy plug and play installation
- ExpressCard module provides easy connection to your favorite laptop
- All slots support full-length or shorter universal and legacy 5 V PCI cards
- 550 W standard power supply
- Dedicated fans for cooling PCI cards
- Non-enclosed board-sets are available for OEMs and system integrators to utilize their own enclosure
- CE certified and FCC class A verified
- Compatible with Windows, Mac, Linux and Solaris
In the Box Magma P13R 13 Slot PCI Expansion Unit with ExpressCard/34 Host Card ExpressCard/34 Host Card 3.28' (1 m) PCI Expansion Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma P13R 13 Slot PCI Expansion Unit with ExpressCard 34 Host Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagma P13R + SUBEC34 Specs | | | Expansion Slots | 13 x PCI | | Host Connection | ExpressCard 34 | | Operating System Support | Linux, Solaris, Windows, macOS/OS X | | | | Power Source Type | 550 W Internal PSU | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Fans | 1 | | Maximum Airflow | 82.5 CFM | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 85% | | | | Form Factor | Rackmount (4 RU) | | Certifications | CE, FCC, as per Manufacturer | | Mean Time Between Failures (MTBF) | 37,000 Million Hours | | Host Cable Length | 3.28' / 1 m | | Dimensions | 19.0 x 7.0 x 17.7" / 48.3 x 17.8 x 45.0 cm | | Weight | 24 lb / 10.9 kg | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 14.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
