User Manual for Magma P13RR-RAS 13 Slot PCI Expansion Unit with PCI Host Card Click to enlarge the picture
Contents of the user manual for the Magma P13RR-RAS 13 Slot PCI Expansion
- Product category: Expansion Chassis Magma
- Brand: Magma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magma Expansion Chassis
|
User manual for the Magma P13RR-RAS 13 Slot PCI Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magma product will considerably shorten its lifespan!
|

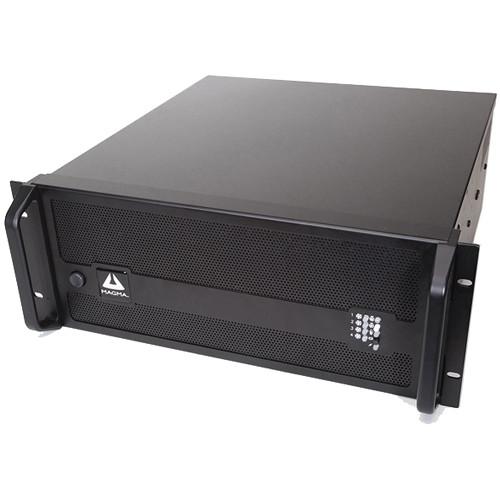

Product description The P13RR-RAS 13 Slot PCI Expansion Unit with PCI Host Card from Magma provides a simple solution for expanding the PCI capability of your computer or server. The expansion unit features thirteen PCI slots that connect to the host computer through a host card and a 3.28' (1 m) PCI expansion cable. The P13RR-RAS Expansion Unit is a rugged COTS (Commercial-Off-The-Shelf) expansion system designed specifically for industrial telephony and military-grade configurations requiring additional PCI slots and remote monitoring capabilities. It is designed to fit conveniently into any rack cabinet and includes a card hold down system which keeps your cards securely in place. In addition to the ruggedized chassis, hot-swappable redundant power supply and field-replaceable high volume fans, the P13RR-RAS Expansion Unit also monitors critical components inside the chassis. The SNMP remote monitoring system remotely monitors the status of the expansion unit through a built-in web server and Ethernet connection. Moreover, SNMP monitors the power supply, fans and chassis temperature, alerting you of any problems by sounding an audible alarm. The expansion unit provides a migration path to expand your available number of PCI slots while maintaining a consistent PCI configuration. It provides increased I/O capacity and scalability because multiple expansion systems can be combined to provide an almost unlimited number of PCI slots* to a single computer. This type of scalability is especially useful in industries such as telecom, data acquisition, video monitoring, server storage and manufacturing test fixtures. The host card relays signals from the PCI slot inside the computer motherboard to a PCI bridge chip inside the expansion chassis. The system is automatically configured by the system BIOS and all thirteen PCI slots within the expansion chassis appear transparent to the host computer. Note: *As defined by the PCI Local Bus Specification, the theoretical maximum per single computer is 255 PCI buses. - Rugged solution for adding PCI slots
- Multiple expansion systems can be used with a single computer
- Equipped with an LCD display for visual failure status and audible alarm
- Field deployable in harsh environments
- 4U, rugged black rack mount enclosure
- Easy plug-and-play installation
- All slots support full-length universal and legacy 5 V PCI cards
- PCI card hold down bar prevents cards from being dislodged during transportation
- Constant critical component monitoring
- Power supply, hot-swappable fans and chassis temperature are constantly monitored for failure status
- Supports SNMP, which enables remote monitoring using industry-standard management information bases (MIBs)
- Designed to provide prompt correction when fault occurs
- Equipped with superior EMI control, vibration, shock and moisture resistance
- 550W redundant power supply
- Field-replaceable cooling fans dedicated for cooling PCI cards
- Designed to meet the MIL-STD 461E US military standards
- Compatible with Windows, Mac, Linux and Solaris
In the Box Magma P13RR-RAS 13 Slot PCI Expansion Unit with PCI Host Card PCI Host Card 3.28' (1 m) PCI Expansion Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magma P13RR-RAS 13 Slot PCI Expansion Unit with PCI Host Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagma P13RR-RAS + SUBPCIHIF68 Specs | | | Expansion Slots | 13 x PCI | | Host Connection | PCI Slot | | Operating System Support | Linux, Solaris, Windows, macOS/OS X | | | | Power Source Type | 550 W Internal PSU | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Fans | 4 | | Maximum Airflow | 77 CFM | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Altitude | 15,000' / 4572 m | | Storage Altitude | 40,000' / 12,192 m | | Operating Humidity | 5 to 85% | | | | Form Factor | Rackmount (4 RU) | | Construction Material | Steel | | Certifications | CE, FCC, as per Manufacturer | | Mean Time Between Failures (MTBF) | 53,000 Million Hours | | Host Cable Length | 3.28' / 1 m | | Dimensions | 19.0 x 7.0 x 18.0" / 48.3 x 17.8 x 45.7 cm | | Weight | 35 lb / 15.9 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 14.0" |
