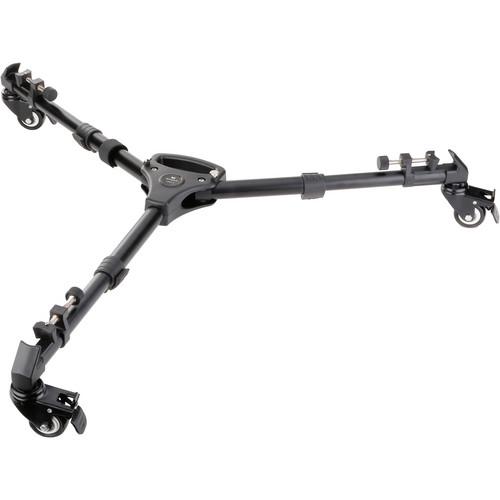

User Manual for Magnus DWF-2 Universal Tripod Dolly Click to enlarge the picture
Contents of the user manual for the Magnus DWF-2 Universal Tripod Dolly
- Product category: Tripod Dollies Magnus
- Brand: Magnus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magnus Tripod Dollies
 |
User manual for the Magnus DWF-2 Universal Tripod Dolly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magnus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magnus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magnus product will considerably shorten its lifespan!
|

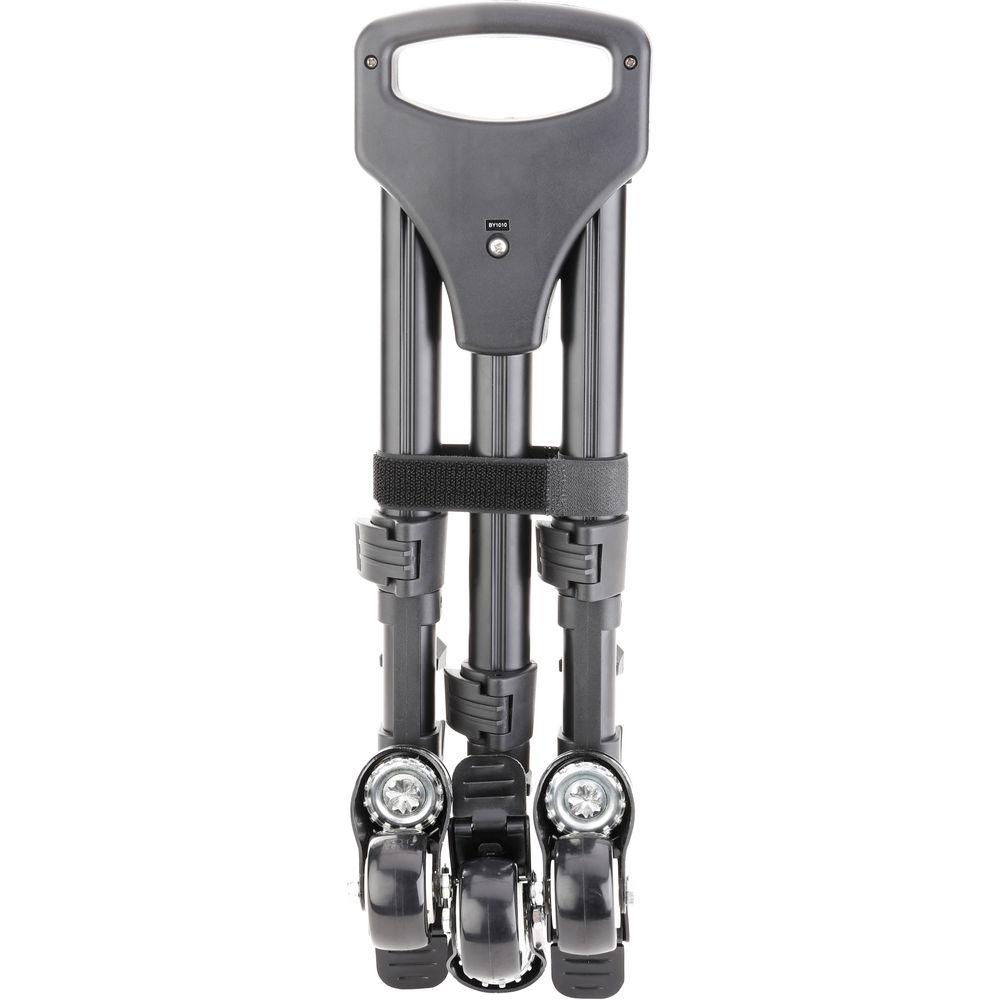

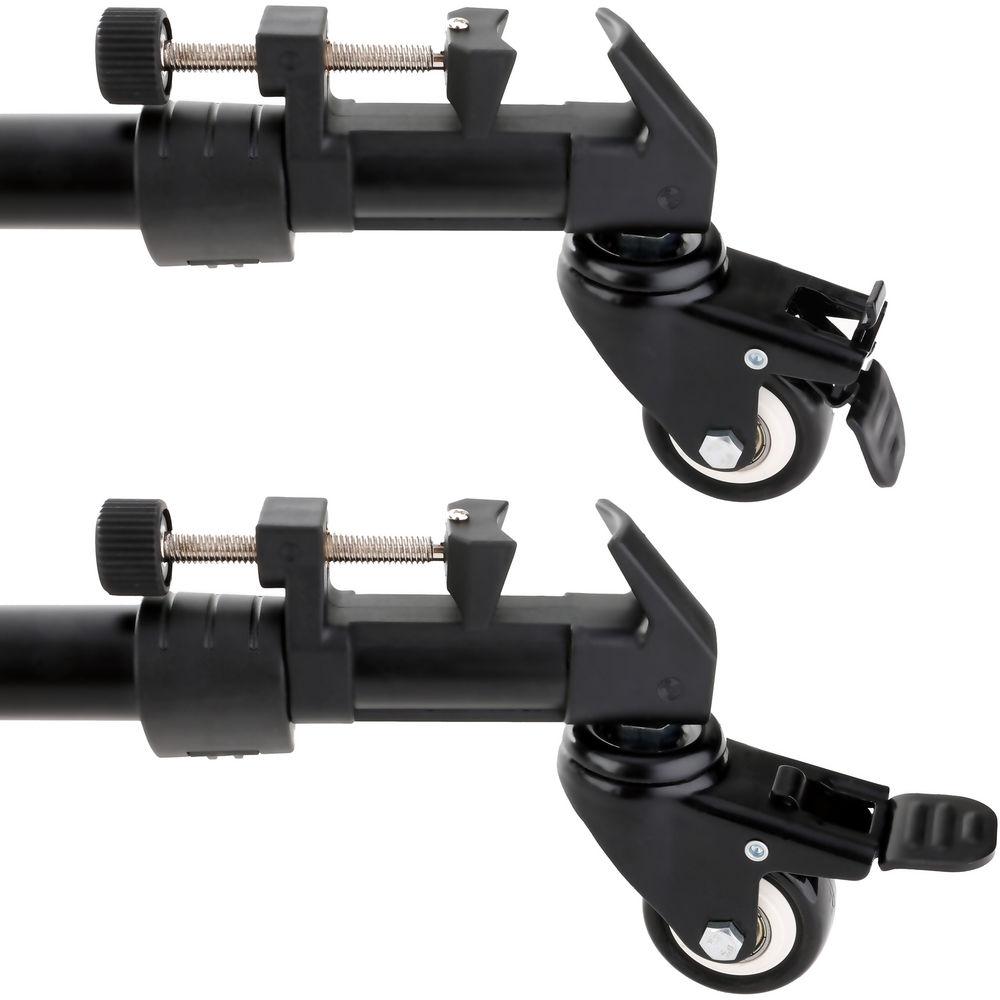

Product description The Magnus DWF-2 Universal Tripod Dolly presents a simple, affordable way to put your tripod on wheels. The dolly features 2" ball-bearing metal/rubber wheels that feature revolving assemblies. That means you can steer your tripod along any line imaginable to capture a smooth tracking shot.The DWF-2 dolly bears loads up to 33 lb and features adjustable clamps to lock just about any size of tripod foot into place securely. Mounting a tripod is easy: Just line up each tripod foot and twist the thumb screws to tighten each clamp.Each leg bar extends up to 4.9" to accommodate tripods of various dimensions, and flip locks secure the extension. Fully extended, the dolly has a doorway width of 31". With step-on locks for each wheel, you can easily transform your rolling tripod into a sturdy lock-down mount for your camera.Two of the legs fold down to create a compact package for transport – the dolly folds down to just 17 x 5". - Step on the wheel locks to brake the spinning of the wheels and the rotation of the wheel assemblies
- Spring-loaded stoppers automatically lock the legs in the open position when they're rotated out - easily pull them up to rotate the legs back into the closed position
- Hook & loop strap to secure legs in a tidy package for transport
- Carry bag with shoulder strap
UPC: 847628570436 In the Box Magnus DWF-2 Universal Tripod Dolly Hook & Loop Strap Carry Bag with Shoulder Strap Limited 1-Year Warranty User Manual PDF 910.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus DWF-2 Universal Tripod Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagnus DWF-2 Specs | Construction | Aluminum & plastic | | Load Capacity | 33 lb (15 kg) | | Doorway Width | 31.0" (78.7 cm) with legs fully extended | | Extension | 4.9" (12.4 cm) per leg | | Folded Length | 17.0 x 5.0" (43.2 x 12.7 cm) | | Wheel Diameter | 2" (51 mm) | | Wheel Lock | Yes | | Cable Guards | No | | Weight | 3.8 lb (1.7 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 17.25 x 5.75 x 5.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
