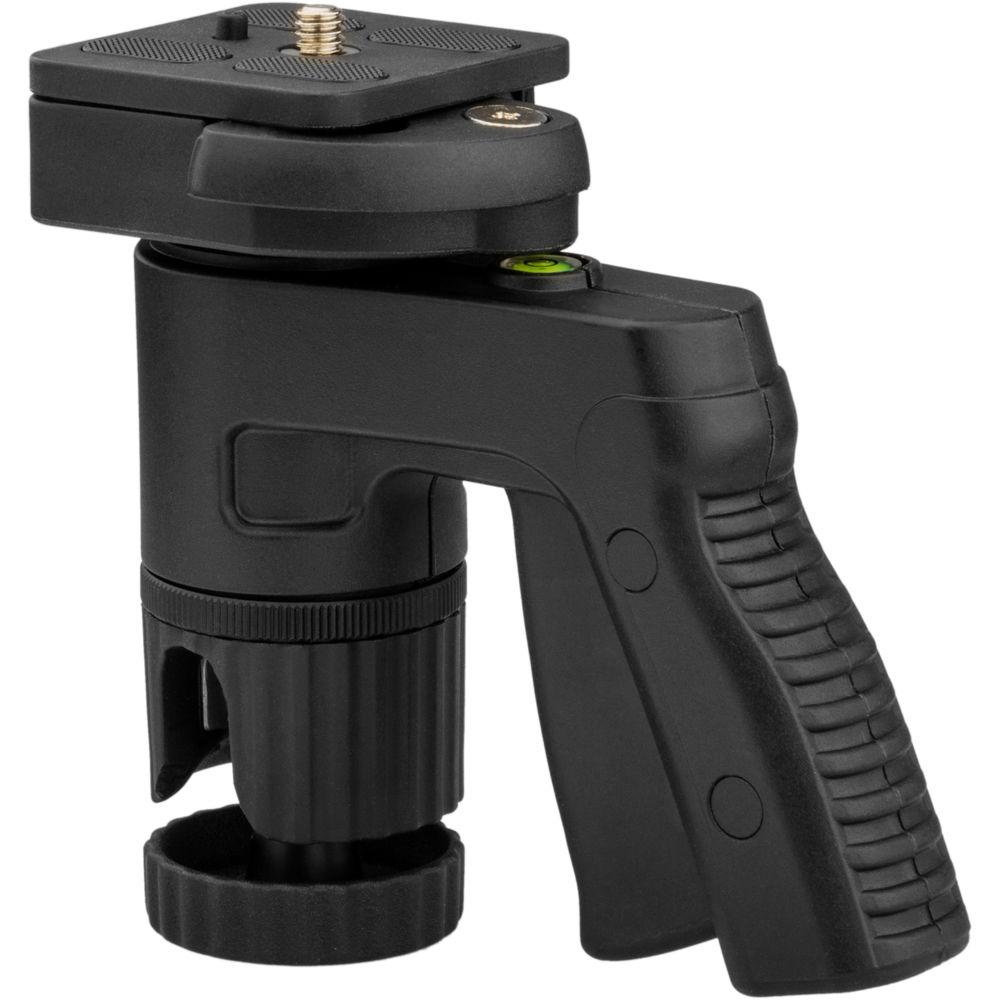

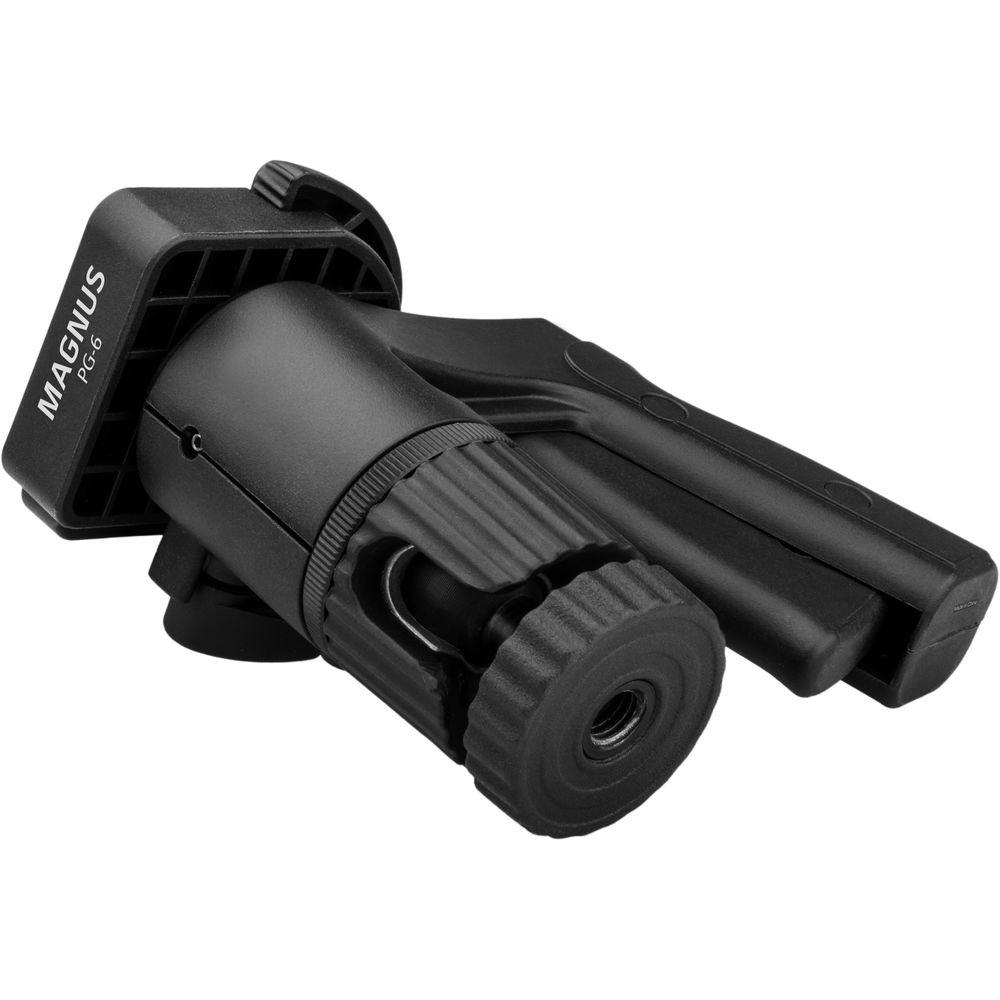

Product description The Magnus PG-6 Pistol Grip Ball Head has a load capacity of 6.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Using the pistol grip ball head's squeeze trigger, its integrated ball-and-socket joint can be quickly swiveled 360°, angled, fully tilted, or returned to its upright position.

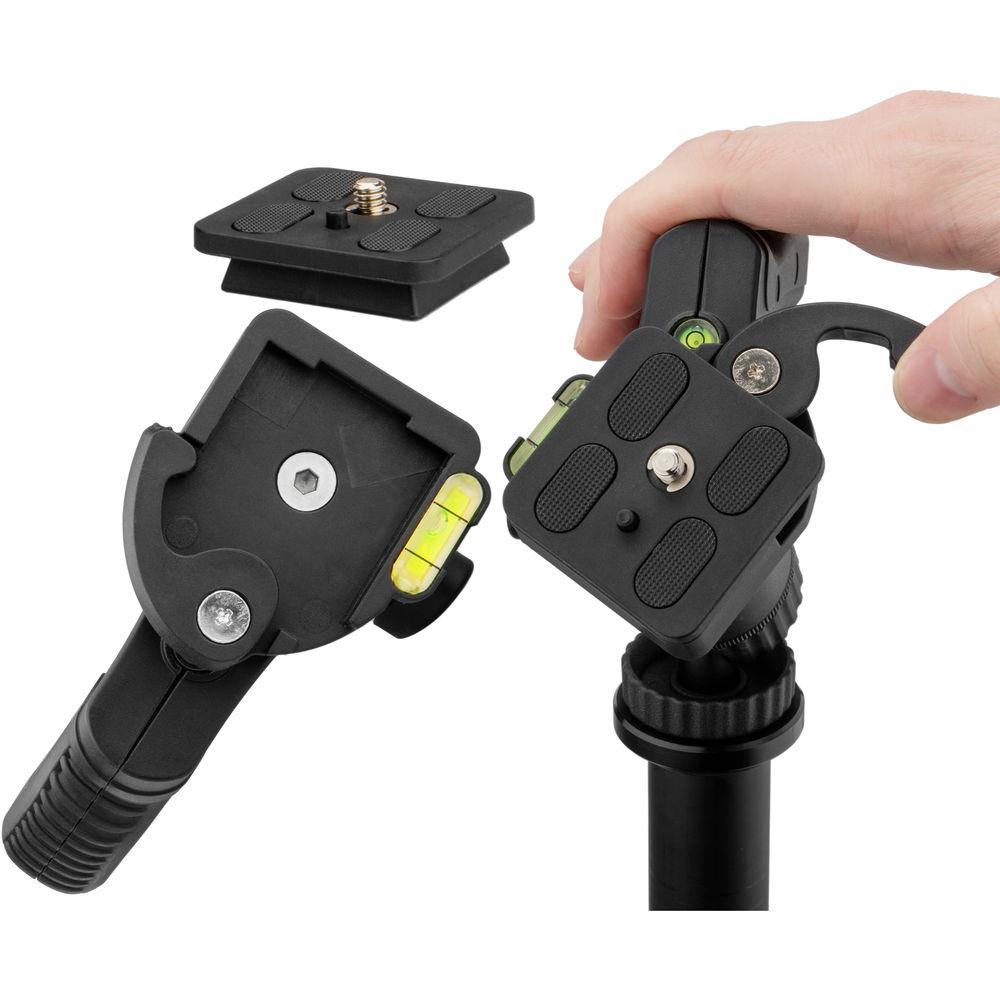

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the PG-6 Pistol Grip Ball Head's quick release plate, which is secured to the ball-and-socket joint using a cam lock. The quick release plate features a rubberized, non-slip platform and includes an anti-twist index pin. Underneath the cam lock, a locking knob can be loosened, allowing the quick release plate to be independently rotated 360°.

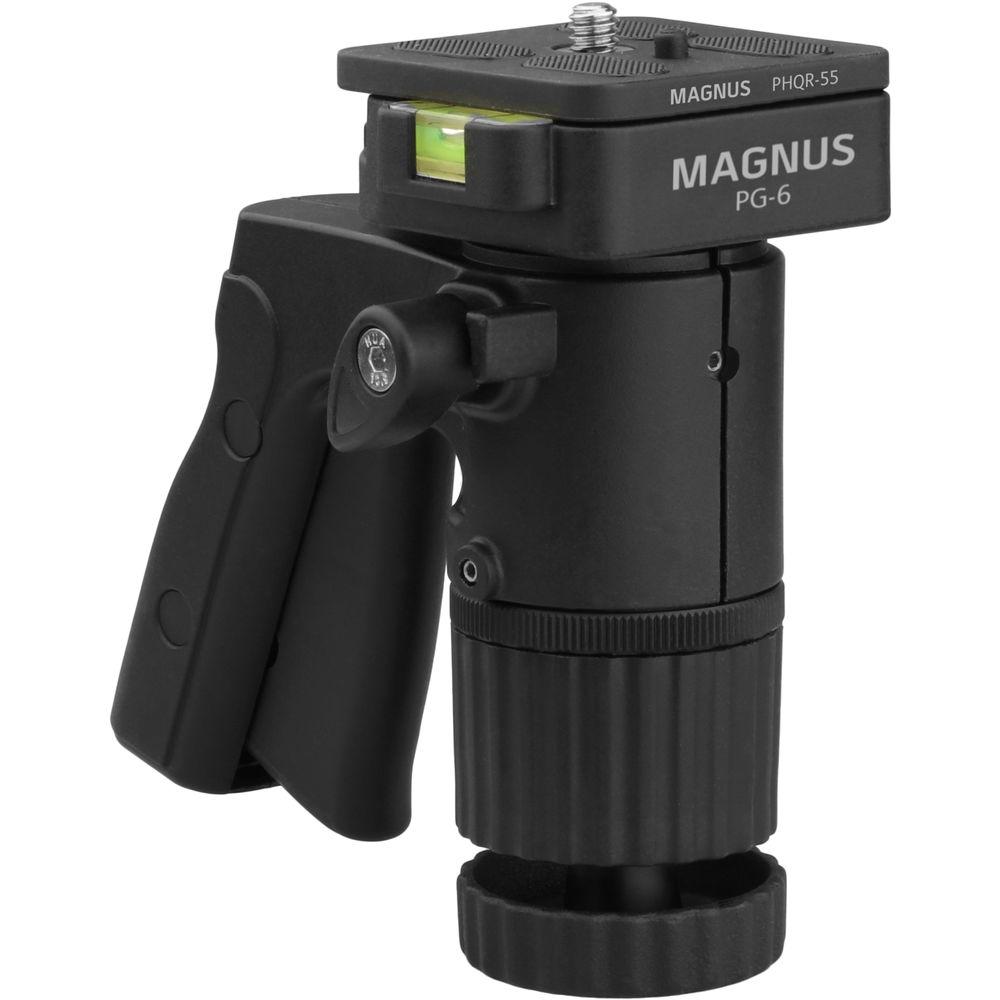

A bubble level is integrated along the cam lock to accommodate portrait orientations. For use in the landscape orientation, an additional bubble level is included along the top surface of the PG-6 Pistol Grip Ball Head's handle. -
- 6.6 lb load capacity

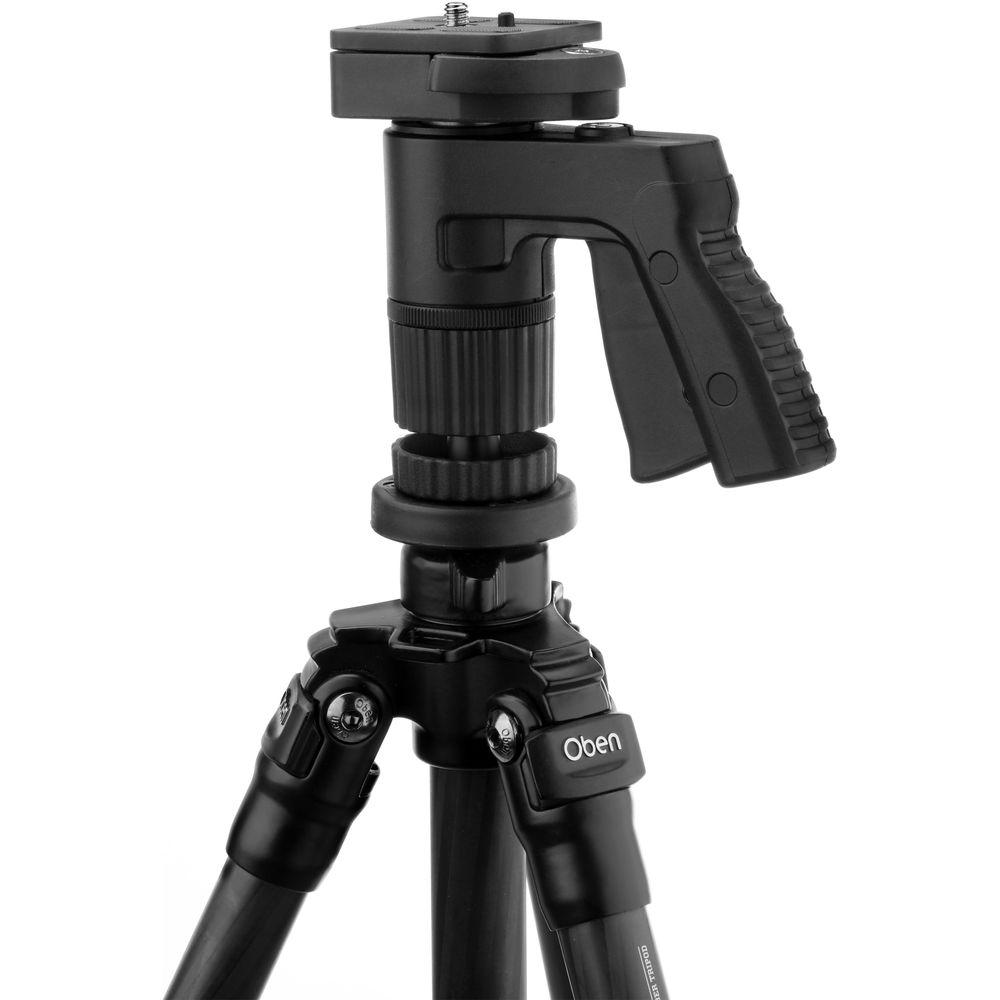

- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility

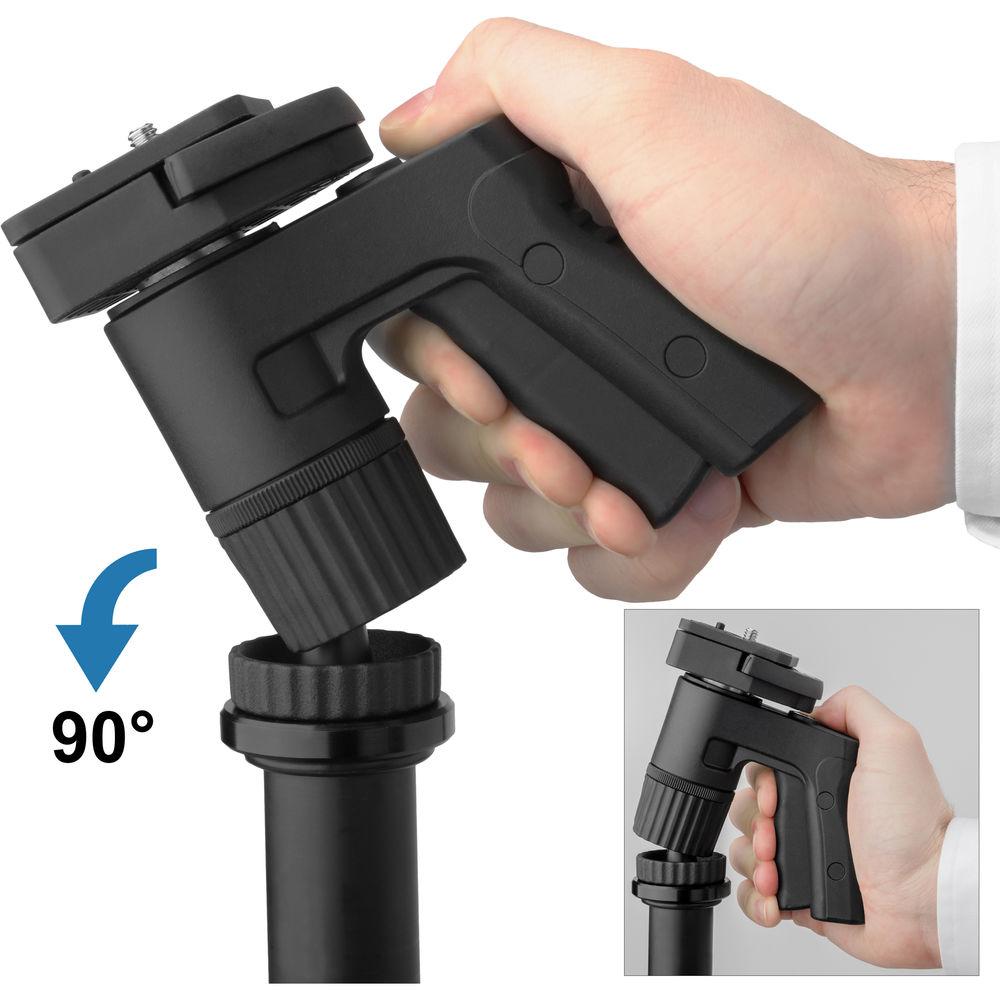

- Handle with squeeze trigger allows ball-and-socket joint to provide 360° of swivel control, tilt down to a 90° angle, and can be locked into place by releasing the trigger
- Two built-in bubble levels to accommodate landscape or portrait orientations
- Quick-release plate with rubberized, non-slip platform, 1/4"-20 mount, anti-twist index pin, and can be independently rotated 360°
- Durable aluminum & ABS construction
UPC: 847628000063 In the Box Magnus PG-6 Pistol Grip Ball Head PHQR-55 Quick Release Plate Limited 1-Year Warranty User Manual PDF 614.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus PG-6 Pistol Grip Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagnus PG-6 Specs | | | Head Type | Pistol Grip Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | PHQR-55 | | Load Capacity | 6.6 lb / 3 kg | | Number of Bubble Levels | 2 | | Material | ABS Plastic, Aluminum | | | | Ball Sphere Diameter | 0.8" / 20 mm | | Base Diameter | 1.6" / 40 mm | | Dimensions | H: 1.8 x W: 1.1 x L: 1.7" / H: 45.0 x W: 27.5 x L: 44.0 mm | | Weight | 11.6 oz / 328.0 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 5.2 x 4.8 x 3.0" |
