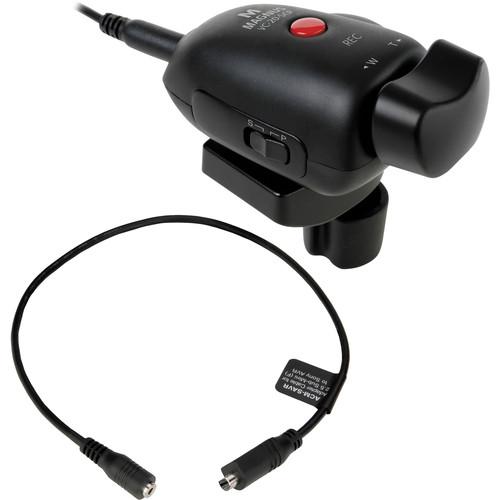

User Manual for Magnus VC-20-SCP LANC Zoom Controller & Sony AVR Adapter Cable Kit Click to enlarge the picture
Contents of the user manual for the Magnus VC-20-SCP LANC Zoom Controller &
- Product category: Zoom & Focus Controls Magnus
- Brand: Magnus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magnus Zoom & Focus Controls
|
User manual for the Magnus VC-20-SCP LANC Zoom Controller & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magnus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magnus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magnus product will considerably shorten its lifespan!
|
Product description The Magnus VC-20-SCP LANC Zoom Controller & Sony AVR Adapter Cable Kit from includes a remote record/zoom controller and an adapter cable for Sony consumer LANC capable camcorders.
The controller attaches to tripod pan handles via a built-in mounting clamp and allows you to control zoom at different speeds. It uses a pressure-sensitive zoom rocker switch that responds to the force you press it with. The adapter cable has an AVR connector and allows you to use the controller with Sony consumer camcorders. - Magnus VC-20-SCP Zoom Controller for Canon, Panasonic, Sony The Magnus VC-20-SCP Zoom Controller for Canon, Panasonic, Sony provides record and zoom control for all LANC-equipped Canon, Panasonic, and Sony camcorders. An included 22.5" long control cable connects into the controller on one end and into the camcorder's LANC port on the other. You can also use this controller with Sony consumer cameras via an optional Magnus ACM-SAVR AVR adapter cable.
A built-in mounting clamp allows attaching the controller to your tripod pan handle so you can zoom and pan with one hand and achieve a fluid look. The clamp opens up to 1.25" and also fits jibs, tubes, pipes, and bars. Zoom is regulated by a pressure-sensitive rocker switch that produces faster or slower control depending on how hard or gentle you press it. For tape-based cameras, a REC/RET button works together with a REC/RET switch to let you return to the last record position. - Key Features
-
- Record/zoom controller for Canon/Panasonic/Sony LANC equipped camcorders
- Includes a removable 22.5" long LANC control cable
- Built-in mounting clamp allows attachment to pan handles, jibs, tubes, etc.
- Pressure-sensitive wide/tele rocker switch controls zoom at variable speeds
- For tape-based cameras, a REC/RET button lets you return to the last record position
- Compatible with Sony consumer cameras via the optional Magnus ACM-SAVR AVR adapter cable
UPC: 847628569584 - Magnus 2.5mm Female to Sony AVR Adapter Cable The Magnus 2.5mm Female to Sony AVR Adapter Cable allows you to connect a Magnus VC-20-SCP Zoom Controller to Sony consumer camcorders. It's approximately 16" long and features a 2.5mm female connector on one end and Sony AVR connector on the other. UPC: 847628573390
In the Box - VC-20-SCP Zoom Controller for Canon, Panasonic, Sony
- 22.5" Control Cable
- User Manual
- 1-Year Limited Warranty
- 2.5mm Female to Sony AVR Adapter Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus VC-20-SCP LANC Zoom Controller & Sony AVR Adapter Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Magnus VC-20-SCP Zoom Controller for Canon, Panasonic, Sony
| Cable Port | 2.5 mm stereo cable jack | | Cable Length | 22.5" (57.2 cm) | | Clamp Size | Opens to a max of 1.25" (3.2 cm) | | Dimensions | 3.6 x 2.2 x 3.3" (9.1 x 5.6 x 8.3 cm) | | Weight | 4 oz (113.4 g) | | | | Box Dimensions (LxWxH) | 5.1 x 3.8 x 2.9" | - Magnus 2.5mm Female to Sony AVR Adapter Cable
| Cable Length | Approx. 16" (40 cm) | | Connector 1 | 2.5 mm female | | Connector 2 | Sony AVR | | | | Box Dimensions (LxWxH) | 3.05 x 2.9 x 1.5" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
