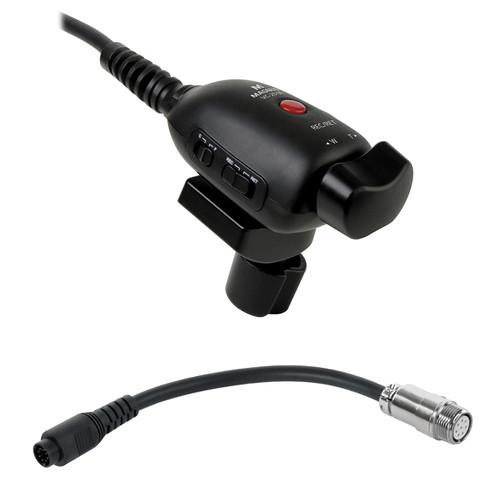

User Manual for Magnus Video Zoom Control For Sony EX 8-Pin ENG Click to enlarge the picture
Contents of the user manual for the Magnus Video Zoom Control For Sony
- Product category: Zoom & Focus Controls Magnus
- Brand: Magnus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magnus Zoom & Focus Controls
|
User manual for the Magnus Video Zoom Control For Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magnus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magnus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magnus product will considerably shorten its lifespan!
|
Product description The Magnus VC-20-SE Zoom Controller for Canon & Fujinon ENG Kit with ENG to Sony EX Adapter from B&H provides record and zoom control for all Canon and Fujinon ENG lenses, as well as Sony EX camcorders. The VC-20-SE Zoom Controller features an integrated, 31" long, 8-pin ENG cable that connects directly into a Canon or Fujinon ENG lens The controller can be used with Sony EX camcorders via the included Magnus 16" 8-Pin ENG to Sony EX Adapter Cable.
A built-in mounting clamp allows attachment to a pan handle so you can zoom and pan with one hand and achieve a fluid look. The clamp opens up to 1.25" and also fits jibs, tubes, pipes, and bars. Zoom is regulated by a pressure-sensitive rocker switch that produces faster or slower control depending on how hard or gentle you press it. For tape-based cameras, a REC/RET button works together with a REC/RET switch to let you return to the last record position.
Please see the links below for more information on the various components of this kit. - Magnus VC-20-SE Zoom Controller for Canon & Fujinon ENG The Magnus VC-20-SE Zoom Controller for Canon & Fujinon ENG provides record and zoom control for all Canon and Fujinon ENG lenses. It features an integrated, 31" long, 8-pin ENG cable that connects directly into the lens and establishes a connection. The controller can also be used with Sony EX cameras via an optional Magnus AC-ESX adapter cable.
A built-in mounting clamp allows attachment to a pan handle so you can zoom and pan with one hand and achieve a fluid look. The clamp opens up to 1.25" and also fits jibs, tubes, pipes, and bars. Zoom is regulated by a pressure-sensitive rocker switch that produces faster or slower control depending on how hard or gentle you press it. For tape-based cameras, a REC/RET button works together with a REC/RET switch to let you return to the last record position. - Key Features
-
- Record and zoom controller for Canon and Fujinon ENG lenses
- Integrated 31" 8-pin ENG cable establishes a connection with the lens
- Built-in mounting clamp allows attachment to pan handles, jibs, tubes, etc.
- Pressure-sensitive wide/tele rocker switch controls zoom at variable speeds
- For tape-based cameras, a REC/RET button lets you return to the last record position
- Compatible with Sony EX cameras via an optional Magnus AC-ESX adapter cable
UPC: 847628569591 - Magnus 8-Pin ENG to Sony EX Adapter Cable The Magnus 8-Pin ENG to Sony EX Adapter Cable allows you to connect a Magnus VC-20-SE Zoom Controller to Sony EX model cameras. It's approximately 8" long and features an 8-pin Pro ENG connector on one end and 8-pin Sony EX control connector on the other. UPC: 847628573383
In the Box - VC-20-SE Zoom Controller for Canon & Fujinon ENG
- User Manual
- 1-Year Limited Warranty
- 8-Pin ENG to Sony EX Adapter Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus Video Zoom Control For Sony EX 8-Pin ENG in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Magnus VC-20-SE Zoom Controller for Canon & Fujinon ENG
| Cable Length | 31" integrated ENG cable (78.7 cm) | | Clamp Size | Opens to a max of 1.25" (3.2 cm) | | Dimensions | 3.6 x 2.2 x 3.3" (9.1 x 5.6 x 8.3 cm) | | Weight | 4 oz (113.4 g) | | | | Box Dimensions (LxWxH) | 5.25 x 4.0 x 2.85" | - Magnus 8-Pin ENG to Sony EX Adapter Cable
| Cable Length | Approx. 8" (20 cm) | | Connector 1 | 8-pin Pro ENG connector | | Connector 2 | 8-pin EX control connector | | | | Box Dimensions (LxWxH) | 3.0 x 2.4 x 0.4" |
