User Manual for Magnus VPH-10 2-Way Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the Magnus VPH-10 2-Way Pan Tilt Head
- Product category: Video Tripod Heads Magnus
- Brand: Magnus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magnus Video Tripod Heads
 |
User manual for the Magnus VPH-10 2-Way Pan Tilt Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magnus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magnus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magnus product will considerably shorten its lifespan!
|

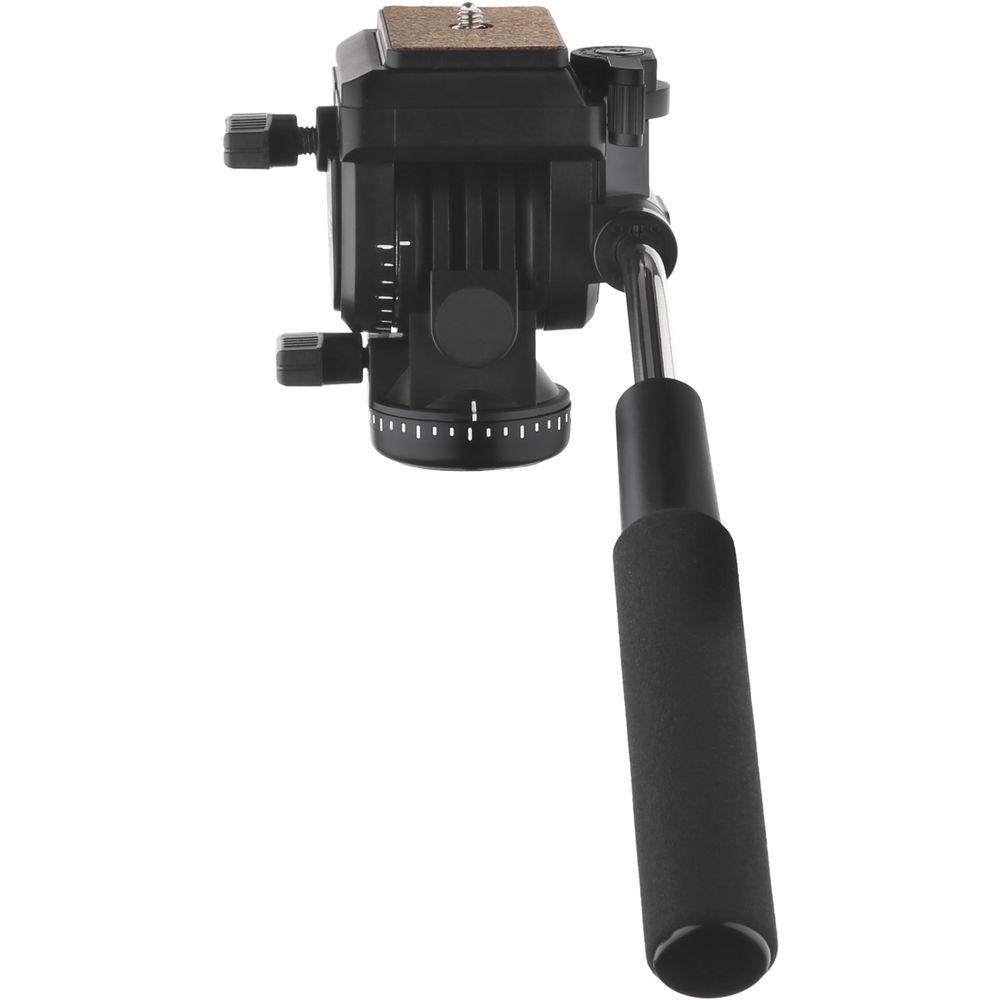

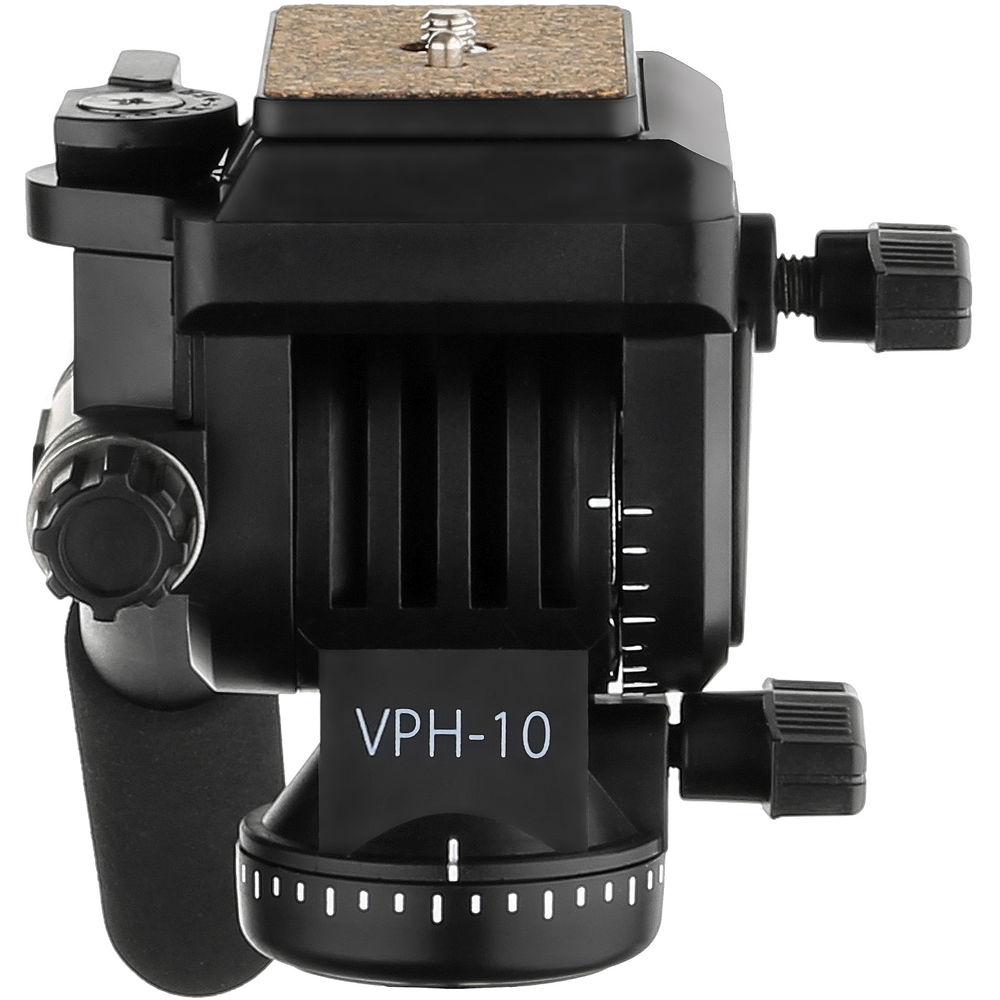

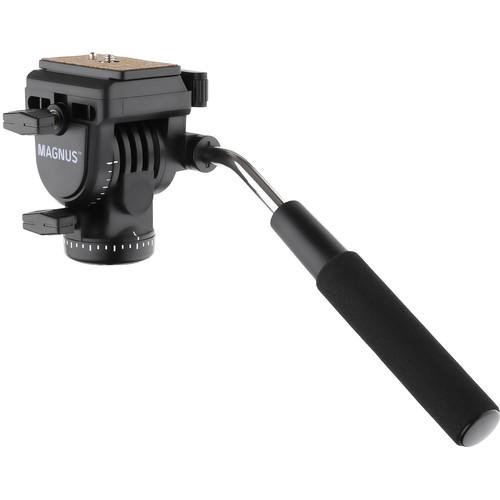

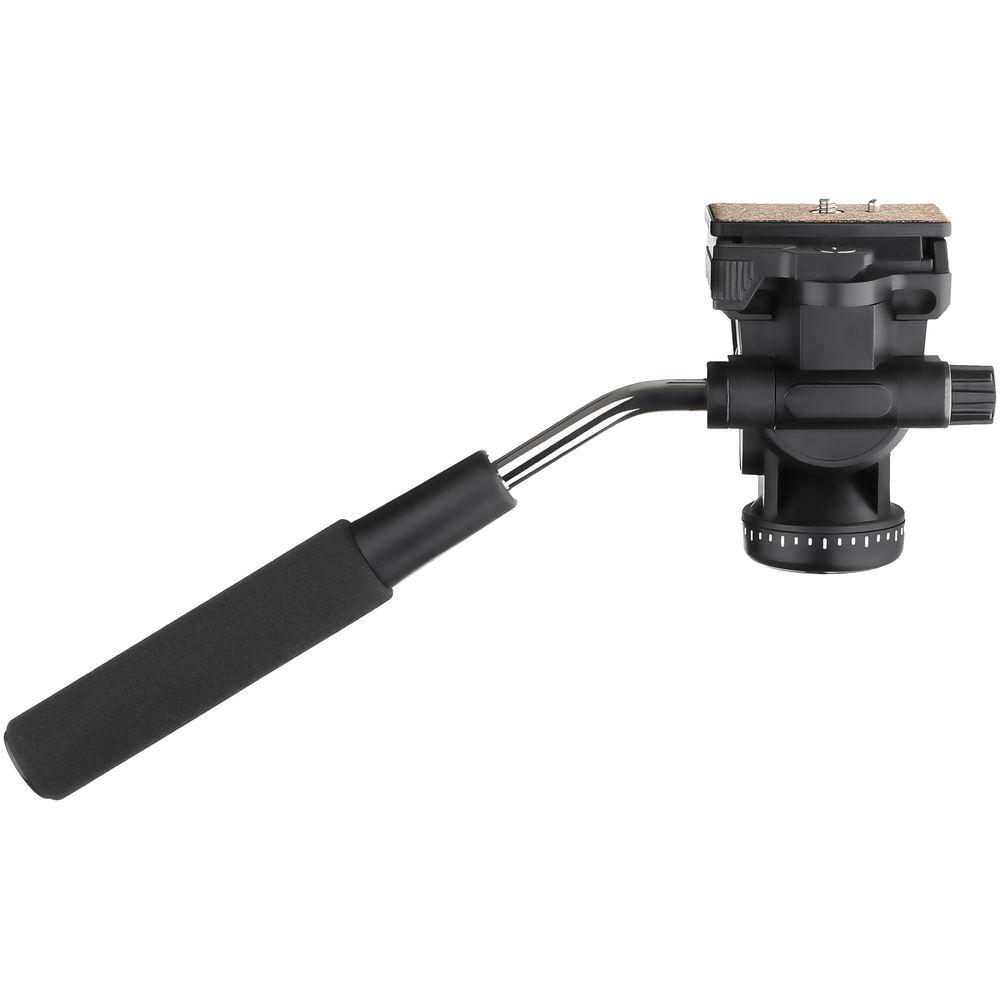

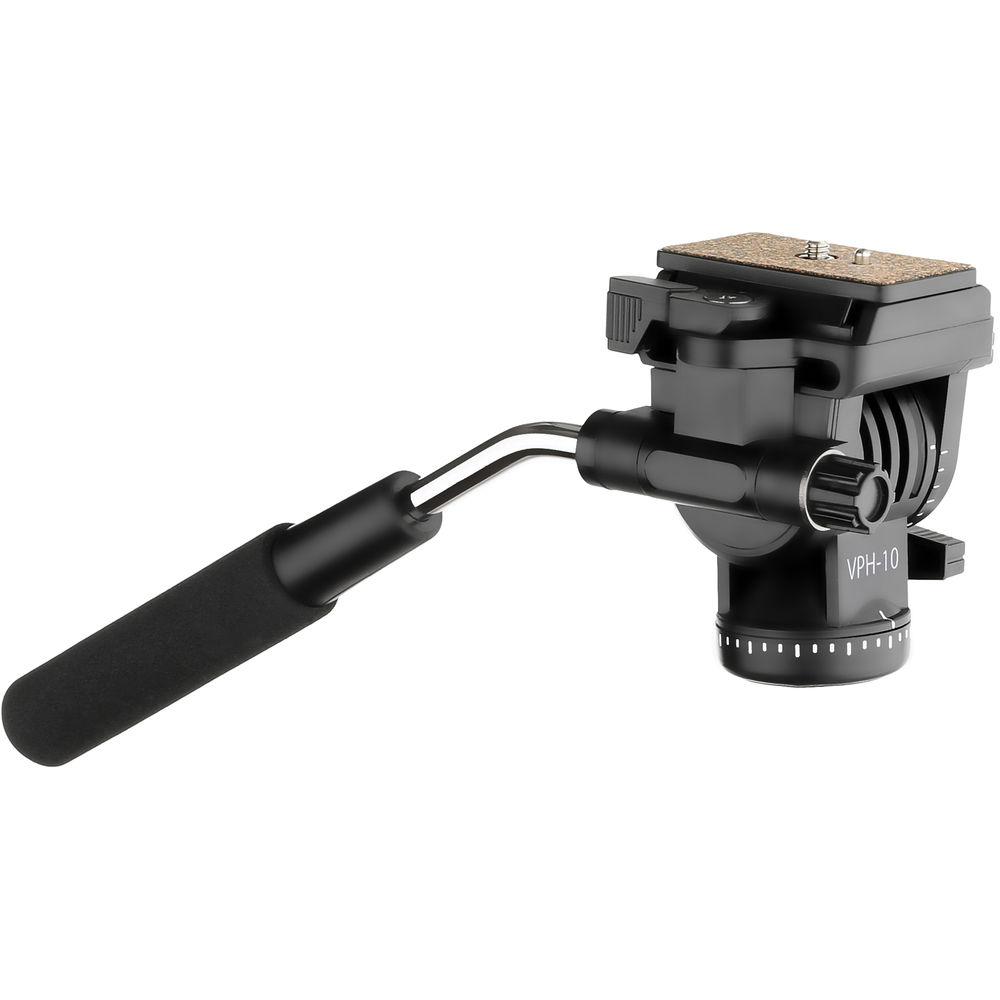

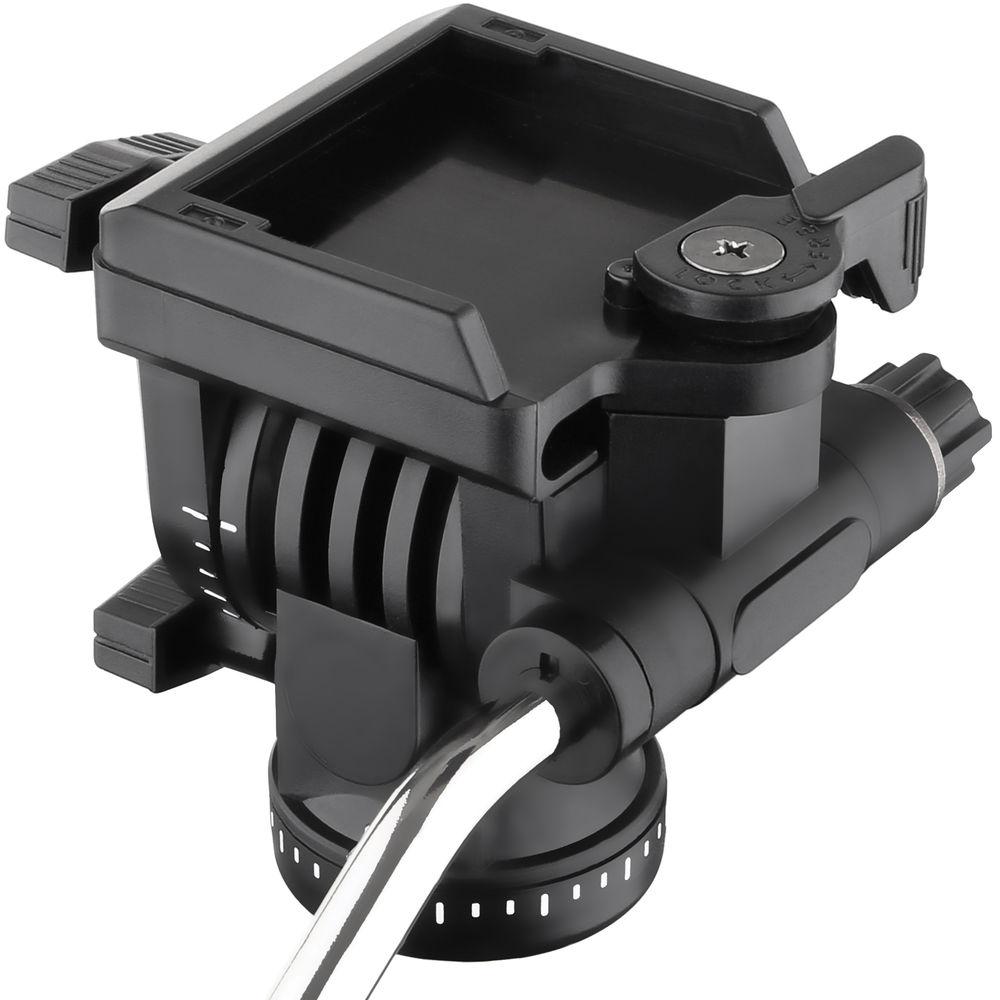

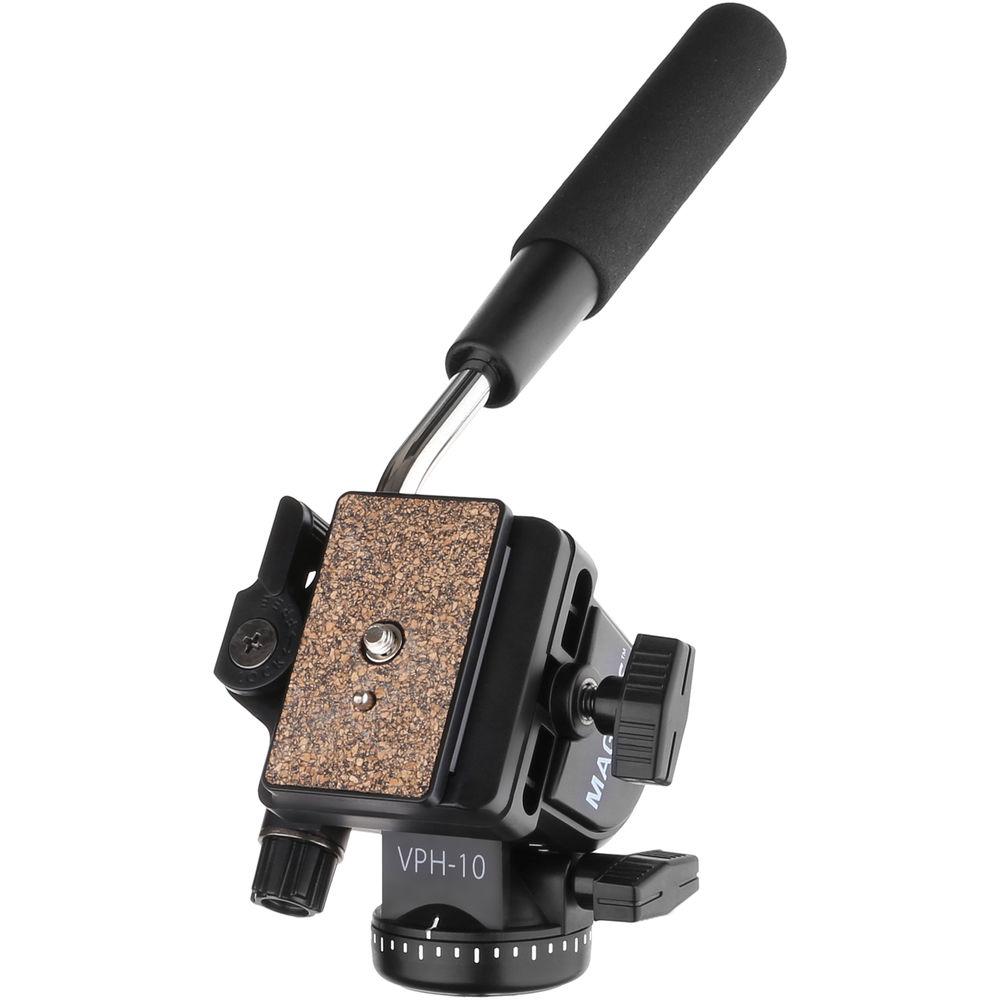

Product description The VPH-10 2-Way Pan/Tilt Head from Magnus has a load capacity of 6.6 lb, weighs just 12.8 oz, and stands 4.25" high. It has a removable pan handle with a foam grip which provides smooth pans thanks to the fluid cartridge drag system. Separate pan and tilt locks allow for individual control of the 360° panning motion and the front-to-back tilt.

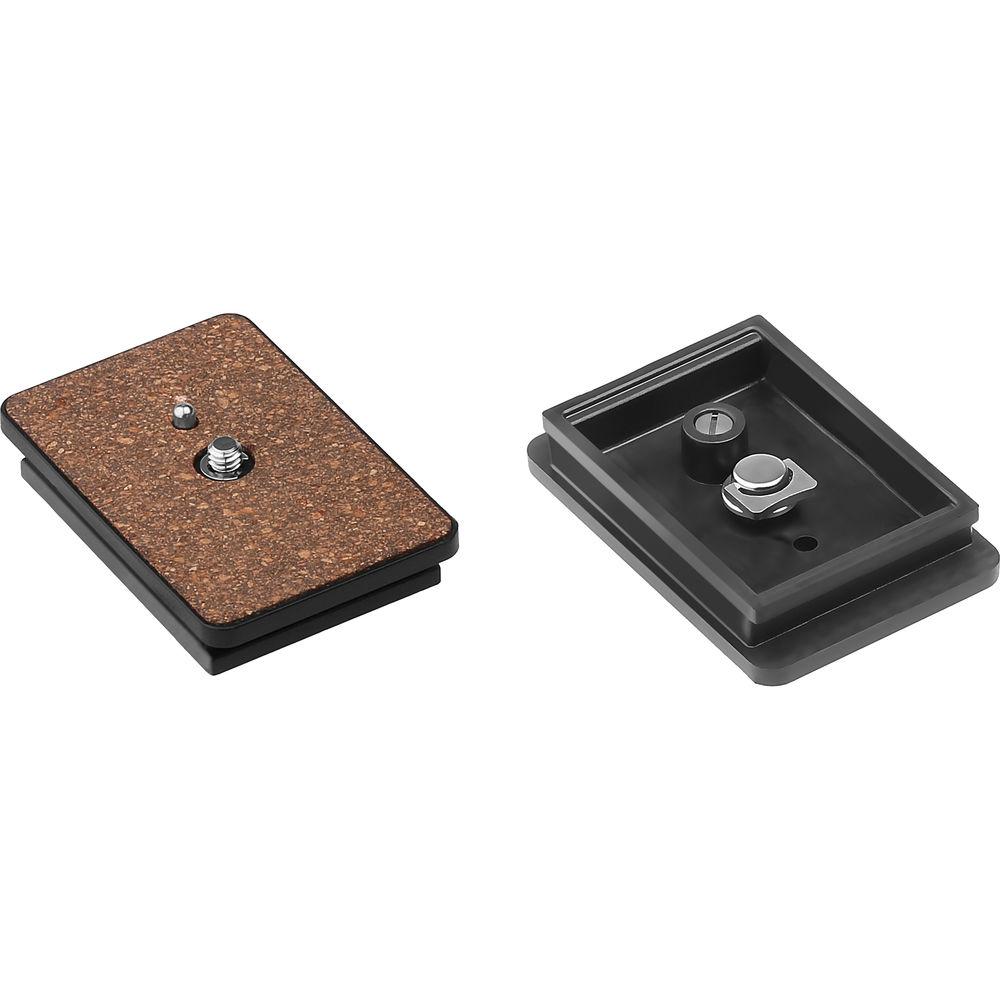

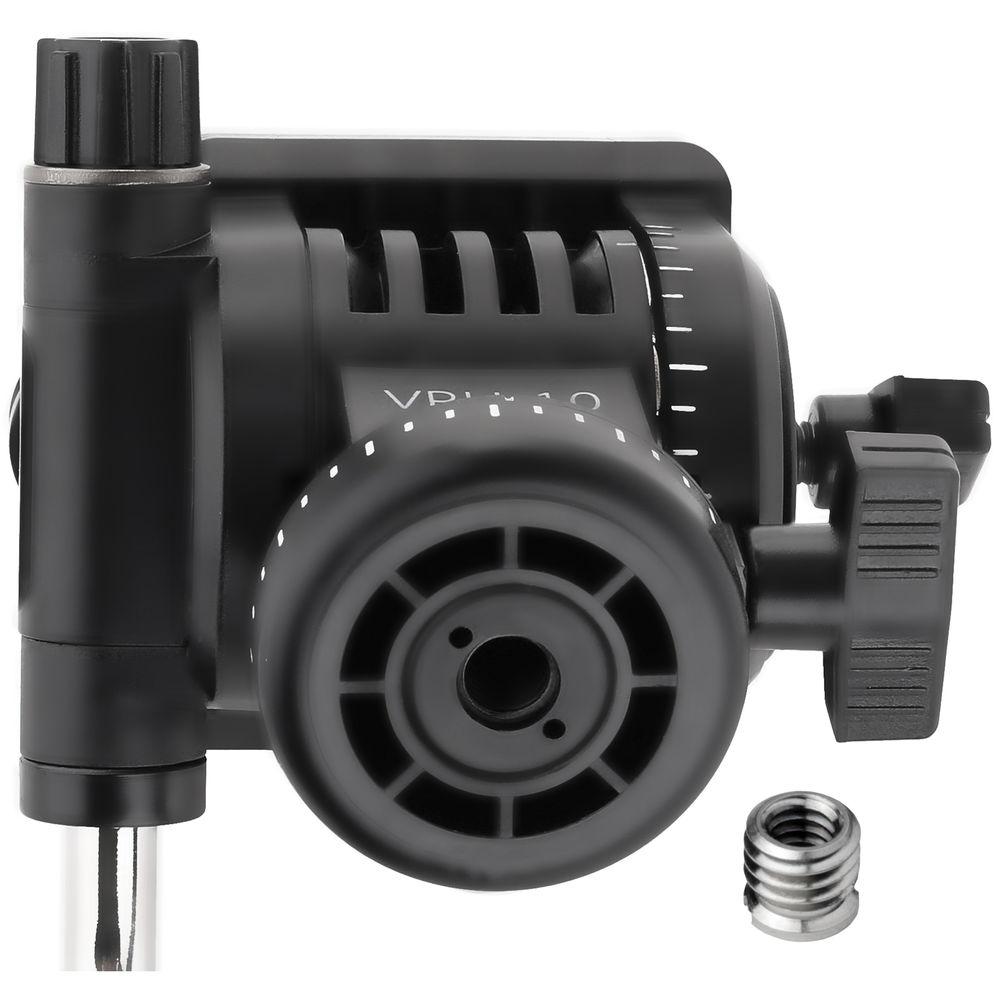

The included quick-release plate has a cork coating to grip and protect the base of your camera, a video pin, and a 1/4"-20 threaded camera mount. The head has a 3/8"-16 threaded female mount with a 1/4"-20 bushing adapter, allowing it to mount on most tripods or other supports. UPC: 847628577282 In the Box Magnus VPH-10 2-Way Pan/Tilt Head VT-QRP10 Quick Release Plate for VT-100 & 200 and VPH-10 Tripods 1/4"-20 Bushing Adapter Pan Handle Limited 1-Year Warranty User Manual PDF 4.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus VPH-10 2-Way Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagnus VPH-10 Specs | | | Camera Plate Features | Quick Release | | | | Base Mount | 3/8"-16 with 1/4"-20 Bushing Adapter | | | | Drag Control | Tilt: Fixed | | Independent Pan Lock | Yes | | | | Load Capacity | 6.6 lb / 3 kg | | Counter Balance | Fixed | | Dimensions | 4.5 x 4.25" / 11.4 x 10.8 cm | | Weight | 12.8 oz / 363 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 12.3 x 4.8 x 3.3" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
