User Manual for Magnus VPH-20 Video Pan & Tilt Fluid Head Click to enlarge the picture
Contents of the user manual for the Magnus VPH-20 Video Pan & Tilt
- Product category: Video Tripod Heads Magnus
- Brand: Magnus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magnus Video Tripod Heads
 |
User manual for the Magnus VPH-20 Video Pan & Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magnus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magnus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magnus product will considerably shorten its lifespan!
|

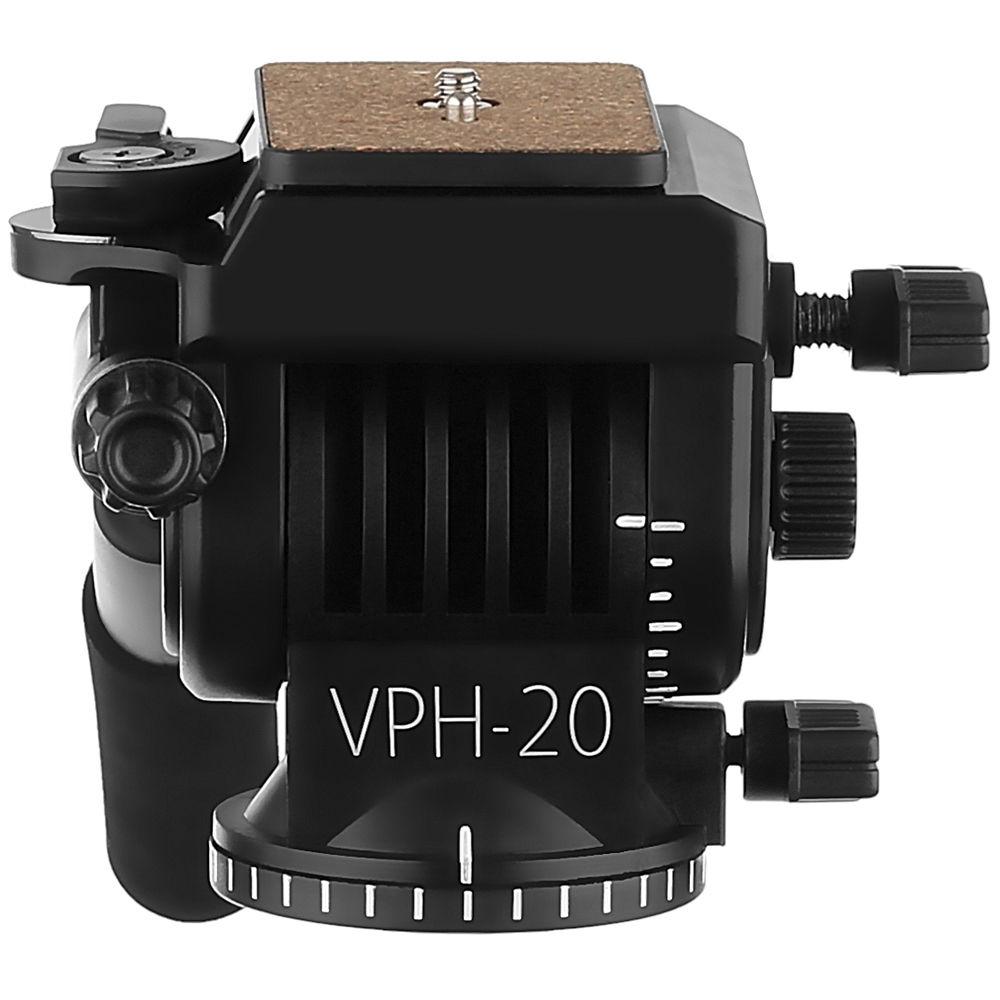

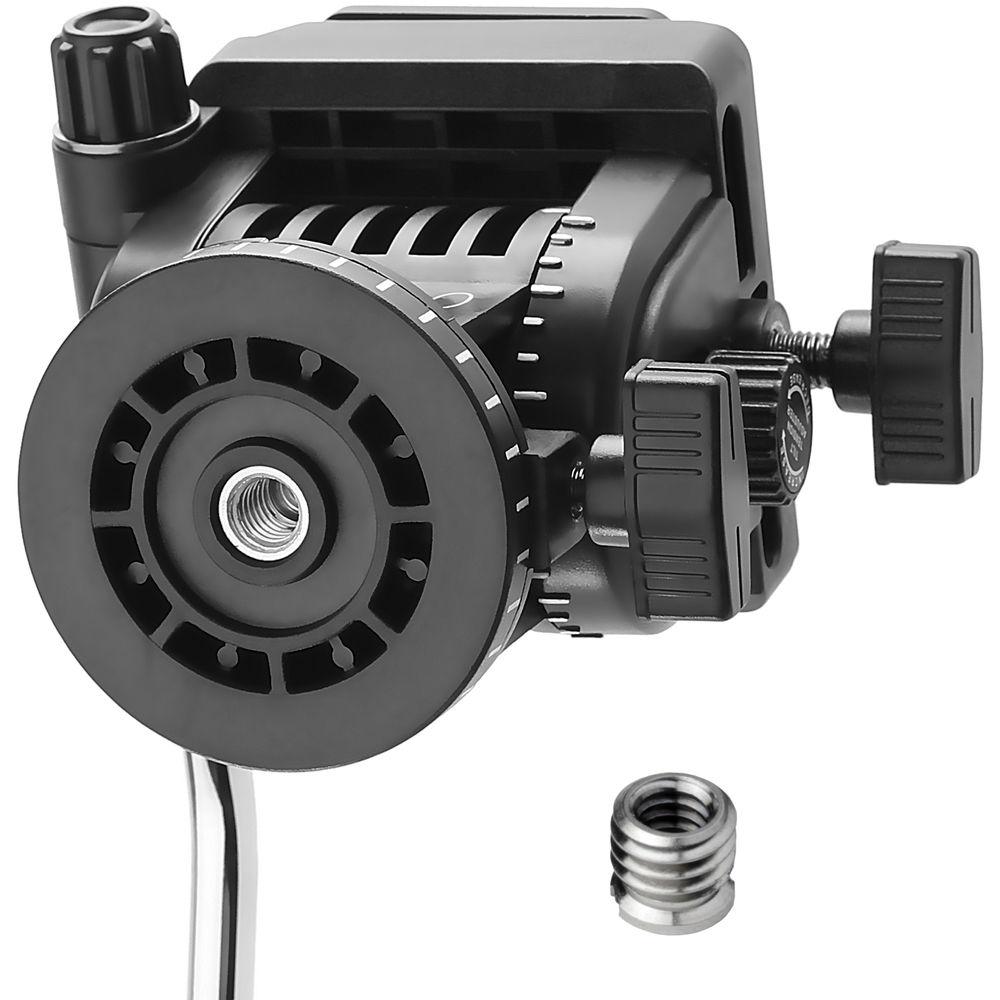

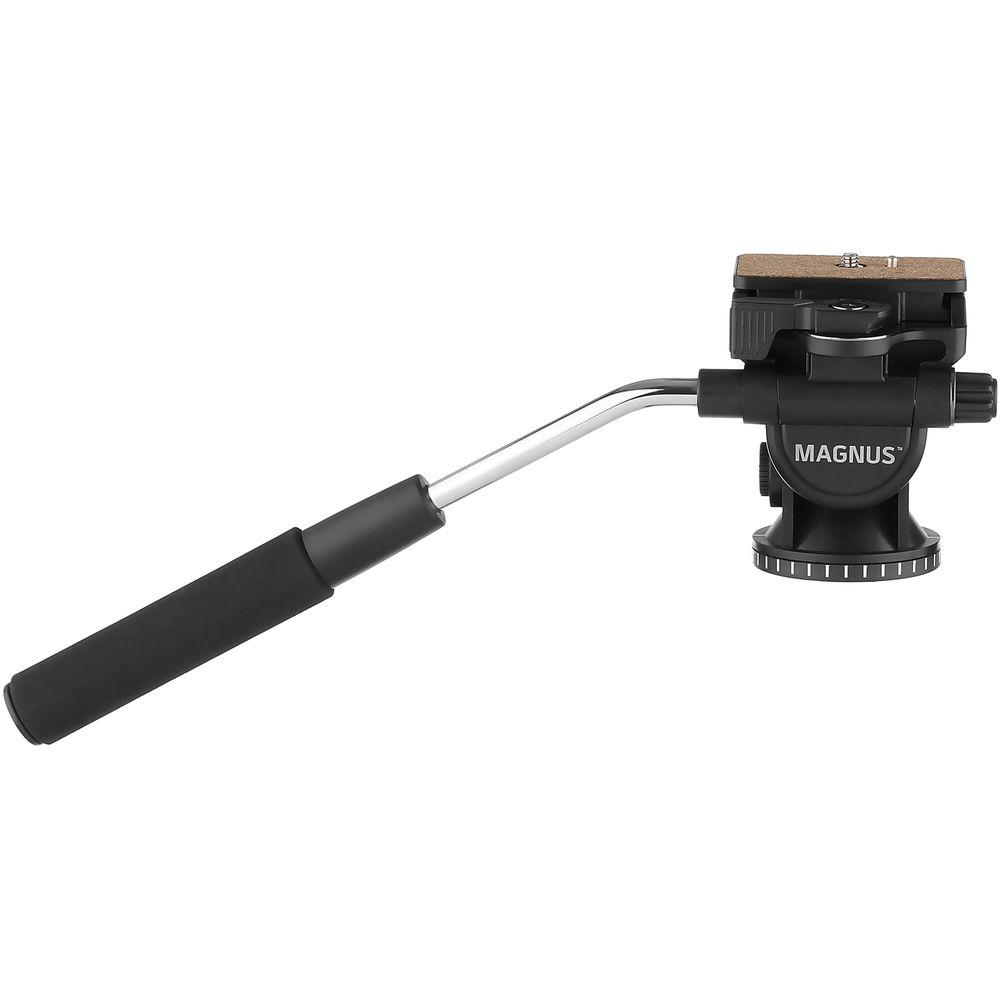

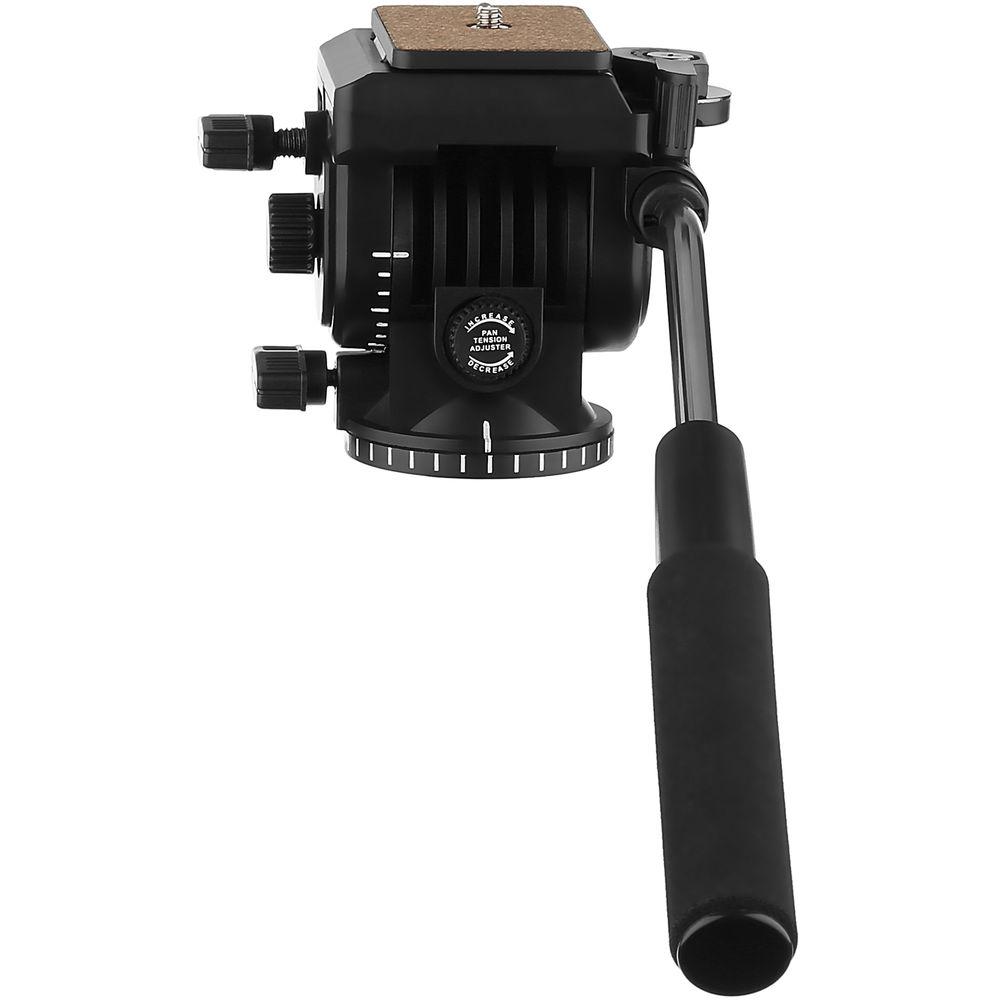

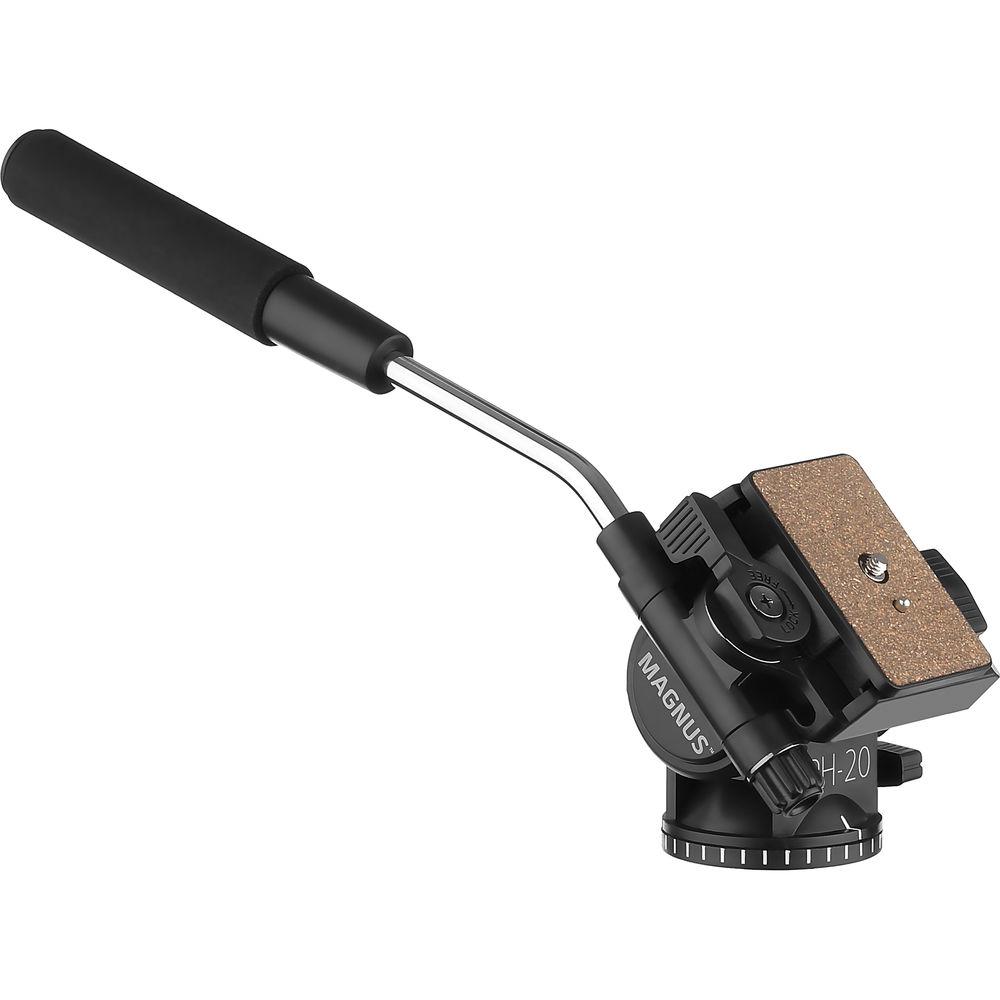

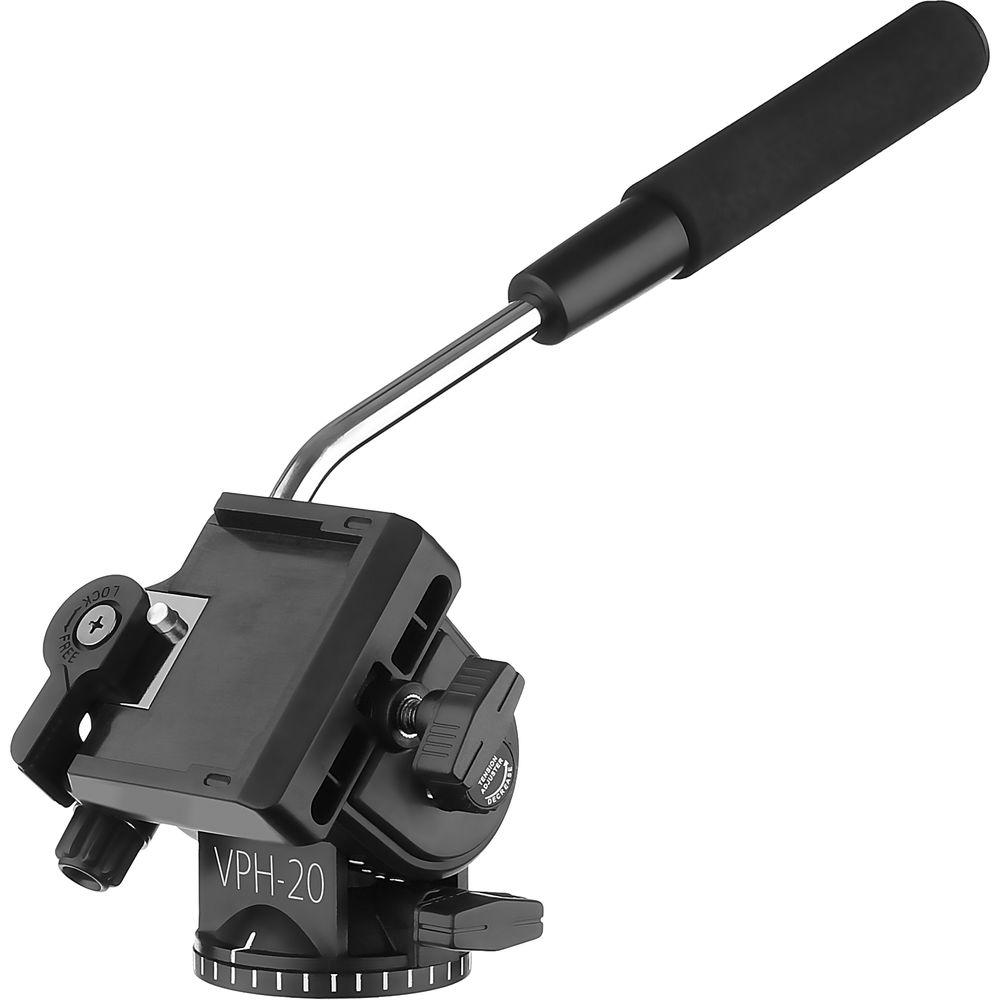

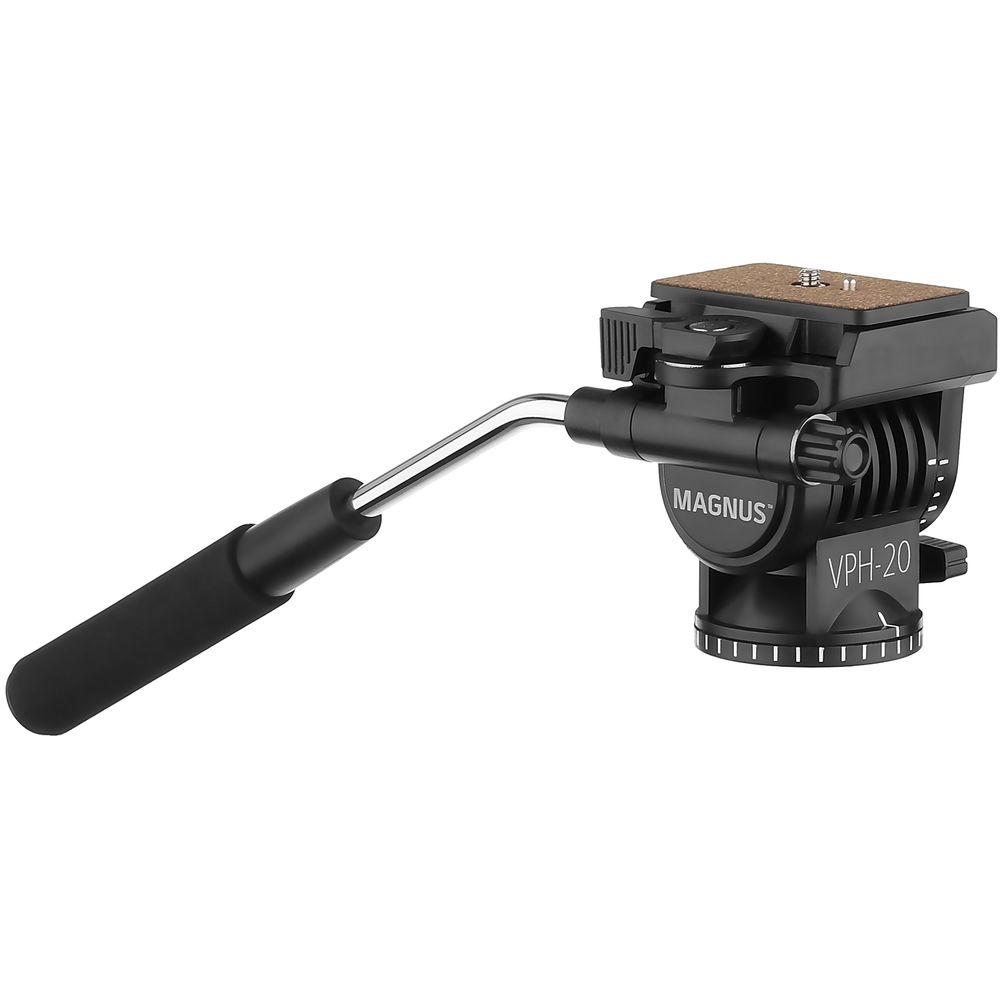

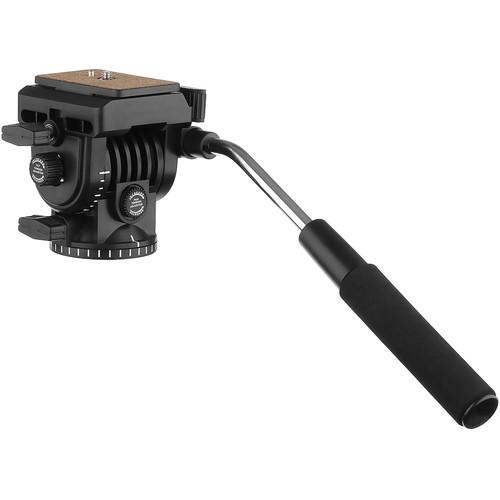

Product description The Magnus VPH-20 Video Pan & Tilt Fluid Head is a fluid cartridge tripod head supporting loads up to 11 lb. It smoothly pans 360° and tilts 180° and comes with a removable, right-sided pan arm and a quick release plate. The tripod mount thread on the bottom is 3/8"-16 and can be converted to 1/4"-20 with an included reducing bushing for compatibility with all tripods. You can also use the head on all camera sliders.

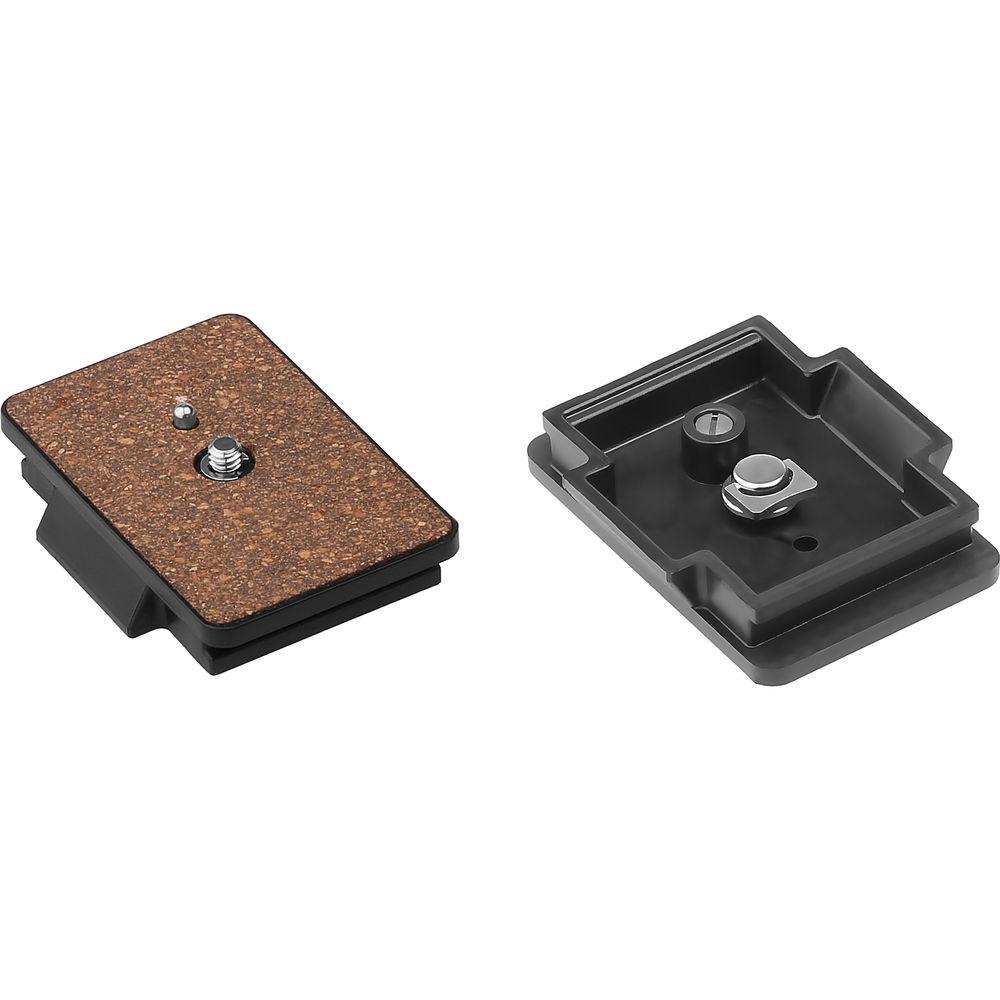

Pan and tilt are independently lockable by separate locking knobs and tension-adjustable by separate tension knobs. The quick release plate features a cork surface that provides padding for your camera and has a 1/4"-20 threaded mounting stud and a locking pin to prevent your camera from accidentally moving. - Key Features
-
- Supports loads up to 11 lb
- Smoothly pans 360° and tilts 180°
- Separate pan / tilt locks and tension knobs
- Removable pan arm and quick release plate included
- 3/8"-16 tripod mount thread (3/8" to 1/4" reducing bushing included)
- Compatible with all tripods and camera sliders
UPC: 847628576575 In the Box Magnus VPH-20 Video Pan & Tilt Fluid Head VT-QRP30 Quick Release Plate for VT-300, 350 & 400 and VPH-20 Tripods Pan Arm 3/8"-16 to 1/4"-20 Reducing Bushing Limited 1-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus VPH-20 Video Pan & Tilt Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagnus VPH-20 Specs | | | Camera Plate Features | Quick Release | | Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin | | | | Base Mount | 3/8"-16 with 1/4"-20 Bushing Adapter | | | | Drag Control | Continuous | | Vertical Tilt | +90
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
