User manual
Magnus VT-3000 Tripod with Fluid Head

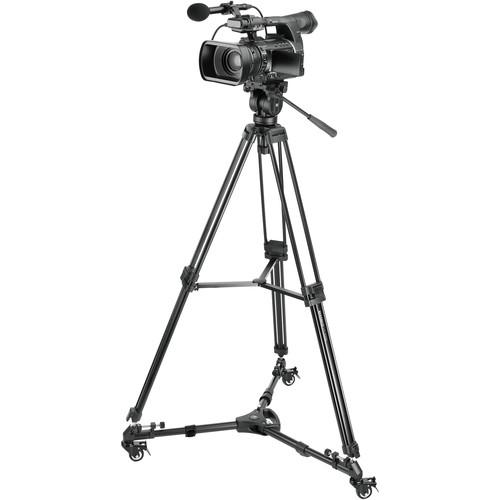

User Manual for Magnus VT-3000 Tripod with Fluid Head and Tripod Dolly

• Product category: Tripod Systems Magnus
• Brand: Magnus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Magnus Tripod Systems

Product description

• Magnus VT-3000 Tripod System with Fluid Head The Magnus VT-3000 Tripod System with Fluid Head is a stable, sturdy video tripod made from anodized aluminum that can support loads up to 6.6 lb. It provides many features commonly found on more expensive models. The two-way fluid head provides smooth operation, and features a half-ball mount with a diameter of 65mm, with left and right pan bar mounts. One pan bar comes included. The VT-3000 tripod system weighs 7.75 lb.

  The 3-section leg design allows you to adjust the height of the tripod from 28.6" to 61". A mid-level spreader and passive counterbalance provide improved stability. The VT-3000 has separate pan and tilt locks and a bubble level for precision leveling, and offers a full 360° pan range. The fixed counterbalance spring incorporated in the head provides smoother tilt movements. The included quick-release plate features a standard 1/4"-20 mounting screw with a video pin, and features a micro balance slider.
  • Supports loads up to 6.6 lb (3 kg)
  • Features a 65mm ball base
  • Two-way fluid head for smooth motion
  • Fixed counter-balance spring provides smoother tilt movements
  • Three-section leg design allows you to adjust the height of the tripod from 28.6" to 61"
  • Middle spreader provides enhanced stability by holding the tripod legs in locked position
  • Provides fixed counter balance, pan, and tilt drag
  • Quick-release plate is included
  • Ground spikes for outdoor use and convenient retractable rubber feet for delicate floor surfaces
  • Weighs 7.75 lb (3.5 kg)
  UPC: 847628547667
• Magnus DWF-2 Universal Tripod Dolly The Magnus DWF-2 Universal Tripod Dolly presents a simple, affordable way to put your tripod on wheels. The dolly features 2" ball-bearing metal/rubber wheels that feature revolving assemblies. That means you can steer your tripod along any line imaginable to capture a smooth tracking shot.The DWF-2 dolly bears loads up to 33 lb and features adjustable clamps to lock just about any size of tripod foot into place securely. Mounting a tripod is easy: Just line up each tripod foot and twist the thumb screws to tighten each clamp.Each leg bar extends up to 4.9" to accommodate tripods of various dimensions, and flip locks secure the extension. Fully extended, the dolly has a doorway width of 31". With step-on locks for each wheel, you can easily transform your rolling tripod into a sturdy lock-down mount for your camera.Two of the legs fold down to create a compact package for transport – the dolly folds down to just 17 x 5".
  • Step on the wheel locks to brake the spinning of the wheels and the rotation of the wheel assemblies
  • Spring-loaded stoppers automatically lock the legs in the open position when they're rotated out - easily pull them up to rotate the legs back into the closed position
  • Sturdy carry handle
  • Hook & loop strap to secure legs in a tidy package for transport
  • Carry bag with shoulder strap
  UPC: 847628570436

• VT-3000 Tripod System with Fluid Head auuteazsvqxvrs
• VT-QRP300 Quick Release Plate
• Pan Bar (1)
• Carrying Case
• Limited 1-Year Warranty

• DWF-2 Universal Tripod Dolly auuteazsvqxvrs

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Magnus VT-3000 Tripod System with Fluid Head

  Load Capacity	6.6 lb (3 kg)
  Maximum Height	61.0" (155 cm)
  Minimum Height	28.6" (72.6 cm)
  Folded Length	30.0" (78 cm)
  Leveling Bubble/Illuminated	Yes/no
  Weight	7.75 lb (3.5 kg)

  Counter Balance System	Fixed counter balance spring
  Quick Release/Wedge Plate	Yes/no
  Balance Plate	Yes
  Tilt Lock	Yes
  Pan Lock	Yes

  Head Attachment Fitting	65mm half bowl
  Material	Anodized aluminum
  Leg Stages/Sections	2/3
  Leg Lock Type	Flip locks
  Independent Leg Spread	No
  Spiked/Retractable Feet	Yes/yes
  Center Brace	Yes (mid-level)

  Box Dimensions (LxWxH)	32.2 x 6.3 x 6.1"

• Magnus DWF-2 Universal Tripod Dolly

  Construction	Aluminum & plastic
  Load Capacity	33 lb (15 kg)
  Doorway Width	31.0" (78.7 cm) with legs fully extended
  Extension	4.9" (12.4 cm) per leg
  Folded Length	17.0 x 5.0" (43.2 x 12.7 cm)
  Wheel Diameter	2" (51 mm)
  Wheel Lock	Yes
  Cable Guards	No
  Weight	3.8 lb (1.7 kg)

  Box Dimensions (LxWxH)	17.25 x 5.75 x 5.5"
