Magnus VT-3000 Tripod & Zoom Controller

User Manual for Magnus VT-3000 Tripod & Zoom Controller Kit for Canon, Panasonic, and Sony

• Product category: Tripod Systems Magnus
• Brand: Magnus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Magnus Tripod Systems

Product description

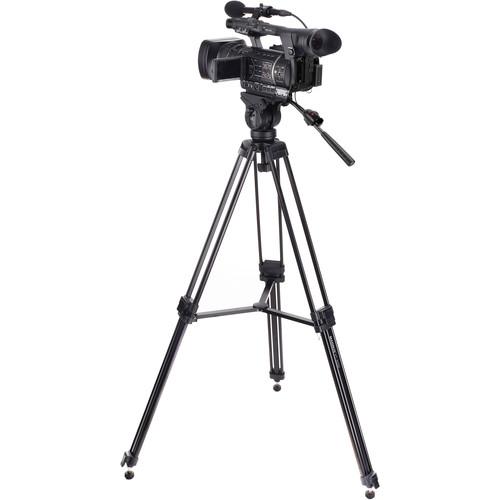

• Magnus VT-3000 Tripod System with Fluid Head The Magnus VT-3000 Tripod System with Fluid Head is a stable, sturdy video tripod made from anodized aluminum that can support loads up to 6.6 lb. It provides many features commonly found on more expensive models. The two-way fluid head provides smooth operation, and features a half-ball mount with a diameter of 65mm, with left and right pan bar mounts. One pan bar comes included. The VT-3000 tripod system weighs 7.75 lb.

  The 3-section leg design allows you to adjust the height of the tripod from 28.6" to 61". A mid-level spreader and passive counterbalance provide improved stability. The VT-3000 has separate pan and tilt locks and a bubble level for precision leveling, and offers a full 360° pan range. The fixed counterbalance spring incorporated in the head provides smoother tilt movements. The included quick-release plate features a standard 1/4"-20 mounting screw with a video pin, and features a micro balance slider.
  • Supports loads up to 6.6 lb (3 kg)
  • Features a 65mm ball base
  • Two-way fluid head for smooth motion
  • Fixed counter-balance spring provides smoother tilt movements
  • Three-section leg design allows you to adjust the height of the tripod from 28.6" to 61"
  • Middle spreader provides enhanced stability by holding the tripod legs in locked position
  • Provides fixed counter balance, pan, and tilt drag
  • Quick-release plate is included
  • Ground spikes for outdoor use and convenient retractable rubber feet for delicate floor surfaces
  • Weighs 7.75 lb (3.5 kg)
  UPC: 847628547667
• Magnus VC-20-SCP Zoom Controller for Canon, Panasonic, Sony The Magnus VC-20-SCP Zoom Controller for Canon, Panasonic, Sony provides record and zoom control for all LANC-equipped Canon, Panasonic, and Sony camcorders. An included 22.5" long control cable connects into the controller on one end and into the camcorder's LANC port on the other. You can also use this controller with Sony consumer cameras via an optional Magnus ACM-SAVR AVR adapter cable.

  A built-in mounting clamp allows attaching the controller to your tripod pan handle so you can zoom and pan with one hand and achieve a fluid look. The clamp opens up to 1.25" and also fits jibs, tubes, pipes, and bars. Zoom is regulated by a pressure-sensitive rocker switch that produces faster or slower control depending on how hard or gentle you press it. For tape-based cameras, a REC/RET button works together with a REC/RET switch to let you return to the last record position.
  Key Features
  • • Record/zoom controller for Canon/Panasonic/Sony LANC equipped camcorders
    • Includes a removable 22.5" long LANC control cable
    • Built-in mounting clamp allows attachment to pan handles, jibs, tubes, etc.
    • Pressure-sensitive wide/tele rocker switch controls zoom at variable speeds
    • For tape-based cameras, a REC/RET button lets you return to the last record position
    • Compatible with Sony consumer cameras via the optional Magnus ACM-SAVR AVR adapter cable
  UPC: 847628569584

• VT-3000 Tripod System with Fluid Head dwzyqwyrzbsvebtwsefddtvwuxsq
• VT-QRP300 Quick Release Plate
• Pan Bar (1)
• Carrying Case
• Limited 1-Year Warranty

• VC-20-SCP Zoom Controller for Canon, Panasonic, Sony

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Magnus VT-3000 Tripod System with Fluid Head

  Load Capacity	6.6 lb (3 kg)
  Maximum Height	61.0" (155 cm)
  Minimum Height	28.6" (72.6 cm)
  Folded Length	30.0" (78 cm)
  Leveling Bubble/Illuminated	Yes/no
  Weight	7.75 lb (3.5 kg)

  Counter Balance System	Fixed counter balance spring
  Quick Release/Wedge Plate	Yes/no
  Balance Plate	Yes
  Tilt Lock	Yes
  Pan Lock	Yes

  Head Attachment Fitting	65mm half bowl
  Material	Anodized aluminum
  Leg Stages/Sections	2/3
  Leg Lock Type	Flip locks
  Independent Leg Spread	No
  Spiked/Retractable Feet	Yes/yes
  Center Brace	Yes (mid-level)

  Box Dimensions (LxWxH)	32.2 x 6.3 x 6.1"

• Magnus VC-20-SCP Zoom Controller for Canon, Panasonic, Sony

  Cable Port	2.5 mm stereo cable jack
  Cable Length	22.5" (57.2 cm)
  Clamp Size	Opens to a max of 1.25" (3.2 cm)
  Dimensions	3.6 x 2.2 x 3.3" (9.1 x 5.6 x 8.3 cm)
  Weight	4 oz (113.4 g)

  Box Dimensions (LxWxH)	5.1 x 3.8 x 2.9"
