User Manual for Magnus VT-350 Video Tripod with Fluid Head Click to enlarge the picture
Contents of the user manual for the Magnus VT-350 Video Tripod with Fluid
- Product category: Tripod Systems Magnus
- Brand: Magnus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magnus Tripod Systems
 |
User manual for the Magnus VT-350 Video Tripod with Fluid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magnus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magnus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magnus product will considerably shorten its lifespan!
|

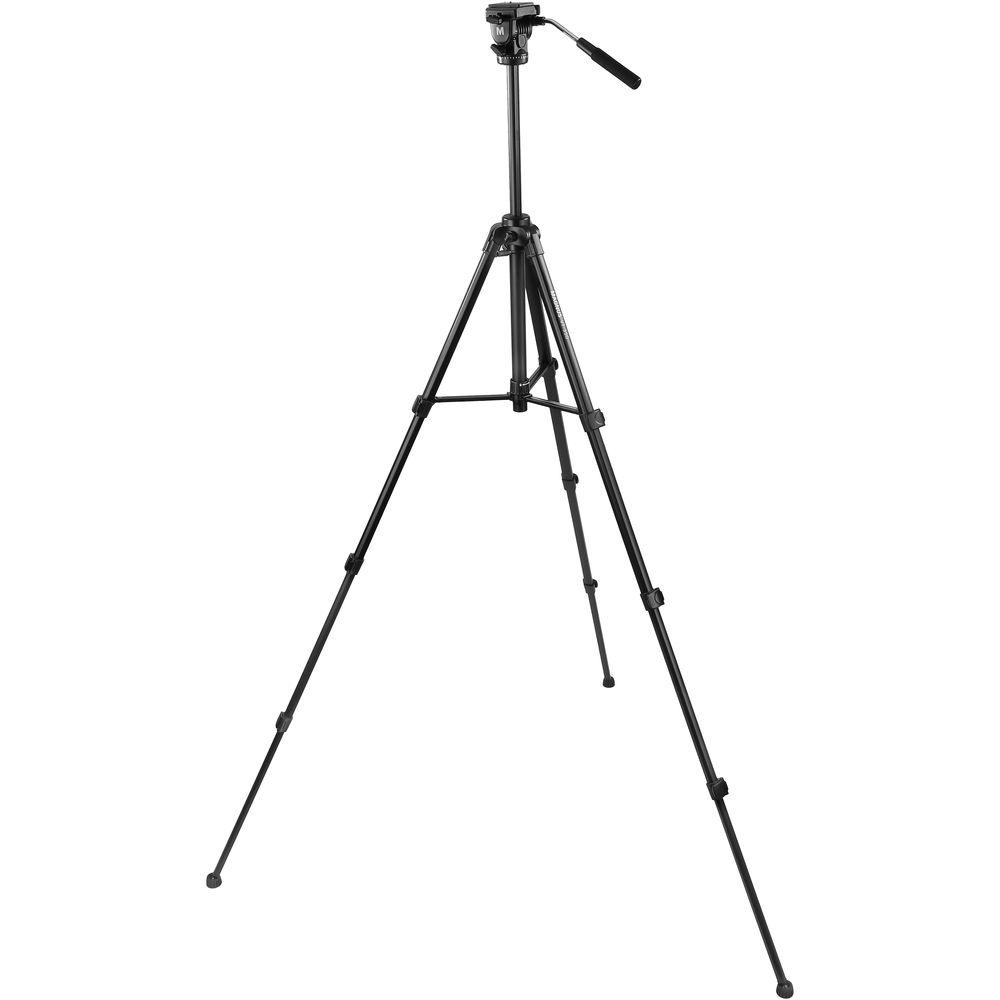

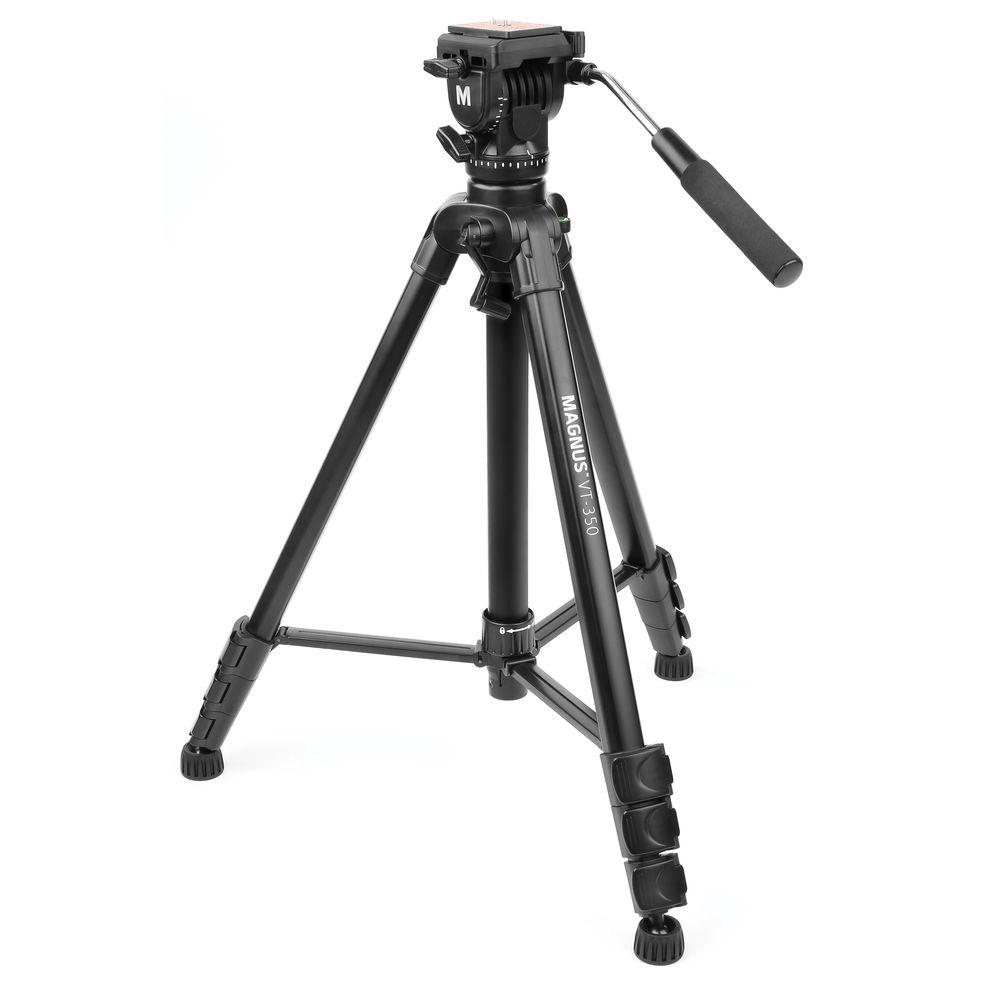

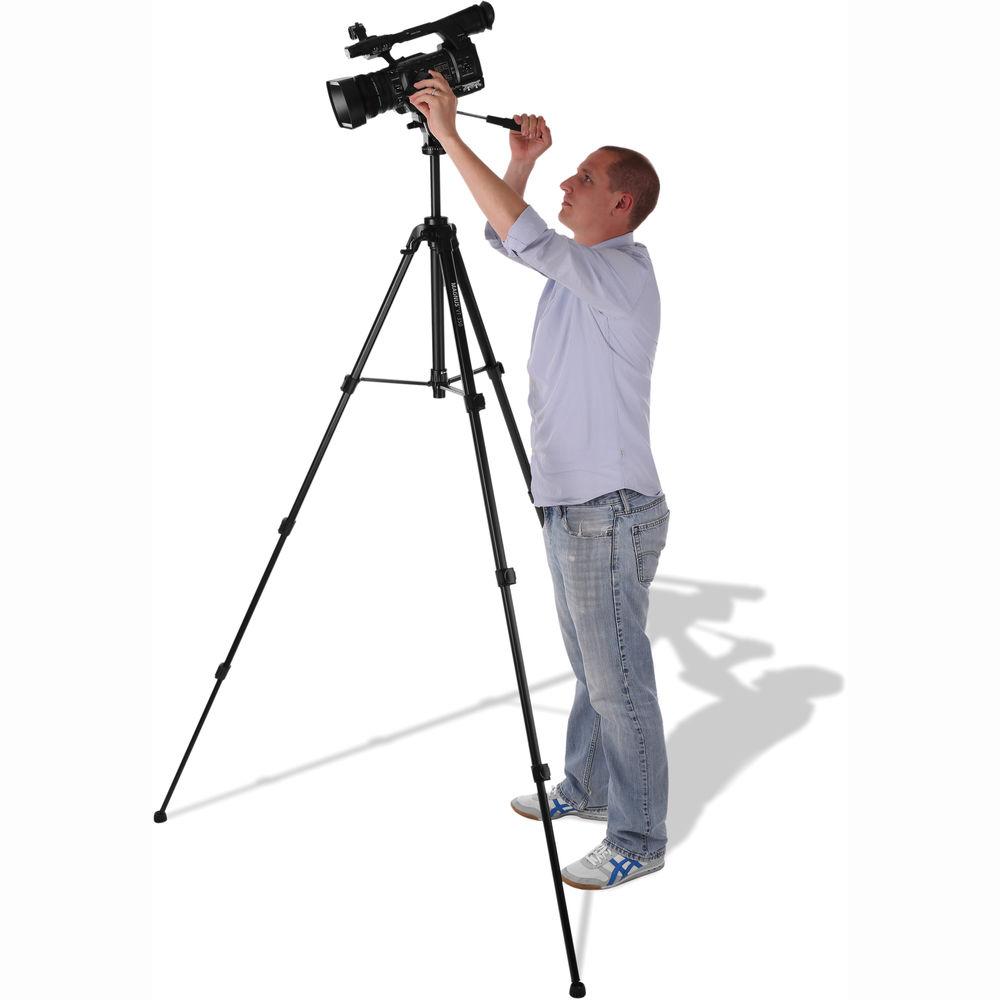

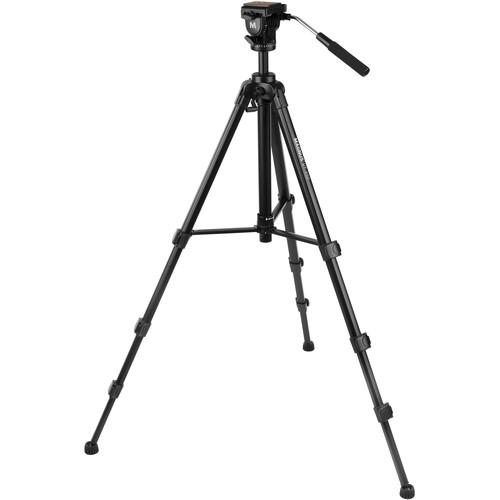

Product description The Magnus VT-350 Video Tripod with Fluid Head is a lightweight and portable tripod system for shooting stable videos with DSLRs, small camcorders, and any other cameras up to 15 lb. It is suitable for use for event and wedding coverage.

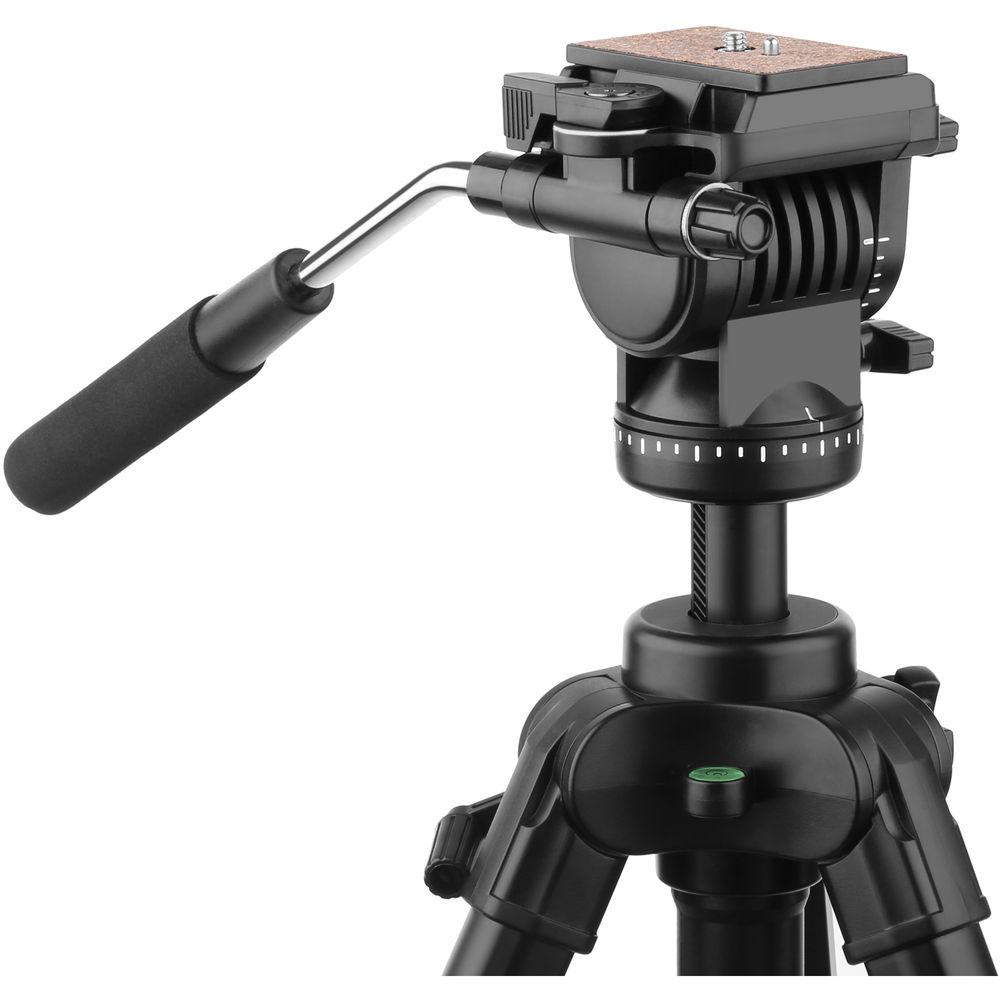

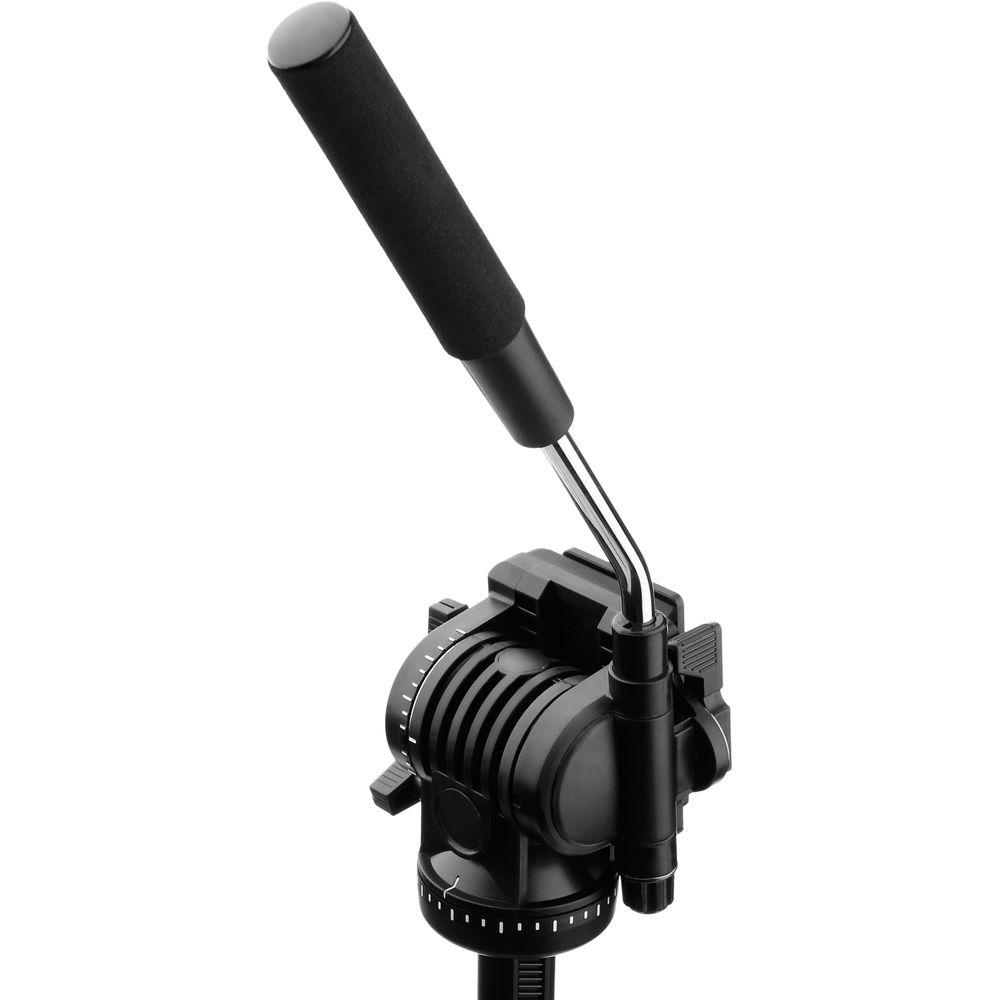

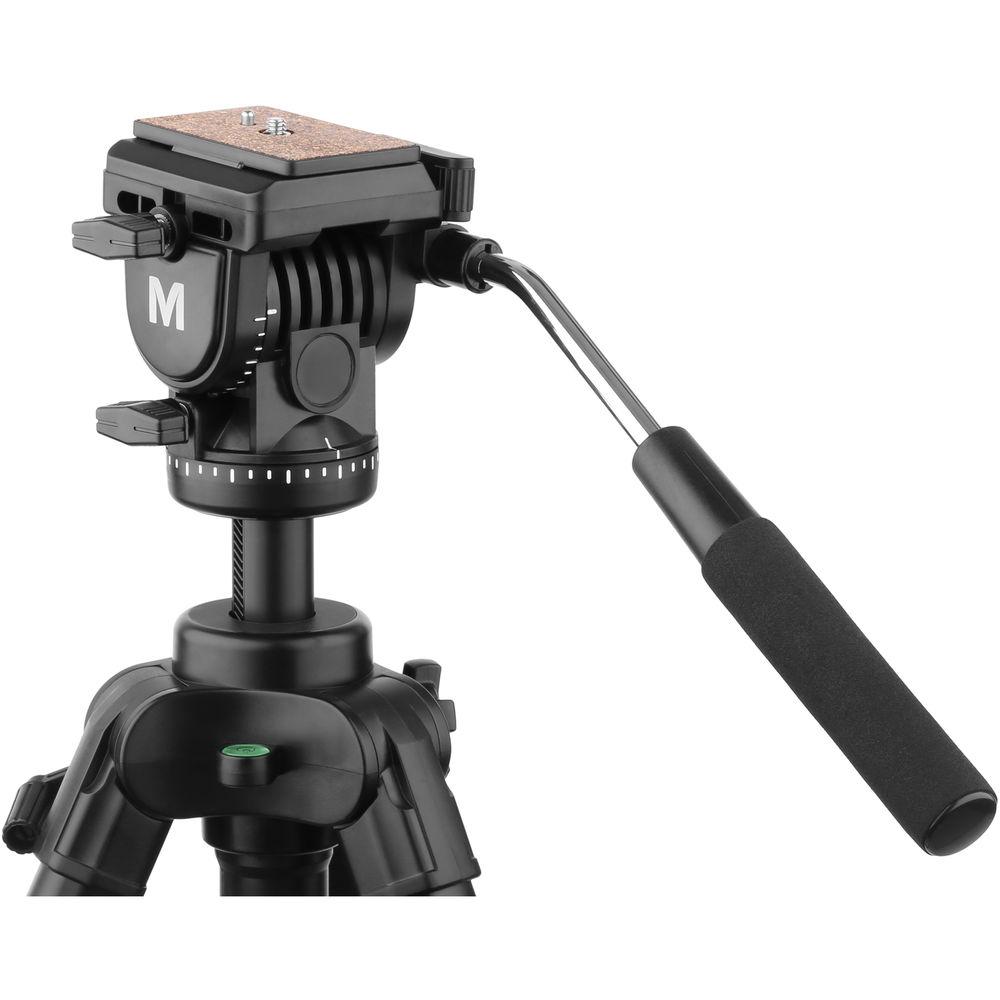

A built-in fluid effect video head features fixed fluid drag, which provides smooth pans and tilts with 360° pan rotation and approximately 175° of tilt. Independent pan and tilt locks tighten and increase resistance until locking the axis for fixed position/lock-off shots. The quick release plate features a 1/4"-20 camera mounting screw, a spring-loaded locating pin, and a retro-looking anti-skid mounting surface.

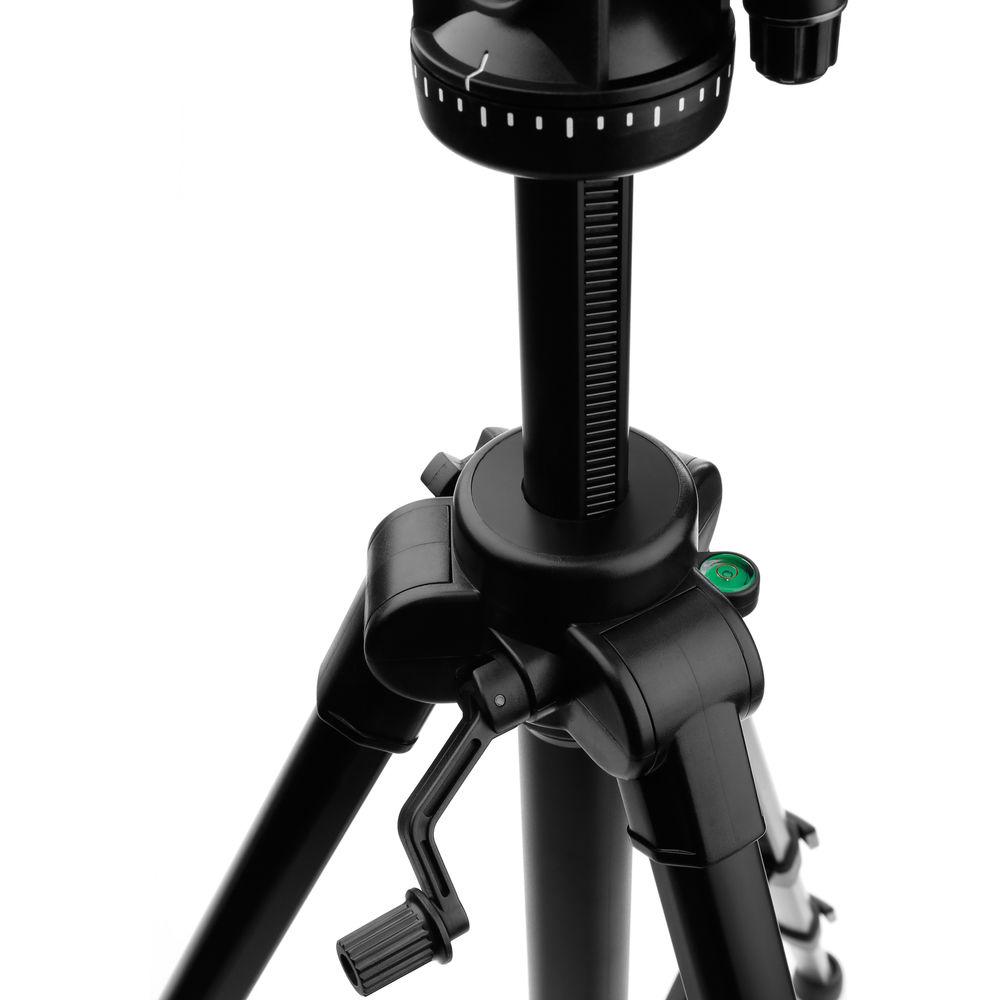

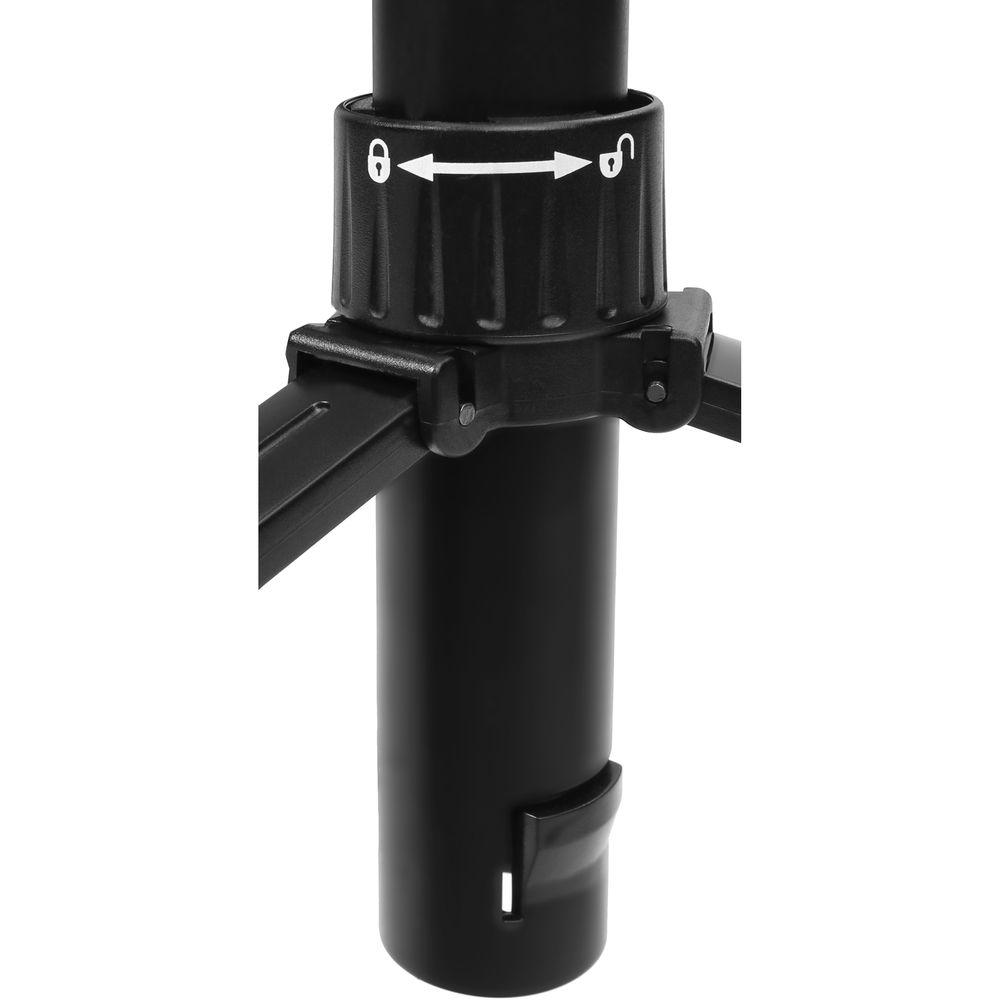

The unit features a center column that you raise and lower using a crank arm. The center column extends up to one foot, providing a maximum height of 82" with the column extended. A mid-level spreader keeps the legs steady when you adjust the tripod, and it locks to keep the legs secure once you've set the tripod in position. Both the center column and spreader are integrated.
The four-section tripod legs are linked by the mid-level spreader, which slides up the center column when you collapse or expand the legs. The legs are individually extendable using flip-locks for quick and easy adjustment to each leg's three stages. The legs feature rounded foot spikes with replaceable rubber feet, which provide grip on hard or slippery surfaces. You can remove the rubber spike covers and use the rounded foot spikes on soft surfaces, such as earth or the beach. An integrated bubble level allows you to level the tripod. A carry case with a shoulder strap is included and will let you conveniently carry the tripod over your shoulder when you're traveling about. - Portable Video Tripod System
-
- Supports any camera up to 15 lb
- Built-in pan/tilt fluid effect video head
- Pans 360° and tilts up and down
- Independent pan and tilt locks
- Pan bar and quick release camera plate included
- Integrated center-column
- Integrated mid-level spreader
- Flip-lock leg locks
- 82" maximum height
- Replaceable rubber feet
- Integrated bubble level
- Carry case with shoulder strap included
UPC: 847628580275 In the Box Magnus VT-350 Video Tripod with Fluid Head VT-QRP30 Quick Release Plate for VT-300, 350 & 400 and VPH-20 Tripods Carry Case with Shoulder Strap Limited 1-Year Warranty Manual PDF 43.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus VT-350 Video Tripod with Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagnus VT-350 Specs | Load Capacity | 15 lb / 6.8 kg | | Maximum Height | Center Column Fully Extended: 82" / 208 cm

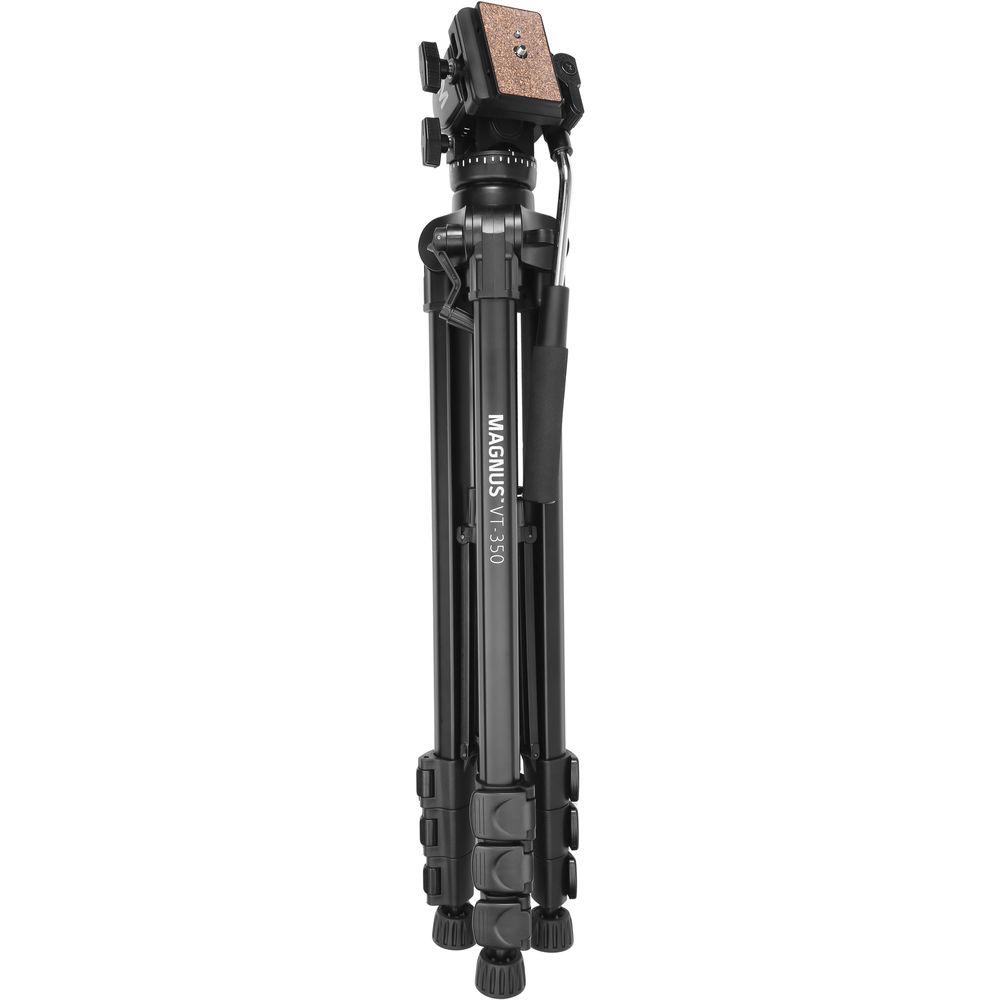

Center Column Lowered: 70" / 177.8 cm | | Minimum Height | 25.5" / 67.8 cm | | Folded Length | 27.5˝ / 69.9 cm | | Video Head | Built-in pan and tilt video
Independent pan and tilt locks
Pans full 360°
Tilts -90 to 85° | | Camera Plate | Quick release plate with 1/4"-20 camera mounting screw | | Center Column | Integrated center column with geared friction control | | Spreader | Integrated locking mid-level spreader | | Leg Stages/Sections | 3/4 | | Leg Lock Type | Flip-lock | | Leveling Bubble | Yes, non-illuminated | | Spiked Feet | Rounded, with rubber covers | | Material | Aluminum | | Weight | 4.5 lb / 2 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 29.0 x 5.5 x 5.3" |
