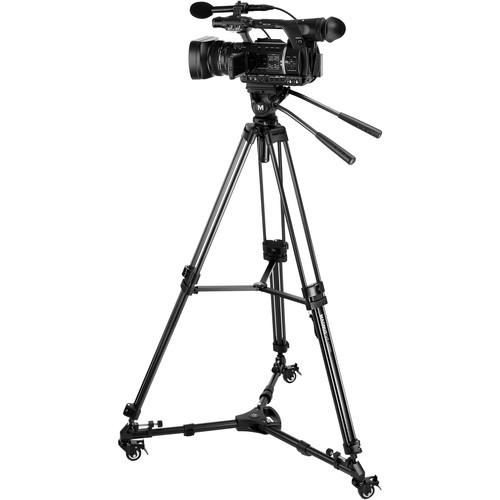

User Manual for Magnus VT-4000 Tripod System Kit with Fluid Video Head, Dolly, and Pan Bar

• Product category: Tripod Systems Magnus
• Brand: Magnus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Magnus Tripod Systems

Product description

• Magnus VT-4000 Tripod System with Fluid Head The Magnus VT-4000 Tripod System with Fluid Head is a stable, sturdy video tripod made from anodized aluminum that can support loads up to 8.8 lb. Overall, this tripod offers many features usually only found on more expensive models. The two-way fluid head provides smooth operation, and features a half-ball mount with a diameter of 65mm, with left and right pan bar mounts. It comes supplied with one pan bar. In addition, unlike most other heads in its class, all the head controls are positioned on the left side of the head, which leaves your right hand free for the panning handle. The VT-4000 tripod system weighs 7.9 lb.

  Its 2-stage leg design allows you to adjust the height of the tripod from 27.6" to 59". A middle spreader and passive counterbalance provide enhanced stability to the entire system. The VT-4000 also has separate pan and tilt locks, and a bubble level for precision leveling. The fixed counter-balance spring incorporated in the head will help with smoother tilt movements. Its provided quick release plate features a standard 1/4"-20 mounting screw with a video pin, and has a sliding range of +20/-25mm - to enable travel capabilities - essential in balancing uneven configurations. The head's tilt angle is adjustable from +90° to -60°.
  • Supports loads up to 8.8 lb (4 kg)
  • Features a 65mm ball base
  • Two-way fluid head for smooth motion
  • Fixed counter-balance spring set to 3.3 lb (1.5 kg) provides smoother tilt movements
  • 2-stage design allows you to adjust the height of the tripod from 27.6" to 59" (70 to 150 cm)
  • Middle spreader provides enhanced stability by holding the tripod legs in locked position
  • Provides fixed counter balance, pan, and tilt drag
  • Allows you to leverage the slide range of +20 / -25mm to enable travel capabilities - essential in balancing uneven configurations
  • Provides camera mounting via a slide plate that can be attached via a 0.25" (6.35mm) screw with video pin
  • Offers tilt angle adjustments from +90° to -60°
  • Ground spikes for outdoor use and convenient retractable rubber feet for delicate floor surfaces
  • Weighs 7.9 lb (3.6 kg)
  UPC: 847628547674
• Magnus DWF-2 Universal Tripod Dolly The Magnus DWF-2 Universal Tripod Dolly presents a simple, affordable way to put your tripod on wheels. The dolly features 2" ball-bearing metal/rubber wheels that feature revolving assemblies. That means you can steer your tripod along any line imaginable to capture a smooth tracking shot.The DWF-2 dolly bears loads up to 33 lb and features adjustable clamps to lock just about any size of tripod foot into place securely. Mounting a tripod is easy: Just line up each tripod foot and twist the thumb screws to tighten each clamp.Each leg bar extends up to 4.9" to accommodate tripods of various dimensions, and flip locks secure the extension. Fully extended, the dolly has a doorway width of 31". With step-on locks for each wheel, you can easily transform your rolling tripod into a sturdy lock-down mount for your camera.Two of the legs fold down to create a compact package for transport – the dolly folds down to just 17 x 5".
  • Step on the wheel locks to brake the spinning of the wheels and the rotation of the wheel assemblies
  • Spring-loaded stoppers automatically lock the legs in the open position when they're rotated out - easily pull them up to rotate the legs back into the closed position
  • Sturdy carry handle
  • Hook & loop strap to secure legs in a tidy package for transport
  • Carry bag with shoulder strap
  UPC: 847628570436
• Magnus PB-2 Pan Bar for VT-4000 Tripod The Magnus PB-2 Pan Bar for VT-4000 Tripod is a replacement for the pan bar that's included with the Magnus VT-4000 tripod, allowing you to achieve precise pan movement. Alternatively, it can be used as a second pan bar, which is especially useful for those that like to keep a camera remote mounted to the bar.
  • • For use with VT-4000 tripod
    • Use as replacement or as a second bar
  UPC: 847628561380

• VT-4000 Tripod System with Fluid Head zfutfyvyfcadtbcv
• VT-QRP400 Quick Release Plate
• Carrying Case
• Pan Bar (1)
• Allen Keys (2)
• Limited 1-Year Warranty

• DWF-2 Universal Tripod Dolly

• PB-2 Pan Bar for VT-4000 Tripod

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Magnus VT-4000 Tripod System with Fluid Head

  Load Capacity	8.8 lb (4 kg)
  Maximum Height	59.0" (150 cm)
  Minimum Height	27.6" (70.1 cm)
  Folded Length	30.3" (77 cm)
  Leveling Bubble/Illuminated	Yes/no
  Weight	7.9 lb (3.6 kg)

  Counter Balance System	Fixed counter-balance spring @ 3.3 lb (1.5 kg)
  Quick Release/Wedge Plate	Yes/no
  Balance Plate	Yes
  Slide Range	+20/-25mm
  Tilt Drag	Yes
  Tilt Range	+90/-60°
  Tilt Lock	Yes
  Pan Lock	Yes

  Head Attachment Fitting	65 mm half bowl
  Material	Anodized aluminum
  Leg Stages/Sections	2/3
  Leg Lock Type	Flip locks
  Independent Leg Spread	No
  Spiked/Retractable Feet	Yes/yes
  Center Brace	Yes (mid-level)

  Box Dimensions (LxWxH)	31.1 x 6.6 x 6.5"

• Magnus DWF-2 Universal Tripod Dolly

  Construction	Aluminum & plastic
  Load Capacity	33 lb (15 kg)
  Doorway Width	31.0" (78.7 cm) with legs fully extended
  Extension	4.9" (12.4 cm) per leg
  Folded Length	17.0 x 5.0" (43.2 x 12.7 cm)
  Wheel Diameter	2" (51 mm)
  Wheel Lock	Yes
  Cable Guards	No
  Weight	3.8 lb (1.7 kg)

  Box Dimensions (LxWxH)	17.25 x 5.75 x 5.5"

• Magnus PB-2 Pan Bar for VT-4000 Tripod

  Box Dimensions (LxWxH)	13.35 x 2.9 x 1.8"
