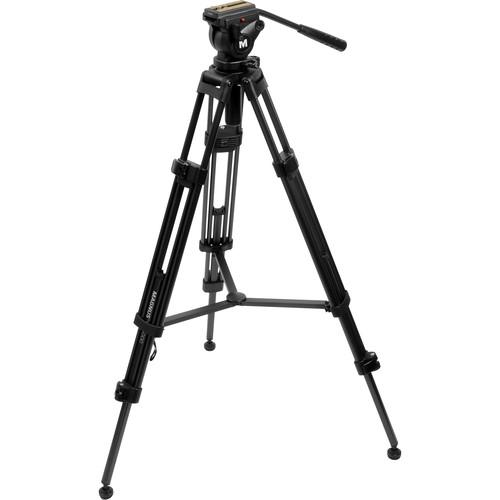

User Manual for Magnus VT-4000 Tripod System with Fluid Head Click to enlarge the picture
Contents of the user manual for the Magnus VT-4000 Tripod System with Fluid
- Product category: Tripod Systems Magnus
- Brand: Magnus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magnus Tripod Systems
 |
User manual for the Magnus VT-4000 Tripod System with Fluid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magnus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magnus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magnus product will considerably shorten its lifespan!
|

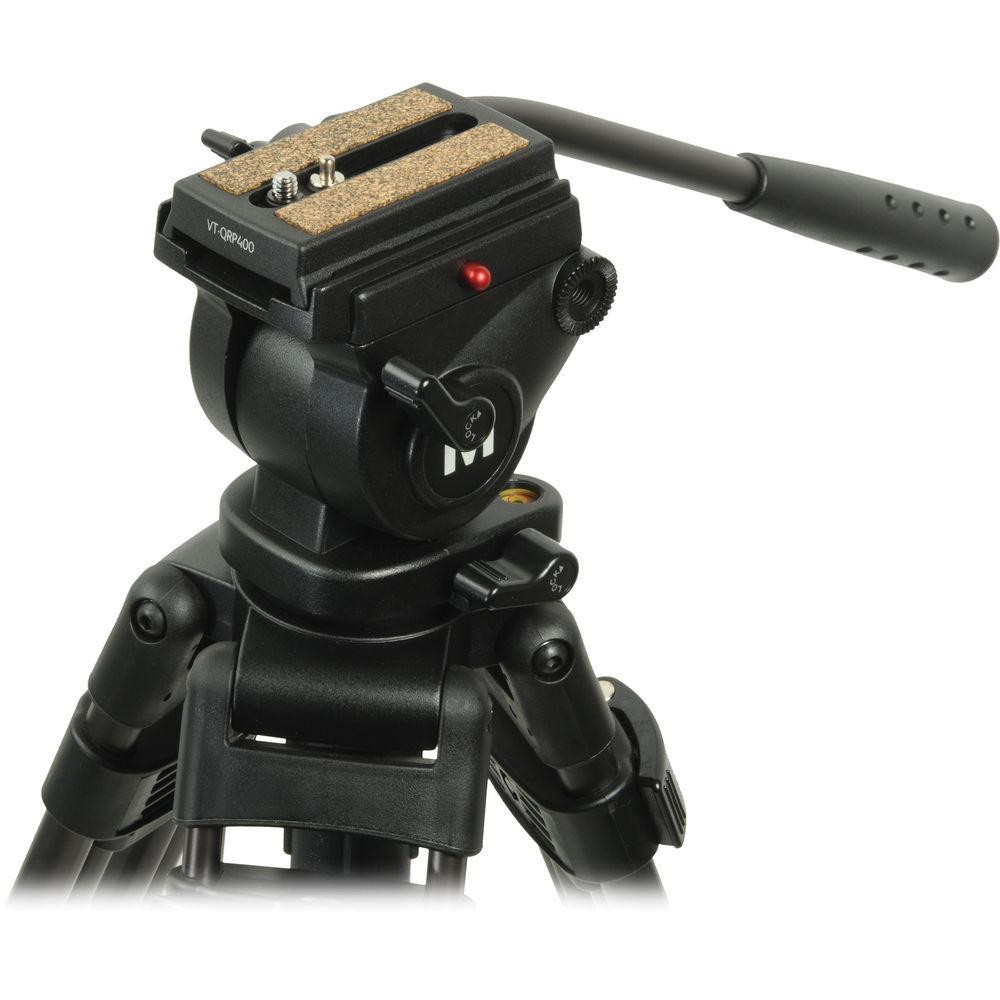

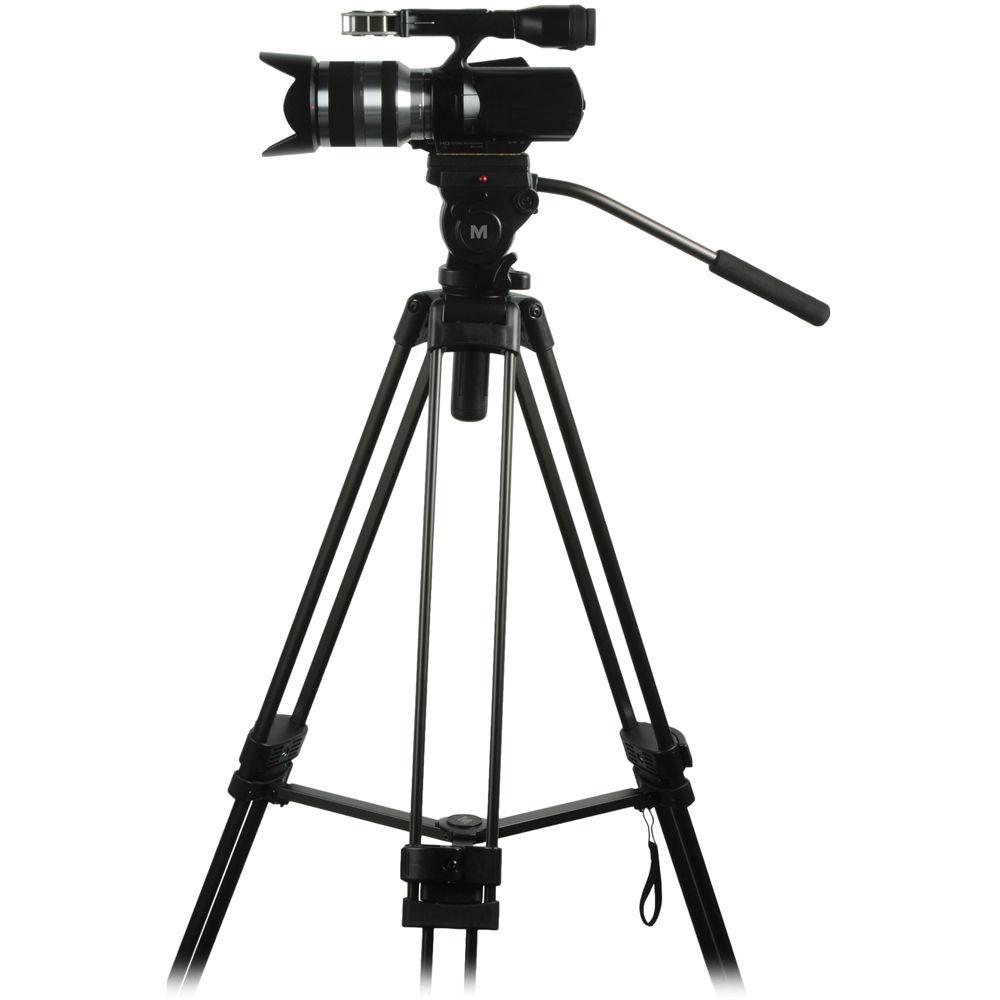

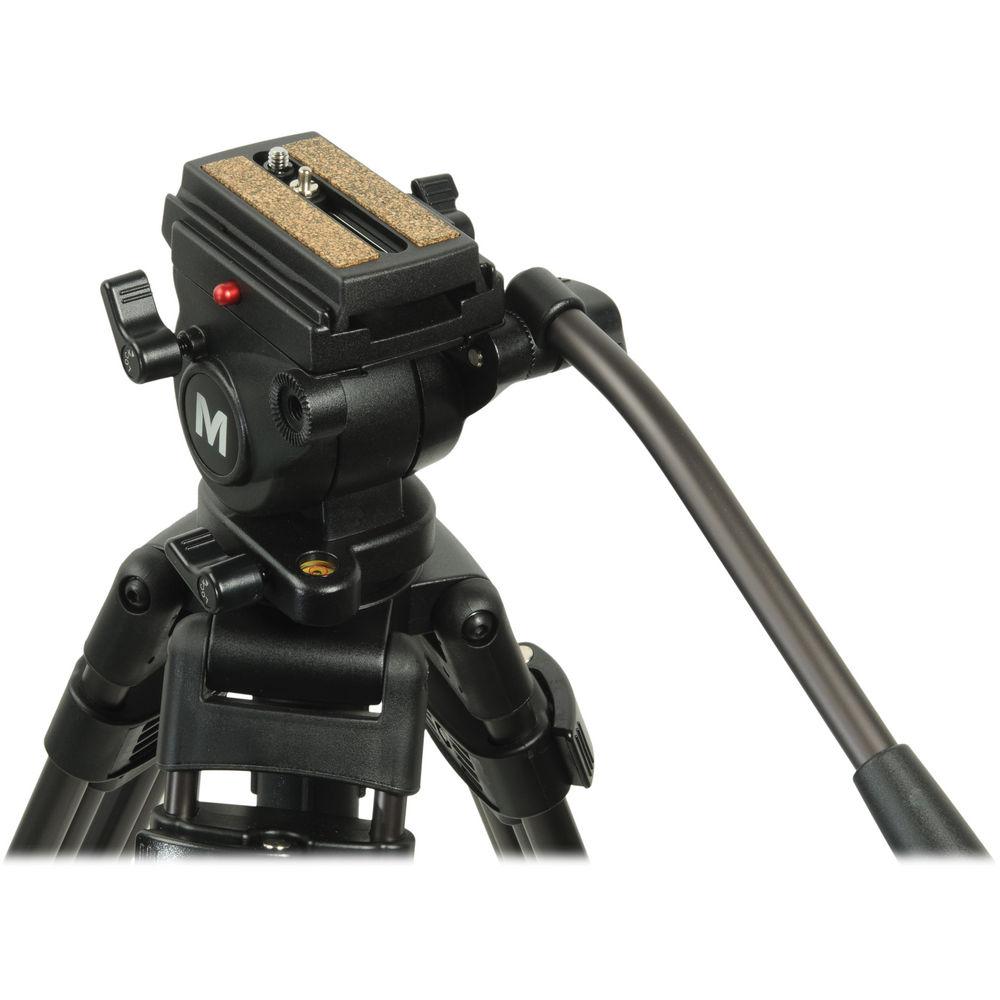

Product description The Magnus VT-4000 Tripod System with Fluid Head is a stable, sturdy video tripod made from anodized aluminum that can support loads up to 8.8 lb. Overall, this tripod offers many features usually only found on more expensive models. The two-way fluid head provides smooth operation, and features a half-ball mount with a diameter of 65mm, with left and right pan bar mounts. It comes supplied with one pan bar. In addition, unlike most other heads in its class, all the head controls are positioned on the left side of the head, which leaves your right hand free for the panning handle. The VT-4000 tripod system weighs 7.9 lb.
Its 2-stage leg design allows you to adjust the height of the tripod from 27.6" to 59". A middle spreader and passive counterbalance provide enhanced stability to the entire system. The VT-4000 also has separate pan and tilt locks, and a bubble level for precision leveling. The fixed counter-balance spring incorporated in the head will help with smoother tilt movements. Its provided quick release plate features a standard 1/4"-20 mounting screw with a video pin, and has a sliding range of +20/-25mm - to enable travel capabilities - essential in balancing uneven configurations. The head's tilt angle is adjustable from +90° to -60°. - Supports loads up to 8.8 lb (4 kg)
- Features a 65mm ball base
- Two-way fluid head for smooth motion
- Fixed counter-balance spring set to 3.3 lb (1.5 kg) provides smoother tilt movements
- 2-stage design allows you to adjust the height of the tripod from 27.6" to 59" (70 to 150 cm)

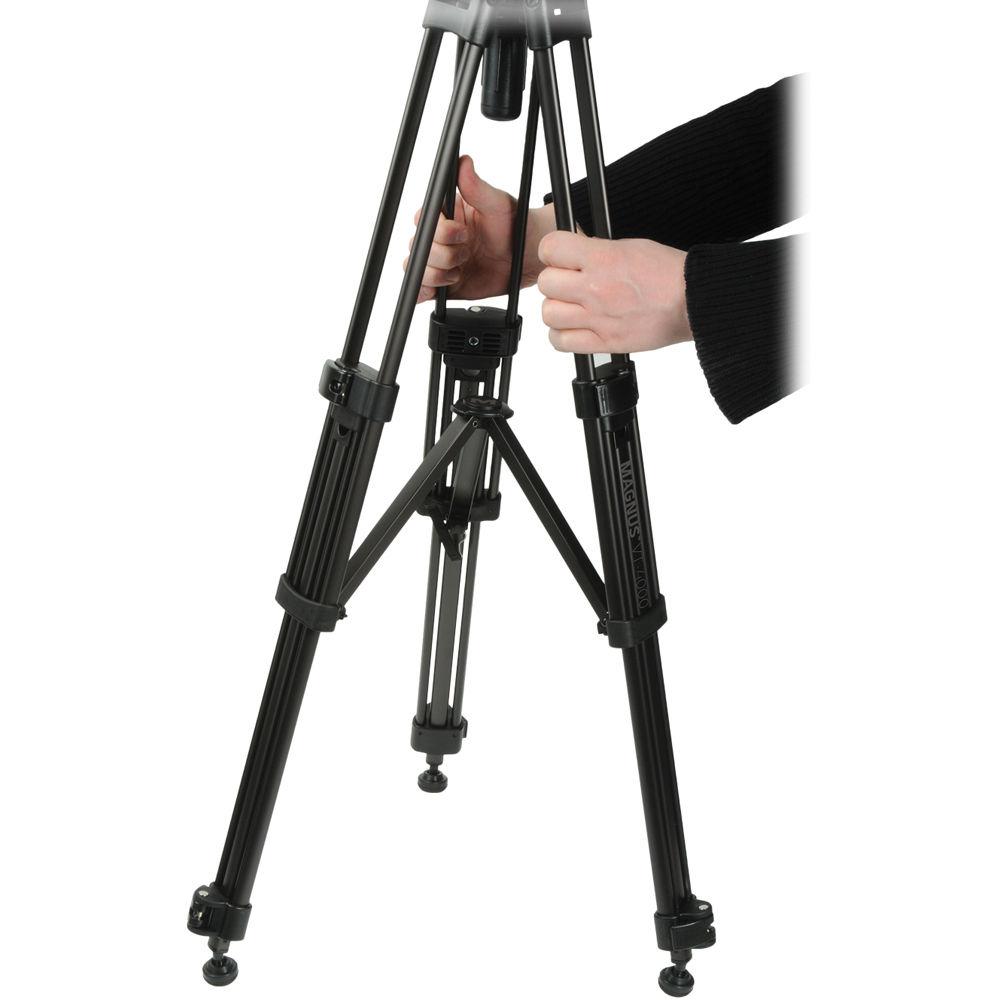

- Middle spreader provides enhanced stability by holding the tripod legs in locked position
- Provides fixed counter balance, pan, and tilt drag
- Allows you to leverage the slide range of +20 / -25mm to enable travel capabilities - essential in balancing uneven configurations
- Provides camera mounting via a slide plate that can be attached via a 0.25" (6.35mm) screw with video pin
- Offers tilt angle adjustments from +90° to -60°

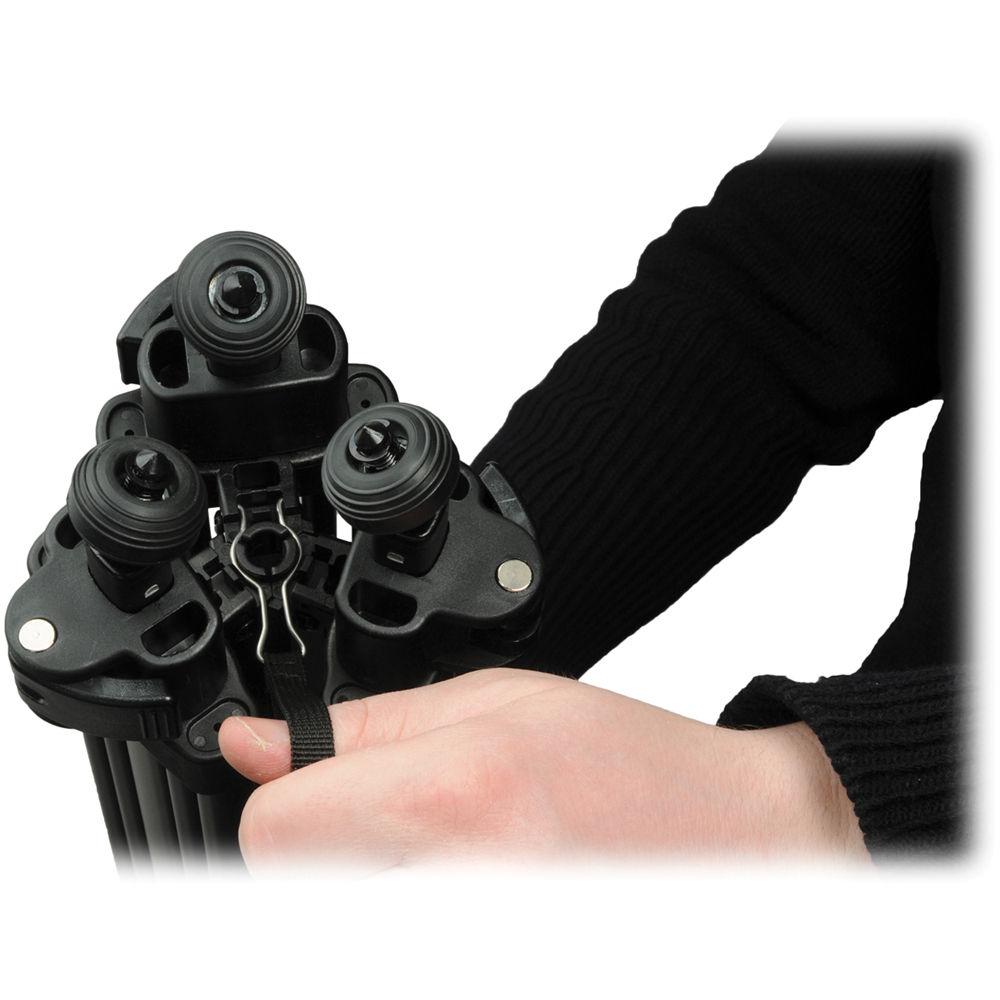

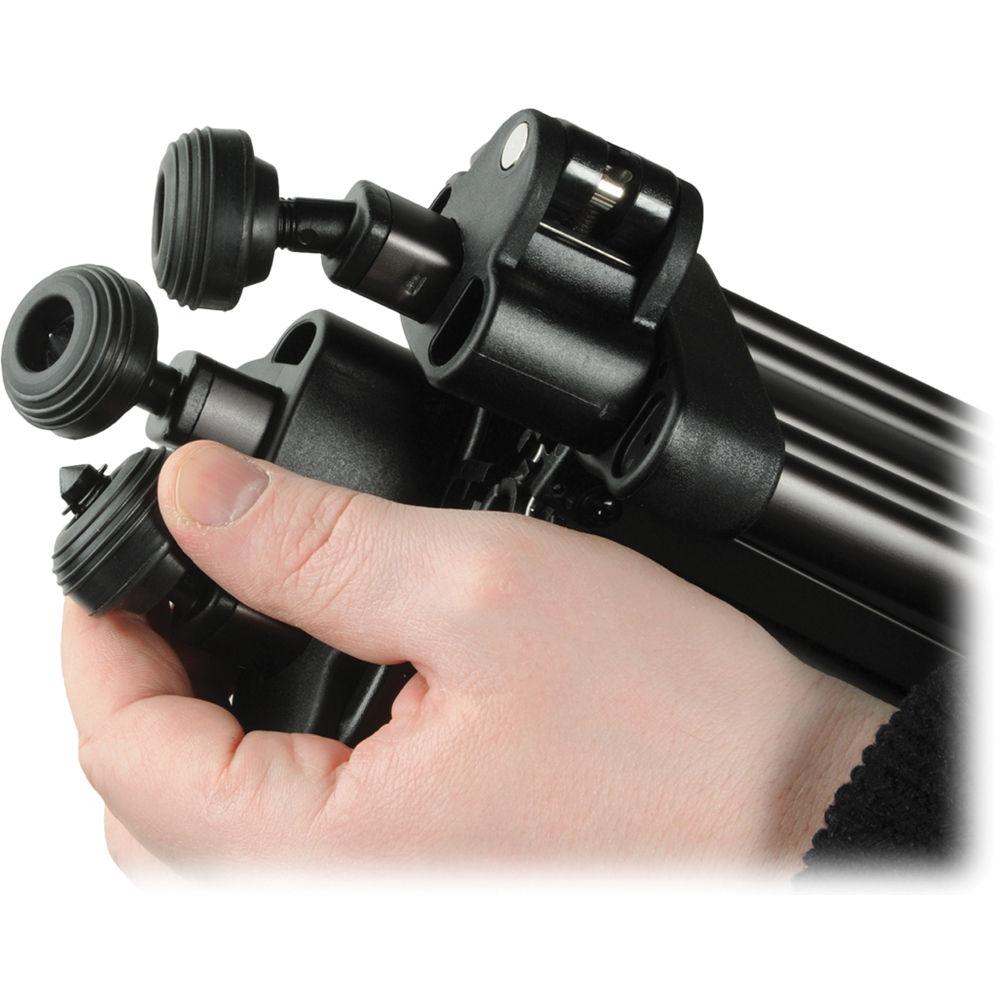

- Ground spikes for outdoor use and convenient retractable rubber feet for delicate floor surfaces
UPC: 847628547674 In the Box Magnus VT-4000 Tripod System with Fluid Head VT-QRP400 Quick Release Plate Carrying Case Pan Bar (1) Allen Keys (2) Limited 1-Year Warranty User Manual PDF 3.6mbebezysxyycwytszrurubctfbxqwe Table of Contents
|
Upload User Manual
Have you got an user manual for the Magnus VT-4000 Tripod System with Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

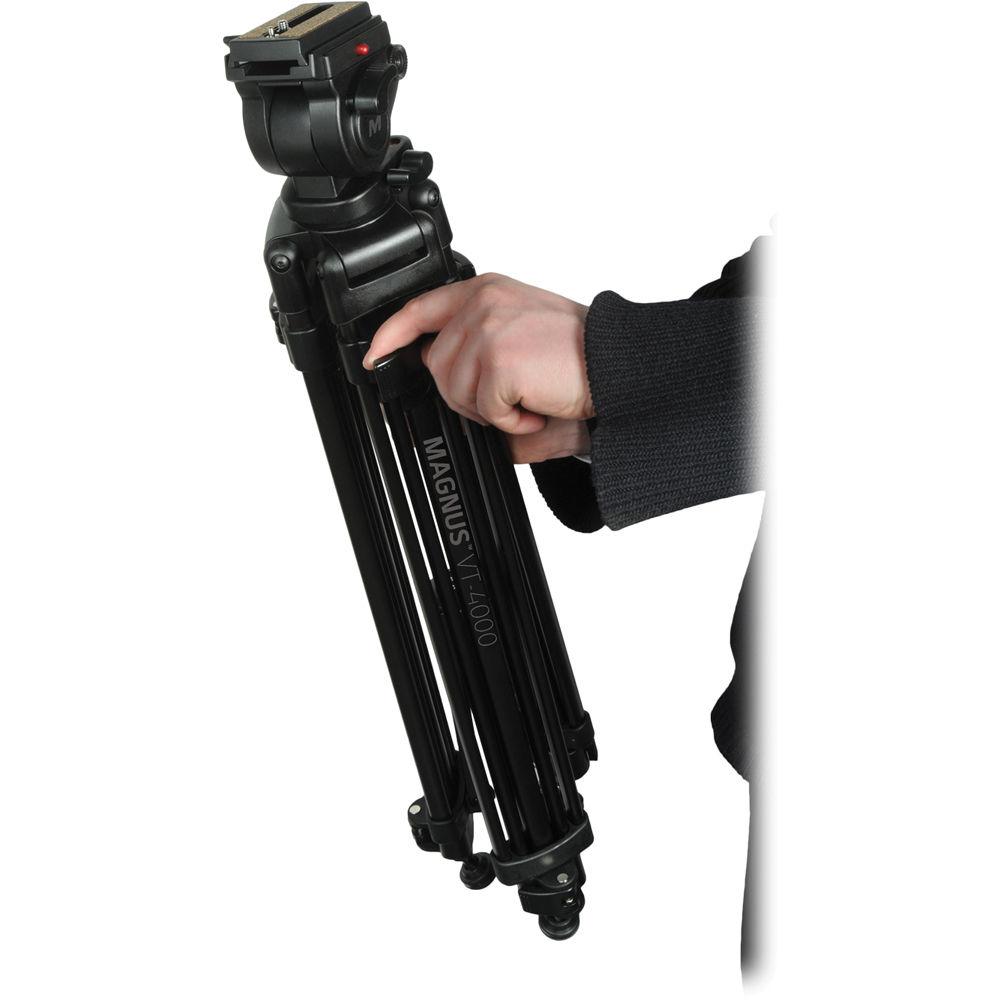

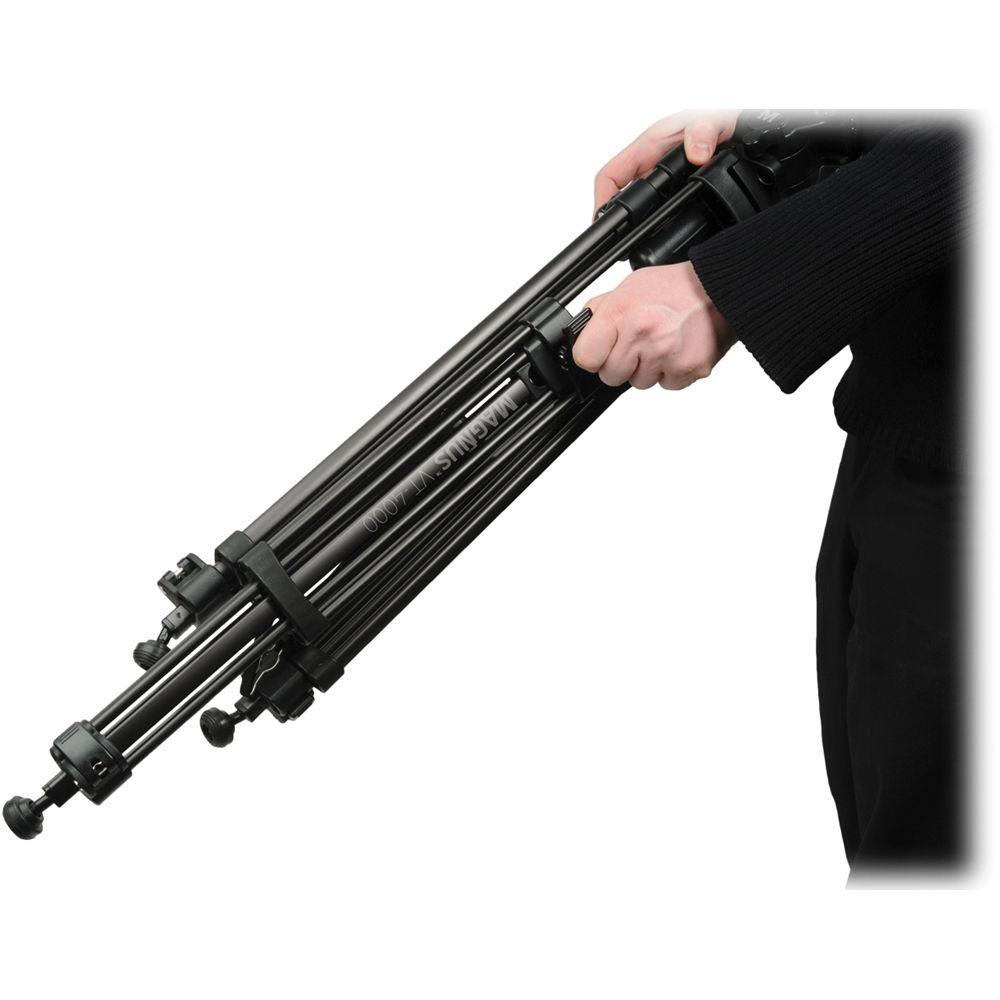

Technical parametersMagnus VT-4000 Specs | | | Load Capacity | 8.8 lb (4 kg) | | Maximum Height | 59.0" (150 cm) | | Minimum Height | 27.6" (70.1 cm) | | Folded Length | 30.3" (77 cm) | | Leveling Bubble/Illuminated | Yes/no | | Weight | 7.9 lb (3.6 kg) | | | | Counter Balance System | Fixed counter-balance spring @ 3.3 lb (1.5 kg) | | Quick Release/Wedge Plate | Yes/no | | Balance Plate | Yes | | Slide Range | +20/-25mm | | Tilt Drag | Yes | | Tilt Range | +90/-60° | | Tilt Lock | Yes | | Pan Lock | Yes | | | | Head Attachment Fitting | 65 mm half bowl | | Material | Anodized aluminum | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Flip locks | | Independent Leg Spread | No | | Spiked/Retractable Feet | Yes/yes | | Center Brace | Yes (mid-level) | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 31.1 x 6.6 x 6.5" |
