User Manual for MakerBot Replicator 3D Printer Click to enlarge the picture
Contents of the user manual for the MakerBot Replicator 3D Printer
- Product category: 3D Printers MakerBot
- Brand: MakerBot
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MakerBot 3D Printers
 |
User manual for the MakerBot Replicator 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MakerBot product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MakerBot user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MakerBot product will considerably shorten its lifespan!
|

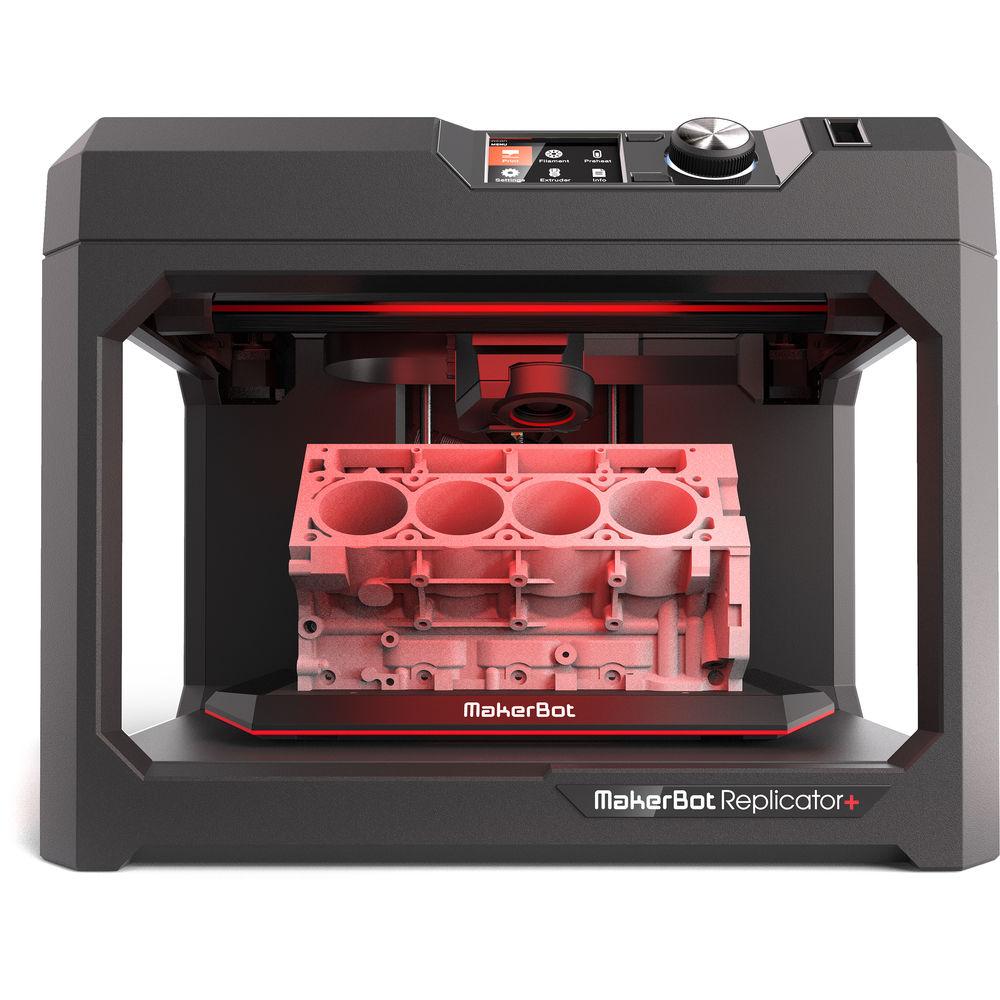

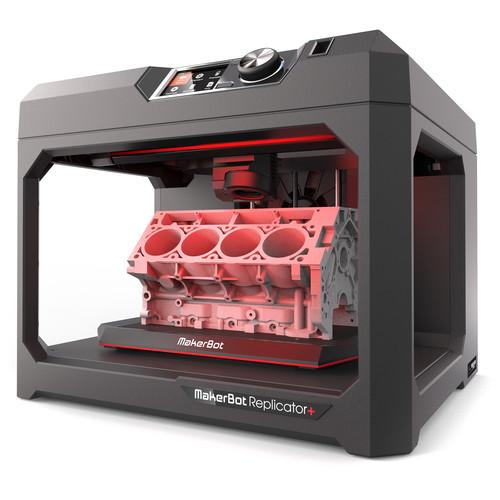

Product description Engineered and tested for reliable and faster 3D printing, the Replicator+ 3D Printer from MakerBot prints up to 30% faster than is predecessor and offers a 25% larger build volume. For improved reliability and precision, it features upgraded hardware, such as a redesigned gantry and z-stage. It has also been tested for over 380,000 hours of use. It is constructed using PC ABS with powder-coated steel reinforcements, as well as aluminum casting and extrusions for the motion components.
The Replicator+ features a build volume of 11.6 x 7.6 x 6.5"; a cubic build volume of 573 in3; a layer resolution of 100-400 microns; Fused Deposition Modeling (FDM) printing technology that is compatible with Smart Extruder+ and Tough PLA Smart Extruder+ units; uses 1.75mm MakerBot PLA small and large spool filaments, as well as MakerBot Tough PLA large spool filaments; has a 1.8° step angle with 1/16 micro-stepping; 11 micron XY positioning precision; 2.5 micron Z positioning precision; and is equipped with a single 0.4mm extruder nozzle. Users may print their compatible CAD (.cad), STL (.stl), MakerBot (.makerbot), SolidWorks (.sldprt, .sldasm), InventorOBJ (.ipt, .iam), IGES (.iges, .igs), STEP AP203/214 (.step, .stp), CATIA (.CATPart, .CATProduct), Wavefront Object (.obj), Unigraphics/NX (.prt), Solid Edge (.par, .asm), ProE/Creo (.prt, .asm), VRML (.wrl), and Parasolid (.x_t, .x_b) files in an open print chamber via 10/100 Ethernet, 802.11b/g/n Wi-Fi, or USB 2.0. The print bed itself is factory-leveled and constructed using a grip surface with a bendable Flex Build Plate.
The MakerBot Replicator+ is Cloud-enabled, allowing you to control and manage one or more printers over the cloud using MakerBot Print or MakerBot Mobile software. It can also be controlled using a built-in dial and an integrated LCD display, each of which allow you to maintain your 3D printer, preview print files, and access your object library. There is also a built-in 640 x 480 camera and this 3D printer operates using 100-240 VAC at 50/60 Hz. It is compatible with Windows 7 and 10 and Mac OS X 10.9 and later. Included is a MakerBot Replicator Smart Extruder+, a large MakerBot filament spool, a USB 2.0 Type-B to Type-A cable, a 4mm hex key, and a power cord. General Features - Easy and Accessible 3D Printing
- To help ensure easy, accessible 3D printing, the MakerBot Replicator+ comes with a Smart Extruder+ and all the standard features of its predecessor. A few of those features include an LCD display, an on-board camera, as well as USB 2.0, 802.11g Wi-Fi, and 10/100 Ethernet connectivity.
- Engineered and Tested for Reliability
- The MakerBot Replicator+ prints up to 30% faster than its predecessor and offers a 25% larger build volume. For greater reliability and precision, it features improved hardware, like a redesigned gantry and z-stage. To help ensure consistent performance, the Replicator+ 3D printer and its subsystems have been re-engineered and tested for 380,000+ hours across multiple facilities.
- Combines with Workflow Tools to Streamline the 3D Printing Process
- Save time and accelerate iteration by pairing the Replicator+ with MakerBot Print software and MakerBot Mobile. The Replicator+ is Cloud-enabled so you can control it remotely with MakerBot Print or the MakerBot Mobile app. With MakerBot Print, you can import Native CAD parts and assemblies, auto-arrange them during print preparation, and then print them on one or more printers. To get started printing quickly and easily, MakerBot Mobile offers a guided wireless setup.
- Flex Built Plate with Grip Build Surface
- With the Grip Surface, prints adhere better, resulting in reduced warping and curling. Prints are also easier to remove with the bendable Flex Build Plate. The build plate is also factory-leveled so your Replicator+ is ready to go right out of the box.
- Includes the MakerBot Smart Extruder+
- Double the warranty of its predecessor, the Smart Extruder+ is a culmination of product design and 160,000+ hours of testing that delivers dependable and consistent performance using MakerBot PLA filament.

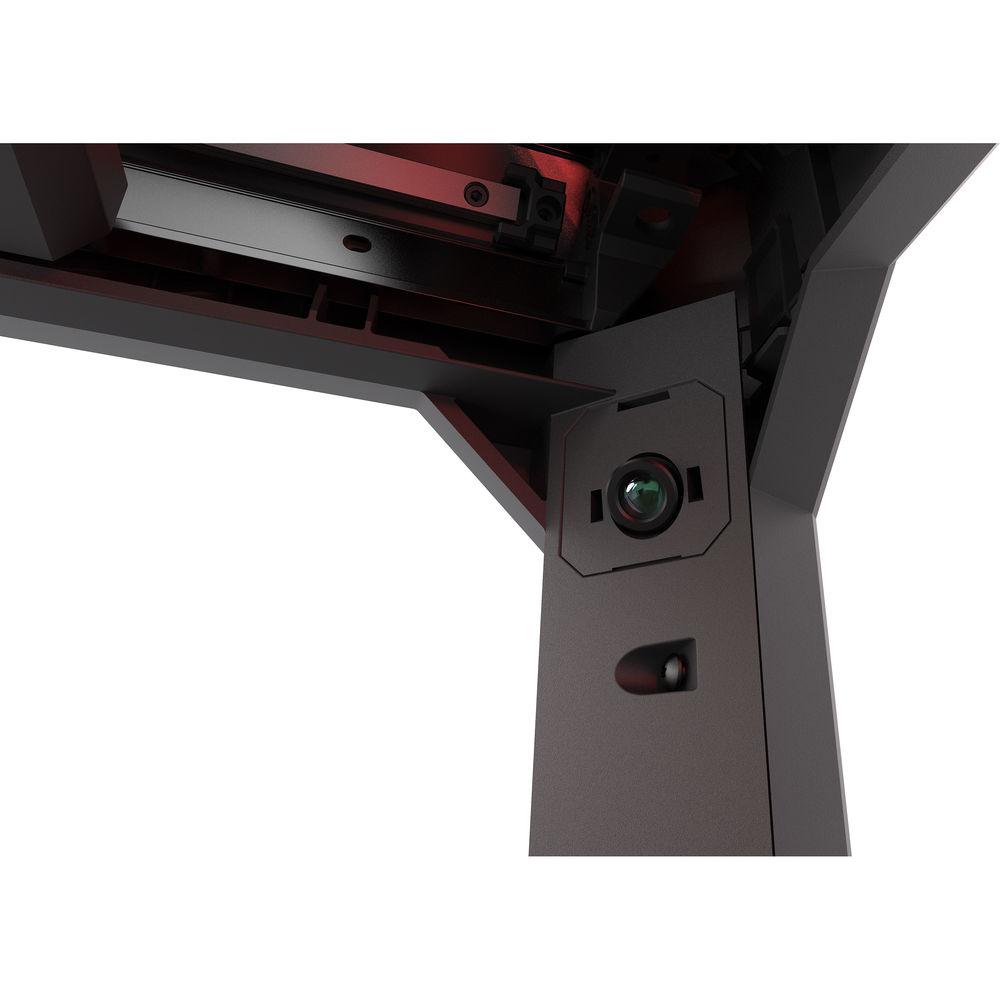

- On-Board Camera
- Remotely monitor your print progress from MakerBot Print and MakerBot Mobile.

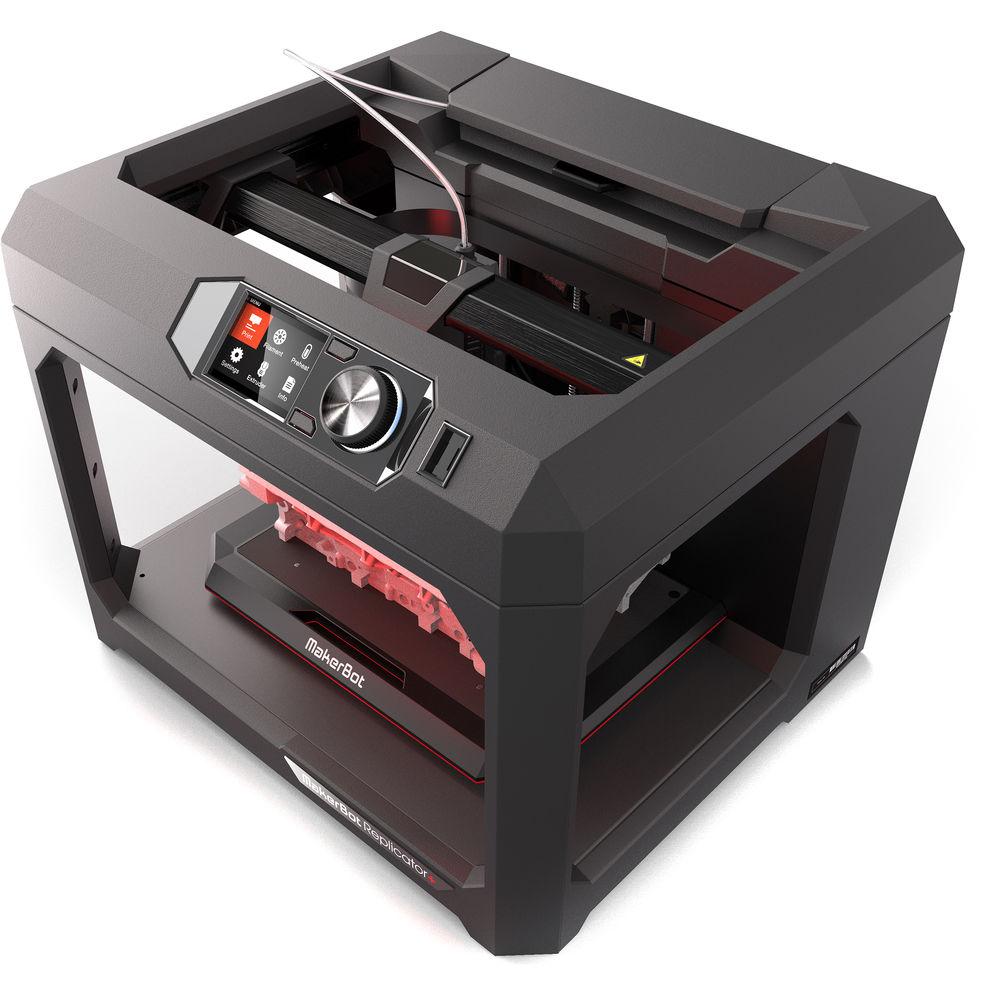

- Ease of Use via the LCD Display and Dial
- Along with a dial, the LCD display allows you to set up and maintain your 3D printer, preview print files, and easily access your object library.
- Flexible Connectivity
- Send print files to your 3D printer via 802.11b/g/n Wi-Fi, USB 2.0, 10/100 Ethernet, or with a USB drive. Control your printer via MakerBot Print or remotely with MakerBot Mobile.
- Advanced Software
- Control multiple printers from MakerBot Print so you can print on multiple build plates sequentially or simultaneously. Store, organize, and access 3D design files in your personal cloud-enabled library. MakerBot Print is free downloadable software that's compatible with Mac and Windows computers.
- MakerBot Support
- MakerBot Support offers comprehensive MakerCare coverage plans and responsive expertise from those who know MakerBot products best. Their support site also offers both intelligent troubleshooting and in-depth product information.
- Optimized for MakerBot PLA Filament
- Safe for the office, classroom, or home, this filament is non-toxic and easy-to-print with minimal warping or curling. The Replicator+ and MakerBot's software are tuned to provide high quality with this filament.
- MakerBot Tough PLA Filament
- Created for engineers and designers, MakerBot Tough PLA Filament allows you to print durable, high-impact strength prototypes and fixtures. This filament is tested and optimized to print reliably and easily with the Tough PLA Smart Extruder+.
UPC: 817913013498 In the Box MakerBot Replicator+ 3D Printer MakerBot Replicator Smart Extruder+ Large MakerBot PLA Filament Spool (2 lb) USB 2.0 Type-A to Type-B Cable 4mm Hex Key Power Cord Limited 6-Month Warranty tqybeuffccbvvyrbcxfuaevtbzasu Table of Contents
|
Upload User Manual
Have you got an user manual for the MakerBot Replicator 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMakerBot MP07825 Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM) | | Build Volume | 11.6 x 7.6 x 6.5" / 29.5 x 19.3 x 16.5 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 400 micron / 0.1 to 0.4 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Positioning Precision | XY Axis: 11 micron / 0.011 mm
Z Axis: 2.5 micron / 0.0025 mm | | Filament Compatibility | 1.75 mm Diameter:

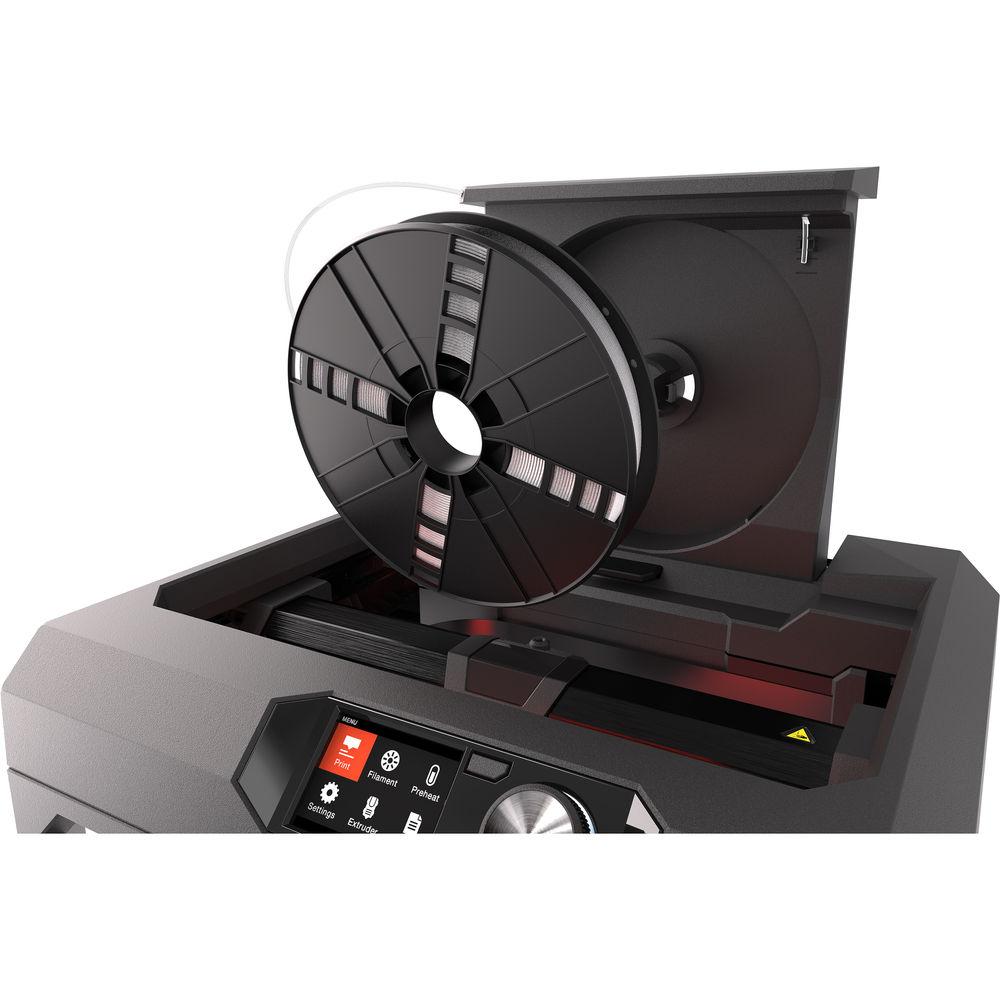

PLA | | | | Build Area Type | Open | | Build Plate Features | Auto Leveling | | Filament Spool Storage | Internal | | 3D Scanner | No | | Monitoring Camera | Yes | | | | Wired Connections | 1 x RJ45 Fast Ethernet
1 x USB Type-B (USB 2.0) | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | None | | | | Supported Operating Systems | Android (Version Unspecified)
Windows 7
Windows 8
Windows 10
iOS (Version Unspecified)
macOS X 10.9 or Later | | Supported 3D File Types | .makerbot, .obj, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 60 to 90°F / 15 to 32°C | | Storage Temperature | 32 to 100°F / 0 to 37°C | | Dimensions (W x H x D) | 17.4 x 16.2 x 20.8" / 44.2 x 41.15 x 52.83 cm | | Weight | 40.4 lb / 18.3 kg | | | | Package Weight | 52.5 lb | | Box Dimensions (LxWxH) | 24.3 x 23.0 x 20.8" |
