User Manual for MakerBot Replicator Mini 3D Printer Click to enlarge the picture
Contents of the user manual for the MakerBot Replicator Mini 3D Printer
- Product category: 3D Printers MakerBot
- Brand: MakerBot
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MakerBot 3D Printers
 |
User manual for the MakerBot Replicator Mini 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MakerBot product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MakerBot user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MakerBot product will considerably shorten its lifespan!
|

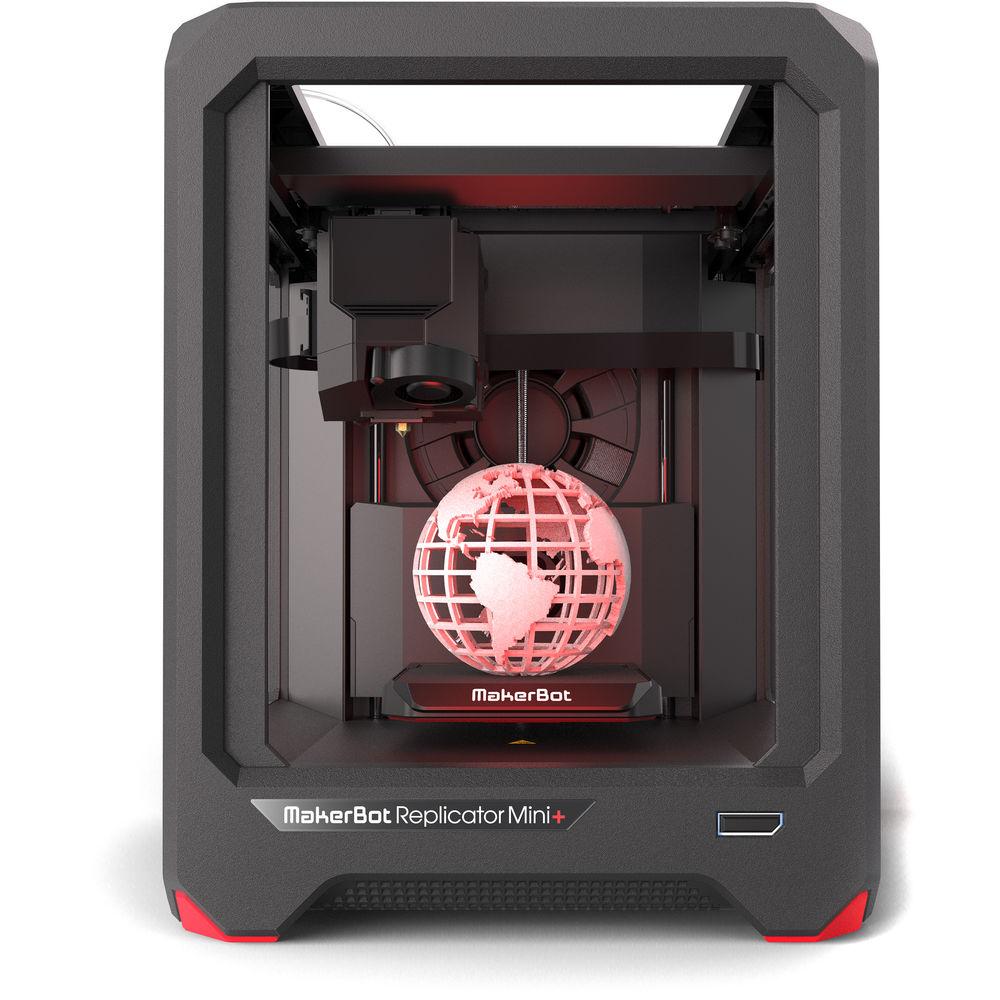

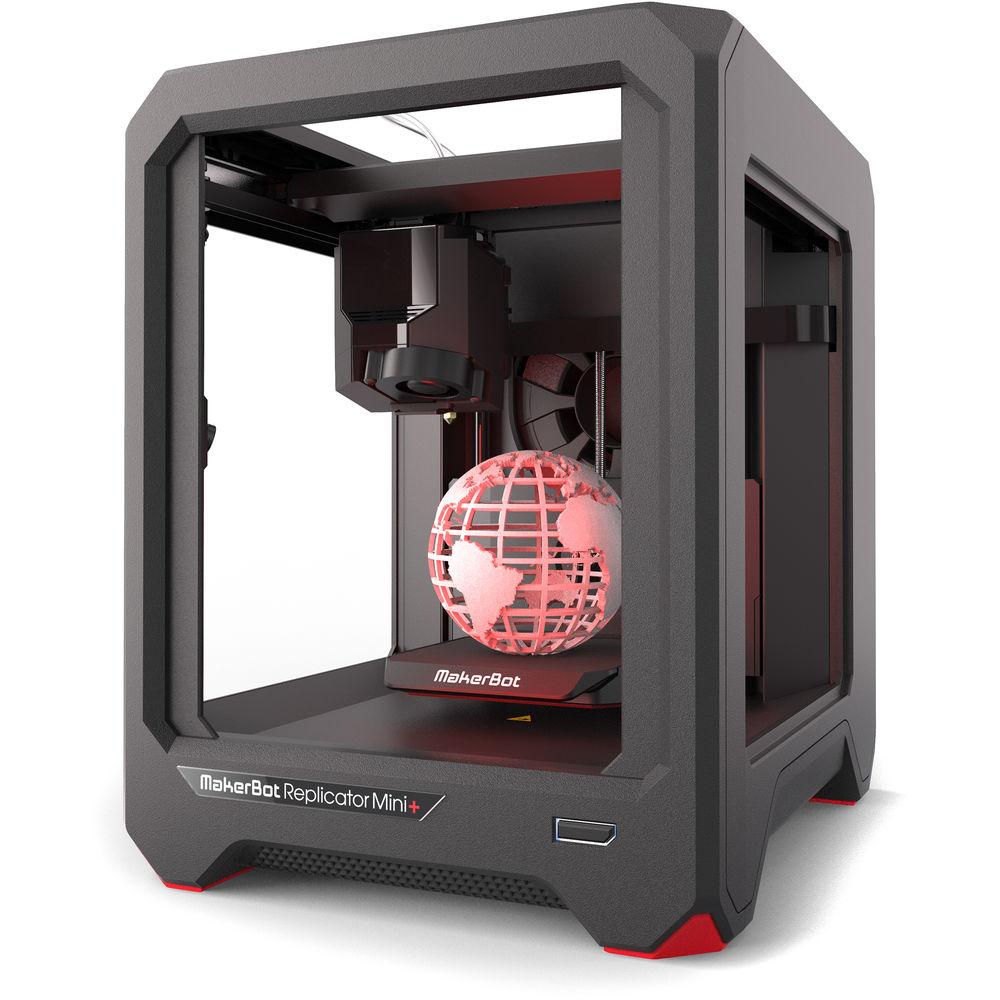

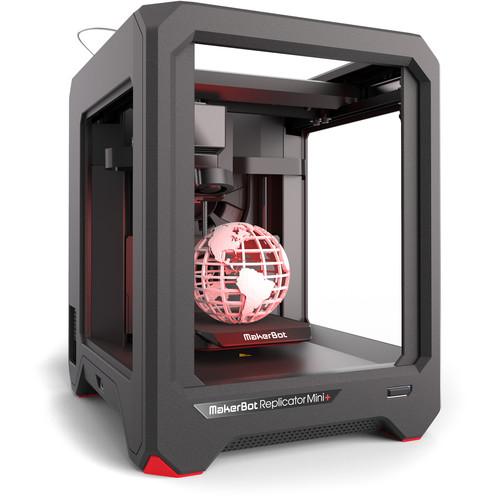

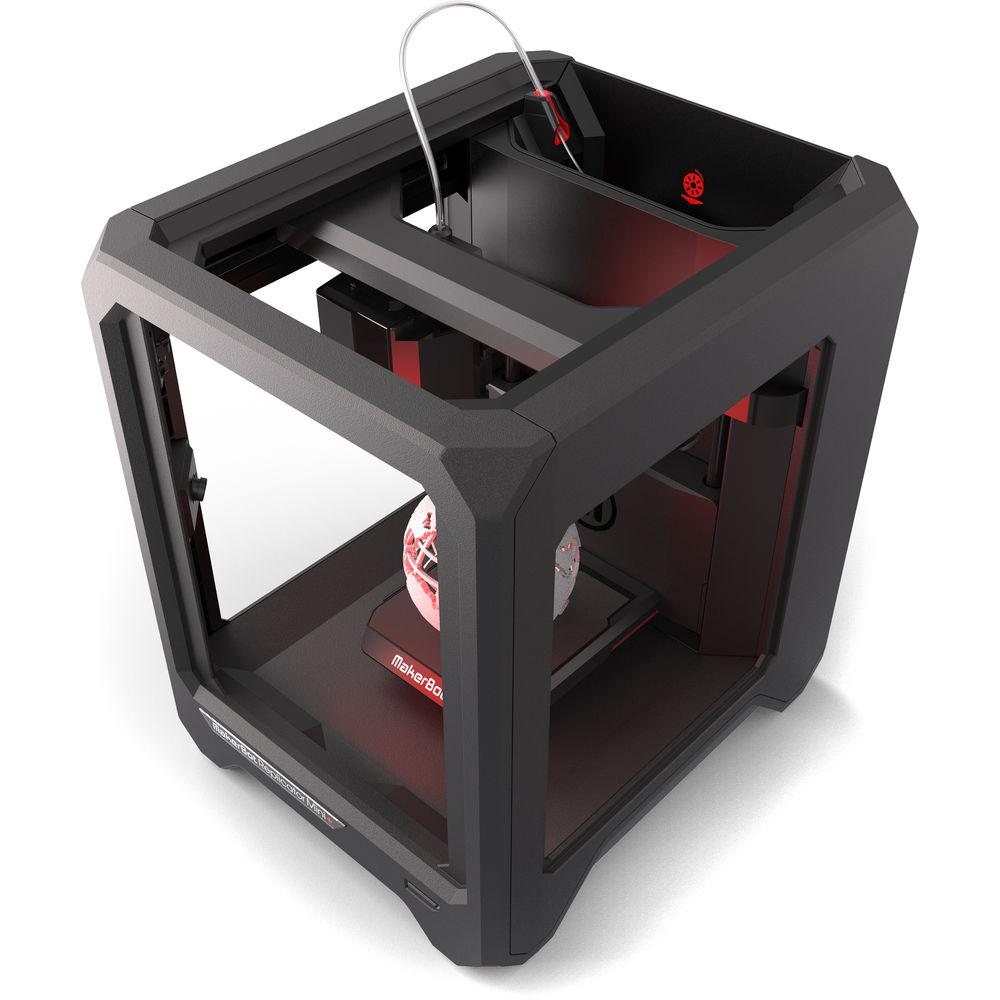

Product description Built for simple, accessible, and reliable desktop 3D printing, the Replicator Mini+ 3D Printer from MakerBot prints up to 10% faster than is predecessor and offers a 28% larger build volume. For improved reliability and precision, it features upgraded hardware, such as a redesigned Z-stage and gantry. It has also been tested for over 380,000 hours of use. It is constructed using PC ABS with powder-coated steel reinforcements.
The Replicator Mini+ features a build volume of 4.0 x 5.0 x 5.0"; a cubic build volume of 98 in3; a layer resolution of 100-400 microns; Fused Deposition Modeling (FDM) printing technology that is compatible with Smart Extruder+ units; uses 1.75mm MakerBot PLA small spool filaments; has a 1.8° step angle with 1/16 micro-stepping; 11 micron XY positioning precision; 2.5 micron Z positioning precision; and is equipped with a single 0.4mm extruder nozzle. Users may print their compatible CAD (.cad), STL (.stl), MakerBot (.makerbot), SolidWorks (.sldprt, .sldasm), InventorOBJ (.ipt, .iam), IGES (.iges, .igs), STEP AP203/214 (.step, .stp), CATIA (.CATPart, .CATProduct), Wavefront Object (.obj), Unigraphics/NX (.prt), Solid Edge (.par, .asm), ProE/Creo (.prt, .asm), VRML (.wrl), and Parasolid (.x_t, .x_b) files in an open print chamber via 802.11b/g/n Wi-Fi or USB 2.0. The print bed itself is factory-leveled and constructed using a grip surface.
The MakerBot Replicator+ is Cloud-enabled, allowing you to control and manage one or more printers over the cloud using MakerBot Print or MakerBot Mobile software. There is also a built-in 640 x 480 camera and this 3D printer operates using 100-240 VAC at 50/60 Hz. It is compatible with Windows 7 and 10 and Mac OS X 10.9 and later. Included is a MakerBot Replicator Smart Extruder+, a small MakerBot filament spool, a USB 2.0 Type-B to Type-A cable, and a power cord. General Features - Combines with Powerful Workflow Tools to Streamline the 3D Printing Process
- Save time and accelerate iteration by pairing the Replicator Mini+ with MakerBot Print software and MakerBot Mobile. The Replicator Mini+ is Cloud-enabled so you can control it remotely with MakerBot Print or the MakerBot Mobile app. With MakerBot Print, you can import Native CAD files, auto-arrange them during print preparation, and then print them on one or more printers. To get started printing quickly and easily, MakerBot Mobile offers a guided wireless setup.
- Standardized Features for 3D Printing

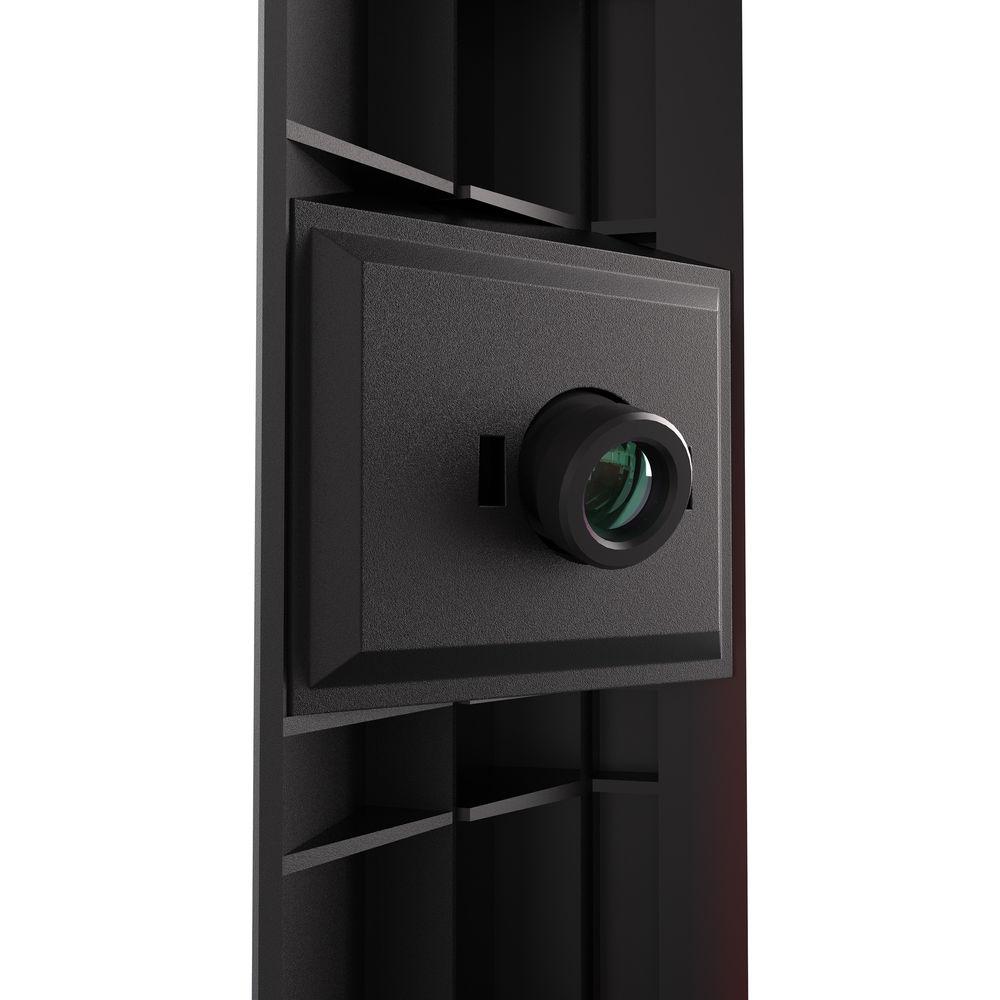

- To help ensure easy, accessible 3D printing, the MakerBot Replicator Mini+ comes with a Smart Extruder+ and standard features such as an on-board 640 x 480 camera, as well as connectivity via 802.11b/g/n Wi-Fi and a USB 2.0 cable.
- Engineered and Tested for Reliability
- The MakerBot Replicator Mini+ prints up to 10% faster than its predecessor and offers a 28% larger build volume. For greater reliability and precision, it features improved hardware, like a redesigned Z-stage and refined gantry. To help ensure consistent performance, the Replicator Mini+ 3D printer and its subsystems have been re-engineered and tested for 380,000+ hours across multiple facilities.
- Grip Surface and Factory-Leveled
- With the Grip Surface, prints adhere better, resulting in reduced warping and curling, without the need for blue tape. The build plate is also factory-leveled so your Replicator Mini+ is ready to go right out of the box.
- MakerBot Mobile App
- Get up and running quickly with guided wireless setup through MakerBot Mobile. Once you're ready, you can monitor and control your print jobs even when you're away via the 3D printer's on-board camera.
- Quieter Printing
- The MakerBot Replicator Mini+ is up to 58% quieter when printing, allowing for a more focused environment.
- Advanced Software
- Control multiple printers from MakerBot Print so you can print on multiple build plates sequentially or simultaneously. Store, organize, and access 3D design files in your personal Cloud-enabled library. MakerBot Print is free downloadable software that's compatible with Mac and Windows computers.
- MakerBot Support
- MakerBot Support offers comprehensive MakerCare coverage plans and responsive expertise from those who know MakerBot products best. Their support site also offers both intelligent troubleshooting and in-depth product information.

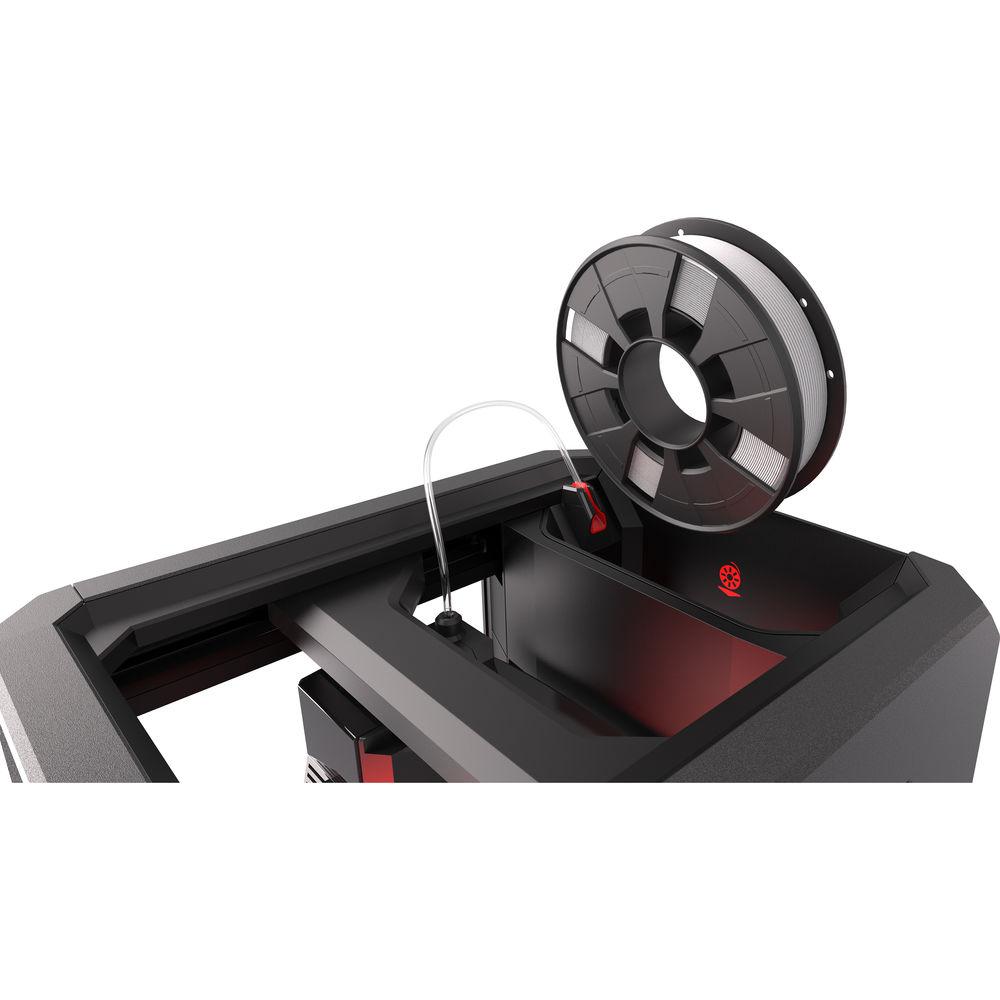

- Optimized for MakerBot PLA Filament
- Safe for the classroom, office, or home, this filament is non-toxic and easy-to-print with minimal warping or curling. It's also a very consistent filament for the MakerBot Replicator Mini+.
UPC: 817913013504 In the Box MakerBot Replicator Mini+ 3D Printer MakerBot Replicator Smart Extruder+ Small MakerBot PLA Filament Spool USB 2.0 Type-B to Type-A Cable Power Cord Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MakerBot Replicator Mini 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMakerBot MP07925 Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM) | | Build Volume | 4 x 5 x 5" / 10.2 x 12.7 x 12.7 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 400 micron / 0.1 to 0.4 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Positioning Precision | XY Axis: 11 micron / 0.011 mm
Z Axis: 2.5 micron / 0.0025 mm | | Filament Compatibility | 1.75 mm Diameter:
PLA | | | | Build Area Type | Open | | Build Plate Features | Auto Leveling | | Filament Spool Storage | Internal | | 3D Scanner | No | | Monitoring Camera | Yes | | | | Wired Connections | 1 x RJ45 Fast Ethernet
1 x USB Type-B (USB 2.0) | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | None | | | | Supported Operating Systems | Android (Version Unspecified)
Windows 7
Windows 8
Windows 10
iOS (Version Unspecified)
macOS X 10.9 or Later | | Supported 3D File Types | .makerbot, .obj, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 60 to 78°F / 15 to 25°C | | Storage Temperature | 32 to 100°F / 0 to 37°C | | Dimensions (W x H x D) | 13.8 x 15 x 11.6" / 35.05 x 38.1 x 29.46 cm | | Weight | 20.5 lb / 9.3 kg | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 22.3 x 18.4 x 16.0" |
