Product description 3D Printing in the Classroom with Makerbot Read More - Introduction
- Unboxing
- Getting Started

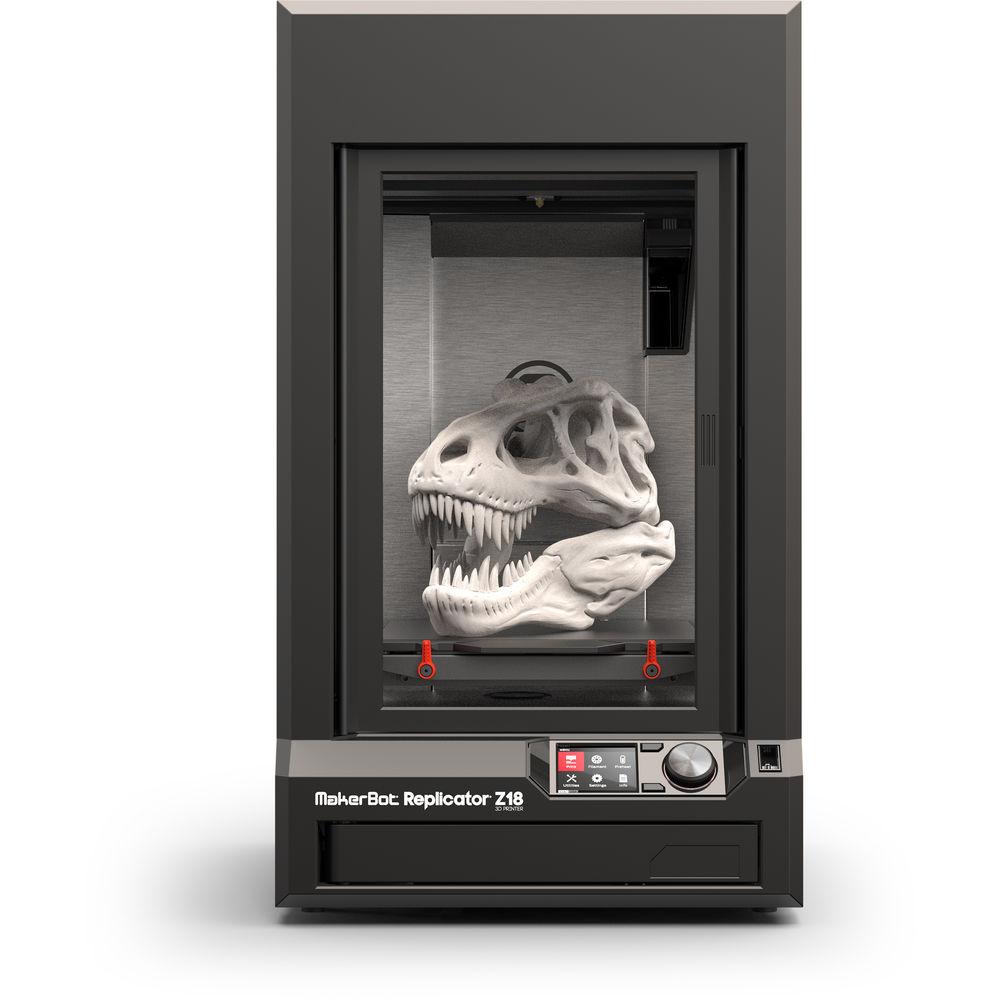

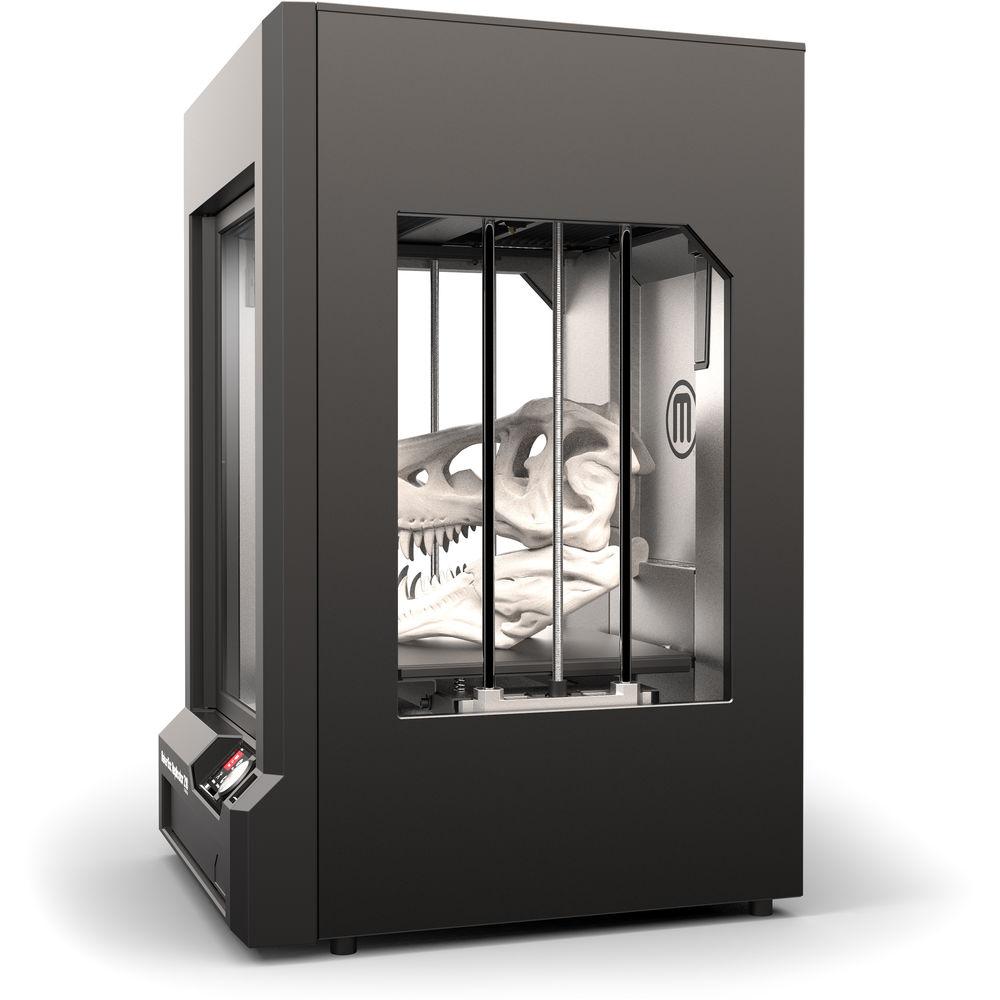

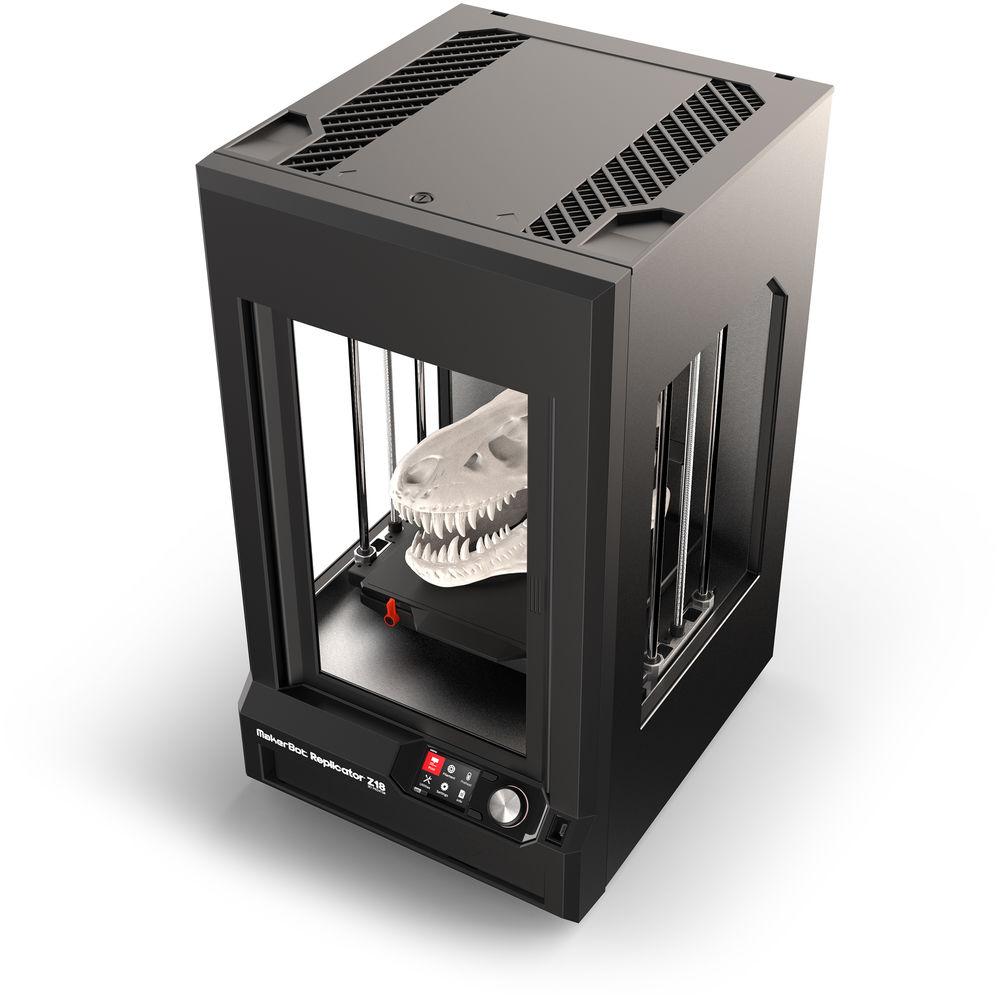

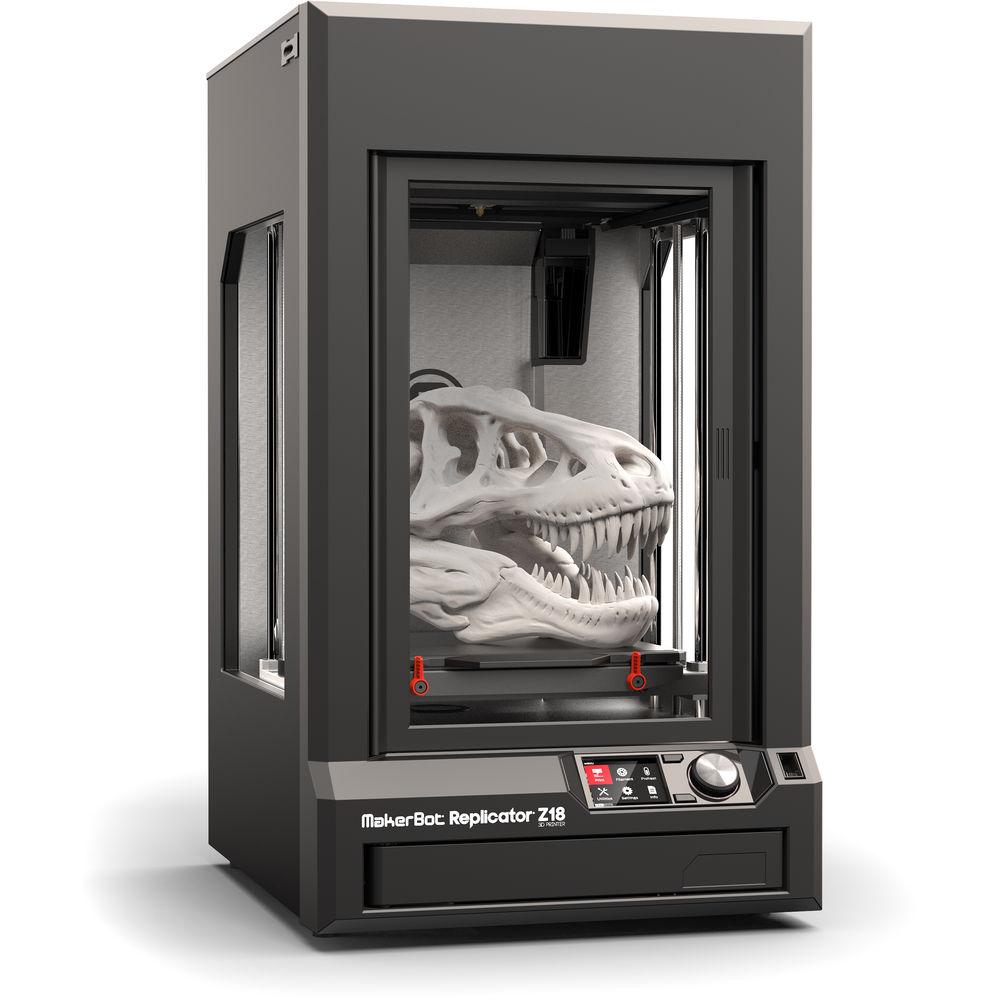

The Replicator Z18 3D Printer from MakerBot allows you to print large, detailed objects up to 12" in width and depth, and up to 18" in height. To ensure accurate printing and to minimize warping even throughout lengthy print jobs, the Z18 features a heated build chamber to maintain a consistent temperature, and a polycarbonate ABS build plate that is factory and resistant to temperature extremes. For on-board control of your printer, the Z18 features a 3.5" full-color LCD display and intuitive dial. Access your object library, see previews of your 3D model files, and employ utilities to set up and maintain your 3D printer. The Z18 incorporates an on-board 320 x 240 camera for print monitoring and sharing to MakerBot Thingiverse and social networks. Accessible from the MakerBot Print software and MakerBot Mobile App, the Replicator Z18 also automatically takes reference pictures of final prints and stores them in your cloud storage library. Free downloadable software, MakerBot Print, helps you find, organize, and prepare your 3D files for printing. Send files to your Replicator Z18 over a USB or Ethernet cable, or insert a USB flash drive with your file directly into the printer. The Z18 is compatible with Mac, Windows, and Linux computers. - Ultra-Tall Build Volume
- The chief feature of the Z18 is its significant build volume. Print an object an entire foot in length and width, and up to a foot and half in height.
- Supports XL and XXL Filament Spools

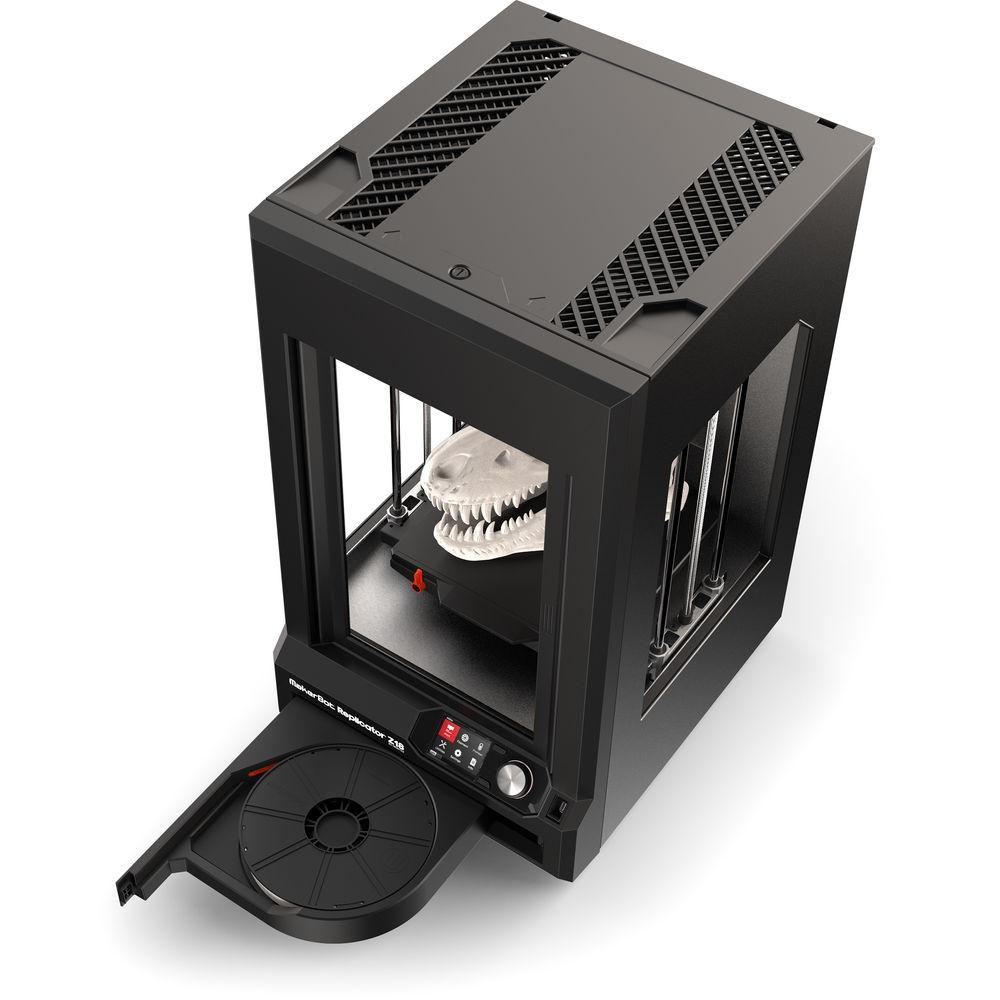

- MakerBot designed extra-large capacity filament spools expressly for the Z18, to ensure that your large, lengthy project can print without interruptions for adding more filament. XL spools supply 5 lb of PLA filament, while XXL spools supply 10 lb. The Z18 has a push-to-open drawer at the base to hold a large spool of filament, but XL and XXL spools must be fitted into a filament case or other spool system.
- MakerBot Replicator Smart Extruder+
- The MakerBot Replicator Smart Extruder+ detects filament absence and automatically pauses your print. It can also send notifications to the MakerBot Mobile app. The Smart Extruder+ is easily removable and replaceable if necessary.
- Heated Build Chamber
- The Z18 features a heated chamber that maintains an even temperature during lengthy print jobs that can last for days. Keeping your print at an even temperature helps prevent curling and warping.

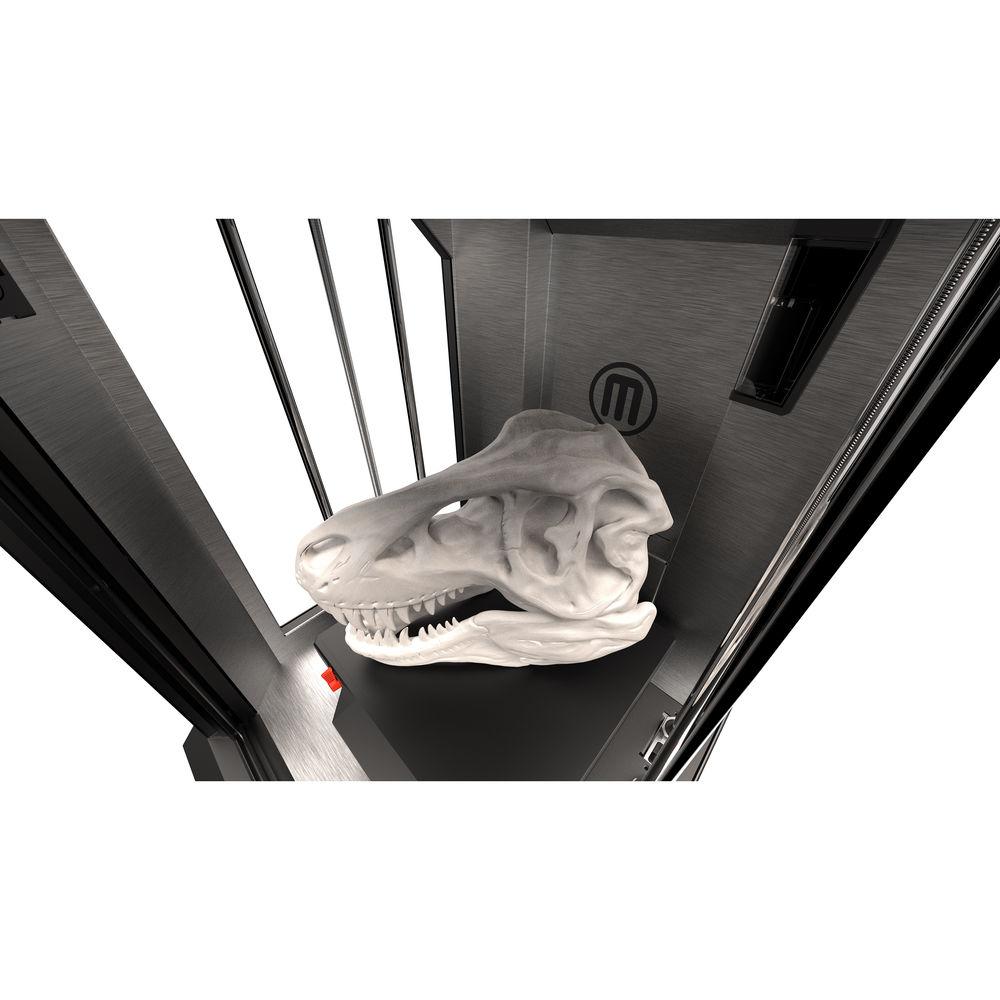

- Flexible Build Plate
- The Z18's build plate is made of flexible polycarbonate plastic which makes it easier to remove your prints. Instead of scraping and peeling your finished object from the build plate, which is especially difficult with the large print sizes made possible by the Z18, simply flex and bend the polycarbonate build plate until your print is completely detached.

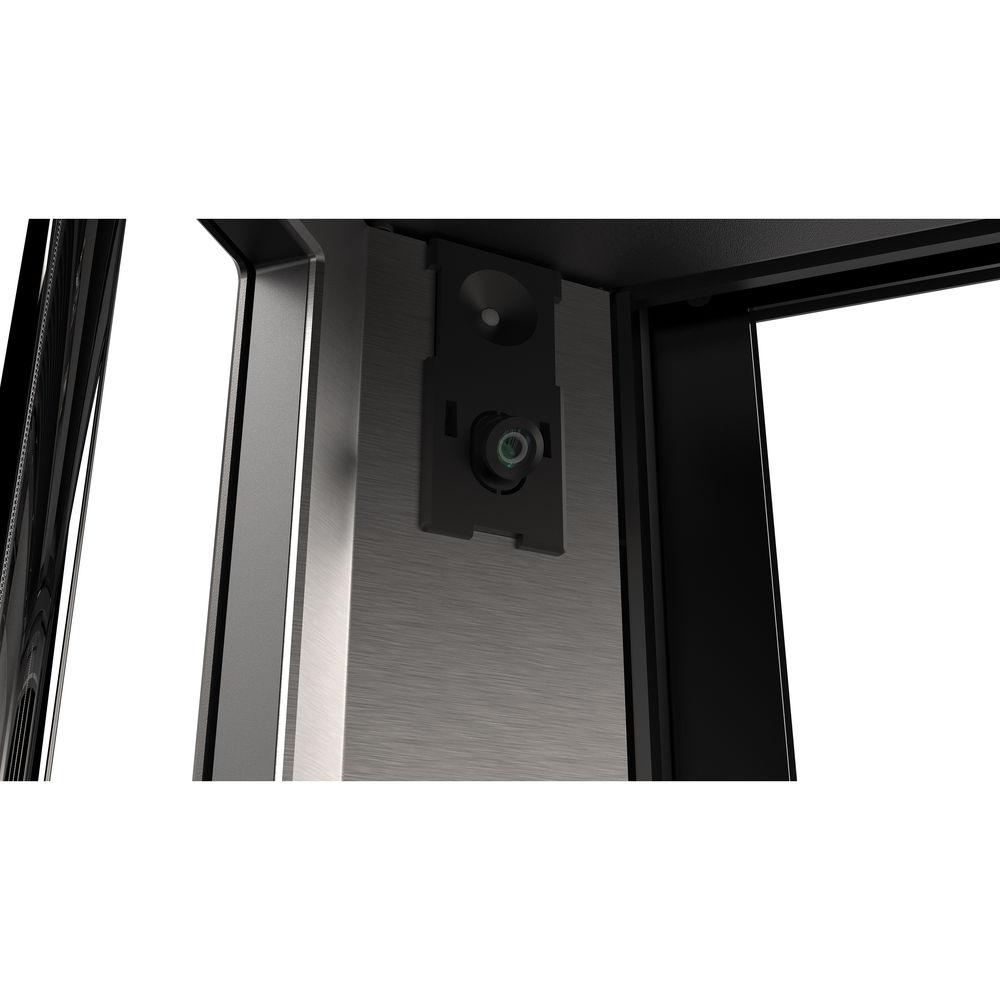

- On-Board Camera
- The Replicator Z18 has an on-board camera for print monitoring and easy sharing to MakerBot Thingiverse and social networks. It is accessible through the MakerBot Print software and automatically takes reference pictures of final prints and saves them to your cloud storage library.

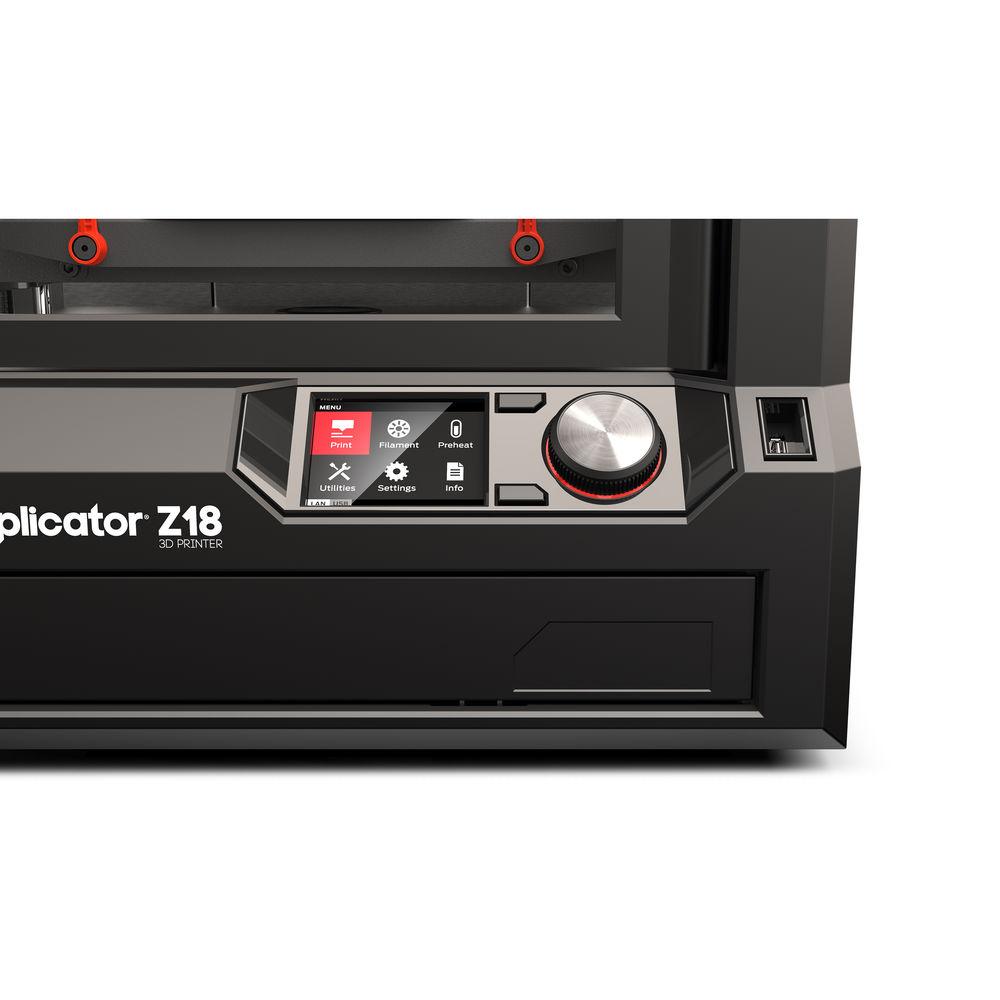

- 3.5" Full Color LCD Display
- With a 3.5" full-color LCD display, you'll be able to access your object library and see previews of your 3D model files right on the Replicator Z18. The on-board interface and intuitive dial are designed to provide a user-friendly experience; while the on-board utilities help you set up and maintain your printer.
- Four Ways to Print
- Connect to your Replicator Z18 in any of four ways - via USB stick, USB cable, Ethernet cable, or wirelessly via Wi-Fi.
- Full-Featured Software
- The MakerBot Desktop software is a free download from MakerBot. It allows you to store, organize, and access 3D design files in your personal cloud-enabled library. You can also find, buy, and prepare your files from one central location.
- Software Supported 3D File Types
- MakerBot (.makerbot), STL (.stl), SolidWorks (.sldprt, .sldasm), InventorOBJ (.ipt, .iam), IGES (.iges, .igs), STEP AP203/214 (.step, .stp), CATIA (.CATPart, .CATProduct), Wavefront Object (.obj), Unigraphics/NX (.prt), Solid Edge (.par, .asm), ProE/Creo (.prt, .prt., .asm, .asm.), VRML (.wrl), Parasolid (.x_t, .x_b)
- Filament Compatability
- PLA and MakerBot Tough PLA
- Customer Support
- MakerBot Support offers comprehensive MakerCare coverage plans and responsive expertise from those who know MakerBot products best. Their support site also offers both intelligent troubleshooting and in-depth product information.
UPC: 817913011777 In the Box MakerBot Replicator Z18 3D Printer MakerBot Replicator Smart Extruder+ Large MakerBot PLA Filament Spool Build Plate Tape Power Cord USB A-to-B Cable 5mm Hex Wrench Limited 6-Month Warranty Limited 90-Day Warranty on Smart Extruder Table of Contents
|
Upload User Manual
Have you got an user manual for the MakerBot Replicator Z18 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMakerBot Z18 Specs | | | Print Technology | Fused Filament Fabrication (FFF) (Marketed as Fused Deposition Modeling (FDM)) | | Build Volume | 11.8 x 12 x 18" / 30.0 x 30.48 x 45.7 cm | | Cubic Build Volume | 2,592 in³ / 42,512 cm³ | | Layer Resolution (XY Axis) | 100 micron / 0.1 mm
200 micron / 0.2 mm
300 micron / 0.3 mm | | Number of Extruders | 1 | | Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Positioning Precision | XY Axis: 11 micron / 0.011 mm
Z Axis: 2.5 micron / 0.0025 mm | | Stepper Motors | 1.8° Step Angle with 1/16 Micro-Stepping | | Filament Diameter | 1.75 mm | | Filament Compatibility | PLA | | | | Build Area | Enclosed | | Filament Spool Storage | External | | Camera | Yes | | Scanner | No | | | | Composition | PC-ABS | | Heated | No | | Leveling | Self-Leveling | | | | USB 2.0 Ports | 1 x Type B
1 x Type A | | Ethernet Ports | Yes | | Supported Wi-Fi Standards | Yes | | Mobile App Connectivity | Yes | | | | Printer Supported 3D File Types | .makerbot | | Software Supported 3D File Types | .makerbot, .obj, .stl, .thing | | Mac OS X Compatibility | 10.9 and Above | | Windows Compatibility | 7
10 | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Operating Temperature | 60 to 75°F / 15 to 23°C | | Storage Temperature | 32 to 100°F / 0 to 37°C | | Dimensions (W x H x D) | 22.2 x 19.4 x 33.6" / 56.39 x 49.28 x 85.34 cm | | Weight | 90.00 lb / 40.82 kg | | | | Package Weight | 123.5 lb | | Box Dimensions (LxWxH) | 38.5 x 28.0 x 25.0" |
