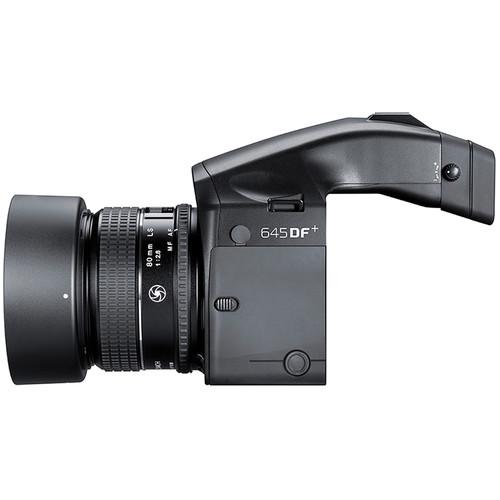

User Manual for Mamiya 645DF Medium Format DSLR Camera with 80mm f 2.8 LS Lens Click to enlarge the picture
Contents of the user manual for the Mamiya 645DF Medium Format DSLR Camera
- Product category: Medium Format Cameras Mamiya
- Brand: Mamiya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mamiya Medium Format Cameras
|
User manual for the Mamiya 645DF Medium Format DSLR Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mamiya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mamiya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mamiya product will considerably shorten its lifespan!
|
Product description The 645DF+ Medium Format DSLR Camera with 80mm f/2.8 LS Lens from Mamiya is an open platform, medium format digital camera that can use a digital back with an image area much larger than standard 35mm, leading to increased image quality. The camera is compatible with multiple brands of digital backs, including Leaf, Hasselblad, and Phase One, due to its open platform design. It also works with Mamiya focal plane lenses, Schneider-Kreuznach leaf shutter lenses, Mamiya 645 AFD lenses, and Hasselblad V lenses. Here it is bundled with the standard length 80mm f/2.8 LS auto focus lens.While using leaf shutter lenses it is possible to reach a flash sync speed of 1/1600 second, and with the focal plane shutter it will sync at 1/125 second. Additionally, the camera features 1st and 2nd curtain synchronization along with an X-sync terminal and support for TTL flash metering.
The 645DF+ features improved auto-focusing system with phase-difference detection and 3 focus points. An infrared AF-assist beam will ensure accuracy even in poor lighting conditions. It also features a custom adjustment feature that allows you to fine-tune the alignment of the body to the back to match your focusing needs.
Customization is emphasized in this model. It features an interchangeable focusing screen and allows for 3 custom dial modes for preferred capture settings. It also features 36 custom settings and programmable dials and buttons.The Mamiya Sekor AF 80mm f/2.8 LS D lens offers a 35mm focal length equivalence of 50mm which is considered a standard length lens with a very versatile perspective. Its f/2.8 maximum aperture is effective in low light and enables shallow depth of field focus. Autofocus is fast and accurate working with the 645DF+ and its minimum focus distance is 2.3'. - Two autofocus modes, Speed Mode and Accuracy Modes
- Average, spot, and auto TTL metering modes
- Shutter can reach speeds of up to 2 frames per second
- Focus confirmation in manual mode
- Exposure compensation from -5 to +5 EV
- Electronic terminal or screw-in cable release for remote triggering
- Flips mirror up with electronically-activated switch on grip
- Fixed prism viewfinder with exchangeable diopter from -5 to +3
- Runs on a rechargeable lithium-ion battery pack, 6 AA batteries, an external battery pack, or an external AC adapter
- Compatible with tripods with 1/4"-20 and 3/8"-16 screws
- Battery charger features a worldwide 100-240V AC power adapter and will charge the battery in approximately 5 hours
- The Mamiya Sekor AF 80mm f/2.8 LS D lens offers a 35mm focal length equivalence of 50mm which is considered a standard length lens with a versatile perspective, useful for a wide variety of applications. Its f/2.8 maximum aperture is effective in low light and enables shallow depth of field focus. Autofocus is fast and accurate working with the 645DF+ and its minimum focus distance is 2.3'. It provides a 72mm filter thread and weighs just 1.1 lb.
In the Box Mamiya 645DF+ Medium Format DSLR Camera with 80mm f/2.8 LS Lens Standard Blank Focusing Screen AA Battery Magazine Lithium-Ion Rechargeable Battery Battery Charger Mamiya Sekor AF 80mm f/2.8 LS D Lens Front Lens Cap Rear Lens Cap Limited 1-Year Warranty User Manual PDF 13.9mbxtxvvquffvtrxxttcuwcdfvwqtwerye Table of Contents
|
Upload User Manual
Have you got an user manual for the Mamiya 645DF Medium Format DSLR Camera with 80mm f 2.8 LS Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMamiya 645DF+ Specs | | | Camera Type | Medium-format DSLR camera | | Image Area Size | 56 x 41.5 mm (actual image) | | Lens Mount | Mamiya 645 | | | | Shutter Speed | 1/4000 sec - 60 min | | Exposure Modes | Aperture priority AE
Shutter speed priority AE
Program AE
Manual
Bulb
Time | | Metering Options | TTL Metering: Center-weighted average, spot, or automatic | | Exposure Compensation | -5 to +5 EV | | | | Focus Type | Phase-difference autofocus with 3 focus points | | Focusing Screen | Interchangeable: Matte, checker, or sensor crop | | | | External Flash Connection | X sync terminal | | Maximum Flash Synchronization Speed | Focal Plane Shutter: 1/125 sec
Leaf Shutter Lenses: 1/1600 sec | | Flash Control | Automatic TTL control | | | | Power Options | Rechargeable Li-ion battery
6 x AA batteries (alkaline, lithium-ion, Ni-MH, Ni-Cd)
External AC adapter | | Charger | Battery Charger: 100-240 VAC | | | | Tripod Socket | 1/4"-20 and 3/8"-16 | | Dimensions | 6.0 x 5.0 x 6.0" (153.0 x 128.0 x 152.0 mm) | | Weight | 35 oz (1030 g) | | | | Mount | Mamiya 645 AF | | Focal Length | 80mm | | Equivalent 35mm Focal Length | 50mm | | Aperture Range | f/2.8 - 22 | | Focus Systems | AF/MF | | Minimum Focus Distance | 2.3' (70 cm) | | Front Filter Thread Size | 72 mm | | Dimensions | 2.5 x 3.4" (64.4 x 86.5 mm) | | Weight | 1.1 lb (500 g) | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 15.1 x 14.0 x 11.7" |
