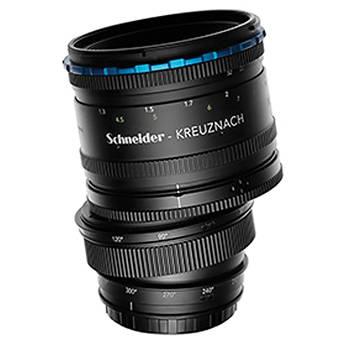

User Manual for Mamiya Schneider Kreuznach 120mm f 5.6 Tilt-Shift Aspherical Lens Click to enlarge the picture
Contents of the user manual for the Mamiya Schneider Kreuznach 120mm f 5.6
- Product category: Medium Format Lenses Mamiya
- Brand: Mamiya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mamiya Medium Format Lenses
|
User manual for the Mamiya Schneider Kreuznach 120mm f 5.6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mamiya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mamiya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mamiya product will considerably shorten its lifespan!
|
Product description The Schneider Kreuznach 120mm f/5.6 Tilt-Shift Aspherical Lens from Mamiya Leaf is a perspective control lens designed by Schneider Kreuznach for the 645 AF-mount camera bodies. Its short telephoto perspective produces a 35mm-equivalent focal length of 74mm when used with Credo 80/60 digital backs, or 95mm with Credo 40 backs. This lens incorporates an aspheric element and features an apochromatically-corrected design to minimize chromatic aberrations and produce notable image sharpness.
Greatly benefitting architectural, interior, product, and still life photographers, this tilt-shift lens affords greater control over focus and perspective to realize both natural results as well as creative effects. The lens can rotate up to 360° around two axes, shift 12mm, and tilt up to 8°. - Designed by Schneider Kreuznach for 645 AF-mount camera bodies.
- Short telephoto tilt-shift lens is ideal for a wide variety of applications, including architecture, interiors, product photography, and still life.
- For perspective control and precise focus adjustment, the lens can tilt up to 8°, shift 12mm, and rotate 360° around two axes.
- The apochromatic design incorporates an aspherical element to help minimize chromatic aberrations.
- When used on Credo 80/60 or Aptus-II 12/10 digital backs, the 35mm-equivalent focal length is 74mm. With Aptus-II 7/5 backs, the equivalent focal length is 79mm; and with Credo 40 or Aptus-II 8/6 backs, the equivalent focal length is 95mm.
In the Box Mamiya Schneider Kreuznach 120mm f/5.6 Tilt-Shift Aspherical Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mamiya Schneider Kreuznach 120mm f 5.6 Tilt-Shift Aspherical Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMamiya 70285 Specs | Focal Length | 120 mm | | Aperture | Maximum: f/5.6
Minimum: f/22 | | Camera Mount | Mamiya 645 AF | | Minimum Focus Distance | 2.76' / 84.12 cm | | Optical Design | 6 Elements in 4 Groups | | Magnification | 0.16x | | Autofocus | No | | Movements | Tilt ± 8 °
Horizontal Shift: ± 12 mm
Vertical Shift: ± 12 mm | | Filter Thread | Front: Bay Filter Thread 8 | | Dimensions | Approx. 5.31 x 4.17" (135 x 106 mm) | | Weight | 2.28 lb / 1038 g | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 10.5 x 10.3 x 10.0" |
