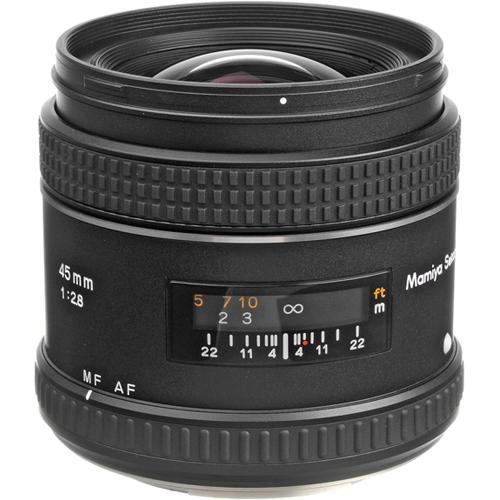

User Manual for Mamiya Sekor 45mm f 2.8 D Lens for 645-AF Click to enlarge the picture
Contents of the user manual for the Mamiya Sekor 45mm f 2.8 D
- Product category: Medium Format Lenses Mamiya
- Brand: Mamiya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mamiya Medium Format Lenses
|
User manual for the Mamiya Sekor 45mm f 2.8 D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mamiya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mamiya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mamiya product will considerably shorten its lifespan!
|
Product description The Mamiya Sekor 45mm f/2.8 D Lens is a moderately wide angle lens for the Mamiya 645 AF system cameras which has been totally redesigned to function brilliantly with Mamiya digital backs such as the ZD and others. It is precision manufactured in Mamiya's facilities in Japan. As a lens designed from the ground up with the digital capture in mind, it has low-dispersion glass and floating lens elements to ensure edge-to-edge sharpness at any focusing distance without chromatic aberration. Wide angle lenses, due to the nearly-parallel angle at which light rays can hit the sensor at the edges of the field, have been known to cause color shifting with digital backs. But the Mamiya Sekor 45mm f/2.8 D lens directs its light rays so that they're all parallel when reaching the sensor, producing maximum sharpness and more importantly highest color accuracy. The Mamiya Sekor AF 45mm f/2.8 D lens has a 16-bit CPU chip. This allows easy firmware upgrading, fine lens characteristic correction, and reliable communication between lens and camera body and digital back (when used with Mamiya 645 AFD II & 645 AFD III). The lens' native angle of view is 76°, equivalent to a 28mm lens in conventional 35mm camera terms. The Sekor 45mm D's especially suited to architectural photography, where it will show off its ability to render perfectly-straight lines. - Moderate wide angle lens for the 645 AF series cameras
- Equivalent to 28mm lens in 35mm camera terms, or a 32mm lens when used with the ZD digital back
- Ideally corrected for digital use, with parallel light rays and nearly nonexistent chromatic aberration
- Reaches a short focusing distance of 17.7"
In the Box Mamiya Sekor 45mm f/2.8 D Lens for 645-AF Front and Rear Caps Lens Hood Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mamiya Sekor 45mm f 2.8 D Lens for 645-AF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMamiya 800-58000A Specs | Focal Length | 45 mm | | Aperture | Maximum: f/2.8
Minimum: f/22 | | Camera Mount | Mamiya 645 AF | | Angle of View @ Infinity | 76° | | Minimum Focus Distance | 1.48' / 45.11 cm | | Area of Coverage | 461 x 341 mm | | Optical Design | 8 Elements in 7 Groups | | Magnification | 0.14x | | DOF Scale | Yes | | Distance Scale | Yes | | Autofocus | Yes | | Tripod Collar | No | | Filter Thread | Front: 67 mm | | Dimensions | Approx. 2.9 x 3.0" (73.66 x 76.20 mm) | | Weight | 17.46 oz / 495 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.9 x 5.7 x 5.6" |
