Manfrotto 057 Magnesium Ball Head Kit

User Manual for Manfrotto 057 Magnesium Ball Head Kit with 501PL Quick Release Plates

• Product category: Tripod Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Heads

Product description

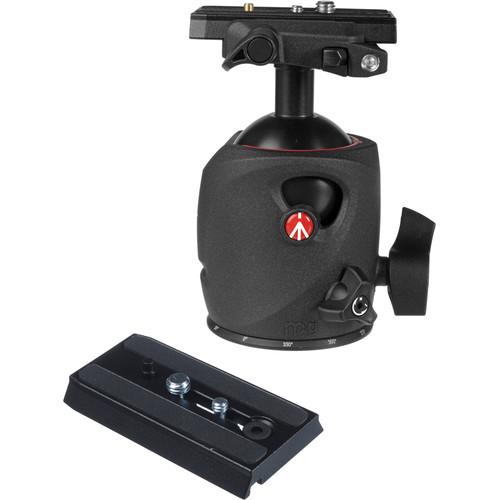

• Manfrotto 057 Magnesium Ball Head with 501PL Quick Release Plate
  • Manfrotto 057 Series Demo
  This 057 Magnesium Ball Head from Manfrotto features an integrated RC5 quick release cam lock and a 501PL Quick Release Plate. Compatible quick release plates can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

  The 057 Magnesium Ball Head with 501PL Quick Release Plate has a load capacity of 33.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the 057's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Finally, a two-position slide-switch at the base of the ball-and-socket joint allows it to be tilted down to either a 90° or a 103° angle before it is locked into place using the primary locking knob. The ability to tilt the ball-and-socket joint down to angle beyond 90° can be used to quickly level a camera placed on this 057 Magnesium Ball Head without having to adjust the tripod the ball head is connected to.

  Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 501PL Quick Release Plate which measures 2.0 x 3.5 x 0.4" and has a rubberized, non-slip surface.
  057 Magnesium Ball Head
  • • 33.1 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° or 103° angle, and can be locked into place
    • Integrated RC5 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control knob for the ball-and-socket joint's movements
    • Two-position slide-switch at the base of the ball-and-socket joint allows it to be tilted down to either a 90° or a 103° angle before it is locked into place using the primary locking knob
    • Two bubble levels for landscape orientations and one bubble level for portrait orientations
    • Durable, magnesium-alloy construction
  501PL Quick Release Plate
  • • Compatible with Manfrotto RC5 quick release cam lock
    • Measures 2.0 x 3.5 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 and 3/8"-16 mount
    • Removable, Anti-Twist Index Pin
    • Durable, aluminum-alloy construction
  UPC: 719821324256
• Manfrotto 501PL Sliding Quick Release Plate with 1/4"-20 Screw
  • Manfrotto 057 Series Demo
  The Manfrotto 501PL Quick Release Plate is a 3.38" long sliding quick release plate compatible with heads that use the RC5 quick release system. It comes supplied with one 1/4"-20 screw and one 3/8"-16 adapter bushing, and features a location (video) pin.Replaces old part #3433PL. UPC: 719821288459

• 057 Magnesium Ball Head with 501PL Quick Release Plate drqacfextz
• 501PL Sliding Quick Release Plate with 1/4"-20 Screw
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 501PL Sliding Quick Release Plate with 1/4"-20 Screw

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 057 Magnesium Ball Head with 501PL Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male, 3/8"-16 Male
  Quick Release Plate Type	Q5
  Load Capacity	33.1 lb / 15.01 kg
  Number of Bubble Levels	3
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Magnesium

  Lateral Tilt

  -103 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 11 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
