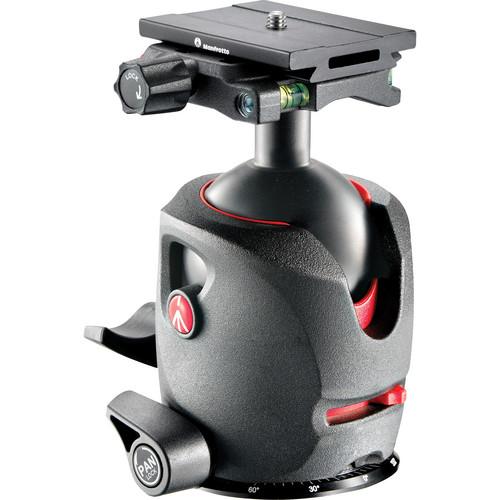

User Manual for Manfrotto 057 Magnesium Ball Head with MSQ6PL Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Manfrotto 057 Magnesium Ball Head with
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
|
User manual for the Manfrotto 057 Magnesium Ball Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This 057 Magnesium Ball Head from Manfrotto features an integrated Arca-type clamp and a MSQ6PL Quick Release Plate. Arca-type compatible quick release plates can be attached or removed from the clamp by tightening or loosening the clamp's locking knob. Within the recessed surface between the clamp's jaws is a retaining pin, which prevents an installed quick release plate from accidentally sliding off when the clamp is opened.
The 057 Magnesium Ball Head with MSQ6PL Quick Release Plate has a load capacity of 33.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the 057's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Finally, a two-position slide-switch at the base of the ball-and-socket joint allows it to be tilted down to either a 90° or a 103° angle before it is locked into place using the primary locking knob. The ability to tilt the ball-and-socket joint down to angle beyond 90° can be used to quickly level a camera placed on this 057 Magnesium Ball Head without having to adjust the tripod the ball head is connected to.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the MSQ6PL Quick Release Plate, which measures 2.8 x 2.2 x 0.4". - 057 Magnesium Ball Head
-
- 33.1 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° or 103° angle, and can be locked into place
- Integrated Arca-type clamp on top of on the ball-and-socket joint is compatible with Arca-type quick-release plates
- Retaining pin on the clamp prevents a quick release plate from accidentally sliding off when the clamp is opened
- Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob allows head to rotate 360°
- Dedicated tension control knob for the ball-and-socket joint's movements
- Two-position slide-switch at the base of the ball-and-socket joint allows it to be tilted down to either a 90° or a 103° angle before it is locked into place using the primary locking knob
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable, magnesium-alloy construction
- MSQ6PL Quick Release Plate
-
- Compatible with Arca-type quick release clamps
- Measures 2.8 x 2.2 x 0.4"
- 1/4"-20 mount
UPC: 719821348368 In the Box Manfrotto 057 Magnesium Ball Head with MSQ6PL Quick Release Plate MSQ6PL Quick Release Plate for Q6 Top Lock System Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 057 Magnesium Ball Head with MSQ6PL Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 057 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Q6 | | Load Capacity | 33.1 lb / 15.01 kg | | Number of Bubble Levels | 3 | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Magnesium | | | | Lateral Tilt | -103
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
