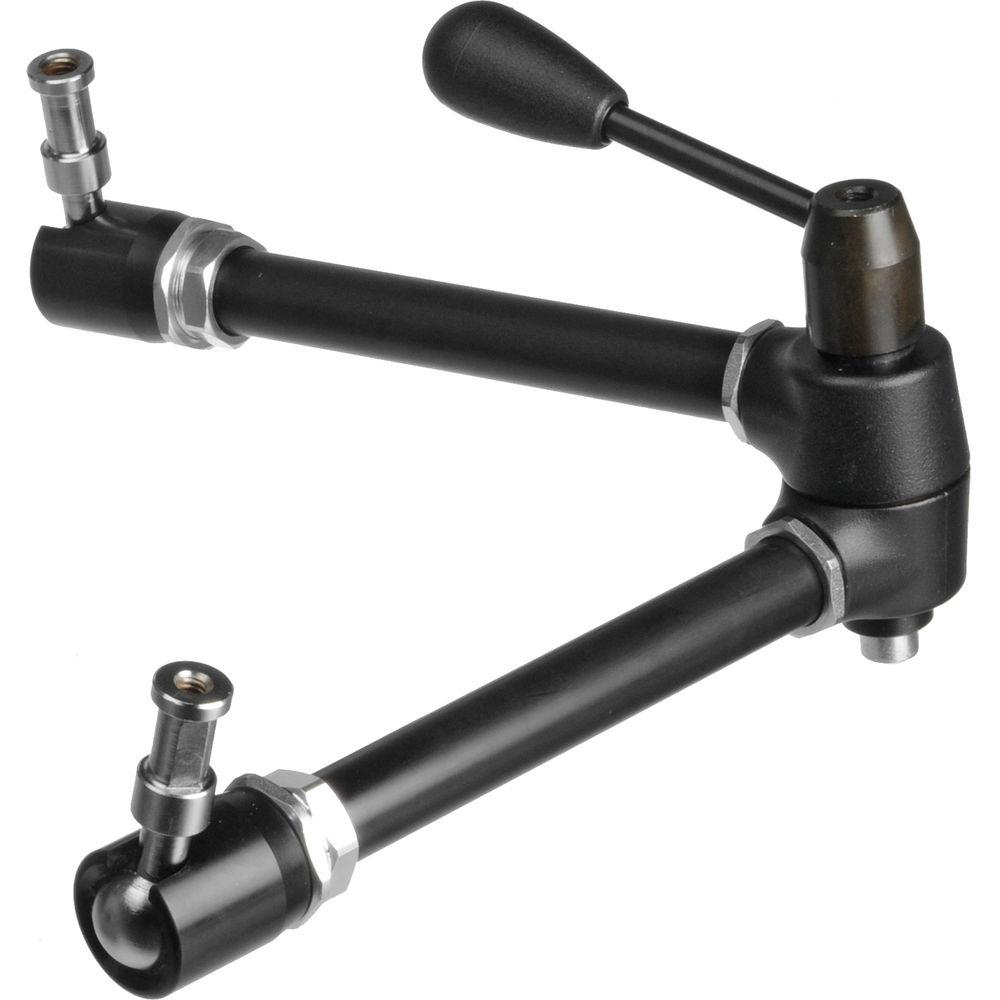

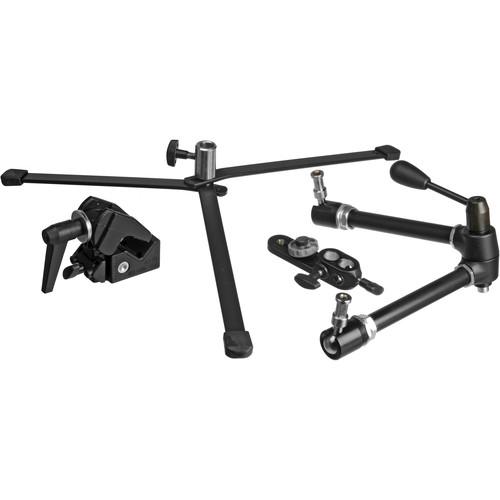

Product description The Manfrotto 143 Magic Arm Kit is designed to hold a light fixture or camera in place, in a variety of situations. The heart of the kit is the Magic Arm - an elbow arm, with sure locking lever control at the pivot. The removable camera mount pans and locks, and has a standard 1/4-20" thread mount. With the camera mount removed, it will accept any light fixture up to 6.6 lb that has a baby (5/8") receptor. - 143N Magic Arm without Camera Bracket The Manfrotto 143N Magic Arm without Camera Bracket is designed to hold a light fixture in place, in a variety of situations. It is an elbow arm, with sure locking lever control at the pivot. It will accept any light fixture up to 6.6 lbs that has a baby (5/8") receptor.
- The Magic Arm is modular -- Stand it on the floor or a table with an optional Backlite base (3095).
- The Magic Arm is modular -- Lock it into an optional Super (2915), or Maffer Clamp, on a pipe or shelf from 1/2 - 2" in diameter or thickness.
- The Magic Arm is modular -- Use it to mount a camera with the optional camera bracket (143BKT), or order #2930 which includes the mount.

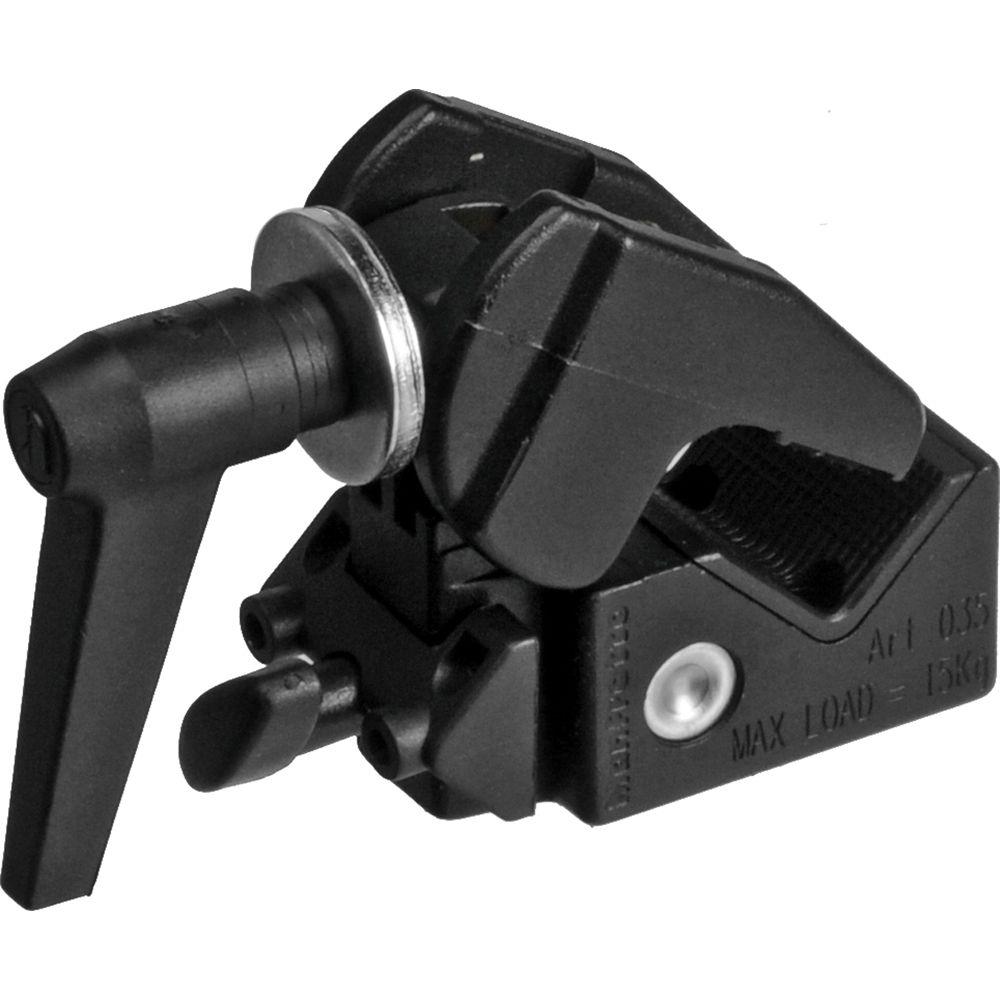

UPC: 719821235392 - 035 Super Clamp without Stud The Manfrotto 2915 Super Clamp is made of lightweight cast alloy. The Super Clamp is a very versatile tool and it holds just about anything: cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps. In turn, the Super Clamp can be securely mounted on any tube from 0.5" to 2.1". An attached wedge can be removed and placed in the jaw for flat surfaces. A built-in socket allows the use of over 30 attachments to hold anything from backgrounds to lighting fixtures. Note: The Stud (#03614) is not included. For this item with the stud, order #035RL. This item replaces old catalog #2915. UPC: 719821287728

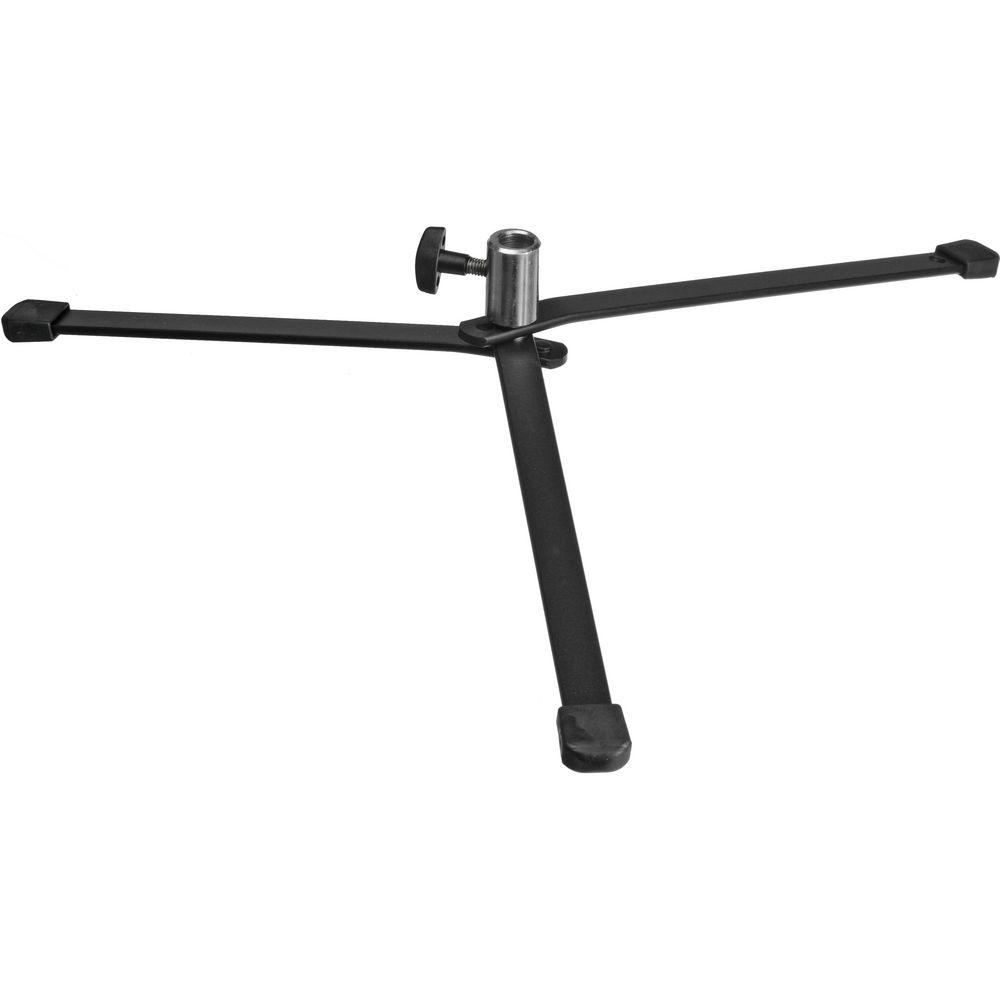

- 003 Backlight Stand Base with Spigot (Black, 3.5") This Manfrotto 003 Backlight Stand Base with Spigot allows you to mount a lighting fixture close to the floor or table with its 3.5" high steel stand base. This is a base and double-ended spigot only.
- Quick Set Up
-
- Sets up easily in a matter of seconds
- Folds flat
- Very Stable
- Engineered to be stable under recommended loads

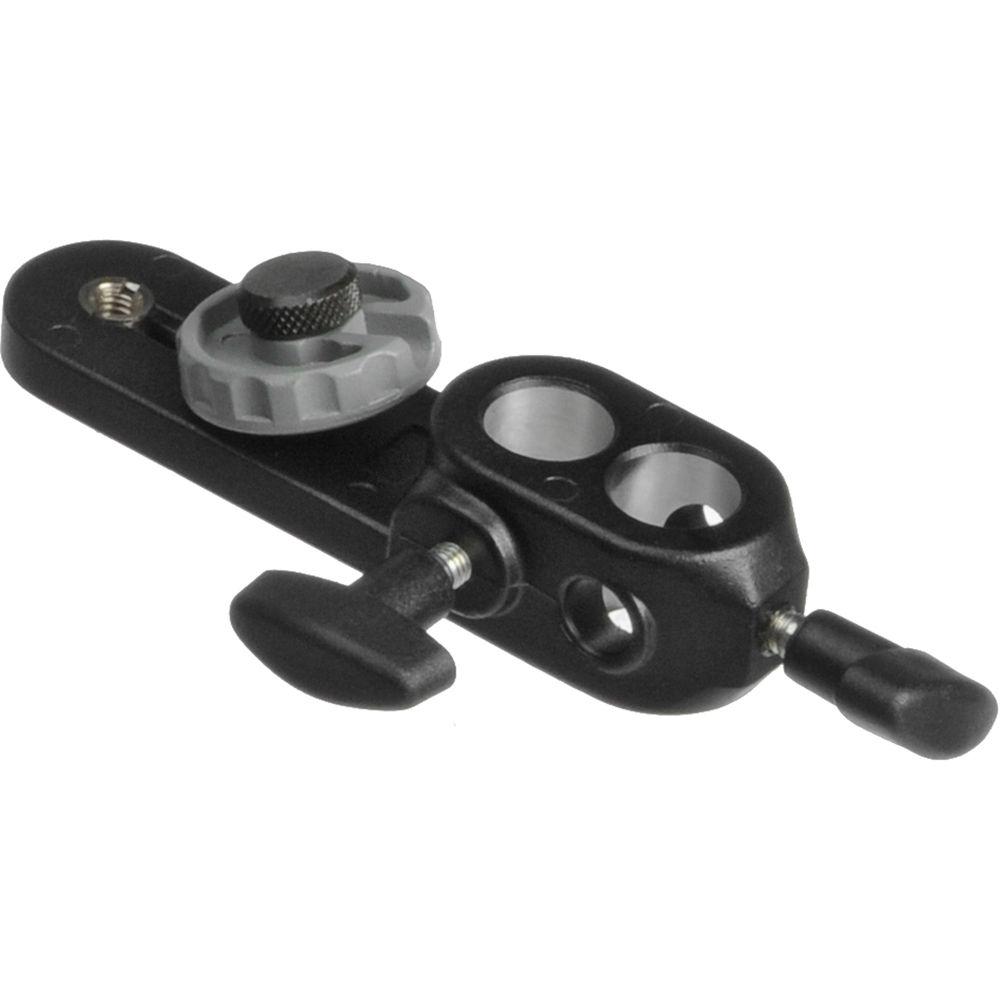

UPC: 719821198727 - 143BKT Camera Platform for Magic Arm The Manfrotto 143BKT Camera Platform is a replacement camera platform for the Magic Arm. It has a standard 1/4-20 inch thread mount for a small camera. UPC: 719821151685
In the Box Bundle Items 143N Magic Arm without Camera Bracket cwwarawqfyas 035 Super Clamp without Stud - Limited 8-Year Warranty Extension after Online Registration
003 Backlight Stand Base with Spigot (Black, 3.5") - Limited 3-Year Warranty Extension after Online Registration
143BKT Camera Platform for Magic Arm - 1 Year Manufacturer's Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 143 Magic Arm Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 143N Magic Arm without Camera Bracket
| Capacity | 6.6 lbs (3 kg) | | Weight | 2.4 lbs (1 kg) | | | | Box Dimensions (LxWxH) | 13.4 x 6.3 x 2.0" | - 035 Super Clamp without Stud
| Clamp Type | Jaw | | Jaw Shape | Round | | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | | Mount Type | 1 x 5/8" Receiver | | Load Capacity | 33.1 lb / 15.0 kg | | Weight | 0.9 lb / 0.41 kg | | | | Box Dimensions (LxWxH) | 8.3 x 4.7 x 2.2" | - 003 Backlight Stand Base with Spigot (Black, 3.5")
| Load Capacity | 33 lb / 15 kg | | Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Receiver
5/8" Stud | | Maximum Working Height | 3.5" / 8.9 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Collapsed Height | 12" / 30.5 cm | | Footprint Diameter | 23.6" / 59.9 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.1 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 13.5 x 3.4 x 1.5" | - 143BKT Camera Platform for Magic Arm
| | | Box Dimensions (LxWxH) | 6.0 x 3.0 x 1.0" |
