Product description

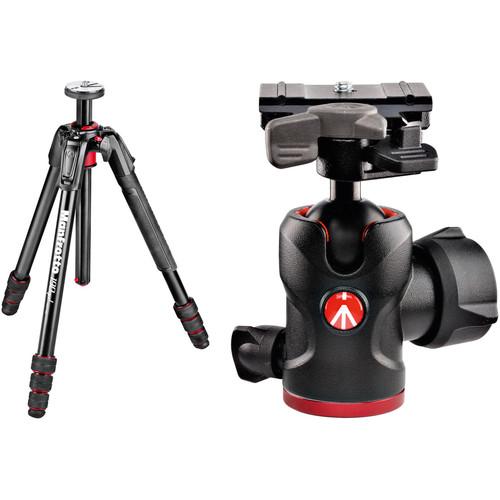

• Manfrotto 190go! Aluminum M-Series Tripod An especially compact yet versatile tripod, the 190go! Aluminum M-Series Tripod from Manfrotto has a maximum height of 59.8" with the center column fully extended, yet its four-section legs afford a folded length of just 17.7". Its aluminum construction weighs 3.7 lb and can support over 15 lb of gear.

  Enabling fast setup and take-down, as well as a streamlined profile, the M-Lock System twist locks are used and require just a single 90° rotation movement to swiftly deploy the individual leg sections. The 190go! is also characterized by its center column that can positioned at a 90° angle, parallel to the ground, for working from a minimum height of just 3.5". The independent leg sections, with four set leg positions, benefit working on uneven grounds and D-shaped aluminum tubes offer greater torsional support for greater stability. Additionally, an Easy Link attachment in the top casing extends the versatility of the tripod and allows for attaching an LED light, reflector, or other accessories without the need for an additional stand or rig. UPC: 719821419242
• Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate This Manfrotto 494 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

  The 494 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.
  494 Center Ball Head
  • • 17.6 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Integrated RC2 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control dial for the ball-and-socket joint's movements
    • Durable, aluminum-alloy construction
  200PL-PRO Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
    • Measures 1.7 x 2.1 x 0.4"
    • 1/4"-20 mount with support for 3/8"-16 via bushing adapter
    • Durable, aluminum-alloy construction
  UPC: 719821423904

• 190go! Aluminum M-Series Tripod rxtdrszfxfrsxwcabxtcbxecrtxzc
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 494 Center Ball Head with 200PL-PRO Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 190go! Aluminum M-Series Tripod

  Load Capacity	15.43 lb / 7 kg
  Maximum Working Height	59.8" / 152 cm
  Max Height without Center Column	50.00" / 127 cm
  Minimum Working Height	3.5" / 9 cm
  Folded Length	17.72" / 45 cm
  Head Mount Type	3/8"-16 Screw
  Weight	3.66 lb / 1.66 kg
  Materials	Aluminum Alloy

  Leg Lock Type	Twist Lock
  Leg Positions	4 Positions
  Independent Leg Spread	Yes
  Leg Sections	4
  Leg Diameter	0.61" / 15.5 mm 0.75" / 19 mm 0.89" / 22.5 mm 1.02" / 26 mm
  Feet Features	Rubber

  Center Column Shape	Round
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes
  Center Column Rotation	90°

  Box Dimensions (LxWxH)	23.0 x 16.0 x 11.0"

• Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Female
  Camera Mounting Screw	1/4"-20 Male & 3/8"-16 with Bushing
  Quick Release Plate Type	Arca-Type, RC2
  Load Capacity	17.6 lb / 7.98 kg
  Number of Bubble Levels	None
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Aluminum

  Lateral Tilt
