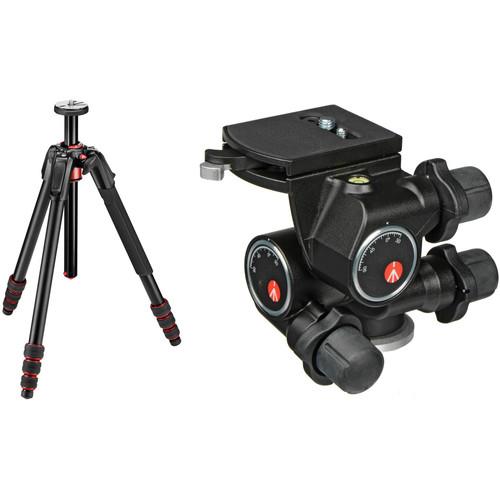

Manfrotto 190go! Aluminum Tripod and 410

User Manual for Manfrotto 190go! Aluminum Tripod and 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate Kit

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto 190go! Aluminum Tripod The 190go! Aluminum Tripod from Manfrotto a compact support weighing 3.7 lb that extends up to 57.5" high and folds down to 17.7". Utilizing twist locks, the tripod can be quickly set up and broken down with a simple twist of the wrist.

  The center column on the 190go! can be positioned at a 90° angle, parallel to the ground, allowing the tripod to reach its lowest height of just 2.75". An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. UPC: 719821387879
• Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate This 410 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 11.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.

  Cameras or accessories that are compatible with a 1/4"-20 or 3/8-16" mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, 4-star grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 410 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

  To further promote fast and repeatable device positioning, this 410 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.
  410 3-Way, Geared Pan-and-Tilt Head
  • • 11.0 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
    • Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, 4-star grips
    • Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
    • An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
    • Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
    • Integrated, RC4 quick release cam lock
    • Built-in bubble level
    • Durable, aluminum-alloy construction
  410PL Quick Release Plate
  • • Compatible with Manfrotto RC4 quick release cam lock
    • Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
    • 1/4"-20 and 3/8"-16 mount
    • Durable, aluminum-alloy construction
  UPC: 719821287681

• 190go! Aluminum Tripod zfzdzcswdxextdwuau
• Limited 5-Year Warranty, Extendable to 10 Years with Registration

• 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 190go! Aluminum Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	57.5" / 146.1 cm
  Max Height without Center Column	48" / 121.9 cm
  Minimum Working Height	2.8" / 7 cm
  Folded Length	17.7" / 45 cm
  Head Mount Type	3/8"-16 Screw
  Weight	3.7 lb / 1.7 kg
  Materials	Aluminum Alloy

  Leg Lock Type	Twist Lock
  Leg Positions	4 Positions
  Leg Sections	4

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	22.1 x 6.3 x 5.4"

• Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male, 3/8"-16 Male
  Quick Release Plate Type	RC4
  Load Capacity	11.0 lb / 4.99 kg
  Number of Bubble Levels	1
  Material	Aluminum

  Lateral Tilt
