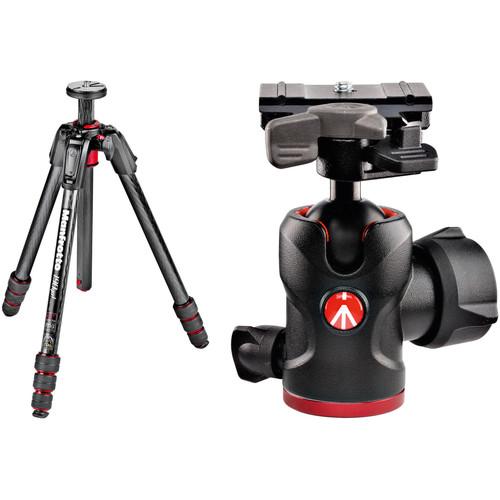

User Manual for Manfrotto 190go! Carbon Fiber M-Series Tripod and 494 Ball Head Kit with 200PL-PRO Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Manfrotto 190go! Carbon Fiber M-Series Tripod
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto 190go! Carbon Fiber M-Series Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More Set up quickly and be ready to shoot with the Manfrotto 190go! Carbon Fiber M-Series Tripod and 494 Ball Head Kit with 200PL-PRO Quick Release Plate from . The M-lock system allows you to rapidly lock or unlock the legs effortlessly. At the same time, the 494 ball head maintains your camera stable for creating sharp images. - Manfrotto 190go! Carbon Fiber M-Series Tripod An especially compact yet versatile tripod, the 190go! Carbon Fiber M-Series Tripod from Manfrotto has a maximum height of 57.9" with the center column fully extended, yet its four-section legs afford a folded length of just 17.7". Its lightweight carbon fiber construction weighs 3 lb and can support over 15 lb of gear.
Enabling fast setup and take-down, as well as a streamlined profile, the M-Lock System twist locks are used and require just a single 90° rotation movement to swiftly deploy the individual leg sections. The 190go! is also characterized by its center column that can be positioned at a 90° angle, parallel to the ground, for working from a minimum height of just 3.5". The independent leg sections, with four set leg positions, benefit working on uneven grounds and the carbon fiber tubing is both lightweight and rigid for high stability. Additionally, an Easy Link attachment in the top casing extends the versatility of the tripod and allows for attaching an LED light, reflector, or other accessories without the need for an additional stand or rig. UPC: 719821419259 - Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate This Manfrotto 494 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.
The 494 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp. - 494 Center Ball Head
-
- 17.6 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Integrated RC2 quick release cam lock
- Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob allows head to rotate 360°
- Dedicated tension control dial for the ball-and-socket joint's movements
- Durable, aluminum-alloy construction
- 200PL-PRO Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
- Measures 1.7 x 2.1 x 0.4"
- 1/4"-20 mount with support for 3/8"-16 via bushing adapter
- Durable, aluminum-alloy construction
UPC: 719821423904 In the Box - 190go! Carbon Fiber M-Series Tripod sxuvqaewtudeyyuwyqrz
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 494 Center Ball Head with 200PL-PRO Quick Release Plate sxuvqaewtudeyyuwyqrz
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 190go! Carbon Fiber M-Series Tripod and 494 Ball Head Kit with 200PL-PRO Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 190go! Carbon Fiber M-Series Tripod
| | | Load Capacity | 15.43 lb / 7 kg | | Maximum Working Height | 57.9" / 147 cm | | Max Height without Center Column | 48.43" / 123 cm | | Minimum Working Height | 3.1" / 8 cm | | Folded Length | 17.72" / 45 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 2.98 lb / 1.35 kg | | Materials | Carbon Fiber | | | | Leg Lock Type | Twist Lock | | Leg Positions | 4 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 0.58" / 14.7 mm
0.72" / 18.2 mm
0.85" / 21.7 mm
1.00" / 25.3 mm | | Feet Features | Rubber | | | | Center Column Shape | Round | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | Center Column Rotation | 90° | | | | Box Dimensions (LxWxH) | 22.0 x 5.0 x 5.0" | - Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Female | | Camera Mounting Screw | 1/4"-20 Male & 3/8"-16 with Bushing | | Quick Release Plate Type | Arca-Type, RC2 | | Load Capacity | 17.6 lb / 7.98 kg | | Number of Bubble Levels | None | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Lateral Tilt | -90
